MS105GS-M2
即將引進

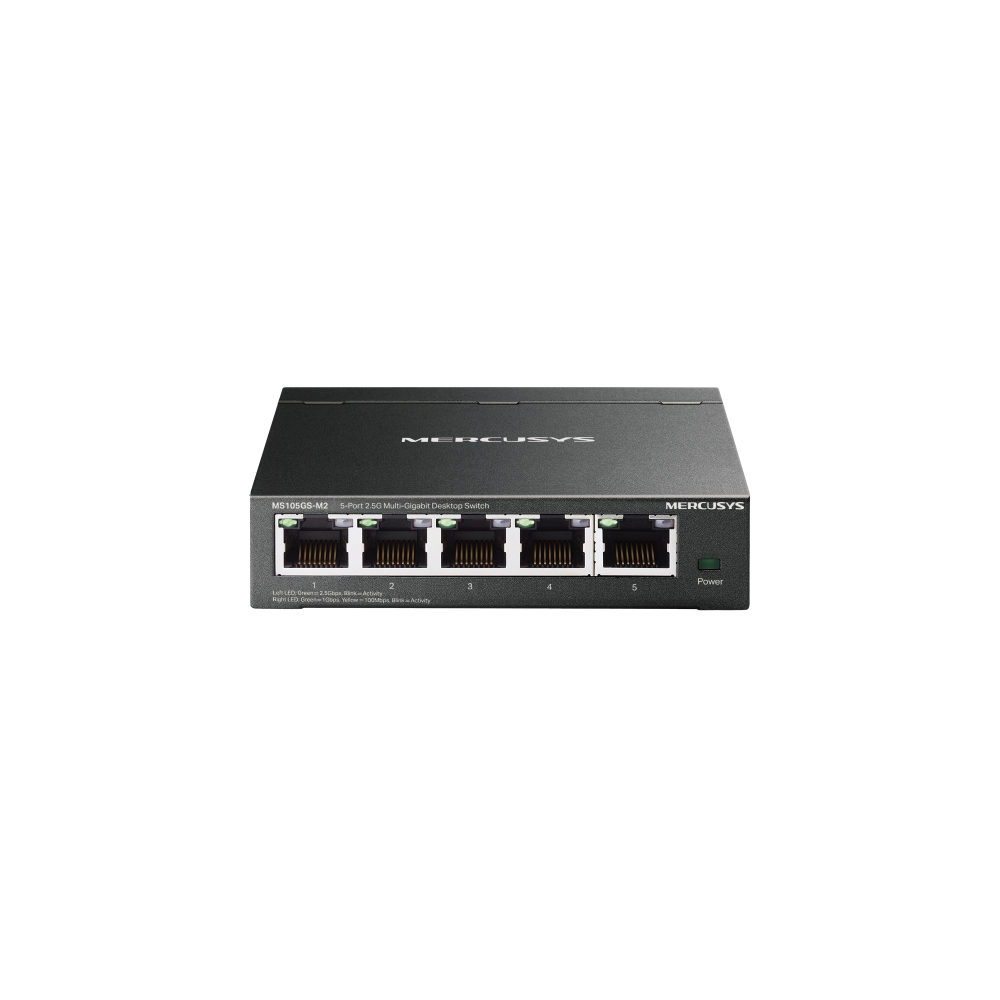

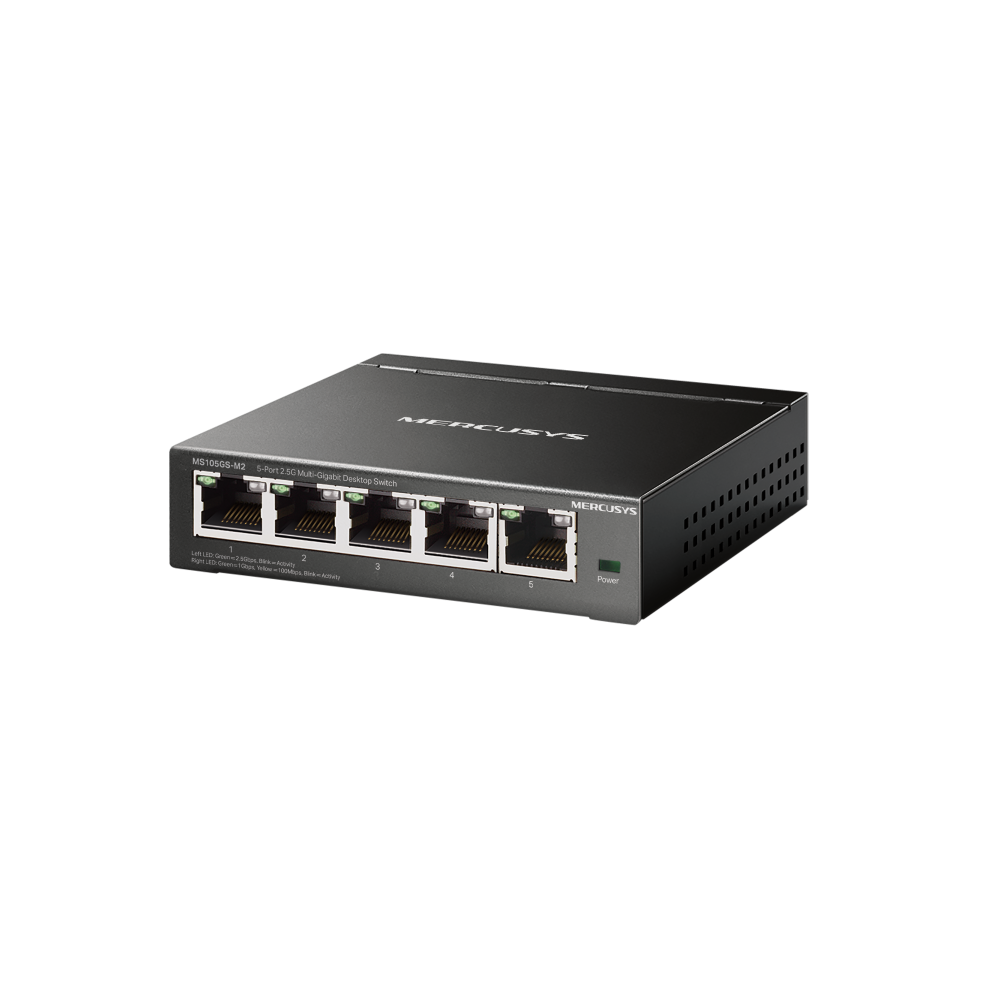

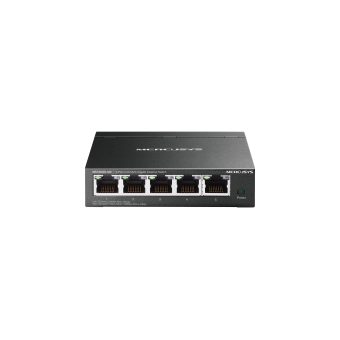

5-Port 2.5G Multi-Gigabit Desktop Switch
- Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, providing up to 25 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6E/6 AP, 4K video, and more.
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for noise-sensitive environments.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Plug and Play. Easy installation, no configuration required.
*Only Cat5e or better cables do not need to be replaced
- 軟體功能
- 傳輸模式
Store and Forward
- Advanced Features
• 802.3X Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
- 硬體功能
- 連接介面
5× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- 外接式電源供應器
External Power Adapter (Output: 9 VDC / 0.6 A)
- 標準與協定
IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
- 風扇數量
Fanless
- 巨大訊框
12 KB
- 背板頻寬
25 Gbps
- LED燈號
• Power
• Link/Act Indicators- Mac 位址表
4 K
- 最大功耗
5.81 W
- 最大散熱
19.754 BTU/h
- Performance
- Packet Forwarding Rate
18.6 Mpps
- General
- Dimensions ( W x D x H )
3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
- 其他
- 認證
CE, FCC ,RoHS
- 包裝內容
• 5-Port 2.5G Multi-Gigabit Desktop Switch MS105GS-M2
• Power Adapter
• Installation Guide
• Rubber Feet- 環境
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
