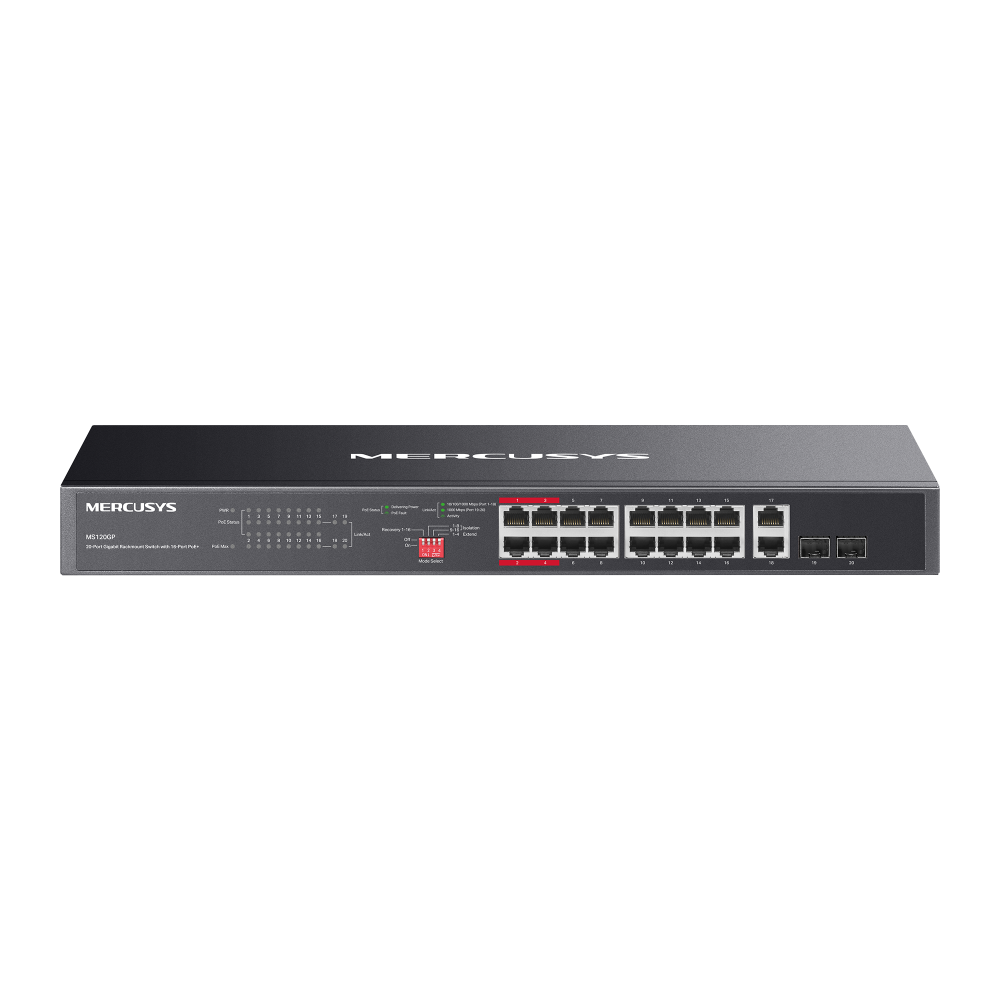

MS120GP [V1] | 20-Port Gigabit Rackmount Switch with 16-Port PoE+
MS120GP
20-Port Gigabit Rackmount Switch with 16-Port PoE+
- 16× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports, and 2× Combo Gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 192 W* for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
- Hardware
- PoE Ports
RJ45 Ports
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–16
• Power Supply: 192W
