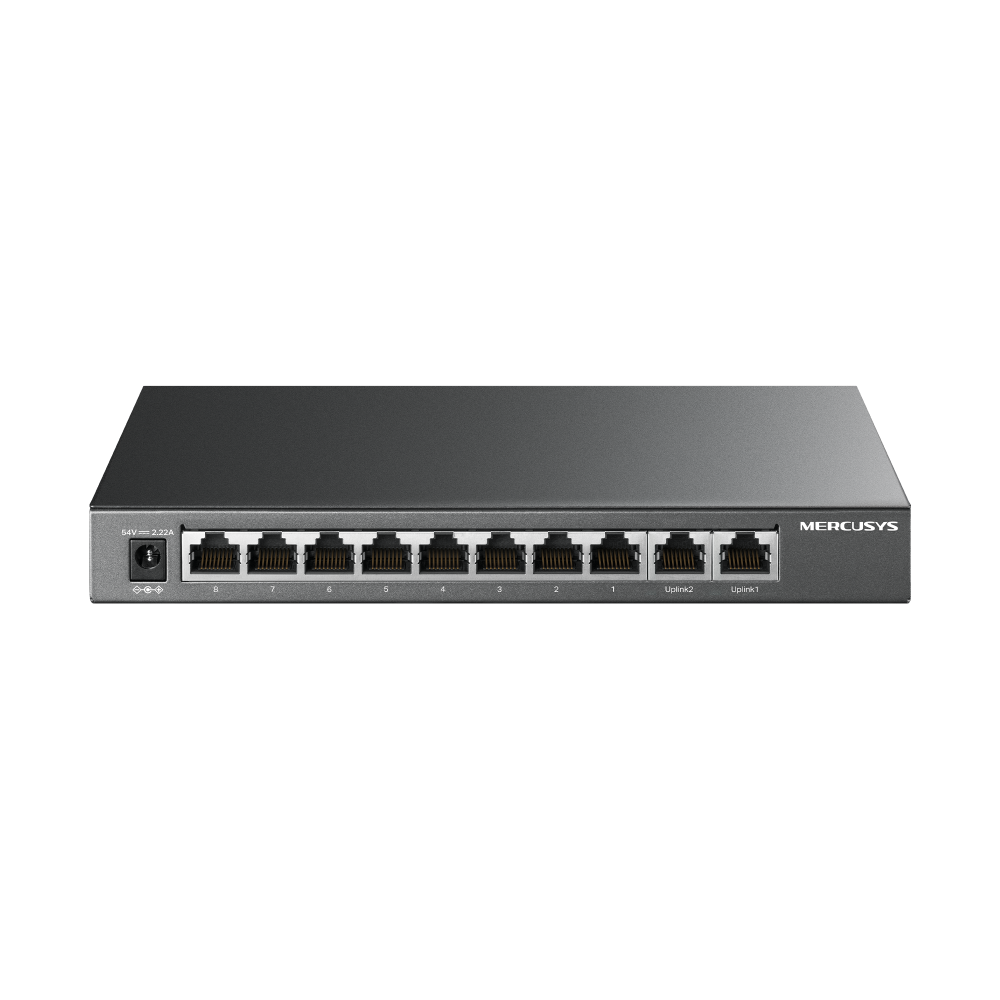

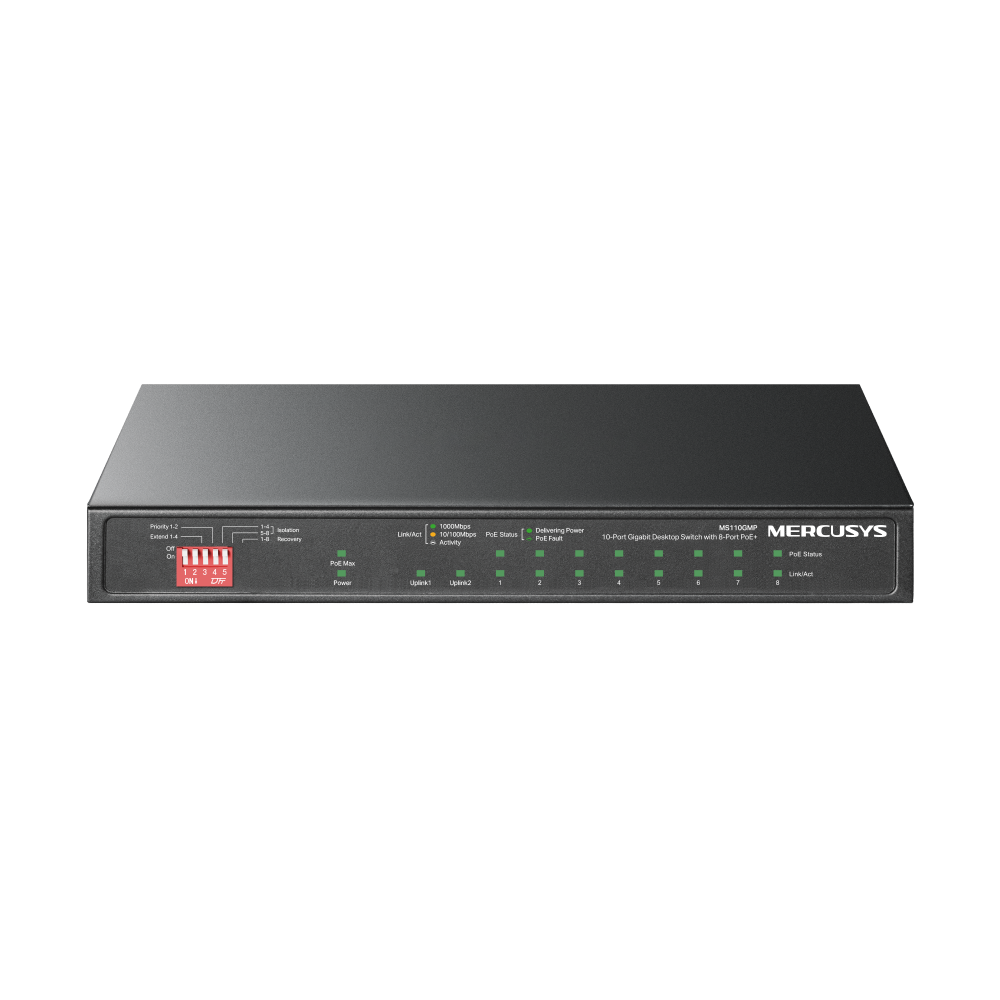

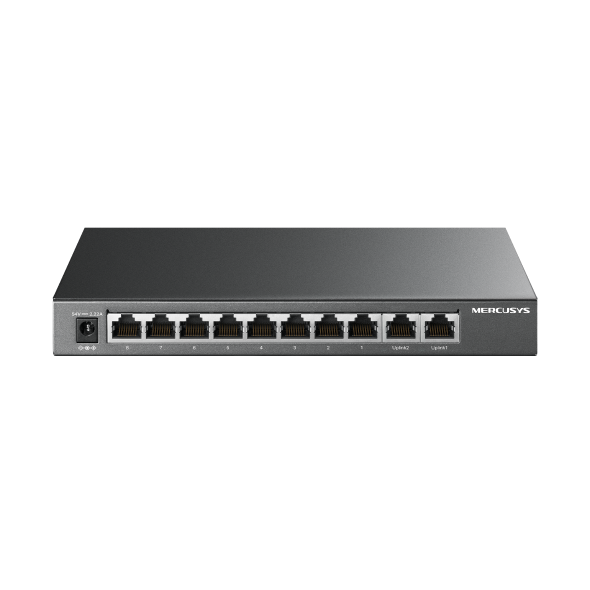

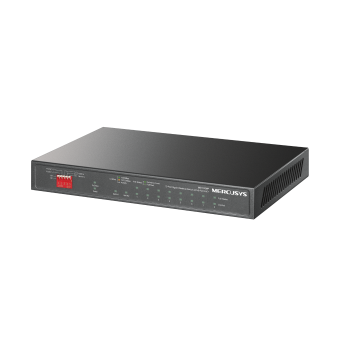

MS110GMP [V1] | 10-Port Gigabit Desktop Switch with 8-Port PoE+

MS110GMP

10-Port Gigabit Desktop Switch with 8-Port PoE+

  • 10 Gigabit Ports: 8× Gigabit PoE+ ports , and 2× Gigabit Uplink Ports
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 111 W for all PoE ports.* Works with IEEE 802.3af/at compliant PDs.
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
  • Priority Mode: Ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
  • Plug and Play: Simple to use and saves time and effort

Преглед

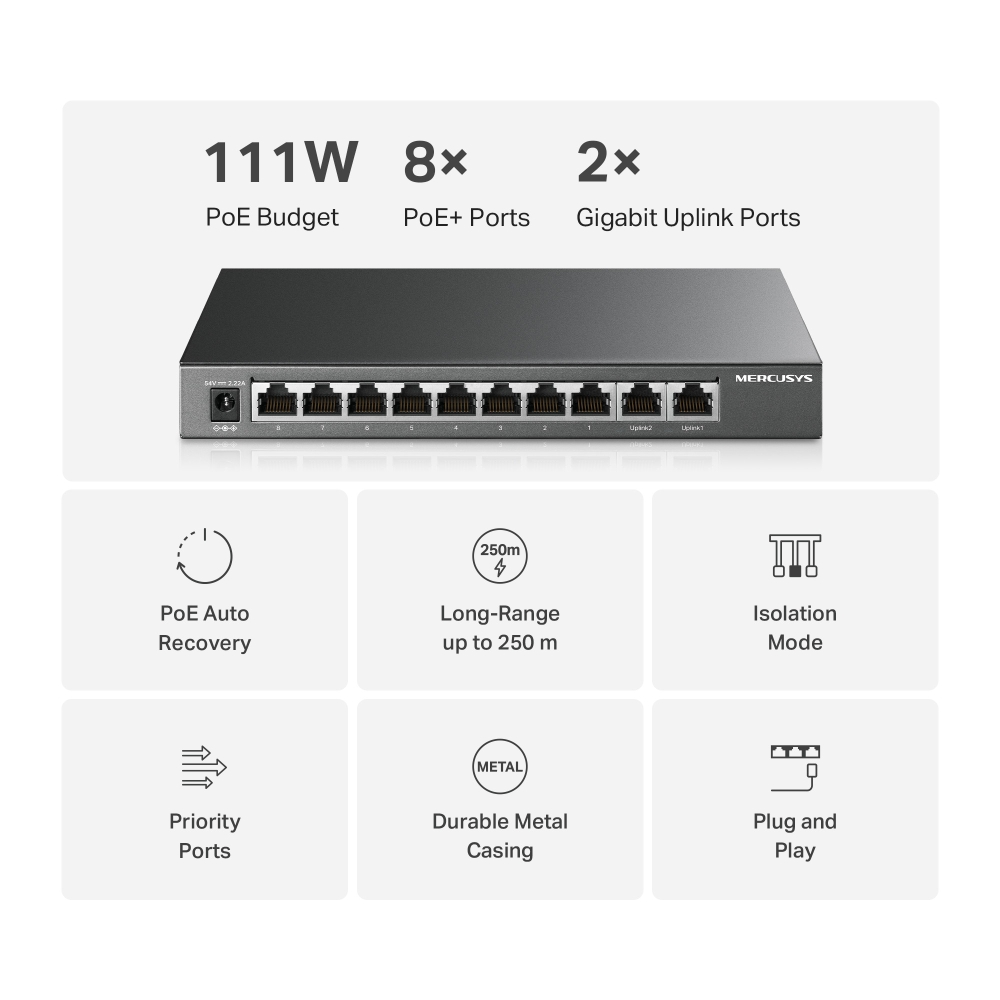

10-Port Gigabit Desktop
Switch with 8-Port PoE+

MS110GMP
111W
PoE Budget
8×
PoE+ Ports
2×
Gigabit Uplink
Ports
PoE Auto
Recovery
Long-Range
up to 250 m
Isolation
Mode
Priority
Ports
Durable Metal
Casing
Plug and
Play

8 PoE+ Ports for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 8 PoE+ ports supports a maximum power supply of 30 W. The total 111 W PoE power budget* can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS110GMP is compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

111W
Total Power Budget
30W
Max on Each Port
Power and Data
Data Only
Data Only
Access Point
IP Camera
IP Phone
Internet
Router
Network Video Recorder

Power over Ethernet: Two Cables in One

  • Traditional Switches
    Power
    Data
  • MS110GMP
    Power + Data

  • No Fuss

    No need for electricians; simplify installation and deployment.

  • Cost-Efficiency

    Getting rid of extra cables and power adapters will save money on infrastructure.

  • Flexibility

    Deployment in complex situations is made possible by more placement possibilities.

  • Power Management

    Improves power usage while intelligently protecting your gadgets from power surges.

  • IEEE 802.3af/at

    PoE ports compliant with the 802.3af/at Powered Devices.

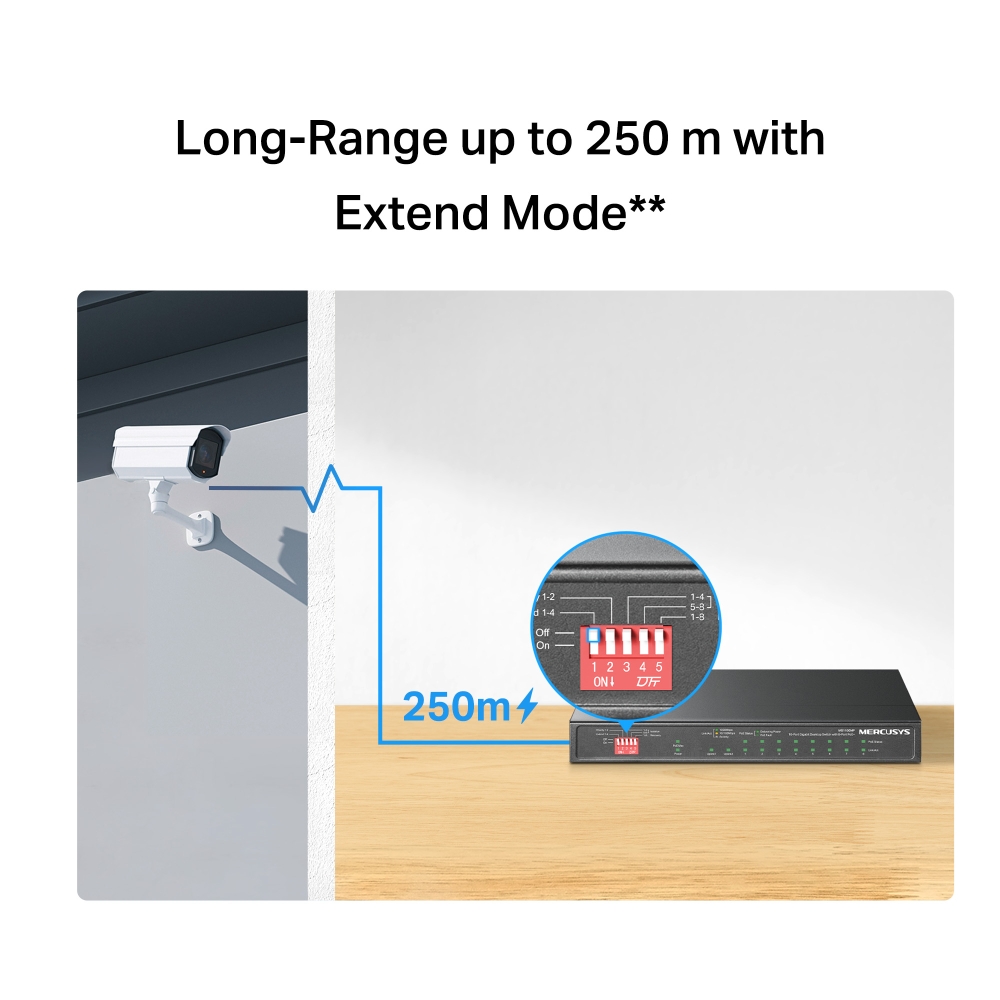

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS110GMP has 4 ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

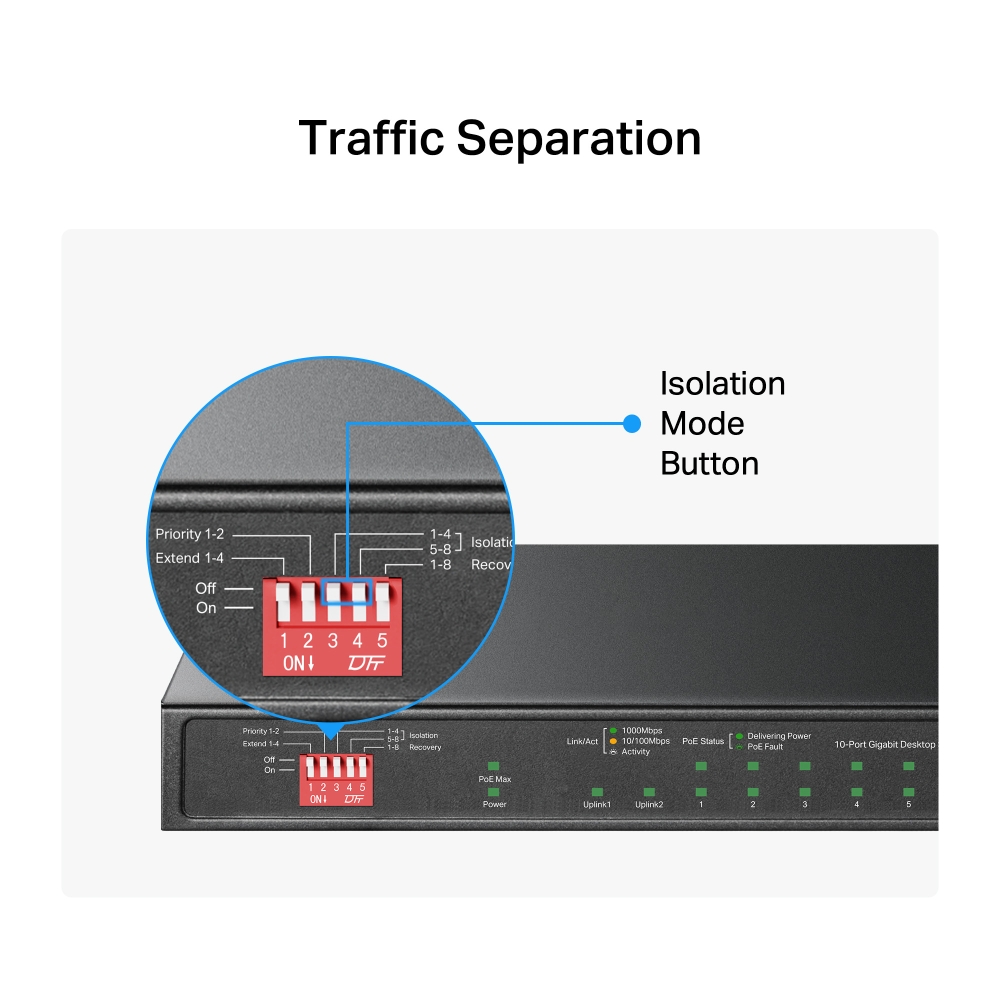

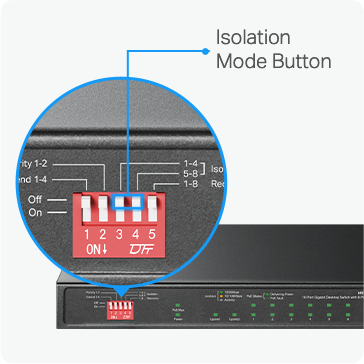

  • Traffic Separation

    Isolation Mode easily divides traffic for ports 1-4 & 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

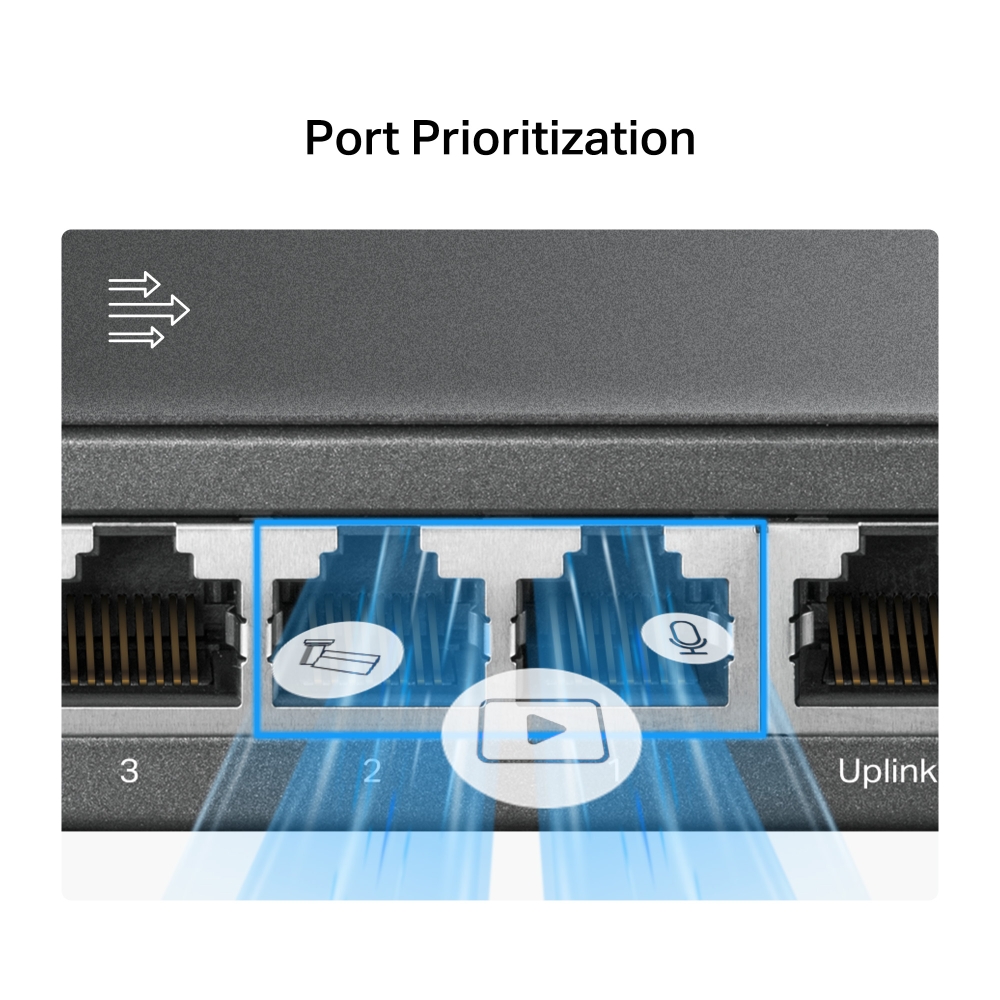

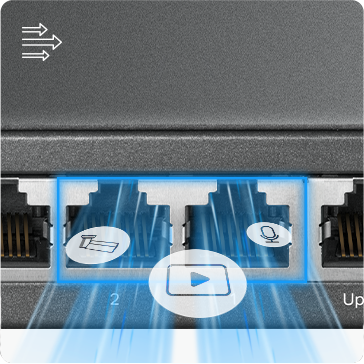

  • Port Prioritization

    Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video.

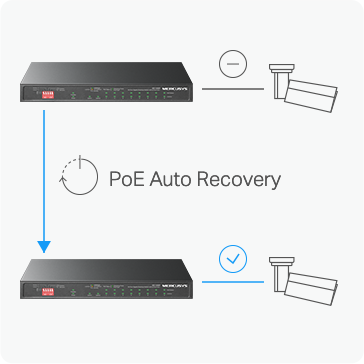

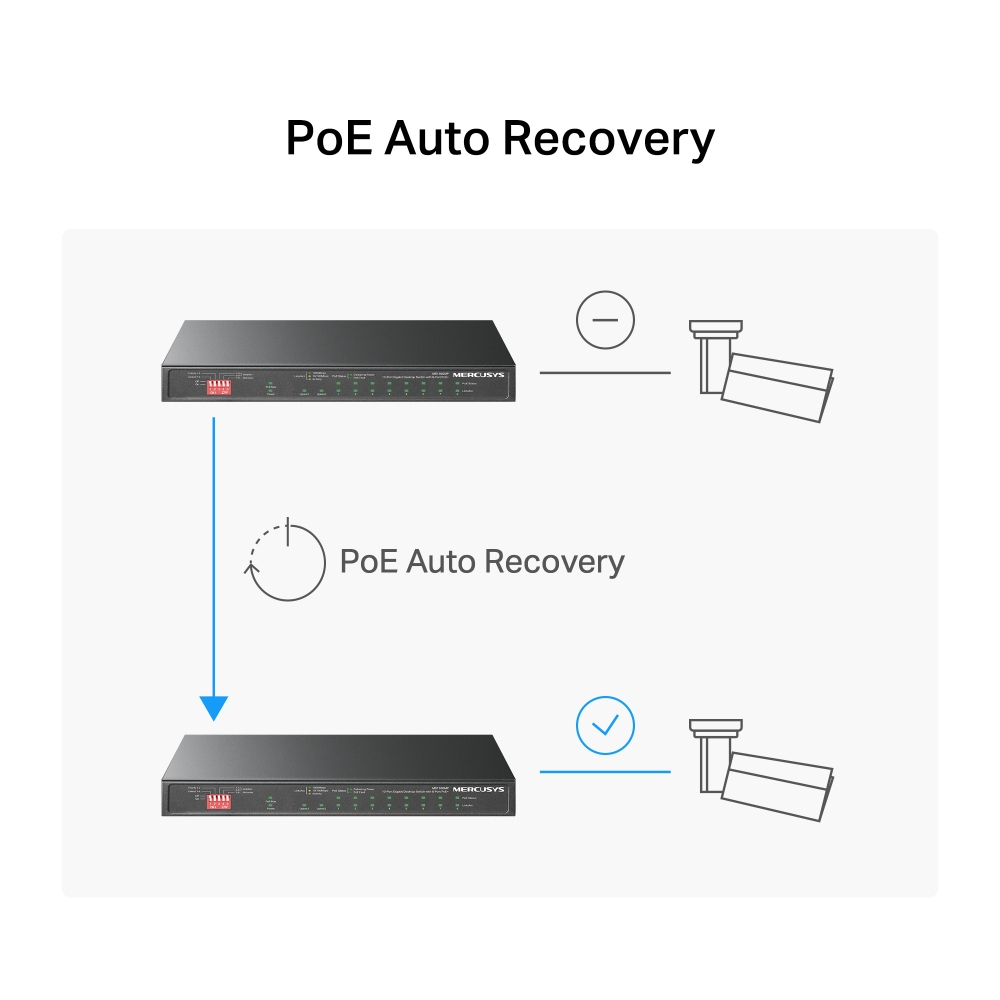

  • PoE Auto Recovery

    When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

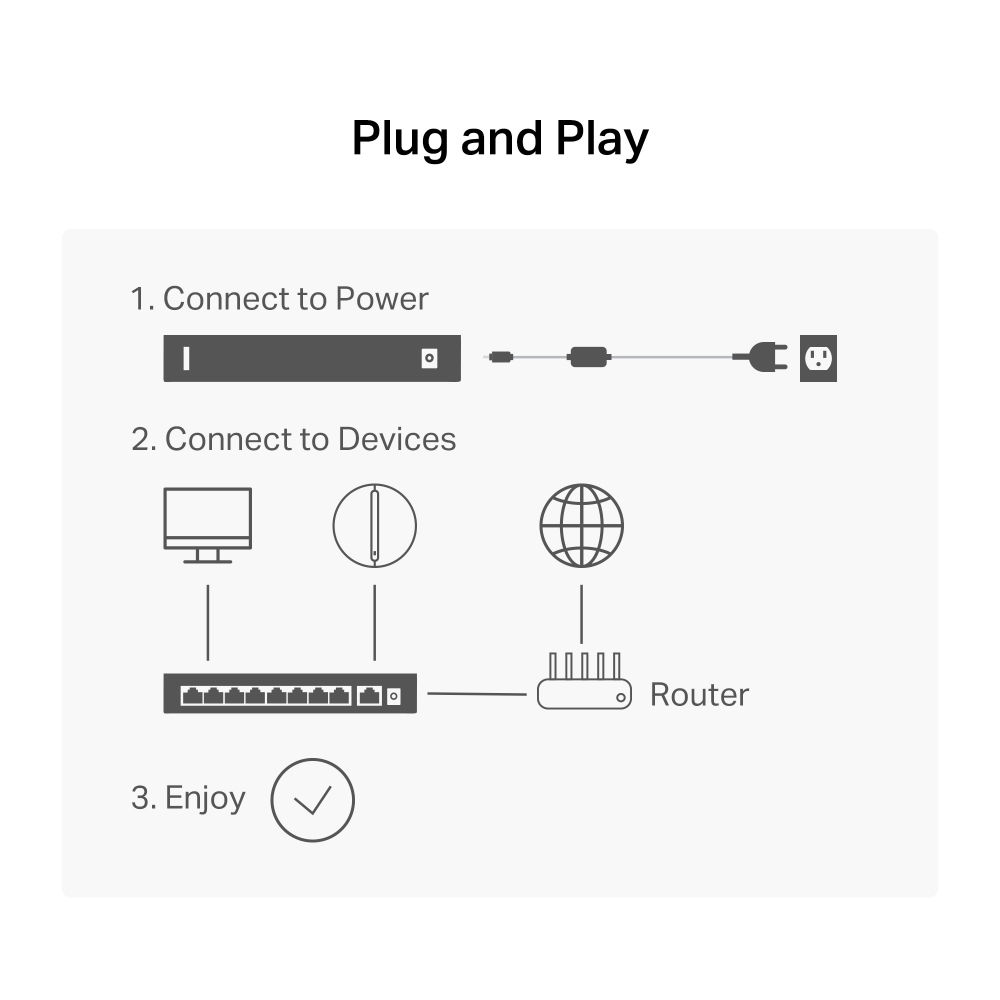

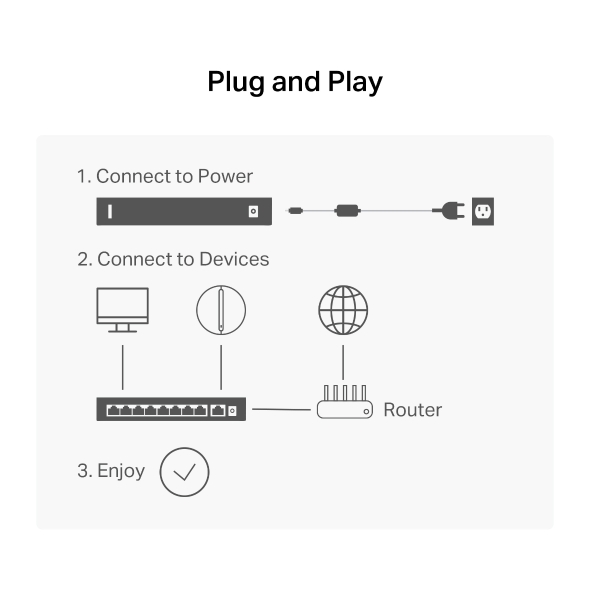

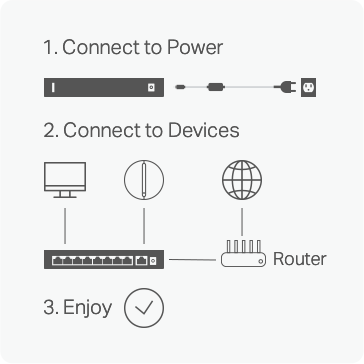

  • Plug and Play

    MS110GMP offers auto-negotiation (10/100/1000M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

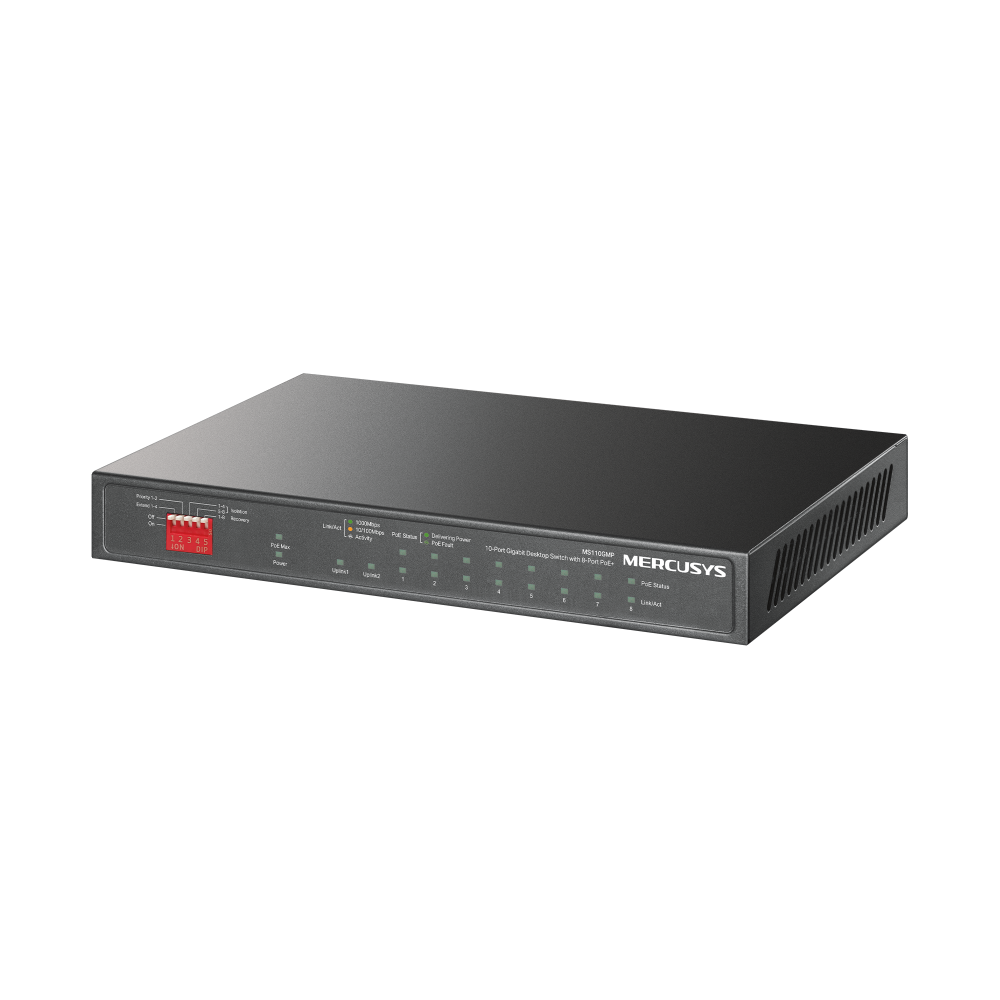

Durable and Silent

MS110GMP’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated. And you can put the switch on desk or wall mount to meet your demand.

  • Durable Metal Casing

  • Silent
    Operation

  • Wall
    Mount

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Спецификации

Software
Метод на трансфер на данни

Store-And-Forward

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• MAC Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Hardware
Размери (ШxДxВ)

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PoE Ports

RJ45 Ports

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 111 W

Интерфейси

• 8× 10/100/1000 Mbps PoE+ Ports
• 2× 1000 Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Външно захранване

External Power Adapter (Output: 54VDC / 2.22A)

Стандарти и протоколи

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Брой вентилатори

Fanless

Physical Security Lock

Yes

Jumbo кадър

16 KB

Комутационен капацитет

20 Gbps

Mac Address Table

4K

Max Power Consumption

• 7.37 W (220V / 50Hz with no PD connected)
• 129.4 W (220V / 50Hz with 111 W PD connected)

Max Heat Dissipation

• 441.39 BTU/h (110V / 60Hz with 111 W PD connected)
• 439.96 BTU/h (220V / 50Hz with 111 W PD connected)

Performance
Packet Forwarding Rate

14.88 Mpps

Others
Сертификати

CE, RoHS

Съдържание на пакета

• MS110GMP
• Power Adapter
• Installation Guide

Заобикаляща среда

• Operating Temperature: -10℃~40℃ (14℉~104℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
