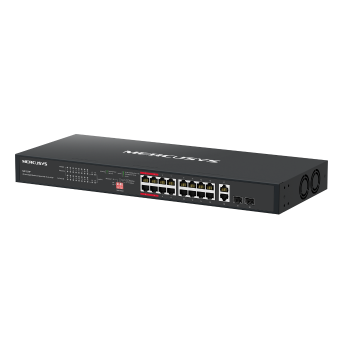

MS120GP [V1] | 20-Port Gigabit Rackmount Switch with 16-Port PoE+

MS120GP

20-Port Gigabit Rackmount Switch with 16-Port PoE+

  • Full Gigabit Ports: 16× Gigabit PoE+ ports, 2 × Gigabit non-PoE ports, and 2 × Gigabit SFP slots

  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 192 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs

  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

  • Isolation Mode: One click to divide traffic for specific ports for stability and security

  • Priority Mode: Guarantees the quality of sensitive applications like video monitor

  • Plug and Play: No configuration or central management required

  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

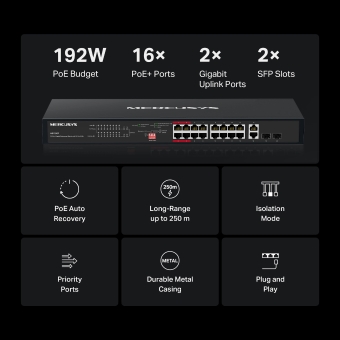

Преглед

20-Port Gigabit
Rackmount Switch with 16-Port PoE+

MS120GP
192W
PoE Budget
16×
PoE+ Ports
2×
Gigabit Uplink
Ports
2×
Slots
PoE Auto
Recovery
Long-Range
up to 250 m
Isolation
Mode
Priority
Ports
Durable Metal
Casing
Plug and
Play

16 PoE+ Ports (192 W Budget) for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 16 PoE+ ports supports a maximum power supply of 30 W. The total 192 W PoE power budget* can be applied in various scenarios, including surveillance, offices, and small businesses, since MS120GP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

192W
Total Power Budget
30W
Max on Each Port
Power and Data
Data Only
Data Only
Access Point
IP Camera
IP Phone
Internet
Router
Network Video Recorder

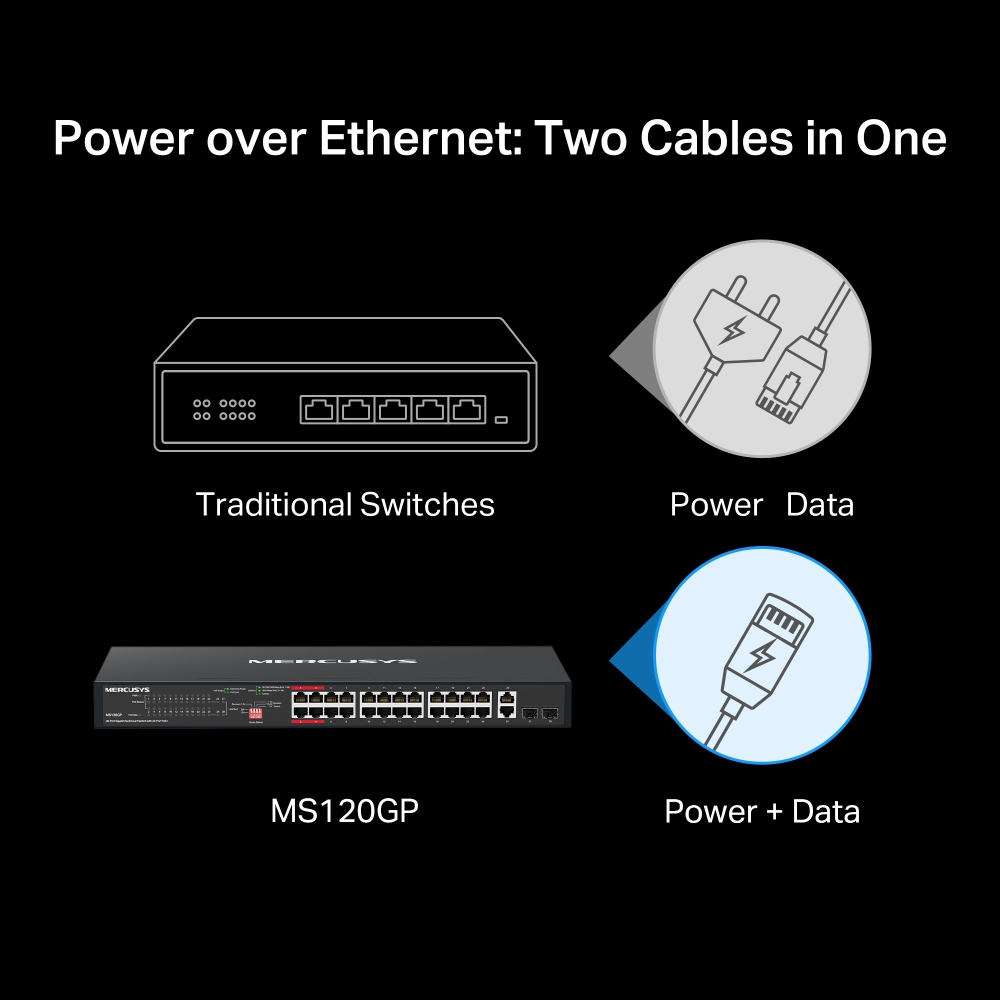

Power over Ethernet: Two Cables in One

  • Traditional Switches
    Power
    Data
  • MS120GP
    Power + Data

  • No Fuss

    No need for electricians; simplify installation and deployment.

  • Cost-Efficiency

    Getting rid of extra cables and power adapters will save money on infrastructure.

  • Flexibility

    Deployment in complex situations is made possible by more placement possibilities.

  • Power Management

    Improves power usage while intelligently protecting your gadgets from power surges.

  • IEEE 802.3af/at

    PoE ports compliant with the 802.3af/at Powered Devices.

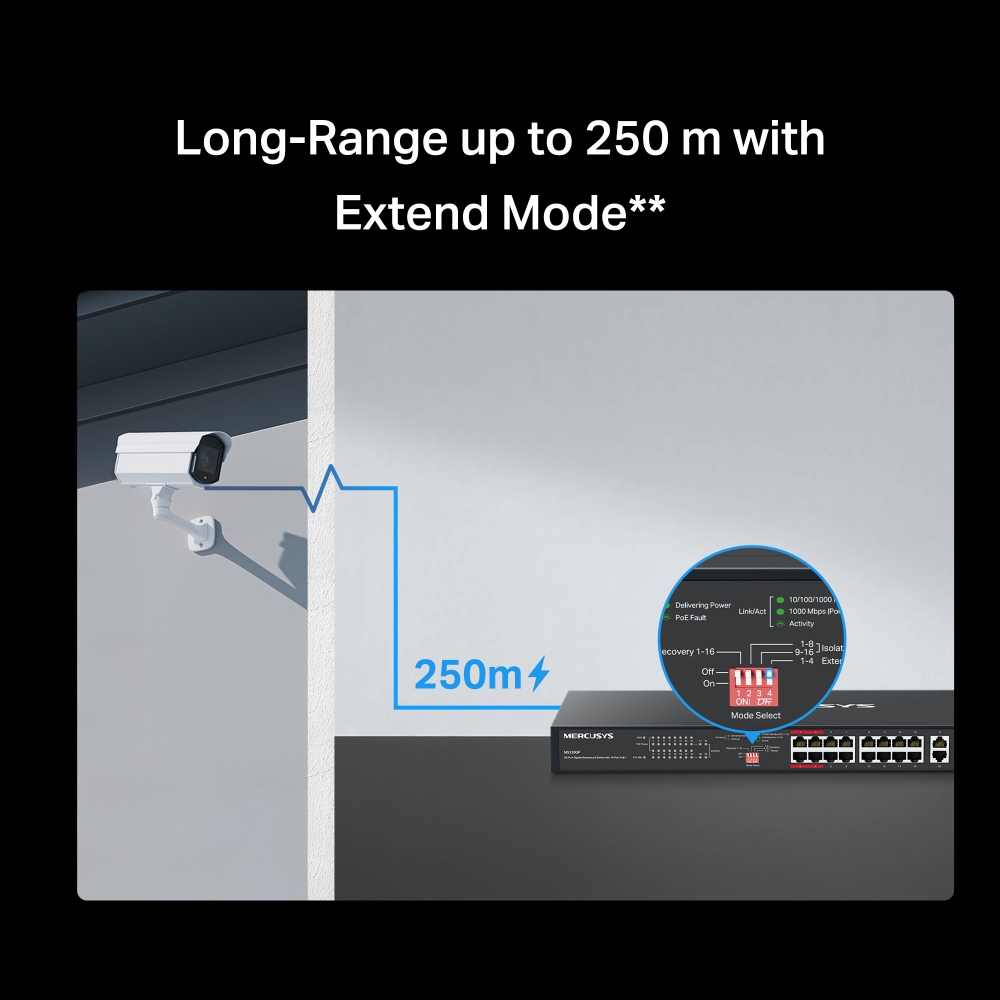

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS120GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

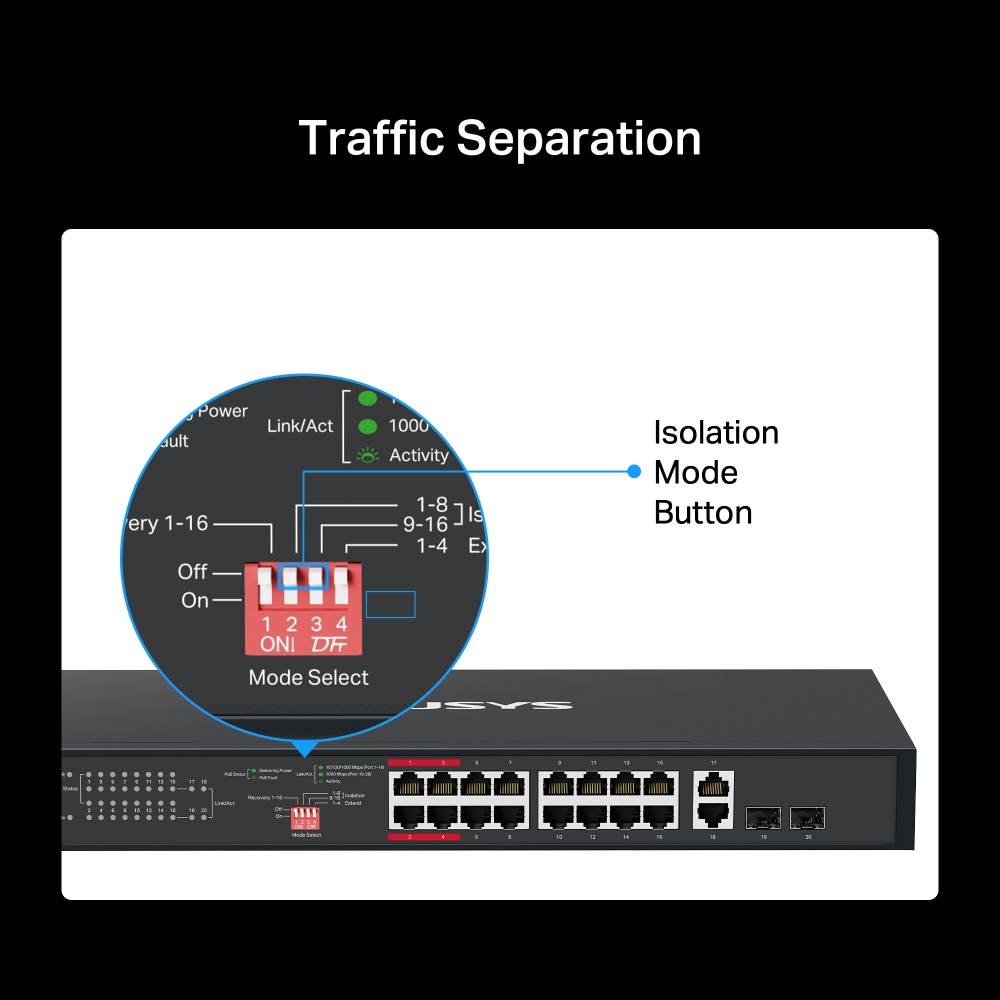

  • Traffic Separation

    Isolation Mode easily divides traffic for ports 1-8 & 9-16 to avoid snooping/tampering and isolates broadcast storm for higher security.

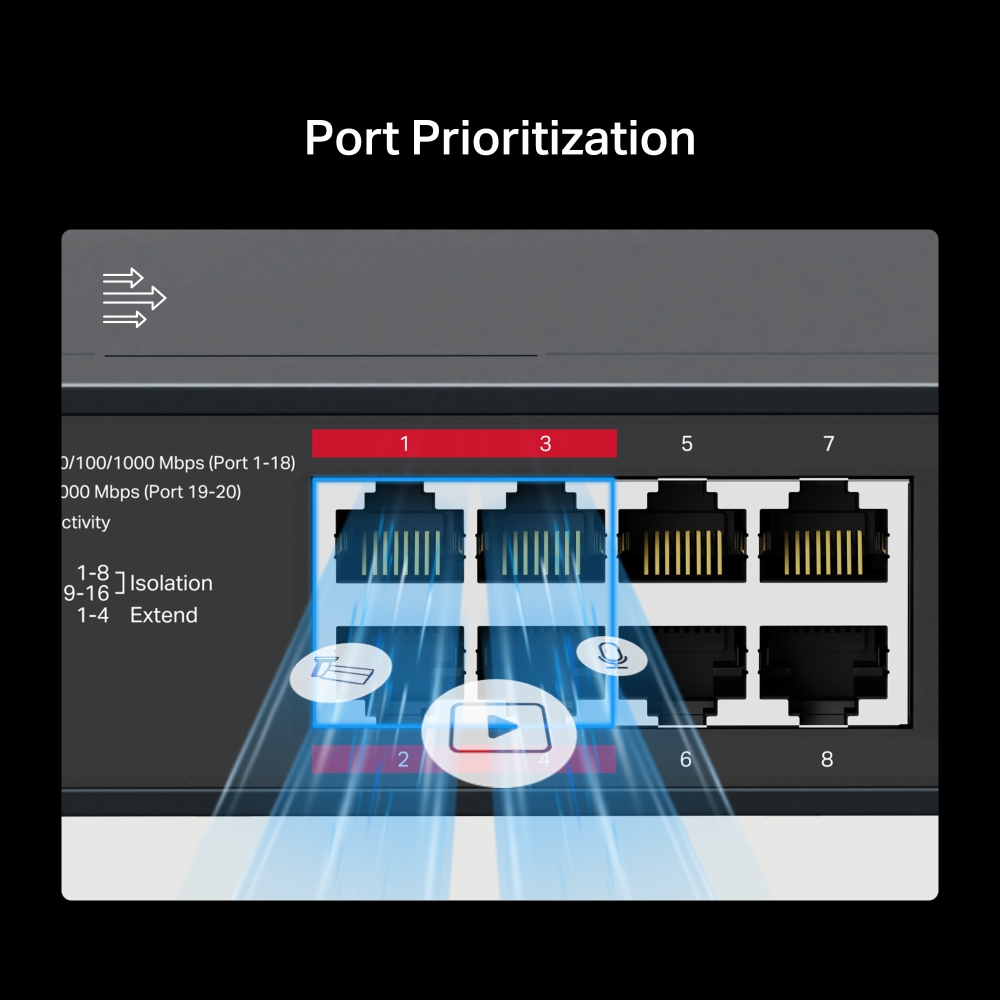

  • Port Prioritization

    Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video.

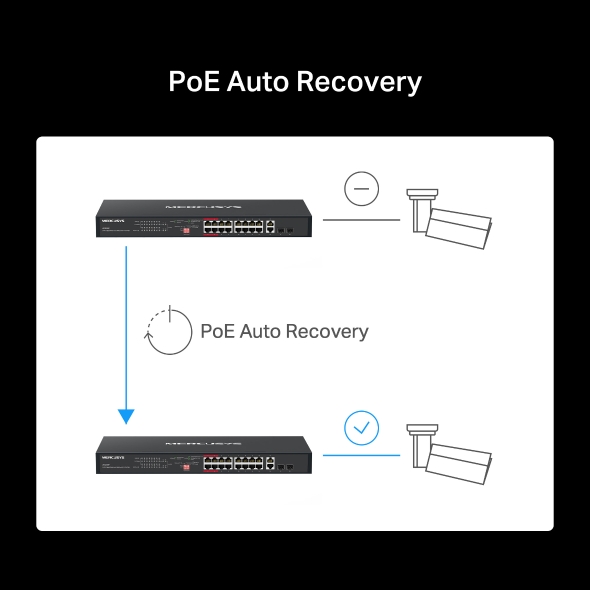

  • PoE Auto Recovery

    When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

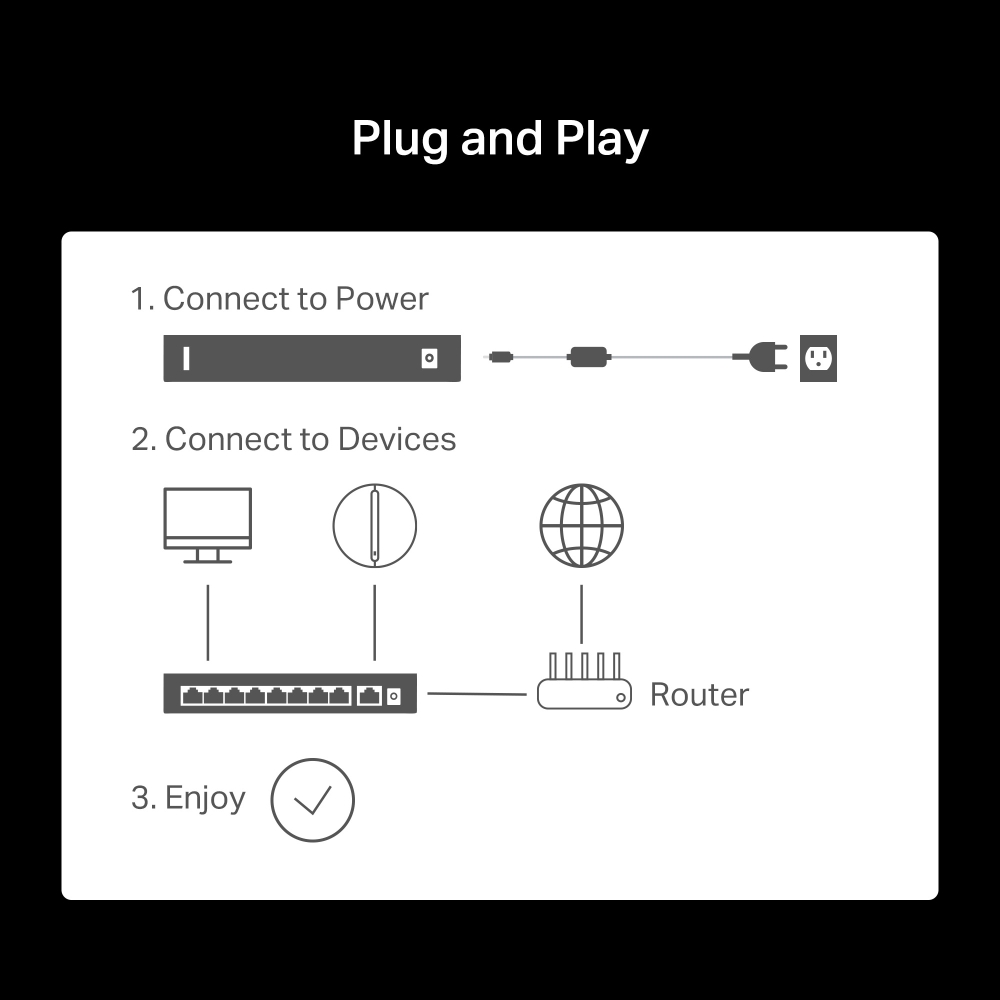

  • Plug and Play

    MS120GP offers auto-negotiation (10/100/1000M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Flexible

MS120GP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.



*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Спецификации

Software
Метод на трансфер на данни

Store and Forward

Advanced Features

• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Ports (Ports 1-4)
• Isolation Mode (Ports 1-8, 9-16)
• PoE Auto Recovery (Ports 1-16)
• MAC Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control

Hardware
Размери (ШxДxВ)

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

PoE Ports

• Standard: compatible with 802.3af/at PDs
• PoE Ports: Ports 1–16, up to 30 W per port
• PoE Power Budget:192 W

Интерфейси

• 16× 10/100/1000 Mbps PoE+ RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots

Transmission Medium

• 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (≤100 m)
• 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
• 1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (≤100 m)
• 1000BASE-X: MMF, SMF

Стандарти и протоколи

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at

Брой вентилатори

2 Fans

Physical Security Lock

Yes

Комутационен капацитет

40 Gbps

LED

• Power
• Link/Act
• PoE Status
• PoE Max

Mac Address Table

8 K

Max Power Consumption

• 17.25 W(220V/50 Hz @ 25 °C, with No PD connected)
• 219.05 W (220V/50 Hz @ 25 °C, with 192 W PD connected)

Max Heat Dissipation

• 744.77 BTU/hr (220V/50 Hz @ 25 °C, with 192 W PD connected)
• 771.56 BTU/hr (110V/60 Hz @ 25 °C, with 192 W PD connected)

Others
Сертификати

CE, RoHS

Съдържание на пакета

• MS120GP
• Power Cord
• Installation Guide
• Mounting Brackets and Fittings

Заобикаляща среда

• Operating Temperature: -10°C to 50°C (14°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% RH, non-condensing
• Storage Humidity: 5% to 90% RH, non-condensing
