MS105GP [V1, V3] | 5-Port Gigabit Desktop Switch with 4-Port PoE+

5-Port Gigabit Desktop Switch with 4-Port PoE+

Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
Isolation Mode: One click to divide traffic for specific ports for stability and security
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort

개요

65W

PoE Budget

4×

PoE+ Ports

Full Gigabit
Port

Long-Range
up to 250 m

Isolation
Mode

Durable Metal
Casing

Silent
Operation

Plug and
Play

4 PoE+ Ports (65 W Budget) for Network Deployment

All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-4). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

30W

Max on
Each Port

65W

Total Power
Budget

Router

Data Only

IP Camera

IP Phone

Access Point

Power over Ethernet: Two Cables in One

- Traditional Switches
- Power Data
- MS105GP
- Power + Data

No Fuss

No need for electricians; simplify installation and deployment.
Cost-Efficiency

Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility

Deployment in complex situations is made possible by more placement possibilities.
Power Management

Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at

PoE ports compliant with the 802.3af/at Powered Devices.

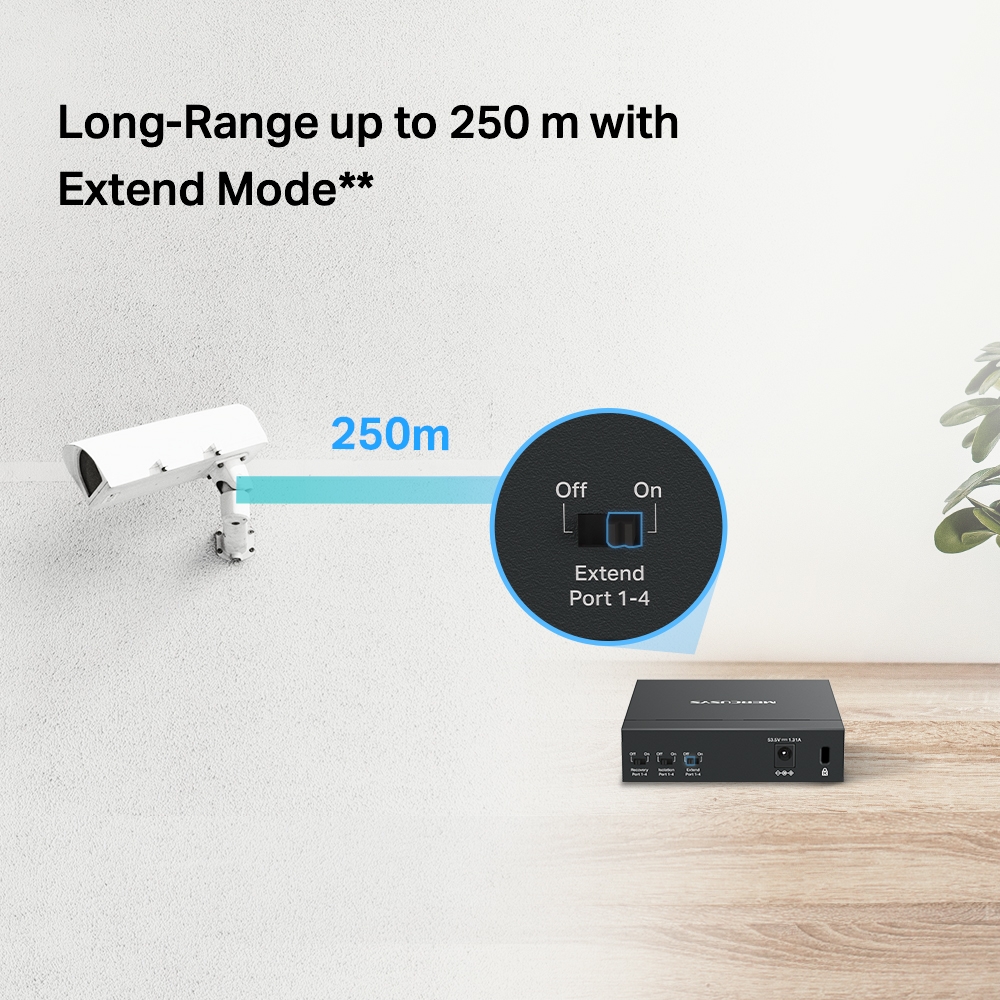

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS105GP has four long-range ports with PoE+.
Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation

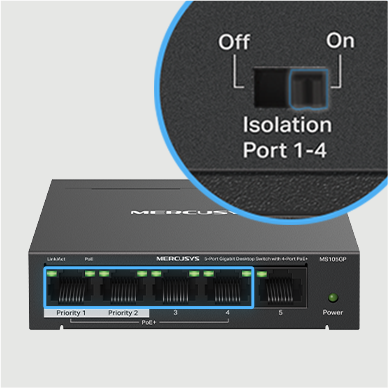

With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.
Port Prioritization

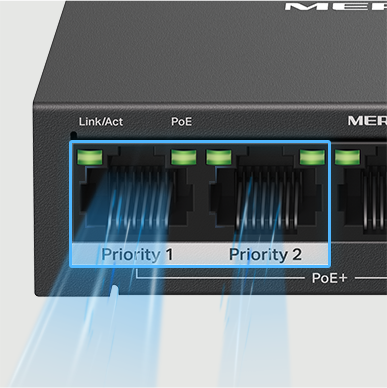

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
Plug and Play

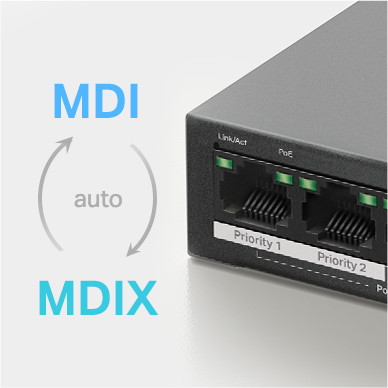

MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
IP Camera

PoE Auto Recovery

PoE Auto Recovery

The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

Durable and Silent

MS105GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

Durable Metal
Casing
Silent
Operation
Wall
Mount

1.0 in

3.9 in

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
