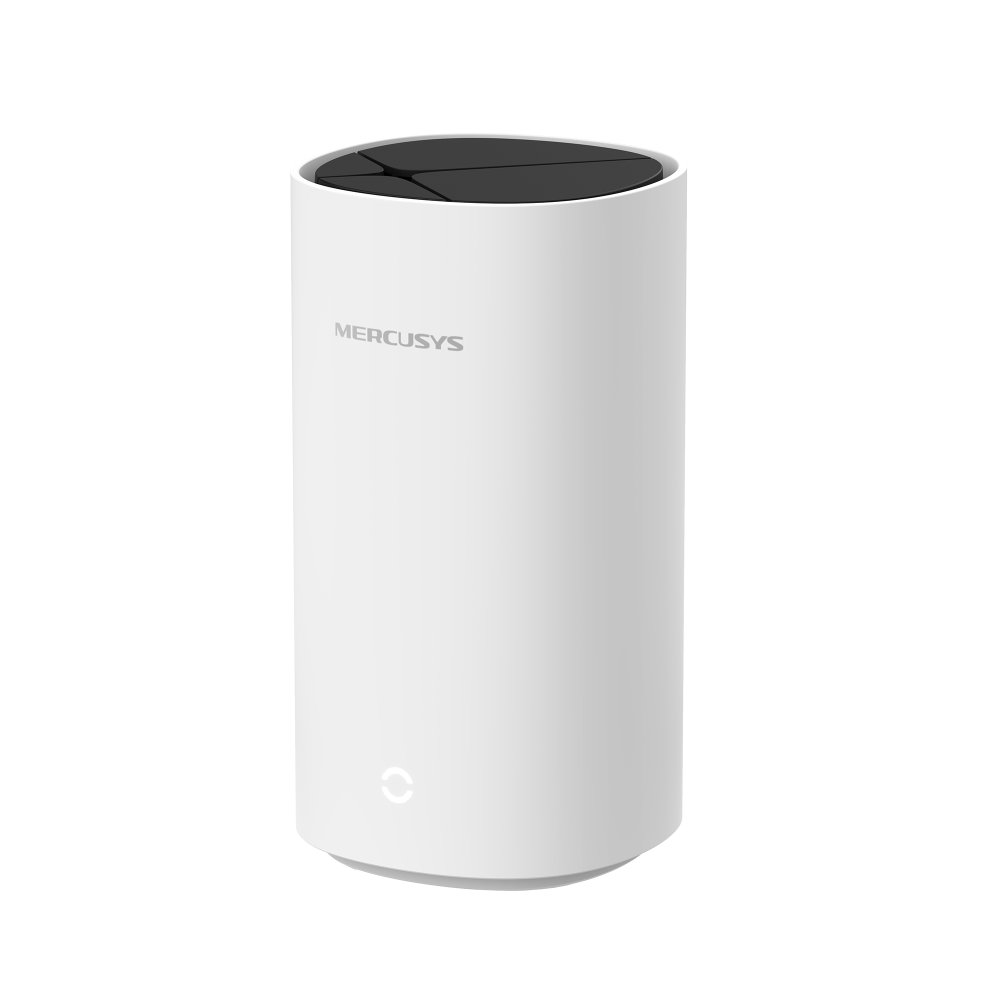

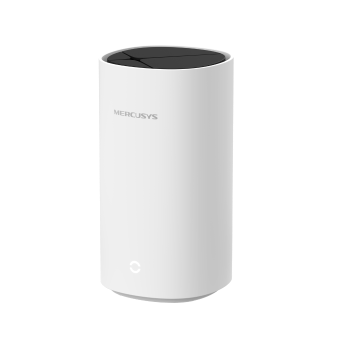

Halo E47BE [V1] 1-pack | BE9300 Whole Home Mesh Wi-Fi 7 System

Halo E47BE

Coming Soon

BE9300 Whole Home Mesh Wi-Fi 7 System

  • Blazing-Fast 9.3Gbps Tri-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
  • Newest WiFi 7: Armed with the 320 MHz channels, 4K-QAM, MLO,  the 6 GHz band, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.
  • Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging WiFi when you're walking around the house.
  • Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
  • 4× 2.5G Ports: 4× 2.5 Gbps WAN/LAN auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.**
  • Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 8,000 ft2/750 m2 (3-pack).‡
  • Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

Unleashing
Next-Gen Living with Halo Mesh Wi-Fi 7

BE9300 Whole Home Wi-Fi 7 System

Halo E47BE

BE9300
6 GHz
5760 Mbps
5 GHz
2880 Mbps
2.4 GHz
688 Mbps
Whole-Home Coverage Seamless Roaming
4× 2.5 Gbps
WAN/LAN Ports +
1 × USB 3.0 Port
Secure and Protected Home Network
Classic Design, Blends into Any Home
320 MHz Channels
New 6GHz Band
4K-QAM for More Data
Multi-Link Opertation

Seamless roaming requires clients to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other loT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. This Halo may not support all the mandatory features as ratified in the IEEE 802.11be specification. Further software upgrades for feature availability may be required.
§Use of WPA3 requires clients to also support the corresponding feature.
*Please note that the Halo H series and S series cannot work together. Halo H47BE is compatible with other units from the Halo H series to form a Mesh network.
**2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions. WAN port at a time.

Wireless
Wi-Fi Class

BE9300

Wireless Standards

 IEEE 802.11be/ax/ac/a/b/g/n

Max Channel Width

320MHz

WiFi Range

Ideal for 4-7 bedroom houses (3-pack)
Ideal for 3-5 bedroom houses (2-pack)

MAX Capacity

384

Recommended Clients Limit

150

Max Wi-Fi Modulation

4K-QAM

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Wireless Functions

Smart Connect
Multi-Link Operation (MLO)
Multi-RU
OFDMA
MU-MIMO
BSS Color
Beamforming

Hardware
Standards and Protocols

Wi-Fi 7
6 GHz: IEEE 802.11be
5 GHz: IEEE 802.11a/n/ac/ax/be mixed
2.4 GHz: IEEE 802.11b/g/n/ax/be mixed

Interfaces

4× 2.5 Gbps Ports (WAN/LAN auto-sensing)
1× USB 3.0 Port

Antenna

Internal

Button

Reset Button

Installation

Desktop

Power

12V/2.5A

Software
Operation Mode

Router, Access Point

WAN Mode

Dynamic IP, Static IP, PPPoE, L2TP, PPTP

NAT Forwarding

ALG
Virtual Server
Port Triggering
UPnP
DMZ

Protocols

IPv4, IPv6

Guest Network

6 GHz Guest Network
5 GHz Guest Network
2.4 GHz Guest Network

Parental Controls

Time Control
Website Filtering

DHCP

Server, Client

DDNS

MERCUSYS

Security

SPI Firewall
Access Control

ISP Feature

TR-069

System

Firmware Upgrade
Backup and Restore
Administration
System Log
Diagnostics
Time & Language Settings
Reboot
LED Control
Night Mode

LED Management

LED Control
Night Mode

Device Management

MERCUSYS APP

Cloud

Firmware Upgrade over the Cloud
Remote Management

Language

Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese - Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan

Others
Certifications

CE, RoSH

Package Contents

3-pack
3× Halo E47BE Units
1× RJ45 Ethernet Cable
3× Power Adapters
Quick Installation Guide

2-pack
2× Halo E47BE Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
