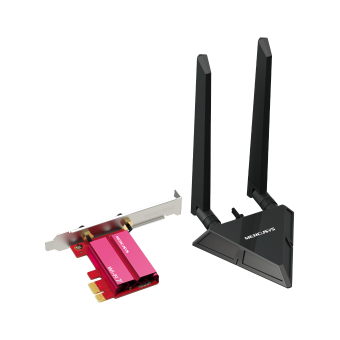

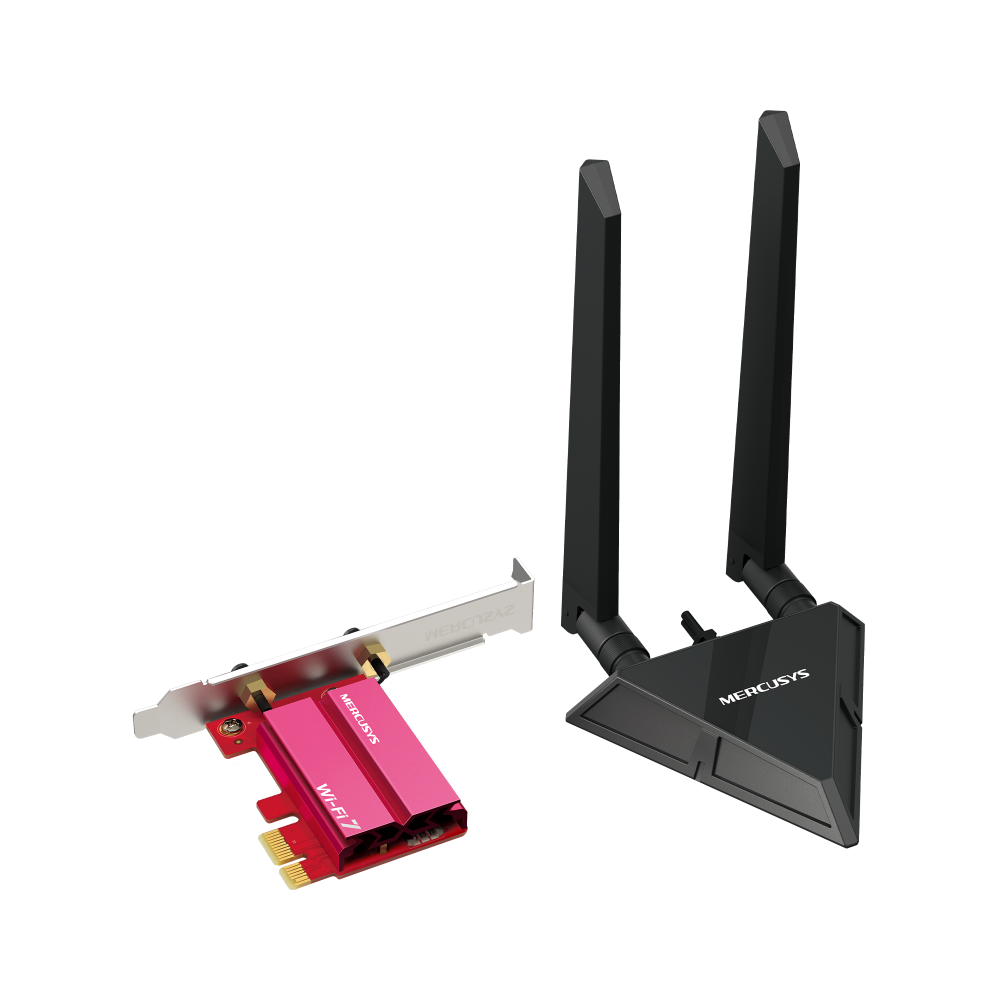

MA49BE [V1] | BE9300 WiFi 7 Bluetooth 5.4 PCIe Adapter

MA49BE

BE9300 WiFi 7 Bluetooth 5.4 PCIe Adapter

Unparalleled Tri-Band Speed — Boost your overall speeds up to 5765 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).

Wi-Fi 7 Standard — Upgrade your PC with cutting-edge Wi-Fi 7 technology.

Better Performance — More devices, lower latency, and less congestion.

Bluetooth 5.4 — Improved speed, range, security, and reliability over the previous generation.

Broader Coverage — Two high-performance omnidirectional antennas ensure stronger signal transmissions and reception.

Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.

Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety.

Supported Operating Systems — Compatible with Intel-based Windows 11/10 (64-bit) only. Does not support AMD platforms.

Overview

Wi-Fi 7

The Ultimate Wi-Fi 7 Choice For Gamers and Creators

BE9300 WiFi 7 Bluetooth 5.4 PCIe Adapter

MA49BE

6 GHz
5765 Mbps
5 GHz
2882 Mbps
2.4 GHz
688 Mbps
Magnetized
Antenna Base
90°
360°
Adapter
Magnetized Antenna Base
Super-Stable
Bluetooth 5.4
Overall Security
Protection
Compatible with
Windows 11
Multi-Link Operation
New 6 GHz Band
Faster Speed
High Efficiency
High Capacity
Low-Profile Bracket Support
MU-MIMO

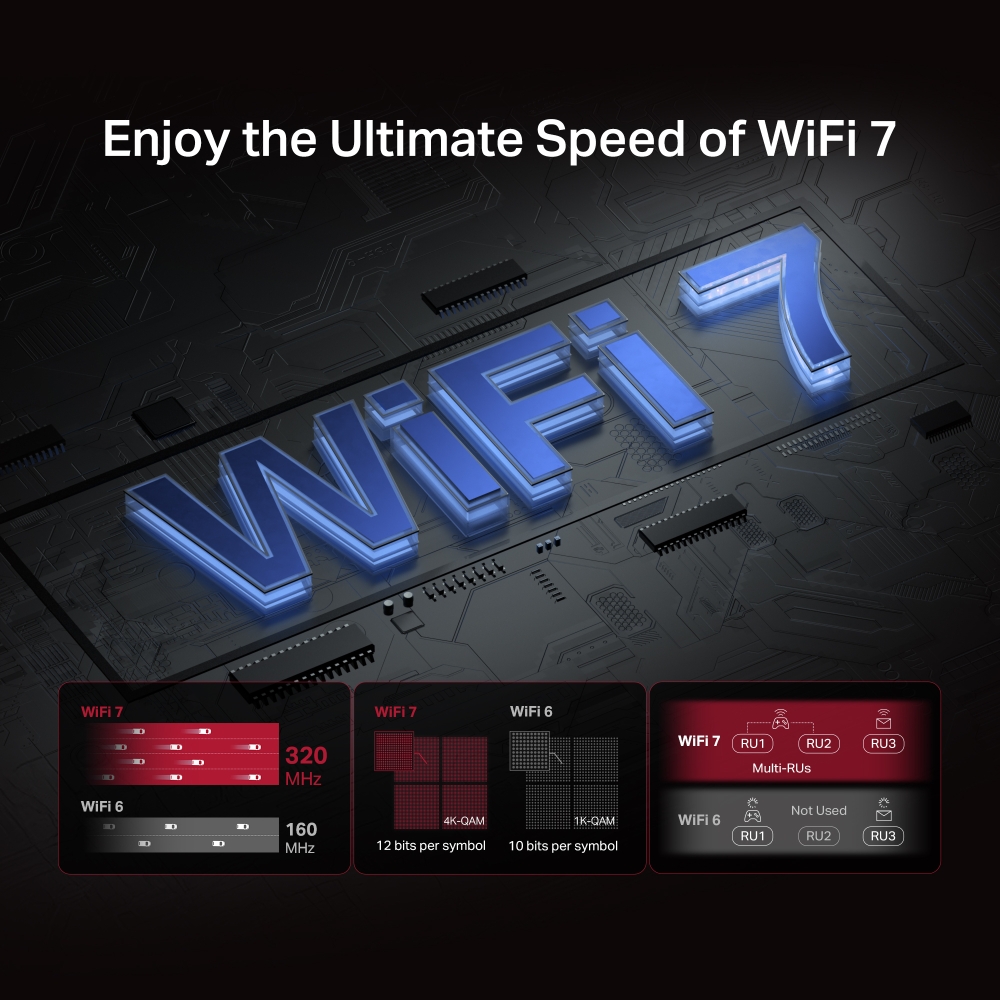

Enjoy the Ultimate Speed of WiFi 7

Enhanced by 4K-QAM and 320 MHz, MA49BE delivers astonishing wireless speeds up to 5.8 Gbps on the 6 GHz band. † MLO lowers latency and optimizes traffic automatically for seamless connectivity. Enjoy unlimited 8K streaming and lightning-fast downloads.‡

Learn More about WiFi 7
  • 320 MHz
    160 MHz
    WiFi 7
    WiFi 6

    320 MHz enables 2× more simultaneous transmissions at the fastest possible speeds.

  • 12 bits per symbol
    10 bits per symbol
    4K-QAM
    1K-QAM
    WiFi 7
    WiFi 6

    The 4K QAM technology supported by WiFi 7 Data transmission density increased by 120%.

  • WiFi 7
    WiFi 6
    RU1
    RU2
    RU3
    Multi-RUs
    RU1
    RU2
    RU3
    Not Used

    Multi-RUs make full use of every resource, increasing transmission efficiency.

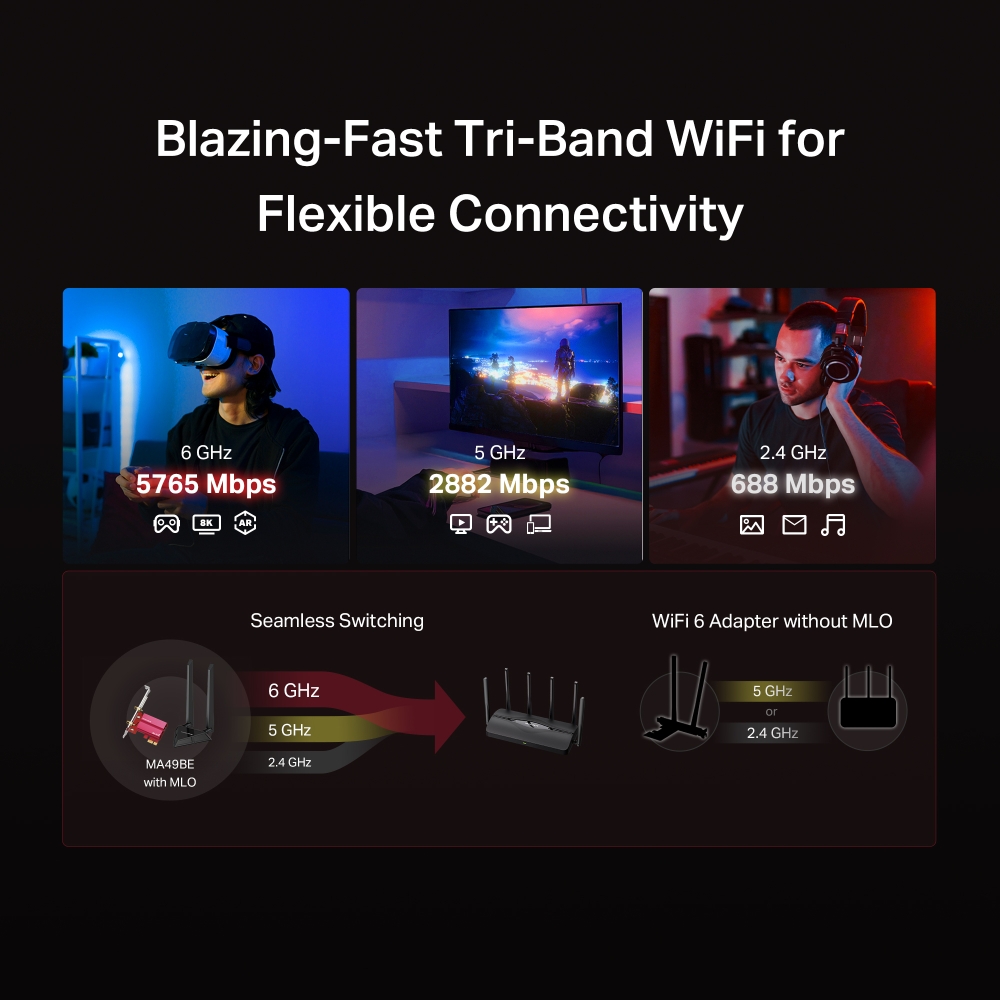

Blazing-Fast Tri-Band WiFi for Flexible Connectivity

MA49BE uses multi-link seamless dynamic switching to achieve load balancing and lower latency, enabling seamless streaming and stable connectivity for real-time gaming and immersive VR.†

6 GHz
5765 Mbps
5 GHz
2882 Mbps
2.4 GHz
688 Mbps
MA49BE
with MLO
6 GHz
5 GHz
2.4 GHz
Seamless Switching
5 GHz
2.4 GHz
or
WiFi 6 Adapter without MLO

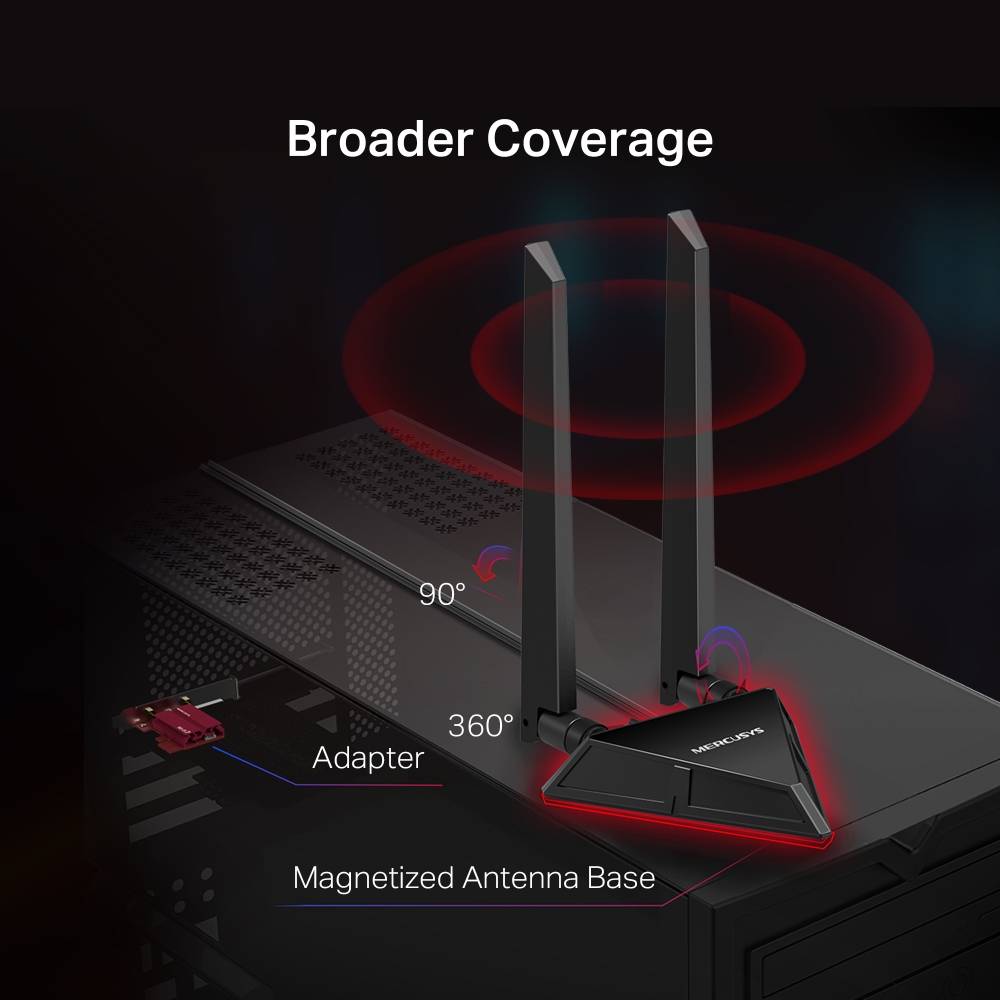

Broader Coverage

The magnetized antenna base with two high-performance omnidirectional antennas ensures stronger signal transmissions and reception for a faster, smoother online experience from farther away.

90°
360°
Adapter
Magnetized Antenna Base

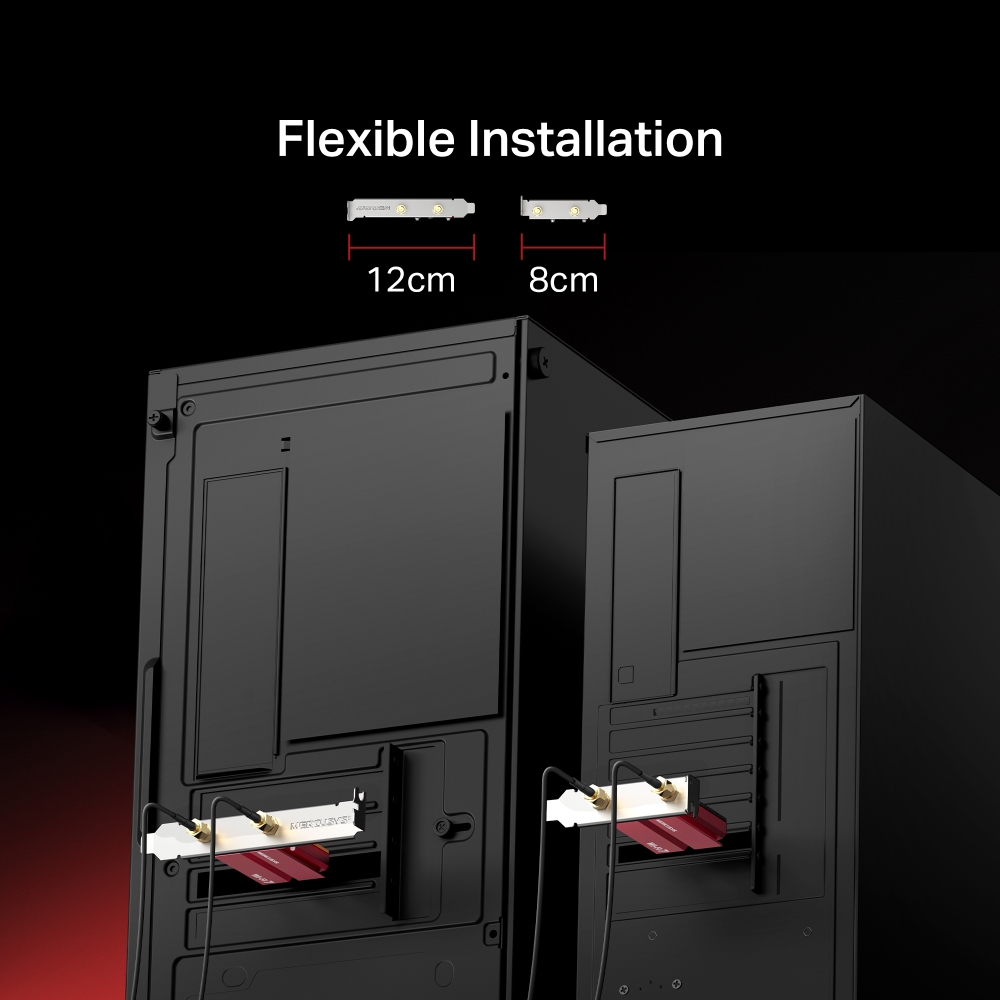

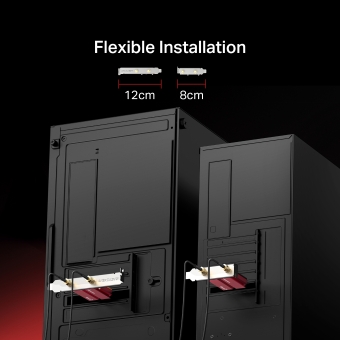

Flexible Installation

Includes both standard and low-profile brackets for compatibility with various board designs. And the magnetized antenna base allows flexible positioning.

12cm
8cm

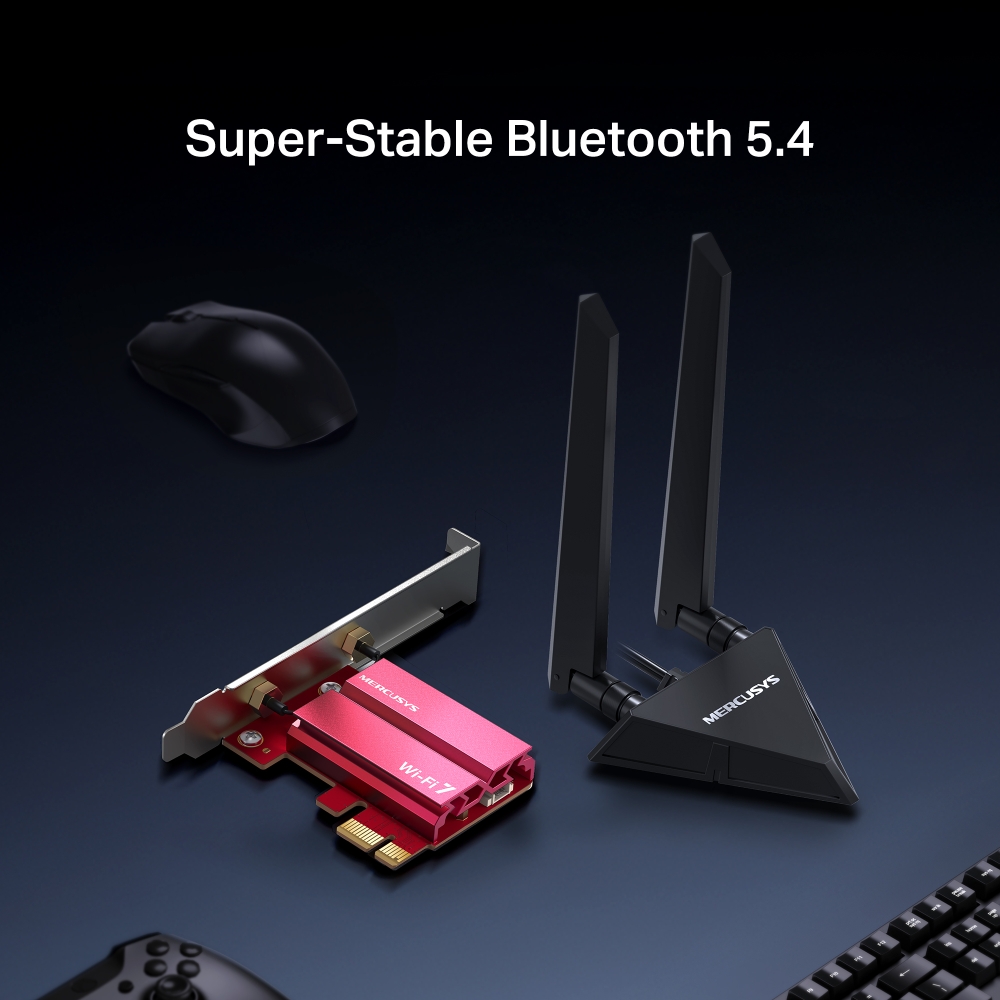

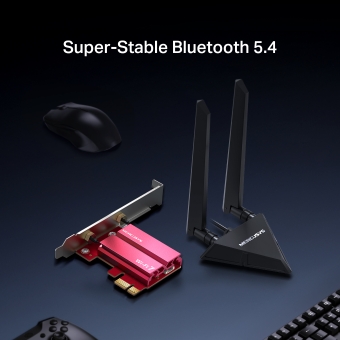

Super-Stable Bluetooth 5.4

MA49BE equips your PC with the brand-new Bluetooth 5.4 for stable connections, excellent compatibility, and fast speeds, enabling simple, reliable pairing for Bluetooth devices.§



The Latest WPA3 Protects Your Personal Network

WPA3, the latest security standard, provides enhanced WiFi protection to secure your devices and personal information from brute-force attacks.△

WPA3

Compatible with the Windows Operating System

MA49BE fully supports the Intel-based Windows 11/10 (64-bit). Does not support AMD platforms. Simply upgrade your PC to the newest WiFi 7 with MA49BE.

Compatible with the Windows 11/10


†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6E/6 (802.11ax), and features including 4K-QAM, Multi-RUs, 160 MHz Bandwidth, OFDMA, and MU-MIMO requires APs to also support the corresponding features. 160 MHz channels may not all be available in the 5 GHz or 6 GHz band in some regions/countries due to regulatory restrictions.
§Functionality of MA47BE, such as Bluetooth 5.4, may be restricted on some computing systems and platforms. Please try to update the device's driver for feature compatibility.
△Use of WPA3 requires APs to also support WPA3.
*Use of MLO requires your router or APs to support the WiFi 7 standard with MLO enabled. Your Windows 11 operating system must also be updated to version 24H2 or later.
**Currently, the 6 GHz band is only available on Windows 11.

Specifications

Wireless
Wireless Standards

IEEE 802.11 ax/be 6 GHz

IEEE 802.11 a/n/ac/ax/be 5 GHz
IEEE 802.11 b/g/n/ax/be 2.4 GHz

WiFi Speeds

5765 Mbps on 6 GHz
2882 Mbps on 5 GHz
688 Mbps on 2.4 GHz

Reception Sensitivity

2.4 GHz:
11g 20M 6Mbps:-94 dBm

11g 20M 54Mbps:-77 dBm

11be EHT40 MCS0:-92 dBm

11be EHT40 MCS11:-61 dBm

5 GHz:
11a 20M 6Mbps: -95 dBm

11a 20M 54Mbps:-77 dBm

11be EHT160 MCS0:-86 dBm

11be EHT160 MCS11:-55 dBm

6 GHz:

11be EHT320 MCS0:-83 dBm

11be EHT320 MCS11:-52 dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware
Dimensions

120.8 × 80.2× 21.5 mm (4.8 × 3.16 × 0.85 in )

Antenna Type

2× High-Performance Omnidirectional Antennas

Others
Package Contents

BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (MA47BE)

2× Antennas

Low-Profile Bracket

Bluetooth Header Cable

Quick Installation Guide

Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements

Compatible with Intel-based Windows 11/10 (64-bit) only. Does not support AMD platforms.
