MA60XNB [V1] | AX900 Nano Wi-Fi 6 Bluetooth USB Adapter

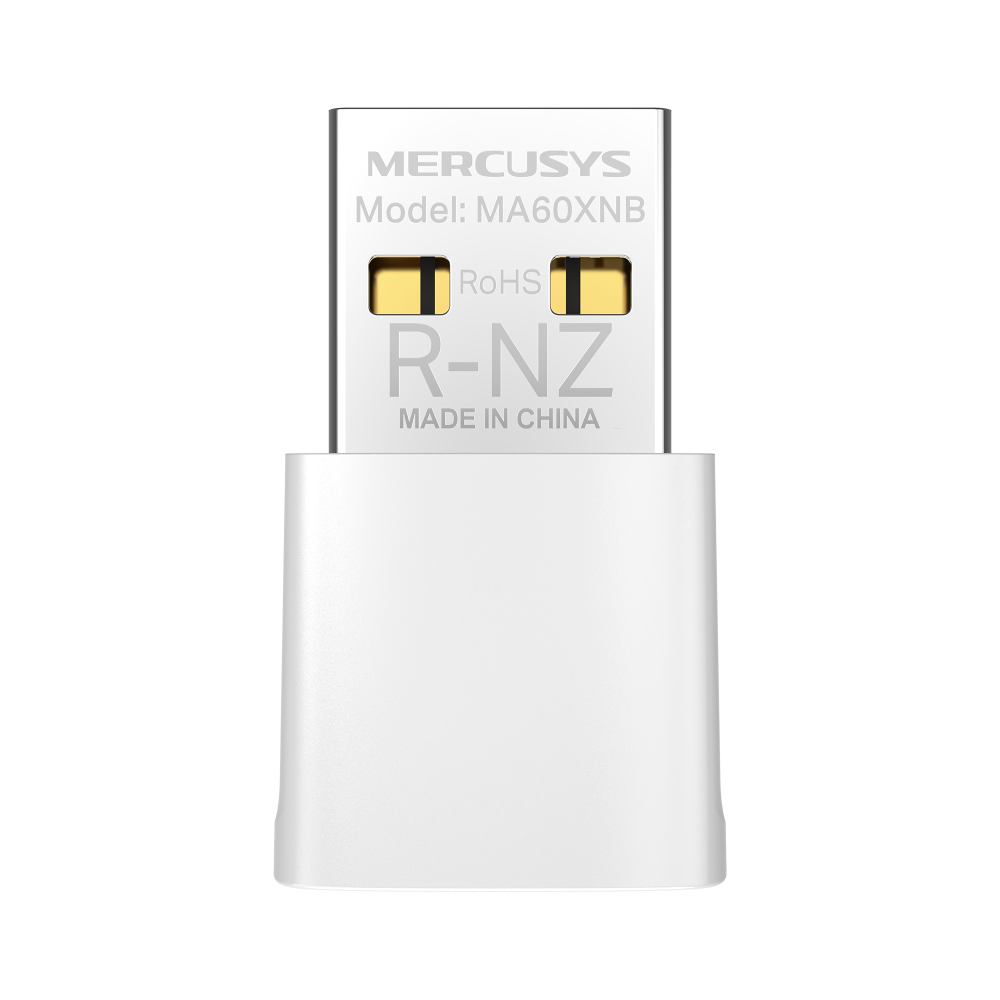

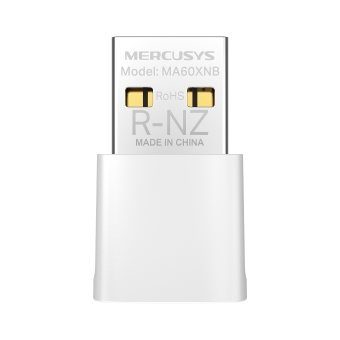

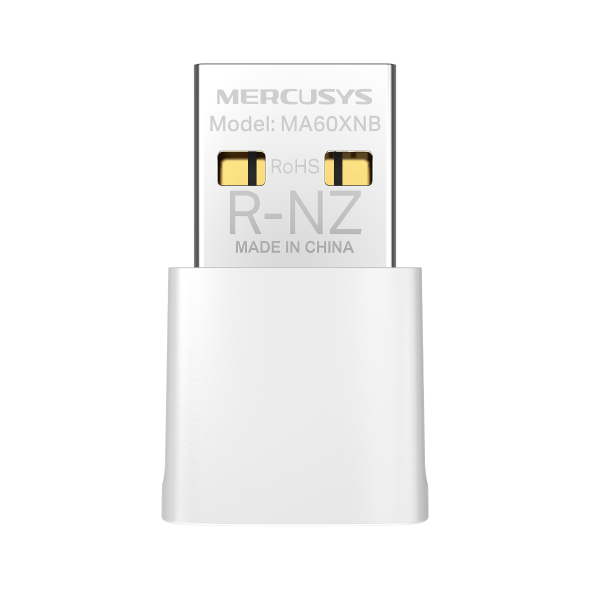

MA60XNB
AX900 Nano Wi-Fi 6 Bluetooth USB Adapter
- WiFi and Bluetooth Two in One – Enjoy fast Wi-Fi 6 speeds up to 900 Mbps and reliable Bluetooth 5.3 pairing – all in one compact device. †
- Dual Band WiFi – 2.4 GHz (287 Mbps) and 5 GHz (600 Mbps) band for flexible connectivity. †
- Reliable Bluetooth 5.3 - Enjoy stable, low-latency connections for headphones, keyboards, and other everyday devices.

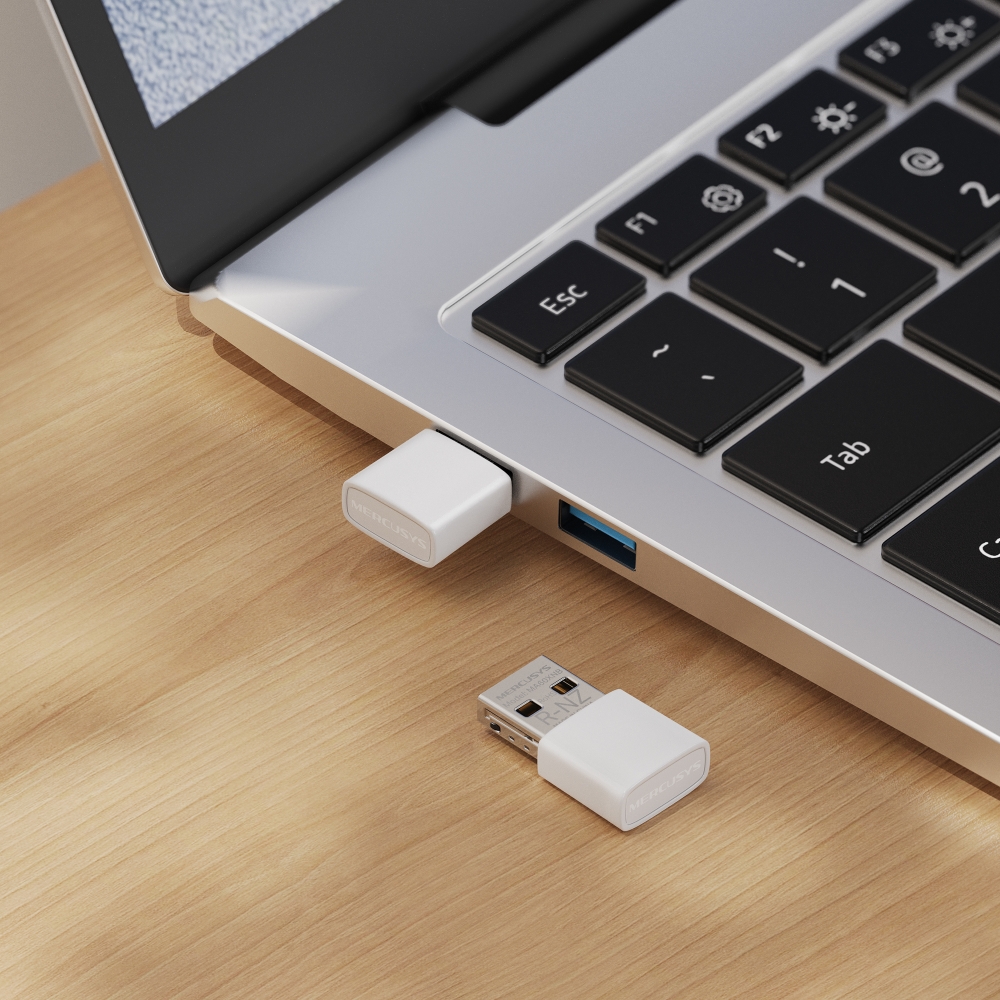

- Nano Size – Compact and space-saving. No need to unplug, ever.
- Pre-loaded Internal Driver – Plug in MA60XNB with its internal driver and enjoy simple installation.
- Advanced Security – The latest security enhancement, WPA3, provides enhanced protection in personal password safety. ‡
- Windows Compatible – Supported operating system: Windows 11/10 (32/64bit).
5.3
WPA3 Security
Windows 11/10
Upgrade Your PC Experience with Wi-Fi 6
Enjoy fast speeds up to AX900 with lower latency and better efficiency, perfect for streaming, gaming, and video calls.

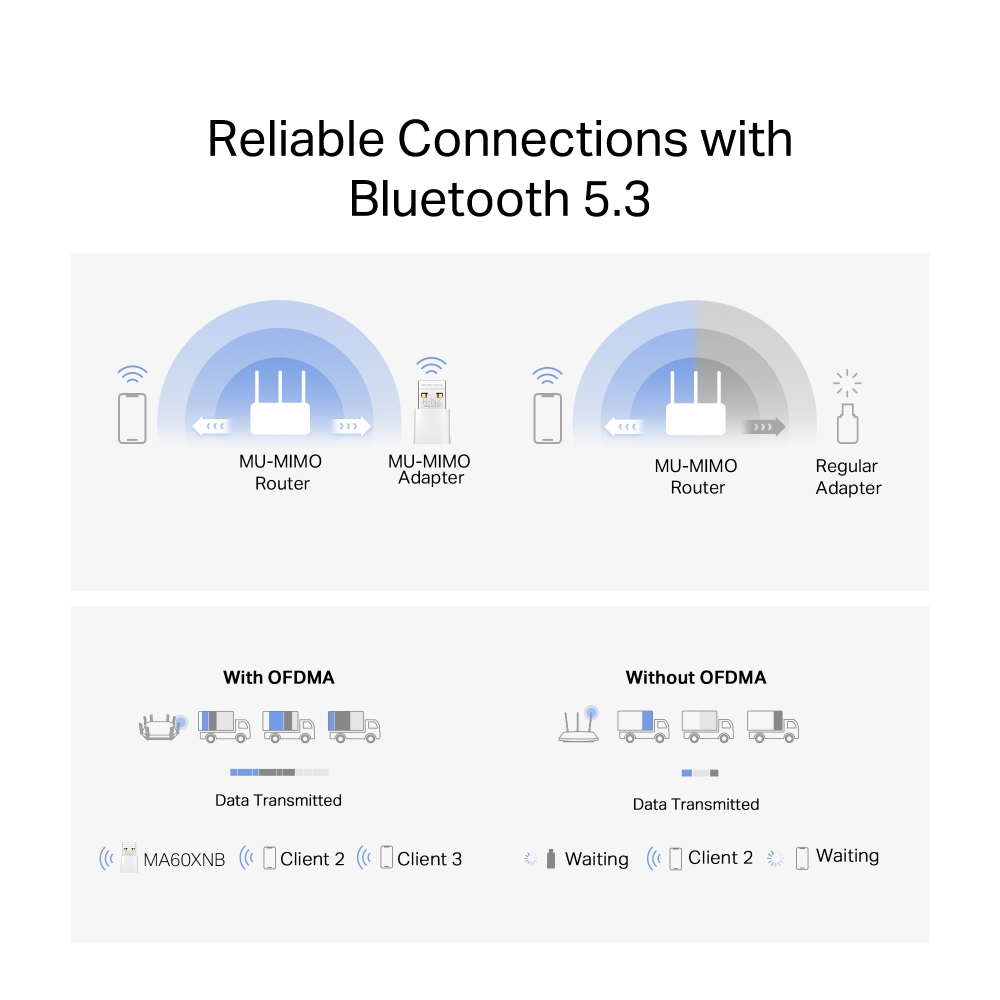

Reduced Latency, Enhanced Efficiency
Working with a MU-MIMO and OFDMA compatible router, your PC receives data simultaneously with other devices on the same network stream, resulting in minimal to no lag for videos and games.§
Reliable Connections with Bluetooth 5.3
With advanced Bluetooth 5.3, your PC can instantly connect to a wide range of wireless devices — from earbuds to keyboards, game controllers to printers — all with faster pairing, lower latency, and greater stability.

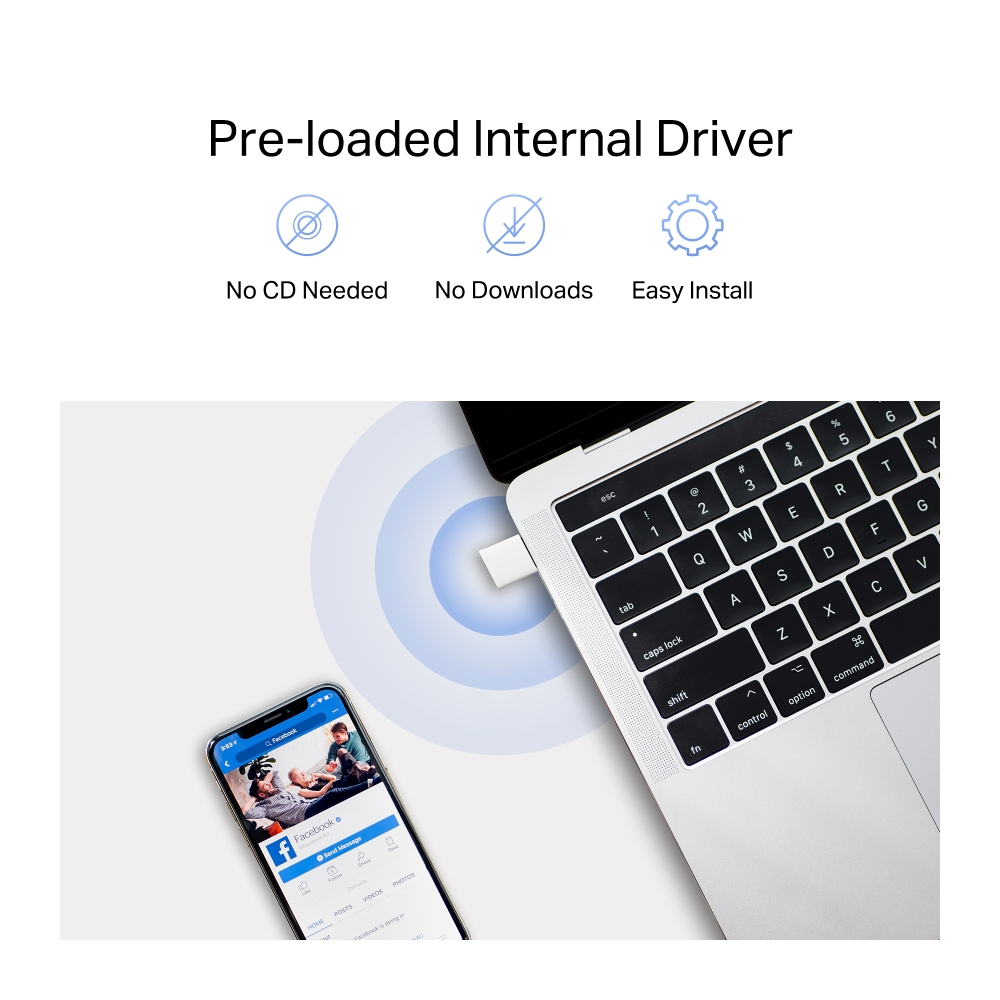

Pre-loaded Internal Driver
Plug in MA60XNB with its internal driver and enjoy simple installation.
Needed
Downloads
Install
Compatible with Windows Operating System
MA60XNB fully supports for the latest Windows 11/10 (32/64 bit).

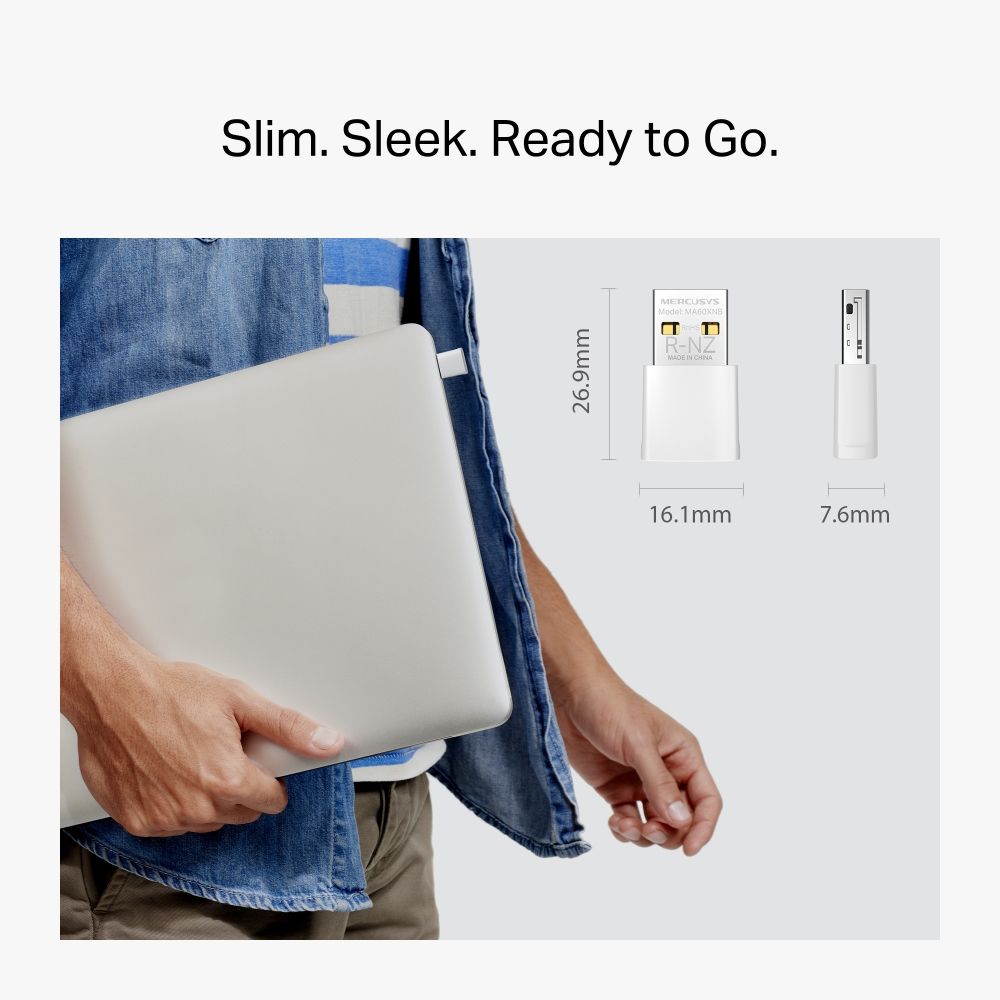

Slim. Sleek. Ready to Go
MA60XNB fits easily into any laptop bag, pocket, or USB port without getting in the way. Whether you’re working at your desk or on the move, enjoy wireless freedom—without the bulk.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. ‡Use of WPA3 requires APs to also support the corresponding feature. To use WPA3, you may need to upgrade the drivers which can be downloaded on the official website of MERCUSYS. §Use of Wi-Fi 6 (802.11ax) and features including OFDMA, MU-MIMO and 1024-QAM requires APs to also support the corresponding features. *Functionality may be restricted on some operating systems and platforms. To ensure compatibility, you may need to update the adapter's drivers after an OS update. You can find our latest drivers in the download center at http://www.mercusys.com.
- Wireless
- Wireless Standards
IEEE 802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz
- Frequency
5 GHz
2.4 GHz- Reception Sensitivity
5 GHZ：
11a6M：-94dBm
11ax HE80 MCS11：-59dBm
11ax HE80 MCS0：-87dBm
2 GHZ：
11g6M：-95dBm
11ax HE40 MCS11：-65dBm
11ax HE40 MCS0：-93dBm- Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK
- Hardware
- Interfaces
USB 2.0
- Antenna
Omni Directional
- Software
- Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,
256-QAM, 1024-QAM
- General
- Dimensions ( W x D x H )
26.9 × 16.1× 7.6 mm
- Others
- Certifications
CE, FCC, RoHS
- Package Contents
AX900 Nano Wi-Fi 6 Bluetooth USB Adapter
Quick Installation Guide- Environment
Operating Temperature: 0℃–40℃ (32℉–104℉)
Operating Humidity: 10%–90%, non-condensing- System Requirements
Windows 11/10
