MA70XM [V1] | AX1800 Wi-Fi 6 Wireless USB Adapter
MA70XM

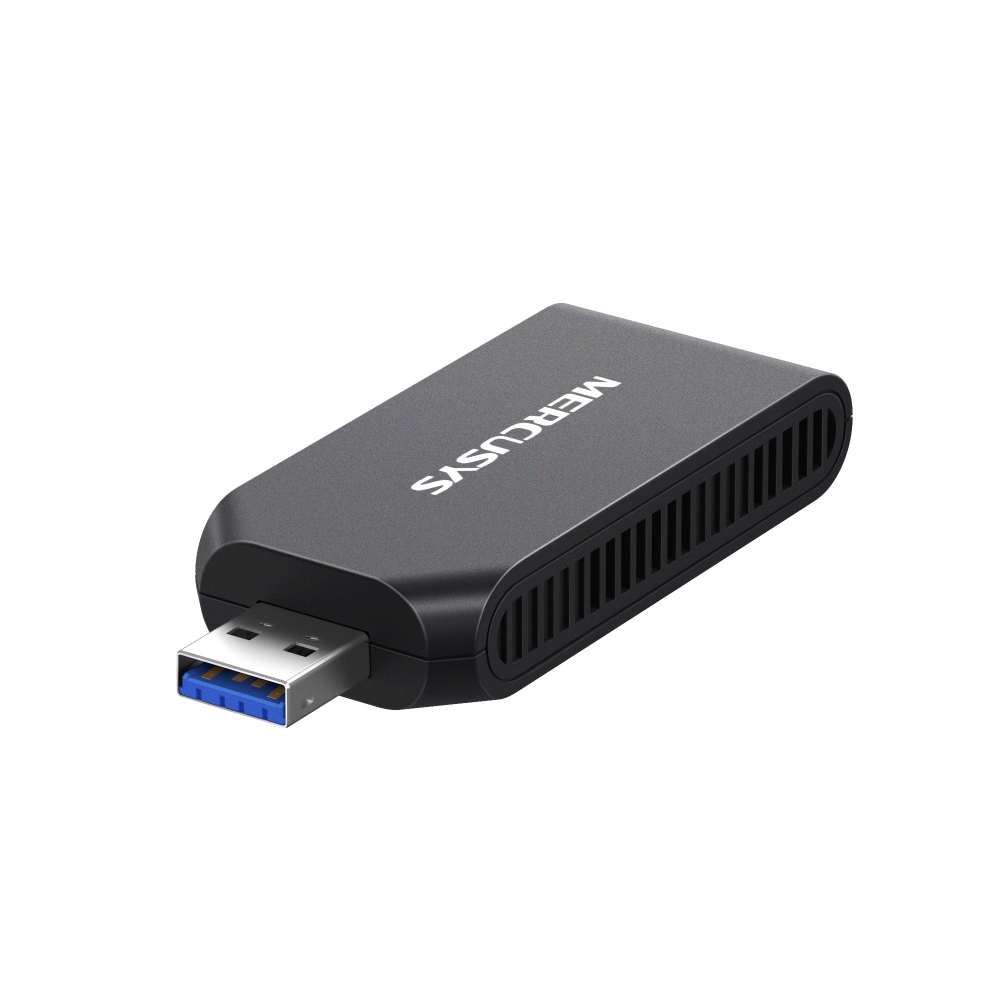

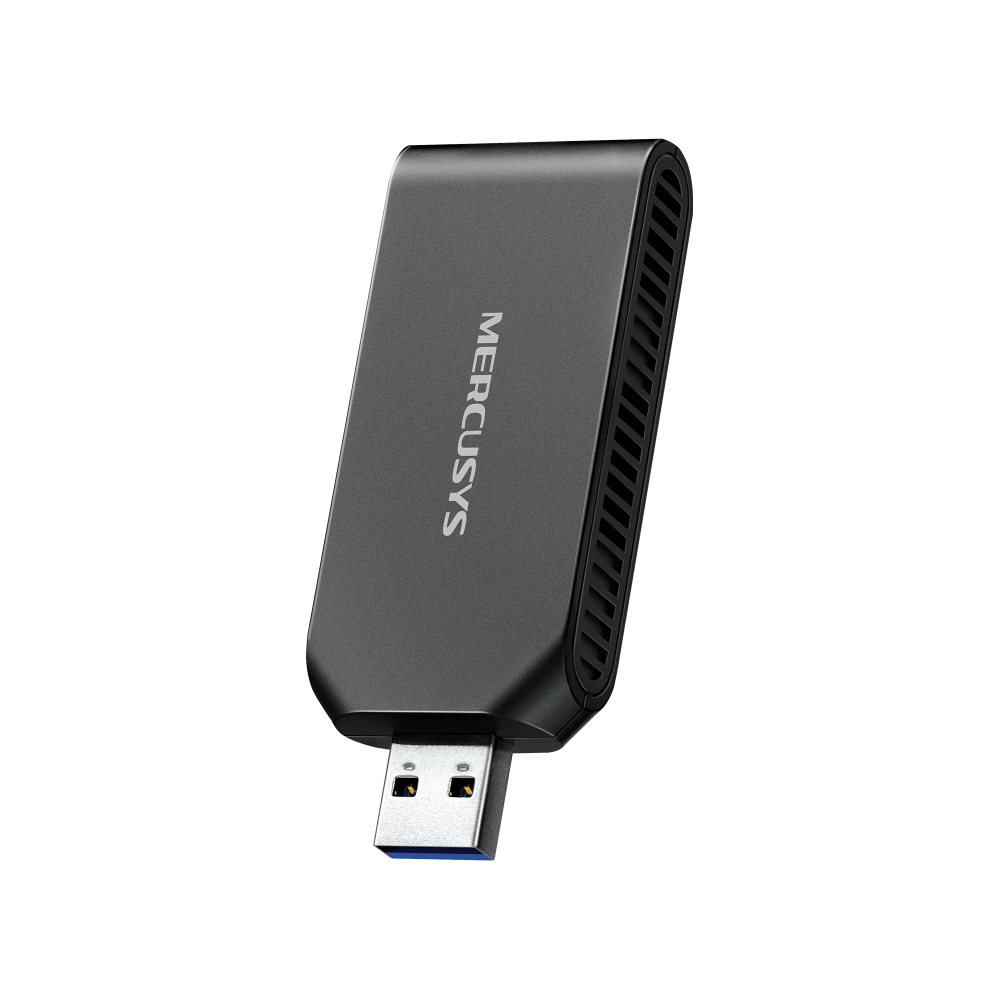

AX1800 Wi-Fi 6 Wireless USB Adapter
Strong Dual-Band Wi-Fi Speed — Speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†
Pre-Loaded Internal Driver — Plug in the MA70XM with the internal driver and enjoy the easy and friendly installation.

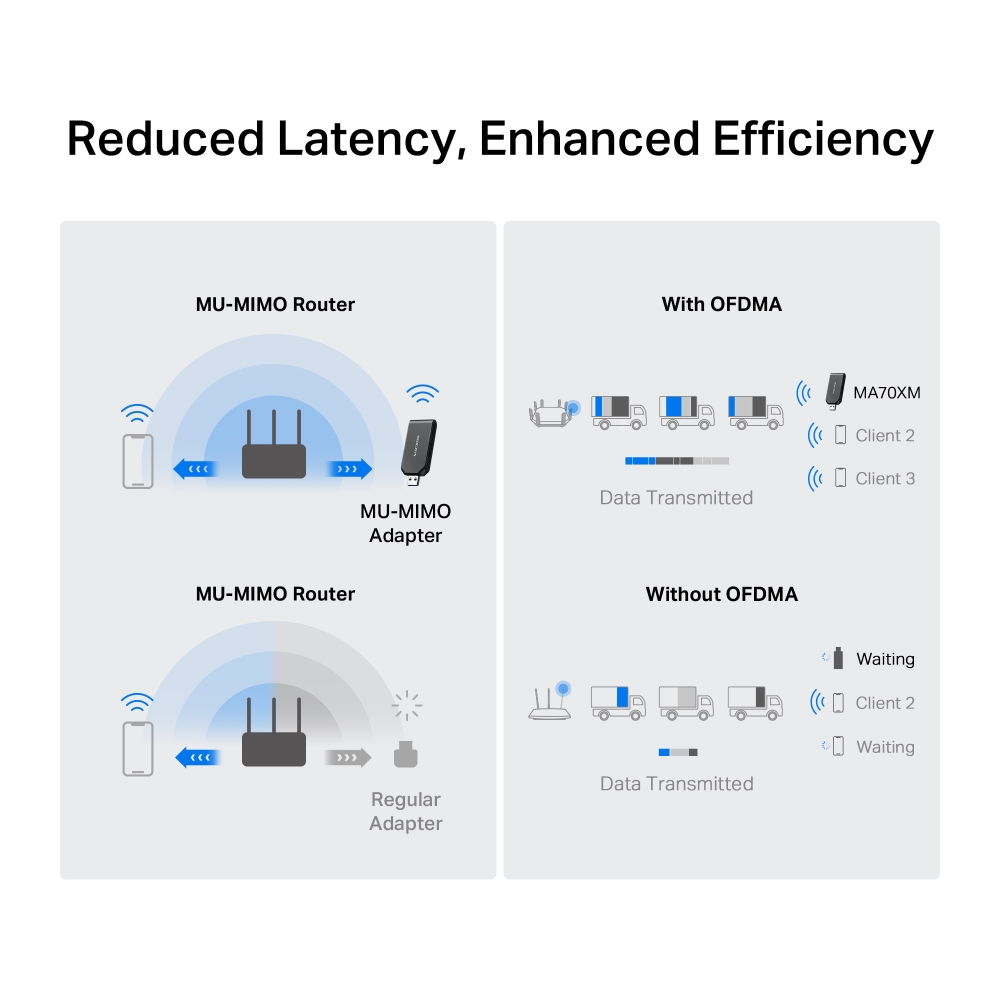

MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion.§
Improved Security — WPA3, the latest security standard, provides enhanced WiFi protection to secure your devices and personal information from brute-force attacks.‡
Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n Wi-Fi standards†

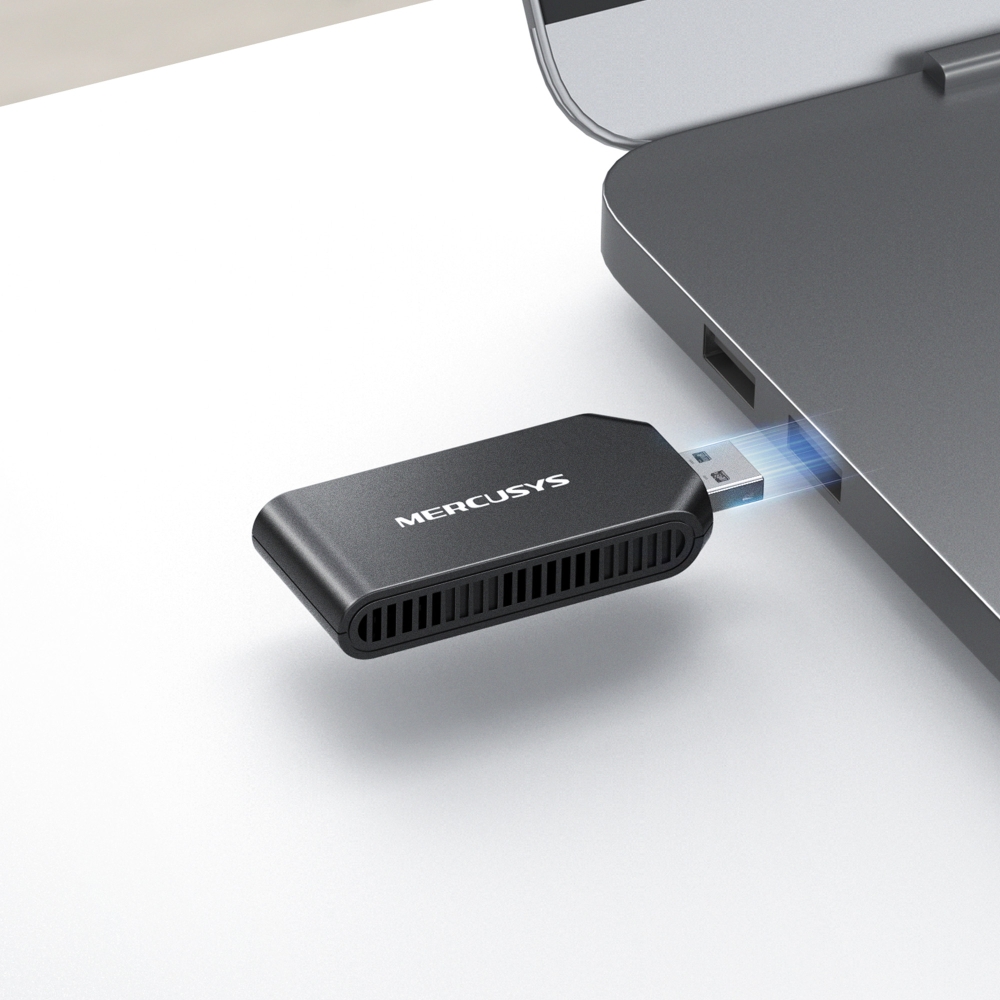

Superior Transfer Speeds — Combined with 802.11ax Wi-Fi, USB 3.0 makes MA70XM perfect for HD streaming, online gaming, and large file downloads.
Windows Compatible — Supported operating system: Windows 10, 11*
Powerful Connectivity, Effortless Speed!
AX1800 WiFi 6 Wireless USB Adapter
MA70XM
-
AX1800 Dual-Band WiFi
-
Lower Latency Gameplay
-

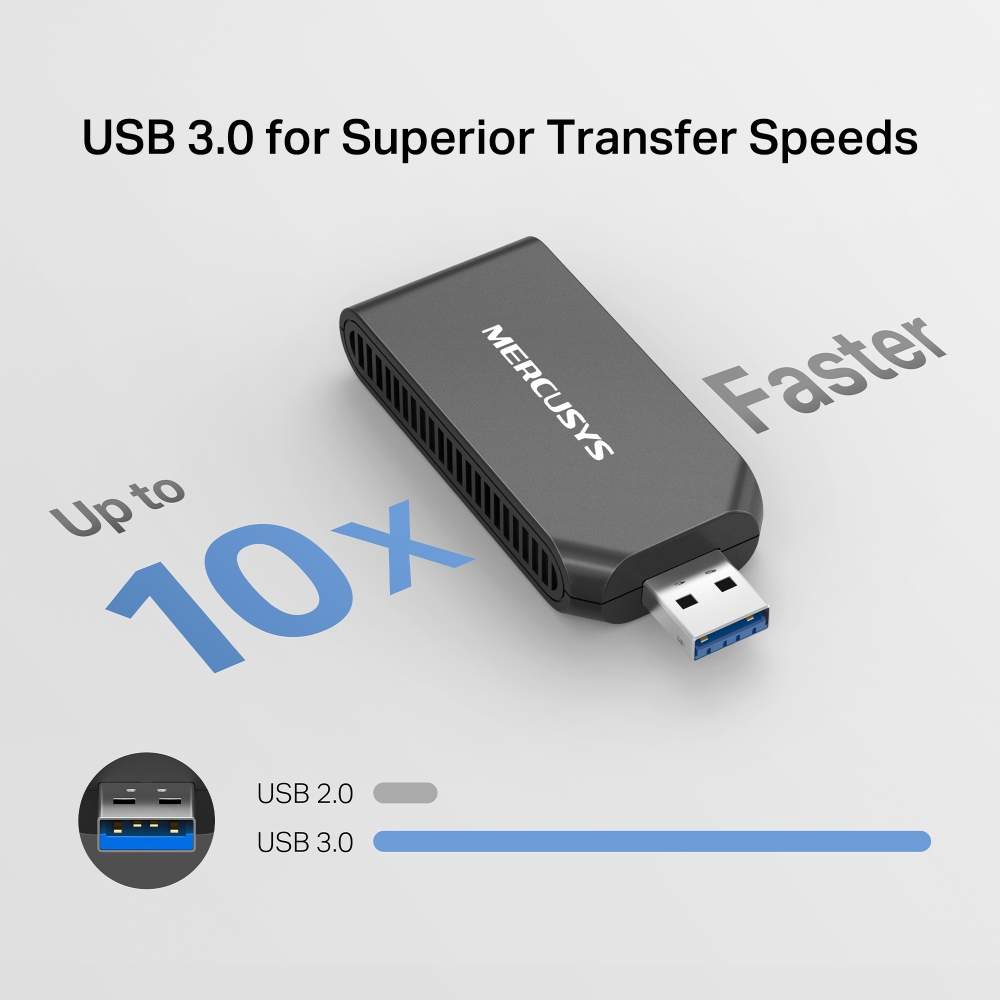

USB3.0 for Superior Transfer Speeds
-
Overall Security Protection
-
Pre-Loaded Internal Driver
-
Compatible with Windows 11/10
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. ‡Use of WPA3 requires APs to also support the corresponding feature. To use WPA3, you may need to upgrade the drivers which can be downloaded on the official website of MERCUSYS. §Use of Wi-Fi 6 (802.11ax) and features including OFDMA, MU-MIMO and 1024-QAM requires APs to also support the corresponding features. *Functionality may be restricted on some operating systems and platforms. To ensure compatibility, you may need to update the adapter's drivers after an OS update. You can find our latest drivers in the download center at http://www.mercusys.com
- Wireless
- Wireless Standards
IEEE 802.11 a/n/ac/ax 5 GHz
IEEE 802.11 b/g/n 2.4 GHz- WiFi Speeds
1201 Mbps on 5 GHz
574 Mbps on 2.4 GHz- Reception Sensitivity
2G 11ac 20M MCS0：-94dBm
2G 11ax 40M MCS11：-62dBm
5G 11ac 20M MCS0：-95dBm
5G 11ax 80M MCS11：-62dBm
- Wireless Security
WPA/WPA2/WPA-PSK/ WPA2-PSK/WPA3-SAE
- Hardware
- Dimensions
77 × 30 × 12.4 mm
(3.03 × 1.18 × 0.49 in)- Interfaces
USB 3.0
- Antenna Type
Internal
- Others

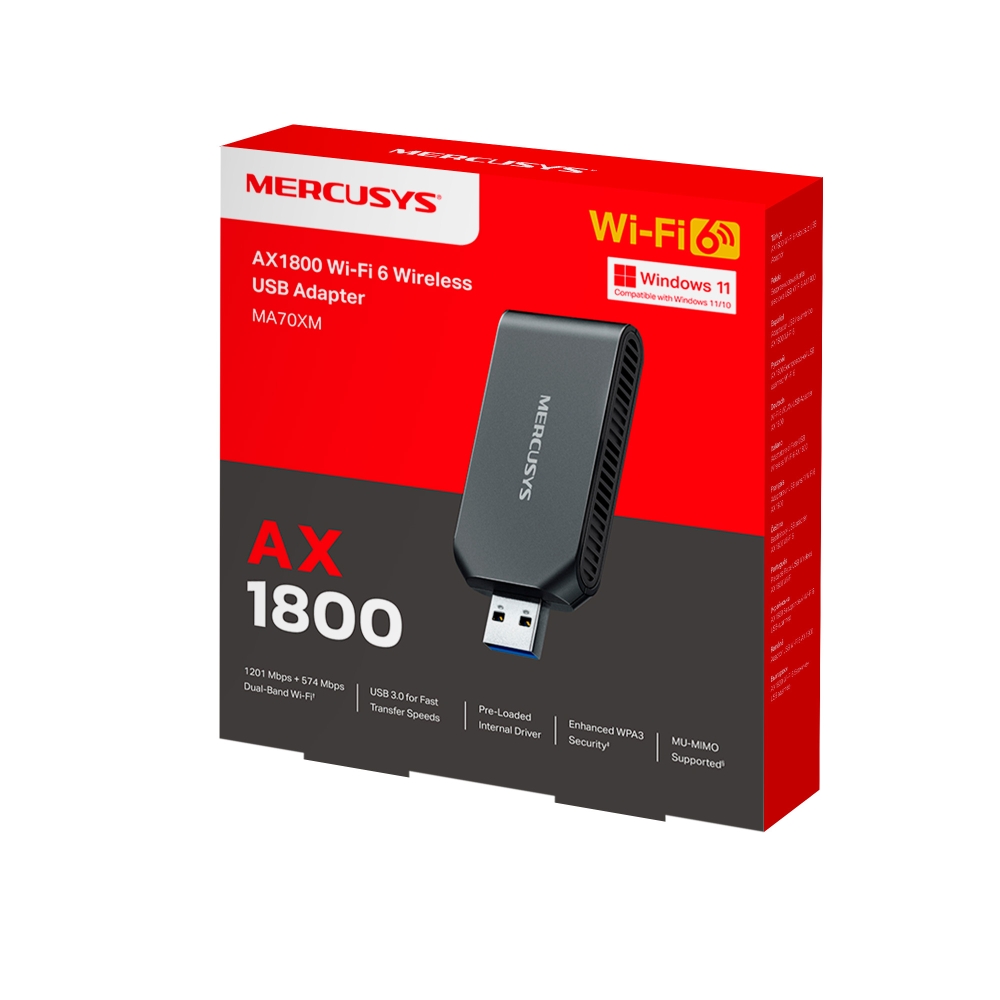

- Package Contents
AX1800 Wi-Fi 6 Wireless USB Adapter (MA70XM)
Quick Installation Guide
- System Requirements
Windows 11/10 （32/64 bit)
