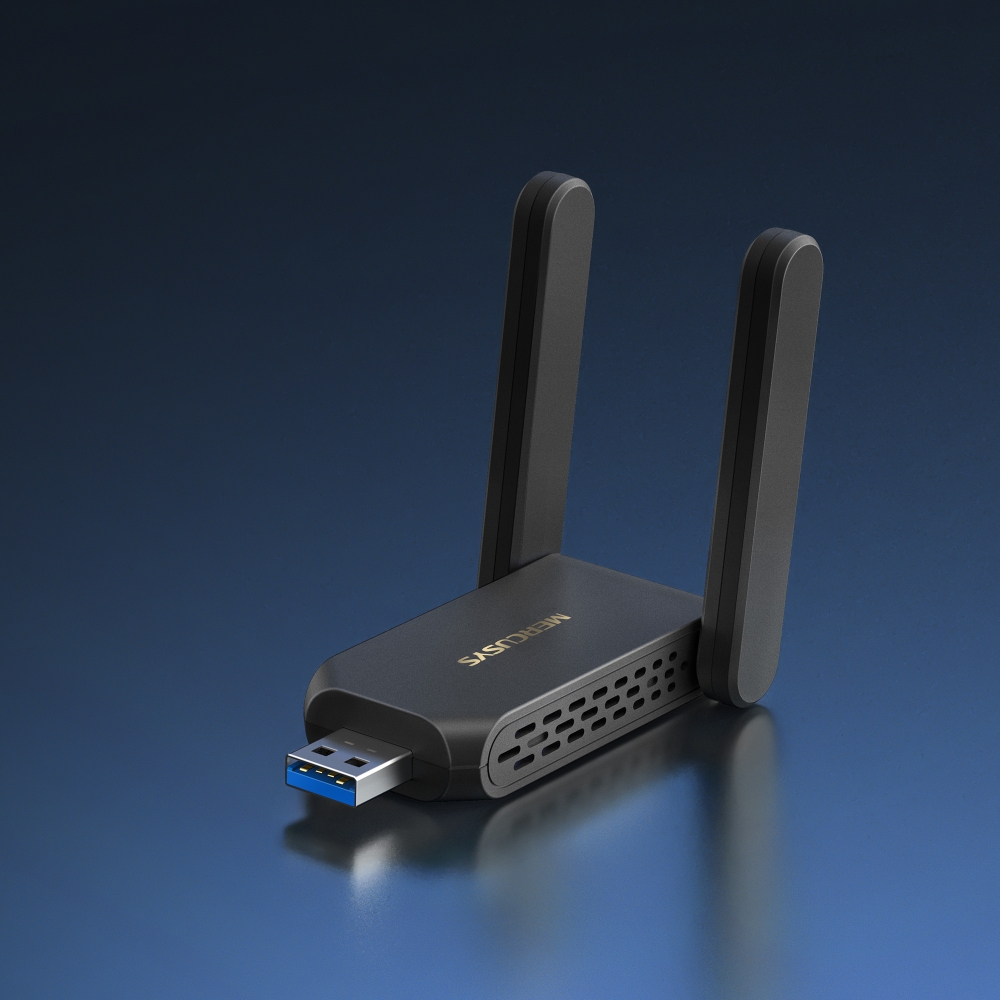

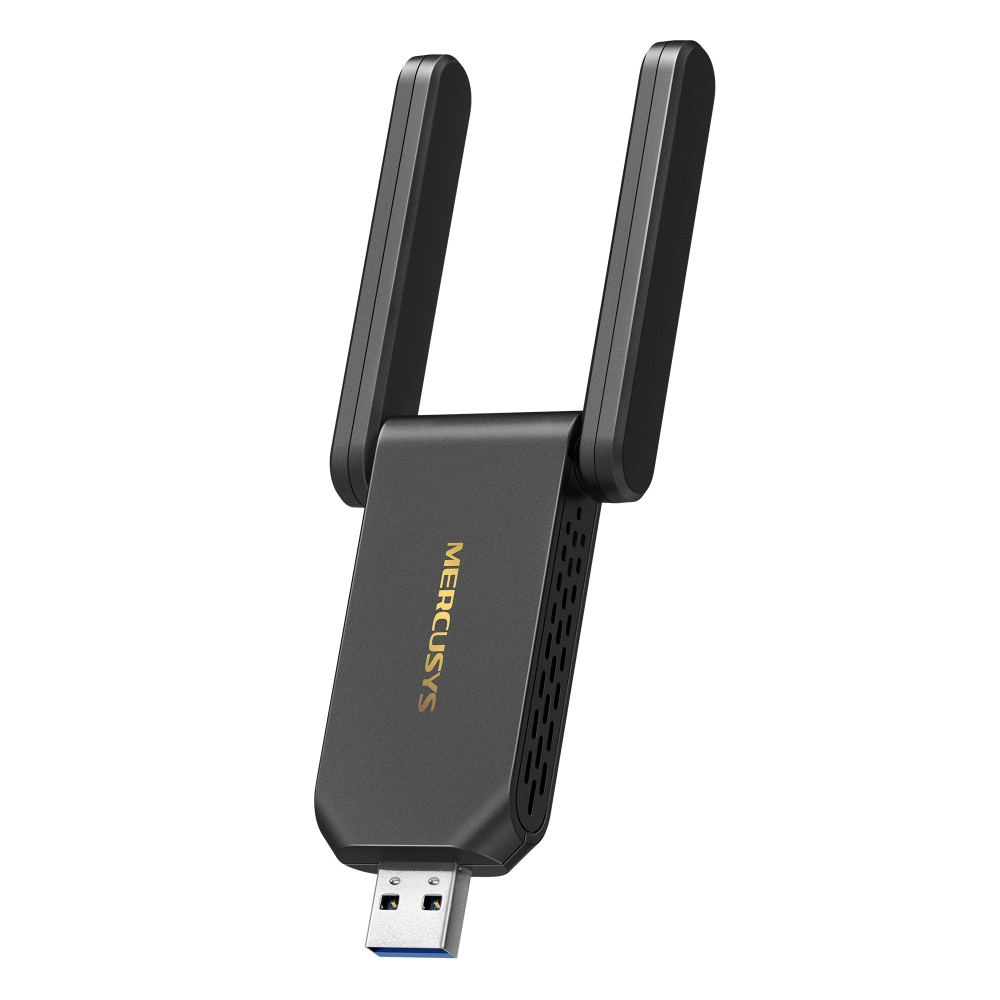

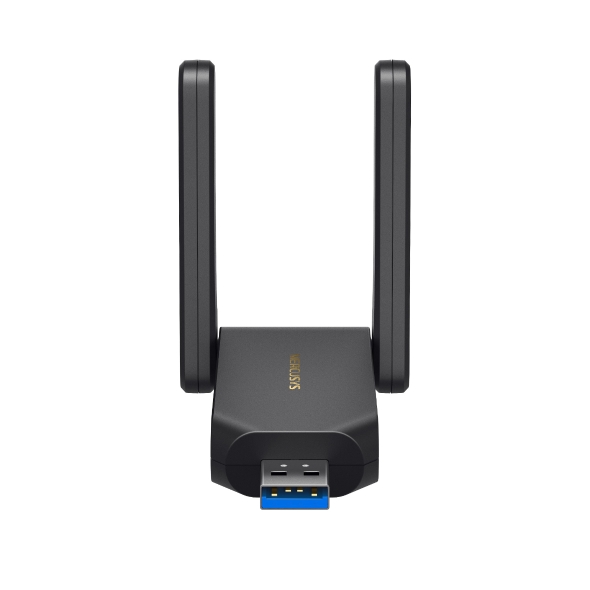

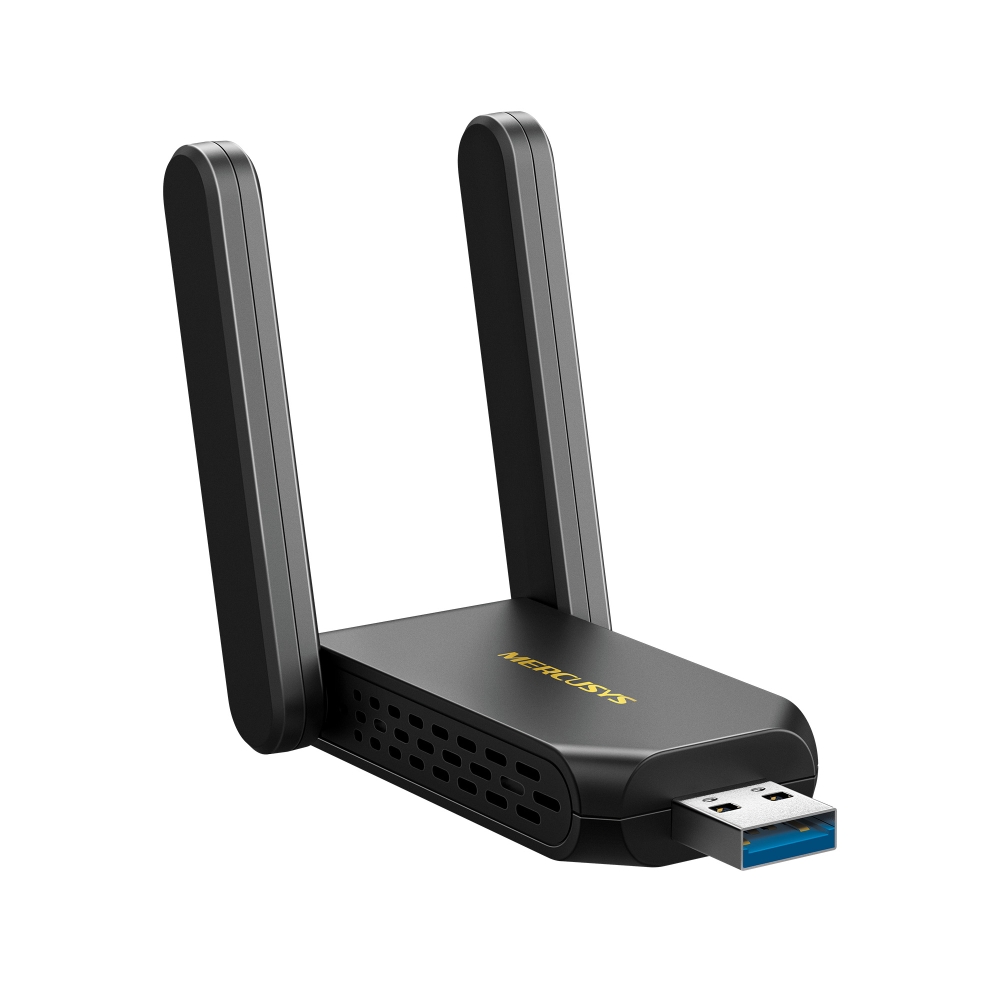

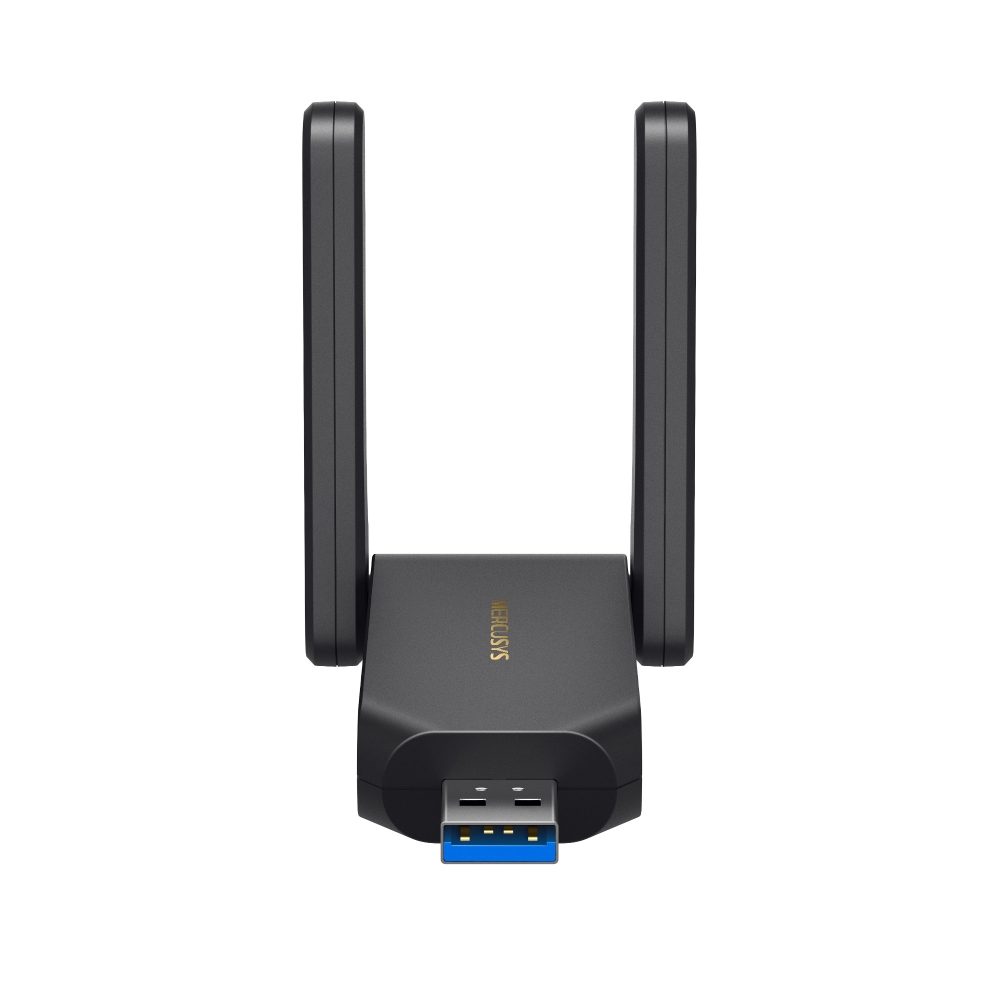

MA86XH [V1] | AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter
MA86XH

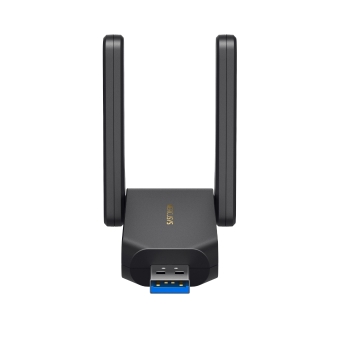

AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter
- Tri-Band Wi-Fi Speed – Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†
- Pre-Loaded Internal Driver – Plug in the MA86XH with the internal driver and enjoy the easy and friendly installation.
- Wider Signal Coverage – Two high-gain antennas with Beamforming deliver extended range and focused coverage for faster, more stable connections.
- MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion.§
- Improved Security — WPA3, the latest security standard, provides enhanced WiFi protection to secure your devices and personal information from brute-force attacks.‡
- Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n Wi-Fi standards†
- Superior Transfer Speeds — Combined with 802.11ax Wi-Fi, USB 3.0 makes MA86XH perfect for HD streaming, online gaming, and large file downloads.
- Windows Compatible — Supported operating system: Windows 10, 11*
Powerful Connectivity, Effortless Speed!
AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter
MA86XH
Internal Driver
Upgrade Your PC to Wi-Fi 6E
MA86XH arms your PC with Wi-Fi 6E technology and the brand-new 6 GHz band, unlocking your WiFi 6E router's full potential. It seamlessly handles all your online activities, from HD video streaming to lag-free gaming and web browsing, thanks to its high-speed tri-band WiFi.†

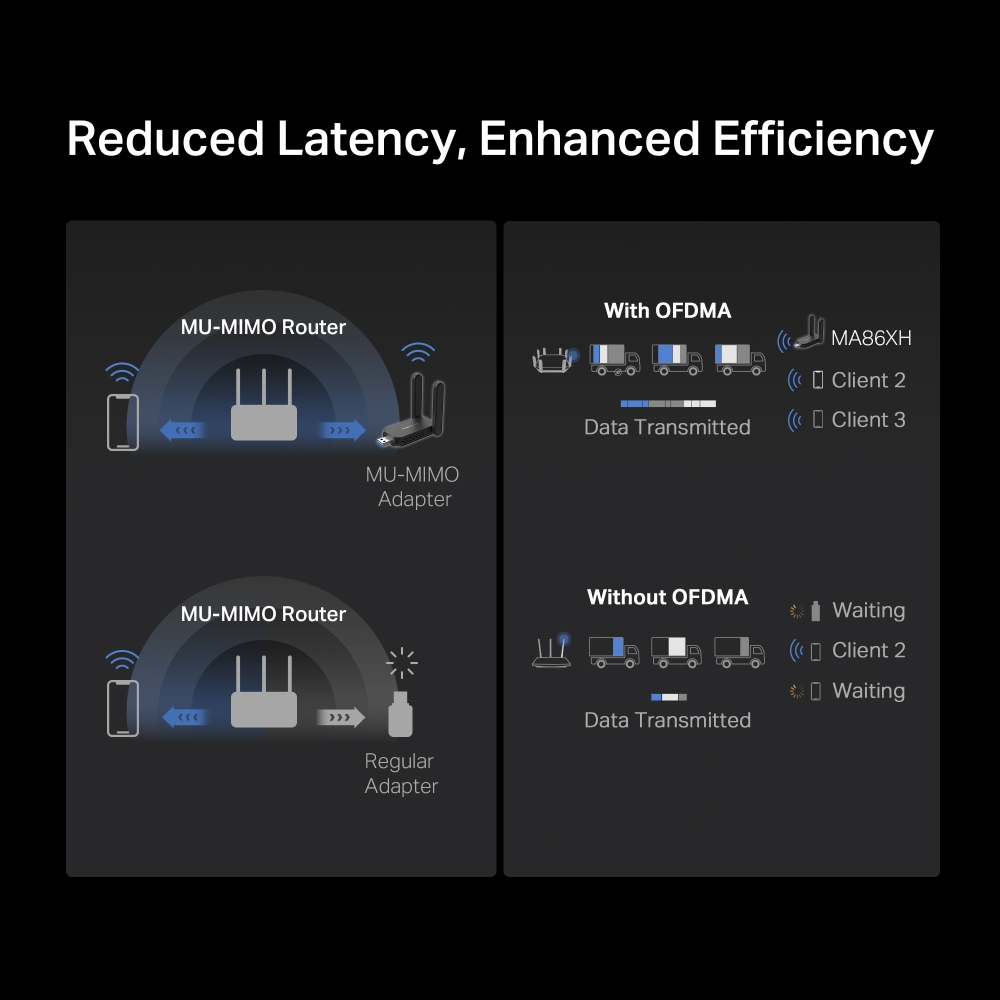

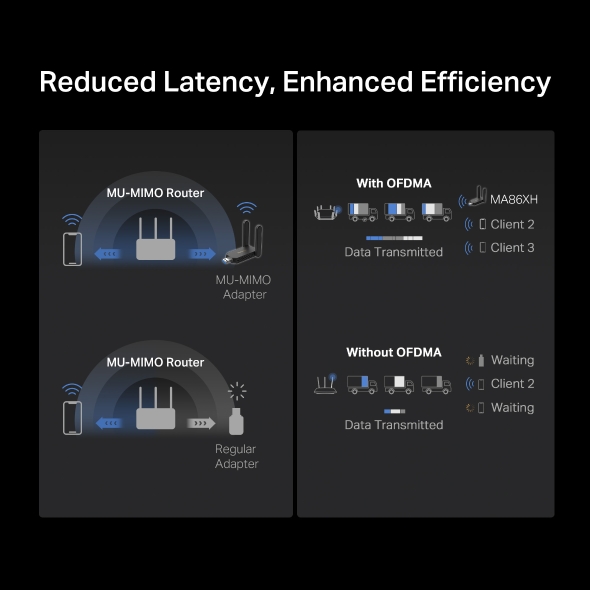

Reduced Latency, Enhanced Efficiency
Working with a MU-MIMO and OFDMA compatible router, your PC receives data simultaneously with other devices on the same network stream, resulting in minimal to no lag for videos and games.

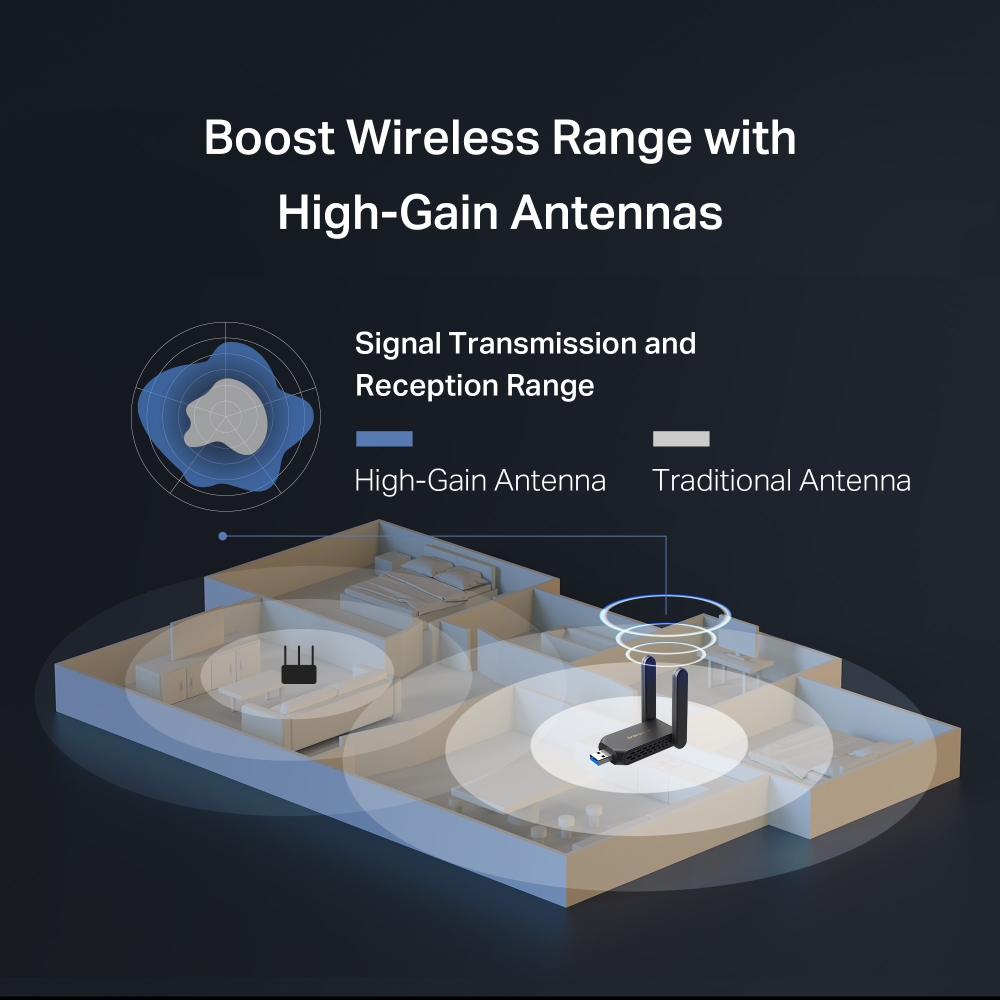

Boost Wireless Range with High-Gain Antennas
Two high-gain antennas extend your router's reach with enhanced directional precision, ensuring faster and more stable wireless connections over longer distances.
Flexible and Easy Installation
Plug in the MA86XH with the internal driver and enjoy the easy and friendly installation.
USB 3.0 for Superior Transfer Speeds
USB 3.0 transfers data up to 10× faster than USB 2.0 and is backwards compatible. Combined with 802.11ax WiFi, USB 3.0 makes MA86XH perfect for HD streaming, online gaming, and large file downloads.
The Latest WPA3 Protects Your Personal Network
WPA3, the latest security standard, provides enhanced WiFi protection to secure your devices and personal information from brute-force attacks.‡
-
Protect Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password
-
Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session’s secret keys
-
Unbreakable 128-Bit Encryption
Creates an active defense against security threats and intruders
Compatible with Windows Operating System
MA86XH fully supports the latest Windows 11.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. ‡Use of WPA3 requires APs to also support the corresponding feature. To use WPA3, you may need to upgrade the drivers which can be downloaded on the official website of MERCUSYS. §Use of Wi-Fi 6/6E (802.11ax) and features including OFDMA, MU-MIMO and 1024-QAM requires APs to also support the corresponding features. 160 MHz channels may not all be available in the 5 GHz or 6 GHz band in some regions/countries due to regulatory restrictions. *Functionality may be restricted on some operating systems and platforms. To ensure compatibility, you may need to update the adapter's drivers after an OS update. You can find our latest drivers in the download center at http://www.mercusys.com **Currently, the 6 GHz band is only available on Windows 11.
- Wireless
- Wireless Standards
IEEE 802.11 ax 6 GHz
IEEE 802.11 a/n/ac/ax 5 GHz
IEEE 802.11 b/g/n 2.4 GHz
- WiFi Speeds
2402 Mbps on 6 GHz
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz
- Reception Sensitivity
6 GHz:
11ax HE160 MCS11: -58 dBm
11ax HE160 MCS0: -82 dBm
5 GHz:
11ax HE160 MCS11: -61 dBm
11ax HE160 MCS0: -85 dBm
2.4 GHz:
11ax HE40 MCS11: -64 dBm
11ax HE40 MCS0: -92 dBm
- Wireless Security
WPA/WPA2/WPA-PSK/ WPA2-PSK/WPA3-SAE
- Hardware
- Dimensions
77 × 45.2 × 12.4 mm
(3.03 × 1.78 × 0.49 in)- Interfaces
USB 3.0
- Antenna Type
2 External High Gain Antennas
- Others
- Package Contents
AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter (MA86XH)
Quick Installation Guide
- System Requirements
Windows 11/10 （32/64 bit)
