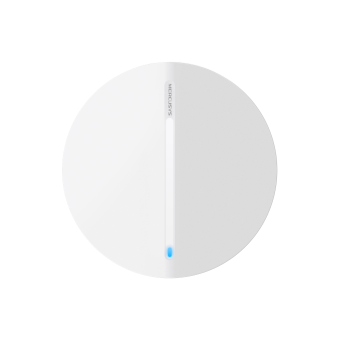

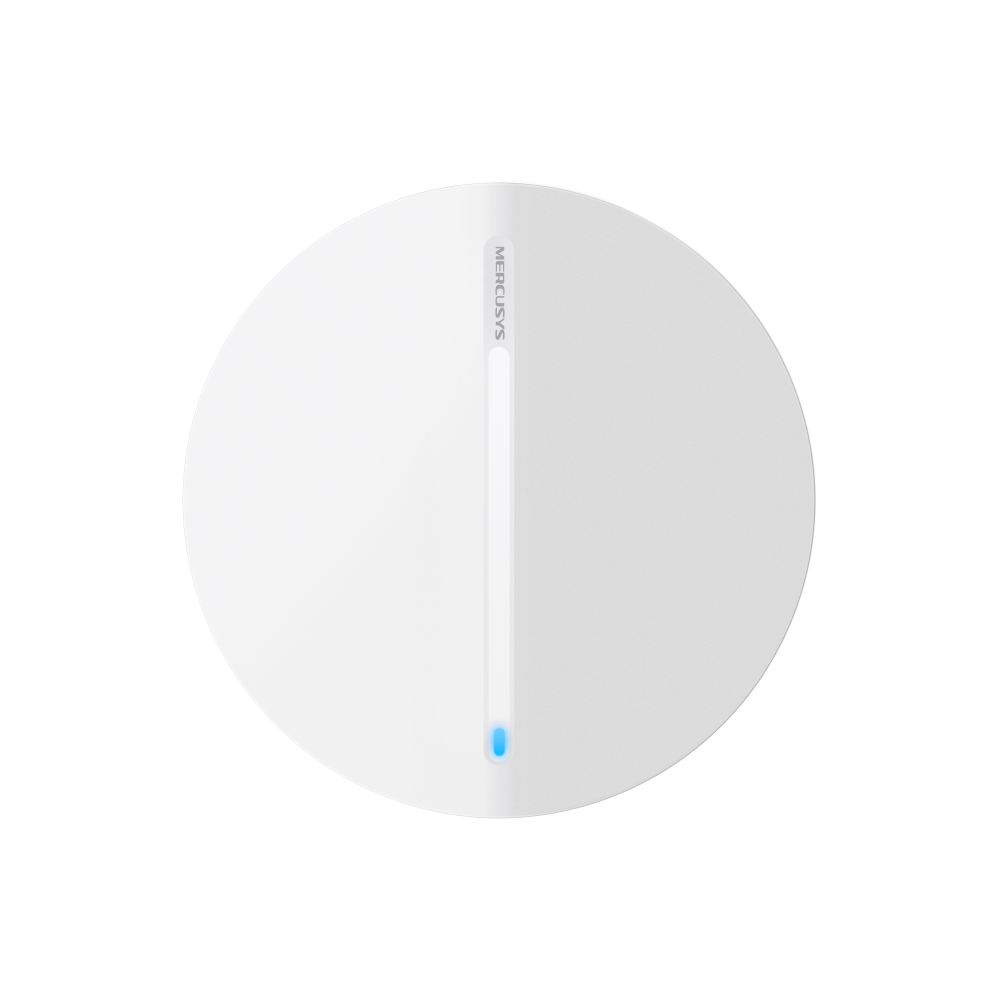

MAP80X [V1] | AX3000 Ceiling Mount Wi-Fi 6 Access Point

MAP80X

Coming Soon

AX3000 Ceiling Mount Wi-Fi 6 Access Point

Blazing-Fast Wi-Fi 6 Speeds – Up to 3.0 Gbps: Delivers up to 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, providing high-performance wireless connectivity for demanding applications†.
Flexible Power & Mounting Options: Compatible with 802.3at PoE, 48V Passive PoE, or 12V DC power input. Offers ceiling and wall mounting options (kits included) to adapt to various installation scenarios.
Effortless Setup: Easy setup allow you to get started easily, with no professional assistance required.
Seamless Mesh Networking & Roaming: Supports Mesh and seamless roaming, ensuring smooth transitions and uninterrupted Wi-Fi as users move between areas.
Ultra-Slim Design: Φ6.3 in × 1.5 in elegant design brings more agility.


Overview

Compact AX3000
Wi-Fi 6 Ceiling Mount Access Point

MAP80X

Dual-Band Wi-Fi 6 Speeds up to 3.0 Gbps
1× Gigabit PoE+ Port for Easy Installation
Includes DC Adapter in Packaging
Supports Concealed Ethernet Cable Installation
Ultra-Slim Design (Φ6.3 in × 1.5 in)
Mesh and Roaming for Seamless Connectivity
Easy Management with Dedicated Small Business APP/Web
Auto Channel Selection and Power Adjustment

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Specifications

Wireless
Signal Rate

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Wireless Functions

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MIMO

• HE160 (160 MHz Bandwidth)

• Seamless Roaming(802.11k/v/r)

• Mesh

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Hardware
Interfaces

1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button

Reset

Power Supply

• 802.3at PoE

• 12V DC (Power Adapter included)

• 48V Passive PoE

Bluetooth

V5.2

General
Mounting Options

• Ceiling /Wall Mounting (Kits included)

• Junction Box Mounting

Dimensions ( W x D x H )

6.3 × 6.3 × 1.5 in (160 × 160 × 38.5 mm)

Others
Package Contents

• MAP80X

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
