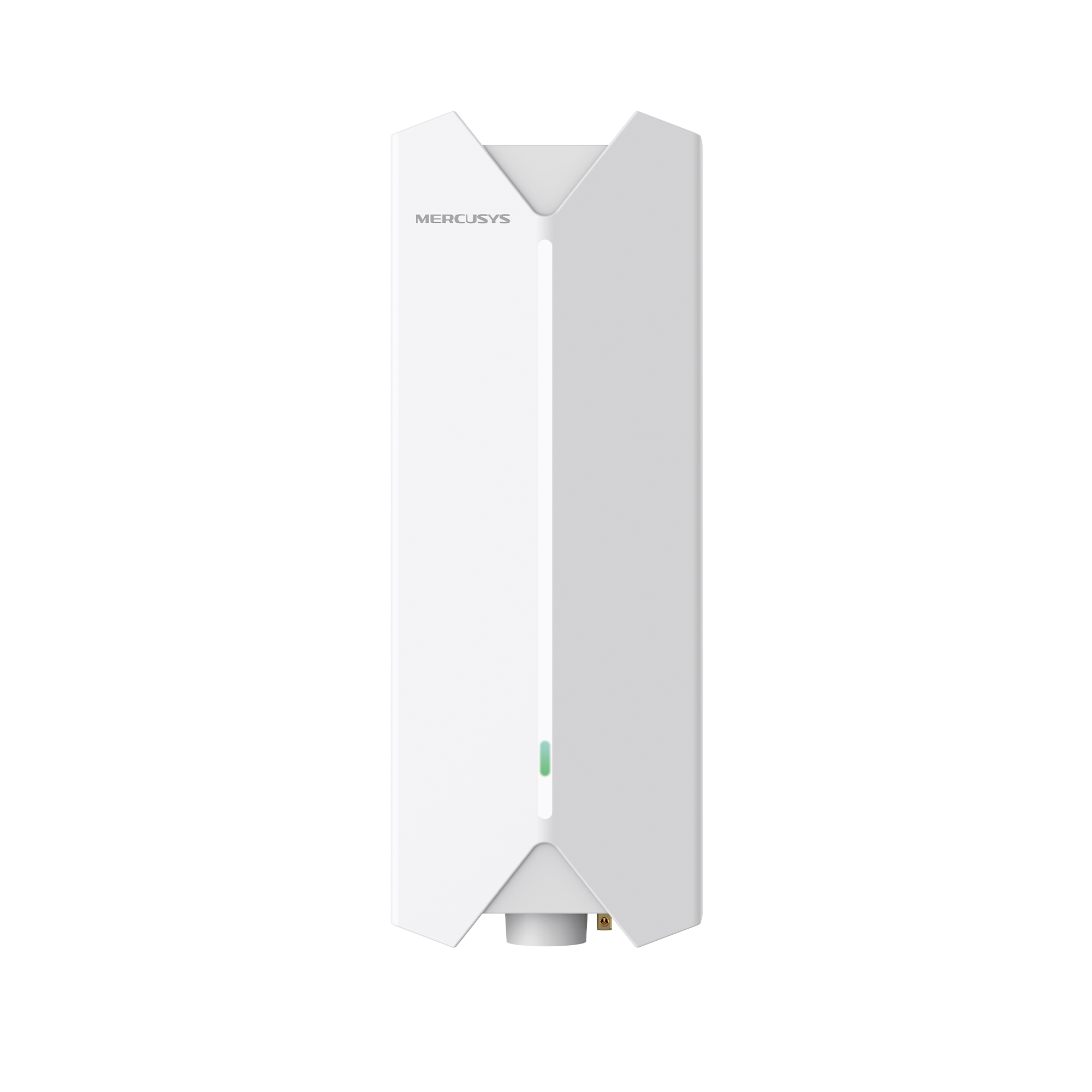

MAP80X-Outdoor [V1] | AX3000 Indoor/Outdoor Wi-Fi 6 Access Point

MAP80X-Outdoor

Coming Soon

AX3000 Indoor/Outdoor Wi-Fi 6 Access Point

Blazing-Fast Wi-Fi 6 Speeds – Up to 3.0 Gbps: Delivers up to 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, providing high-performance wireless connectivity for demanding applications†.
1× Gigabit Ethernet Port: Ensures stable and high-speed wired connectivity for bandwidth-intensive applications.
PoE Powered: : Supports both 802.3at PoE and Passive PoE (adapter included) power supply for flexible installation.
Optimized Outdoor Performance: Equipped with smart antennas and high-power amplifiers to deliver strong, wide-area signal coverage.
Rugged Industrial Design: IP67-rated enclosure offers superior protection against dust, water, and extreme weather conditions*.
Seamless Mesh Networking & Roaming: Supports Mesh and seamless roaming, ensuring smooth transitions and uninterrupted Wi-Fi as users move between areas.


Overview

AX3000 Outdoor Wi-Fi 6 Access

Built for High-Speed Outdoor Connectivity

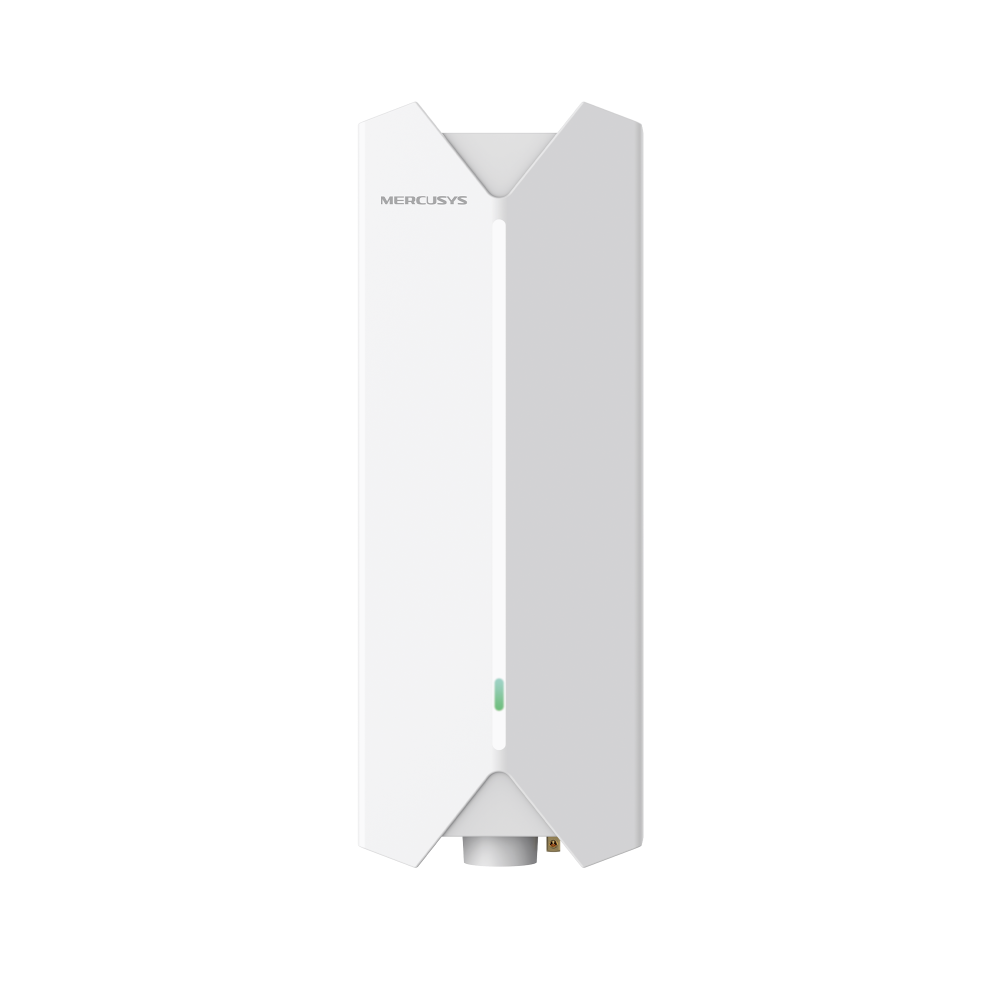

MAP80X-Outdoor

MT235 Product Image

  • Dual-Band Wi-Fi 6 Speeds up to 3.0 Gbps

  • 1× Gigabit PoE+ Port for Easy Installation

  • IP67
     Weatherproof & 6KV Lightning Protection*

  • Mesh and Roaming for Seamless Connectivity

  • Wide Range Coverage

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*Specific Weatherproof parameters may change, please refer to actual shipment.
**The specific product appearance may change, please refer to the actual shipment

Specifications

Wireless
Concurrent Clients

250+



Signal Rate

•802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)

•802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)

•802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)

•802.11g: 6, 9,12,18, 24, 36, 48, 54 Mbps

•802.11b: 1, 2, 5.5,11 Mbps

•802.11a: 6, 9,12,18, 24, 36, 48, 54 Mbps

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz, 5 GHz

Wireless Functions

•1024-QAM

•4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

•Enable/Disable Wireless Radio

•Automatic Channel Assignment

•Transmit Power Control (Adjust Transmit Power on dBm)

• QoS (WMM)

• MU-MIMO

• Mesh

•Seamless Roaming(802.11k/v/r)

•Band Steering

•Load Balance

•Airtime Fairness

•Beamforming

•Rate Limit

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Hardware
Interfaces

1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Antenna

•2.4 GHz: 2× 4 dBi

•5 GHz: 2× 5 dBi

Button

Reset

Power Supply

•802.3at PoE

•48V Passive PoE (PoE Adapter Included)

Weatherproof Enclosure

IP67

General
Mounting Options

Pole/Wall Mounting (Kits included)

Dimensions ( W x D x H )

11.0 × 4.2 × 2.5 in (280.4 × 106.5 × 63.5 mm)
(without waterproof & mounting kit)

Others
Environment

•Operating Temperature: -30–70 ℃ (-22–158 ℉)

•Storage Temperature: -40–70 ℃ (-40–158 ℉)

•OperatingHumidity: 10–90% RH non-condensing

•StorageHumidity: 5–90% RH non-condensing

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
