MAP80X-Wall [V1] | AX3000 Wall Plate Wi-Fi 6 Access Point

MAP80X-Wall

Coming Soon

AX3000 Wall Plate Wi-Fi 6 Access Point

Blazing-Fast Wi-Fi 6 Speeds – Up to 3.0 Gbps: Delivers up to 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, providing high-performance wireless connectivity for demanding applications.†
4× Gigabit Ethernet Ports: Includes 1× uplink and 3× downlink ports, offering gigabit-speed wired connections and flexible deployment options.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm and EU standard junction boxes, with support for 802.3af/at PoE input.‡
PoE Passthrough: Enables power forwarding to one downstream device, simplifying cabling and reducing power supply limitations.
Seamless Mesh Networking & Roaming: Supports Mesh and seamless roaming, ensuring smooth transitions and uninterrupted Wi-Fi as users move between areas.

Overview

AX3000 Wall Plate Wi-Fi 6 Access

Point for Full In-Room Coverage

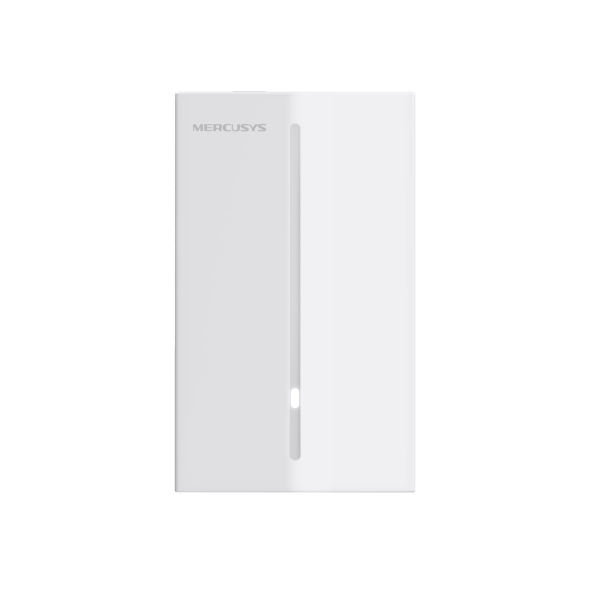

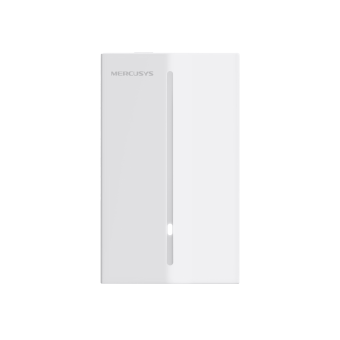

MAP80X-Wall

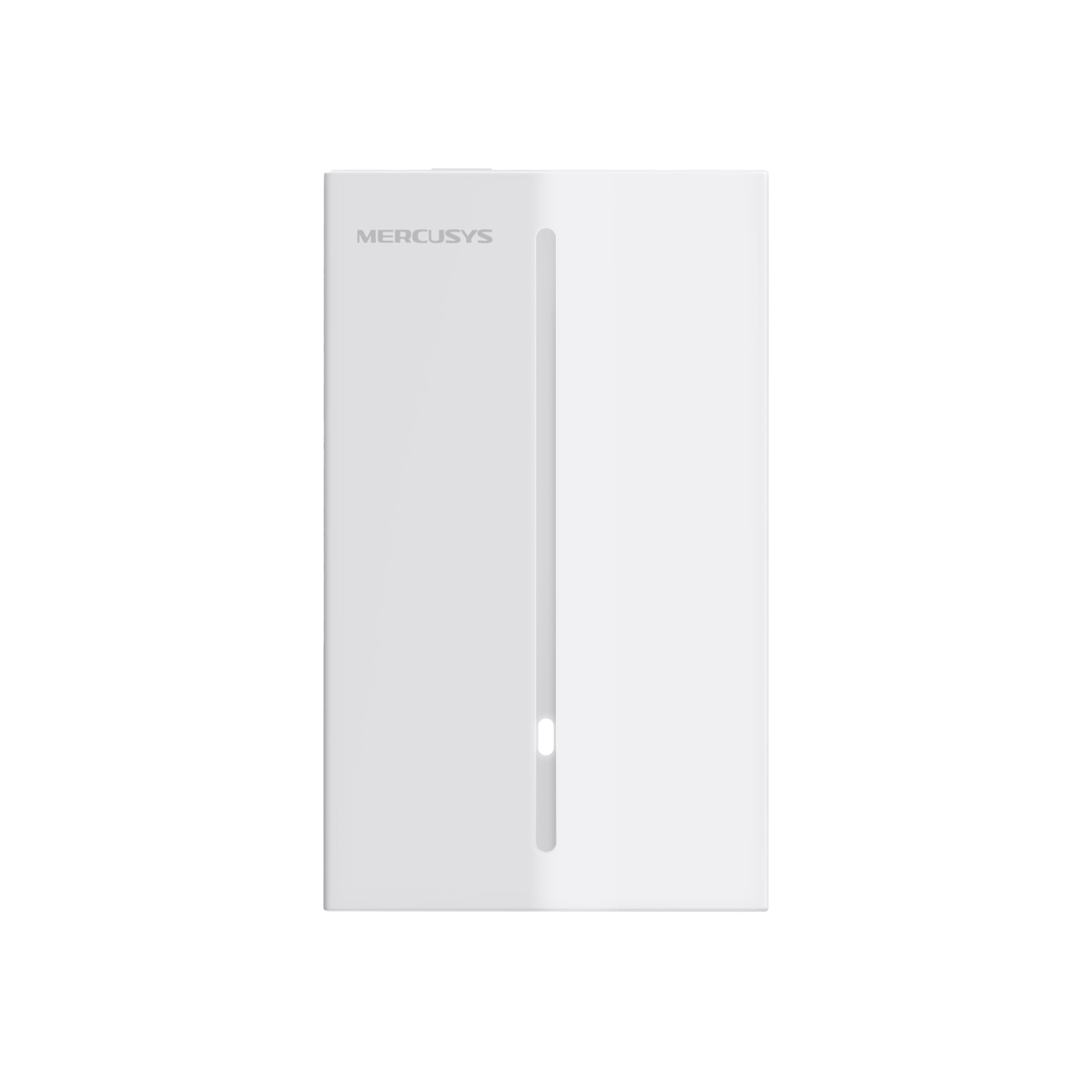

MT235 Product Image

  • Dual-Band Wi-Fi 6 Speeds up to 3.0 Gbps

  • 4× Gigabit port
    (1× uplink + 3× downlink)
    offer gigabit connectivity

  • Support 802.3af/at PoE

  • Support PoE Passthrough

  • Quick Wall-Mount Installation

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡PoE pass-through is only available when 802.3at powers the device.

Specifications

Wireless
Coverage

50㎡(600 ft²)

Concurrent Clients

120+

Signal Rate

•5 GHz: Up to 2402 Mbps

•2.4 GHz: Up to 574 Mbps

Frequency

2.4 GHz and 5 GHz

Transmission Power

• CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz, band 1 &band 2, EIRP) <26 dBm (5GHz, band 3, EIRP)

•FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz, band 1 &band 2 &band 3 &band 4)

Wireless Functions

•16 SSIDs (Up to 8 SSIDs on each band)

•Enable/Disable Wireless Radio

•Automatic Channel Assignment

•Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

•Seamless Roaming(802.11k/v/r)

 •Beamforming

•Rate Limit

•Load Balance

•Airtime Fairness

•Band Steering

•Wireless Schedule

•RADIUS Accounting

•MAC Authentication

•Wireless Statistics

•Static IP/Dynamic IP

Hardware
Interfaces

• Uplink: 1× Gigabit Ethernet Port

•Downlink: 3× Gigabit Ethernet Ports (One port supports PoE out. The PoE out feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 10.5 W (EU version) or 10 W (US version), based on laboratory testing.)

Antenna

2 Dual-BandAntennas

•2.4 GHz: 2× 3 dBi

•5 GHz: 2× 5 dBi

Button

Reset, LED

Power Supply

802.3af/at PoE

Physical Security Lock

No

Max Power Consumption

•EU: 12W (802.3at PoE, PoE Out off)

•US: 12.6W (802.3at PoE, PoE Out off)

General
Mounting Options

Wall Mounting (Screws included)

Dimensions ( W x D x H )

143 × 86 × 42.4 mm (5.6 × 3.4 × 1.7 in)

Others
Package Contents

•MAP80X-Wall

•Installation Guide

•Mounting Kits

Environment

•Operating Temperature: 0–40 ℃ (32–104 ℉)

•Storage Temperature: -40–70 ℃ (-40–158 ℉)

•OperatingHumidity: 10–90% RH non-condensing

•StorageHumidity: 5–90% RH non-condensing

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
