MB118-4G [V1] | 300 Mbps Wireless 4G LTE Outdoor/Indoor Router

MB118-4G

New Comers

300 Mbps Wireless 4G LTE Outdoor/Indoor Router

  • 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps.
  • Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.**
  • 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network.
  • Durable Outdoor Enclosure – Robust outdoor connectivity and reliability with IP65 weatherproof protection§ and ±6kV lightning protection & ±15kV ESD protection△.
  • Multiple Mounting Installation – Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
  • PoE/DC Power Supply – Supports 802.3af/802.3at PoE and passive PoE, enabling easy deployment.*
  • Maximum Network Coverage  –  Enjoy stable and efficient connections to every device thanks to the external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.



       **Notes: Make sure your SIM card is unlocked.

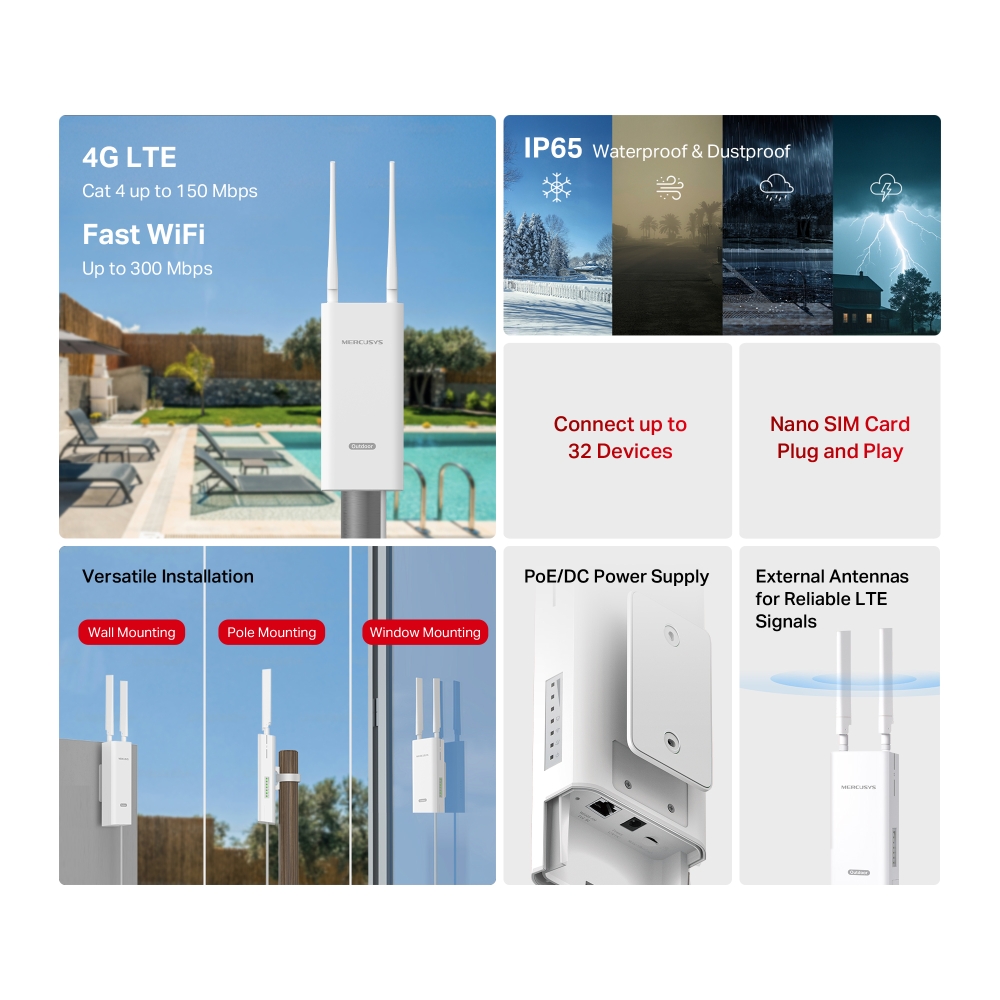

Overview

Stay Connected Outdoors and Indoors

300 Mbps Wireless 4G LTE Outdoor/Indoor Router

MB118-4G
4G LTE
Cat 4 up to 150 Mbps
Fast WiFi
Up to 300 Mbps
IP65   Waterproof & Dustproof
Connect up to 32 Devices
Nano SIM Card Plug and Play
Versatile Installation
Wall Mounting
Pole Mounting
Window Mounting
PoE/DC Power Supply
External Antennas for Reliable LTE Signals

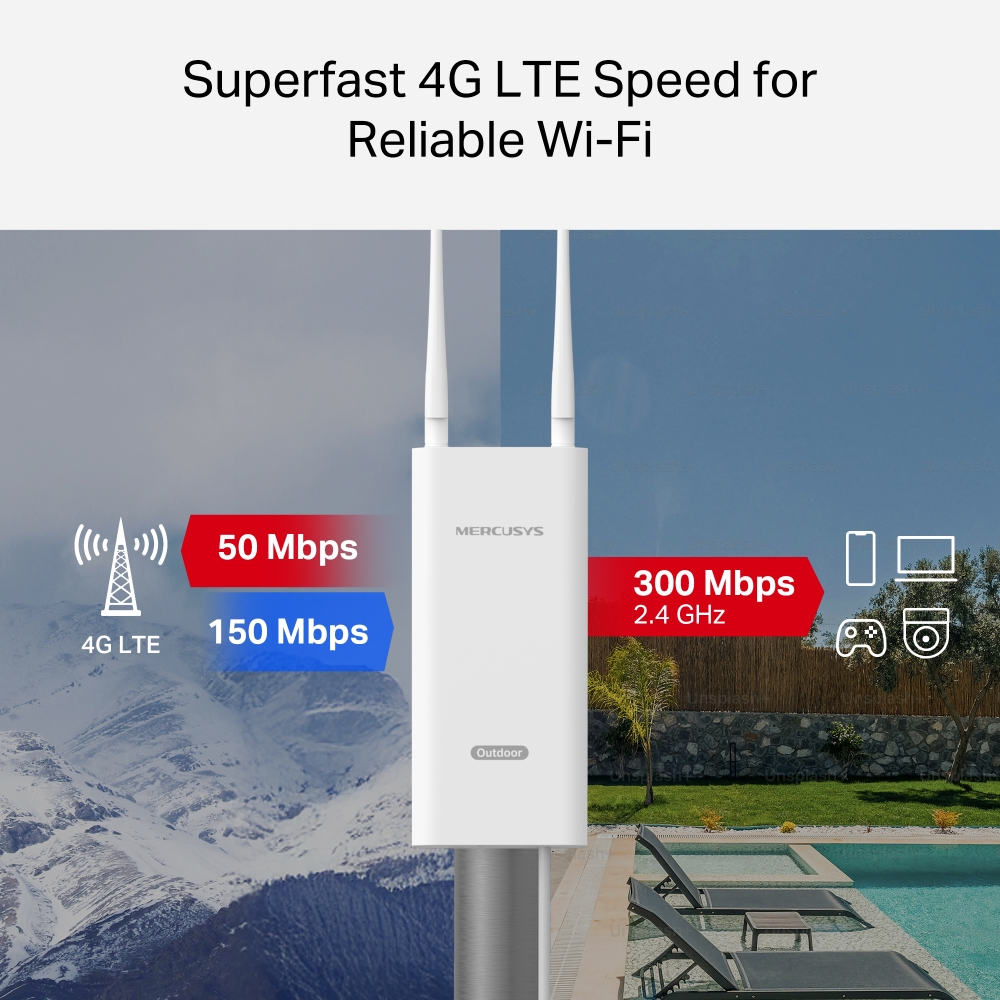

Superfast 4G LTE Speed for Reliable WiFi

MB118-4G harnesses 4G LTE technology to deliver lightning-fast download speeds of up to 150 Mbps and up to 50 Mbps for uploads.‡ It also shares a WiFi network with a max speed of 300 Mbps on 2.4 GHz—perfect for gaming, streaming, and more.†

4G LTE
50 Mbps
150 Mbps
300 Mbps
2.4 GHz

Note: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications.

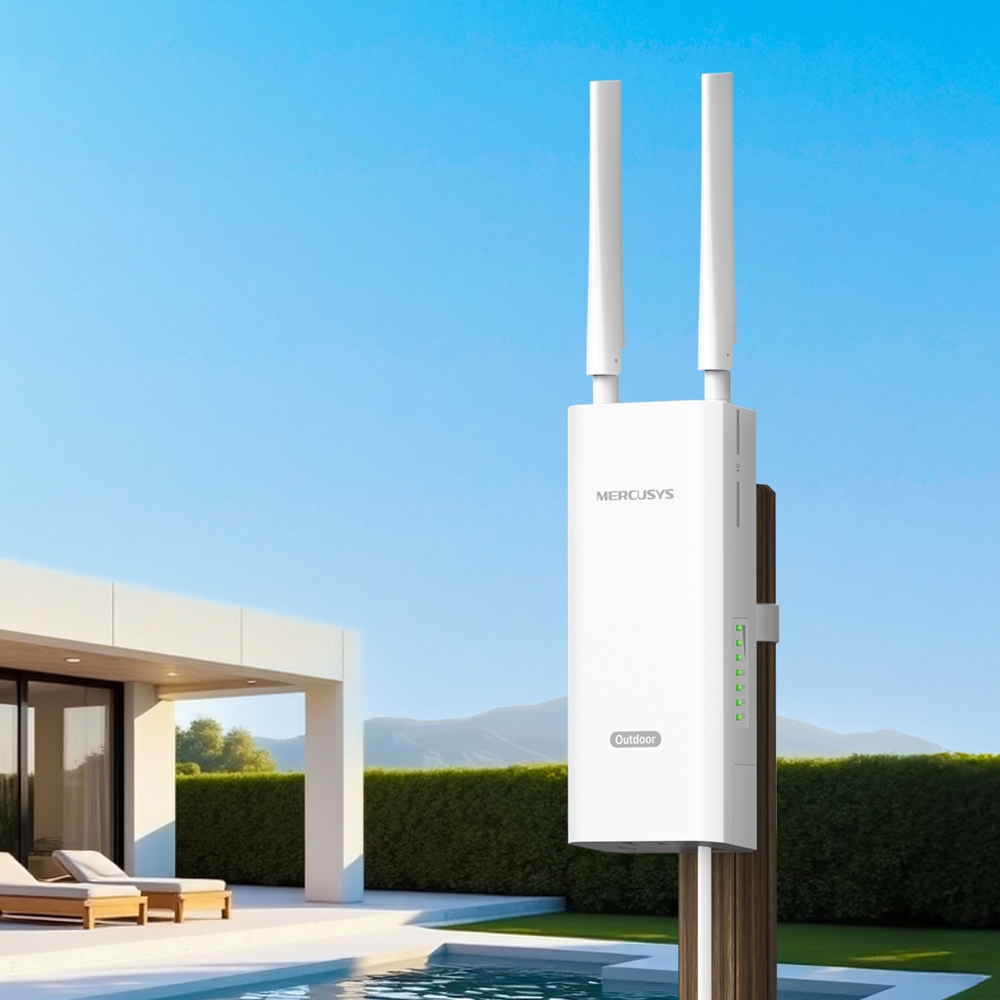

Seamless Coverage for Every Inch of Outdoor Space

Perfect for outdoor events, backyard WiFi, gardens, patios, pools, cafés, barns, and sheds.

-30°C ~ 60°C
Operating Temperature△
IP65 Dustproof§
IP65 Waterproof§
6kV Lighting Protection & 15kV ESD Protection△

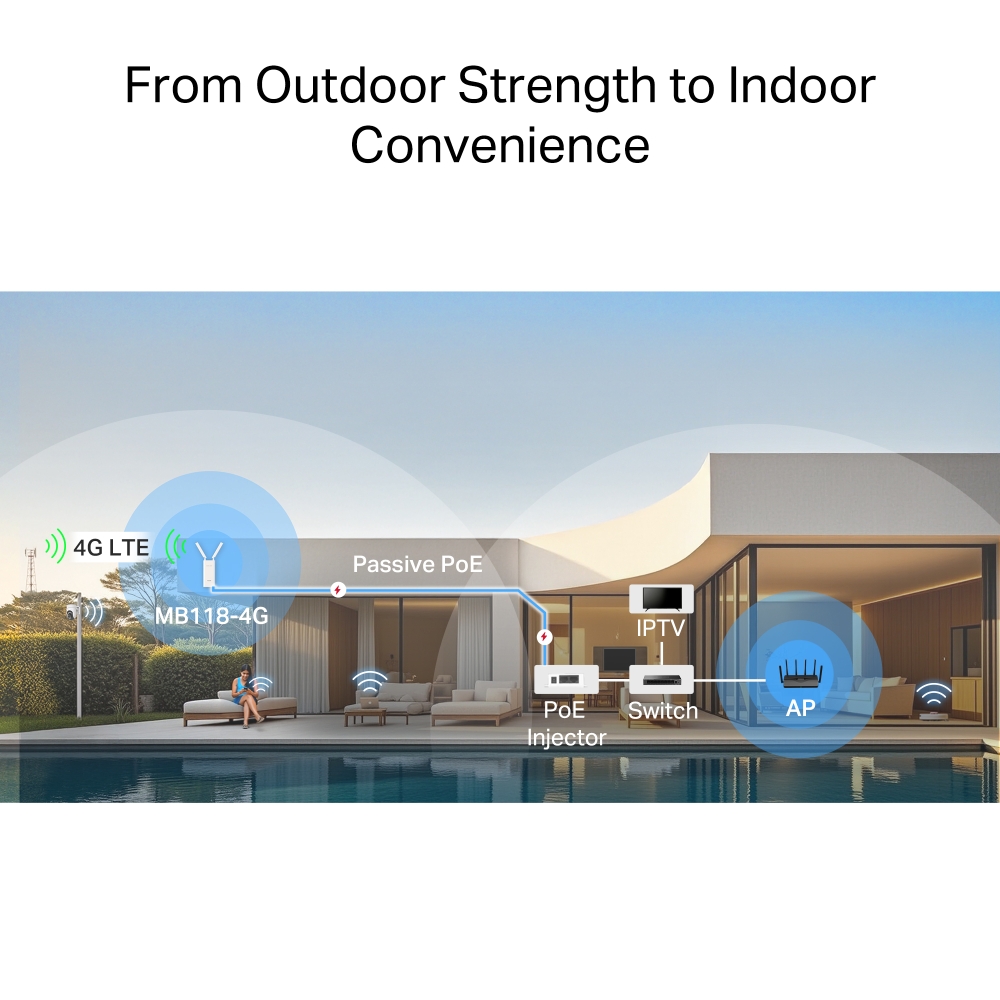

From Outdoor Strength to Indoor Convenience

Place the 4G outdoor router where the LTE signal is strongest. Then, simply run a PoE-compatible Ethernet cable from the router's PoE port to your indoor device.*

4G LTE
MB118-4G
Passive PoE
PoE Injector
IPTV
Switch
AP
*The passive PoE injector supports a cable length up to 30 meters, but the value may vary due to the environment and the quality of the Ethernet cable. For reliable performance of the PoE injector, Cat5e or above, 24AWG or thicker copper wire Ethernet cables are recommended.

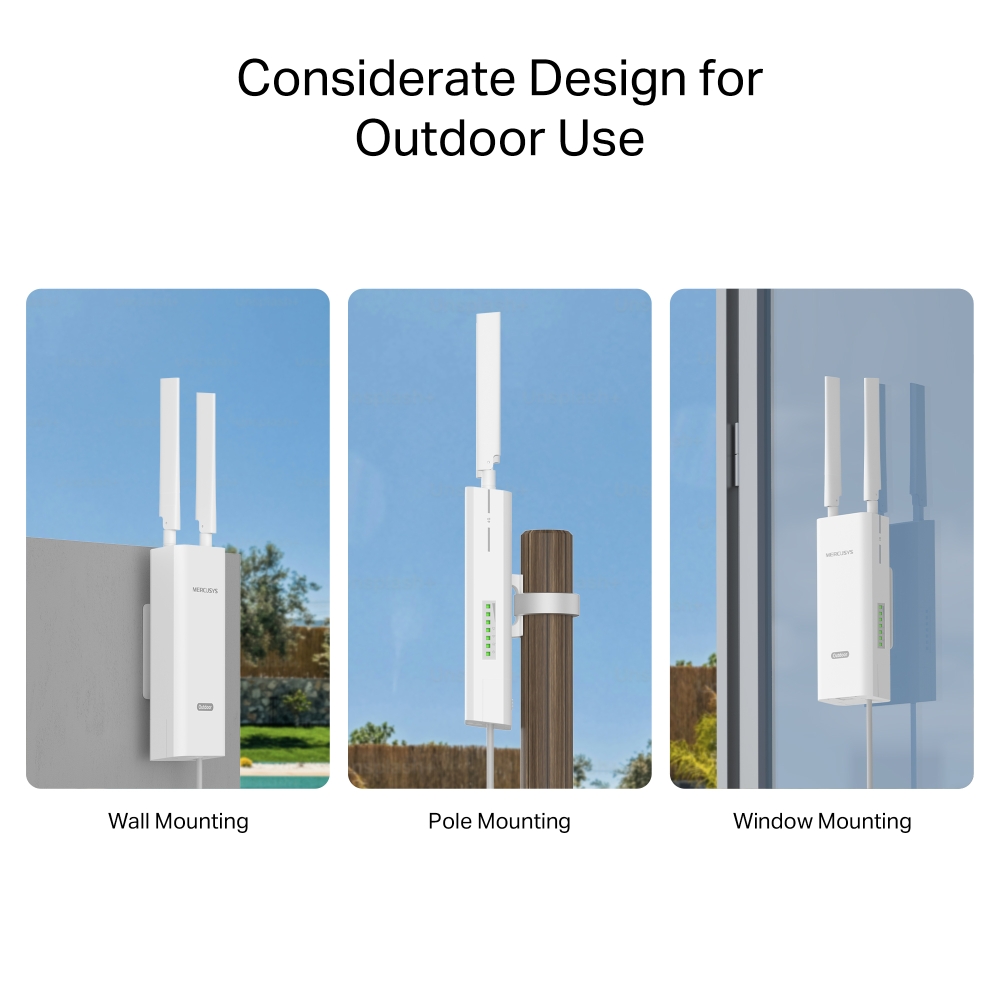

Considerate Design for Outdoor Use

With multiple mounting options and a durable design, MB118-4G is simple to set up in various outdoor settings. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.

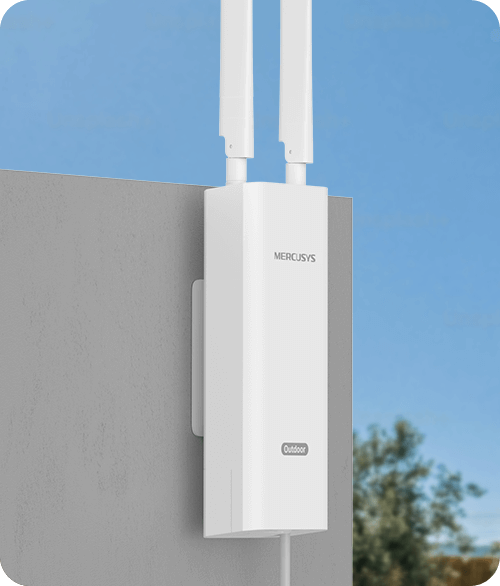

Wall Mounting

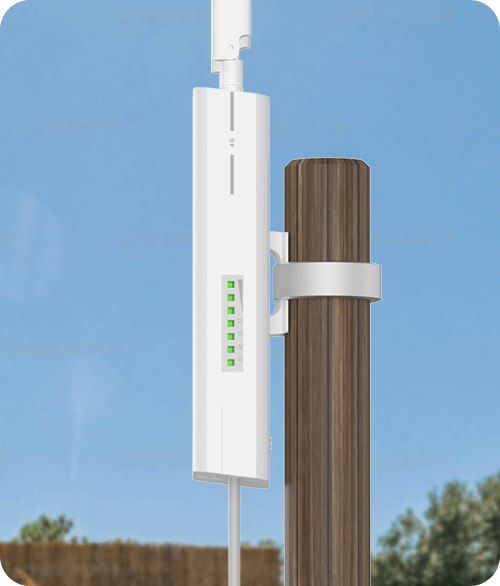

Pole Mounting

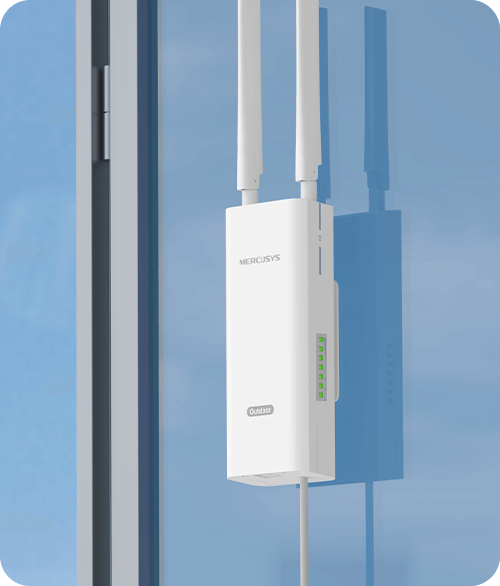

Window Mounting

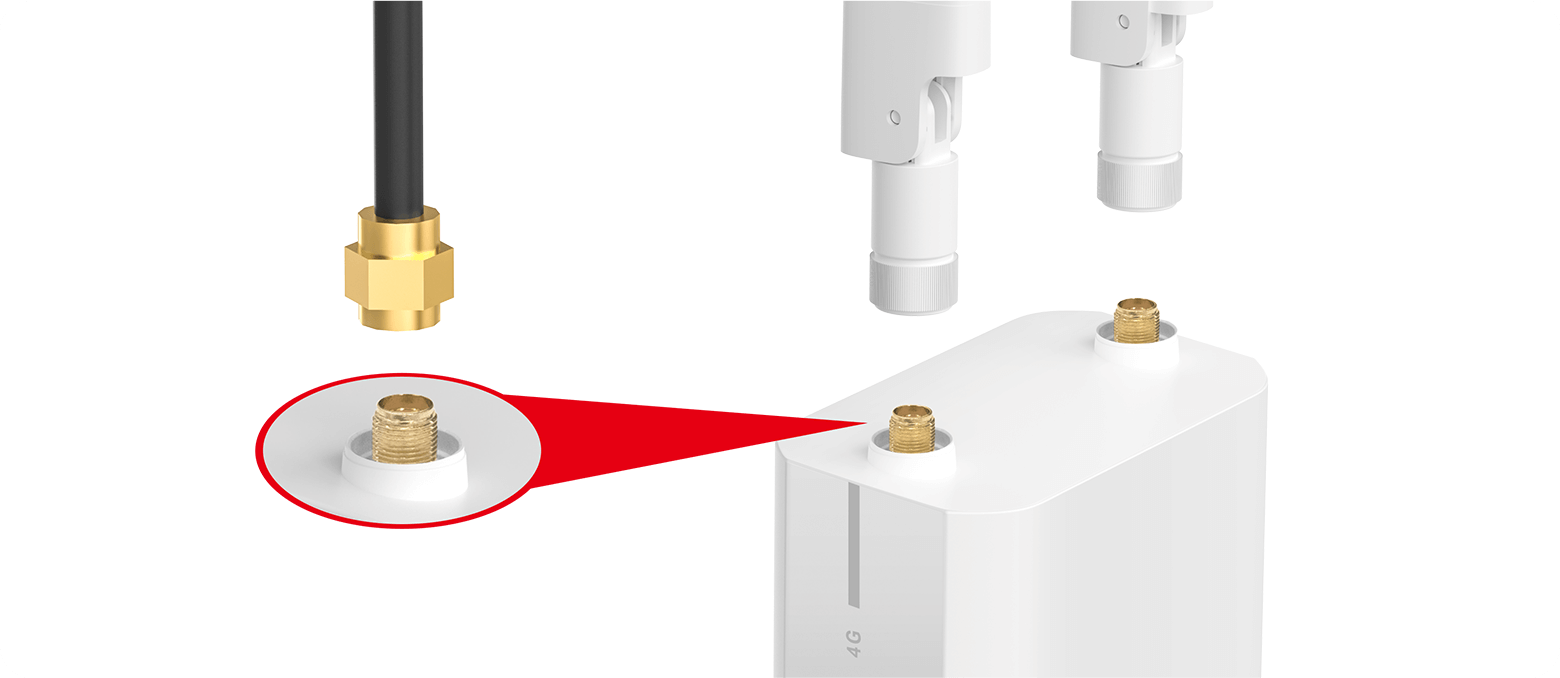

Detachable External Antennas

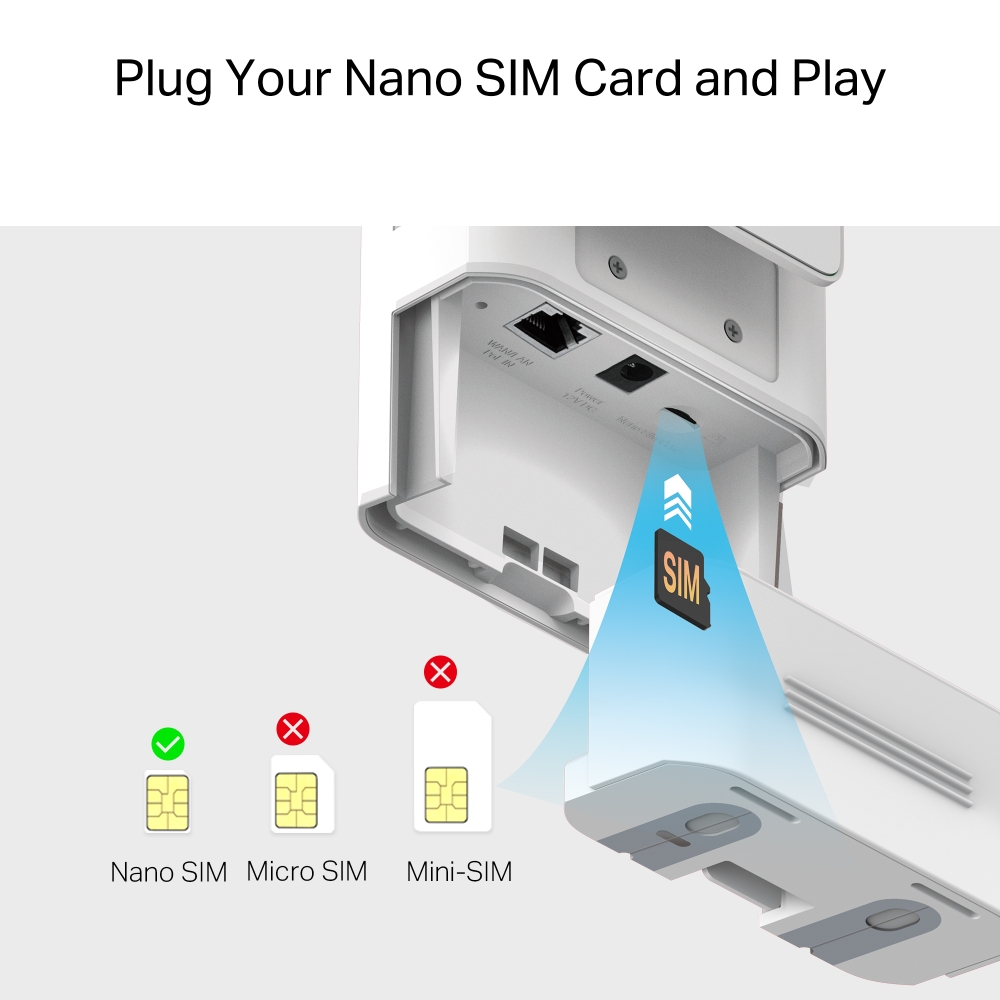

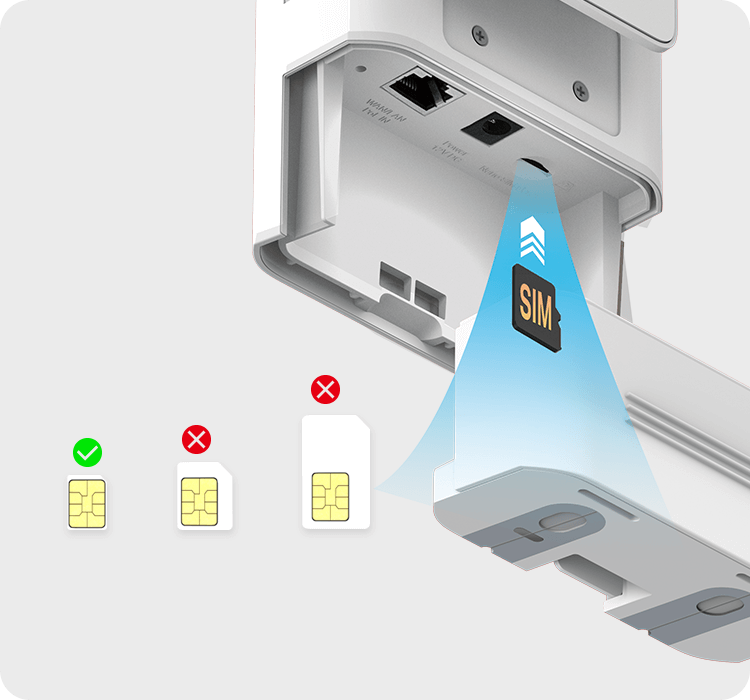

Plug Your Nano SIM Card and Play

Fully compatible with FDD-LTE and TDD-LTE for use with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple WiFi devices.

Issues with Wired Broadband (DSL/Fiber/Cable)

No Geographical Coverage
Renovations and Rewiring Disruptions
High Expense and Long Contract Periods
Complex Configuration and Extra Activation Fees

SIM Card Plug and Play**

Nano SIM
Micro SIM
Mini-SIM

**SIM card sold separately. This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the Quick Installation Guide for unlocking instructions.

Easy Setup and Management via the MERCUSYS App

Set up and manage your WiFi through the MERCUSYS app from your phone (Android, iOS).

Learn more about the MERCUSYS app >

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Maximum 4G download speeds depend on external factors such as the local 4G network coverage, data plan, real-time network capacity, client limitations, and environmental factors.
§This product has an IP65 dustproof and waterproof rating, but it is unsuitable for prolonged immersion or high-pressure water jets. Please install and use it according to the manual; otherwise, the protective features may fail.
△Tested under controlled laboratory conditions. Per CE standards, protection levels are: Lightning/Surge Protection at 2kV for Differential Mode (DM) and 4kV for Common Mode (CM), and ESD Protection at 4kV for Contact Protection and 8kV for Air Protection. For optimal protection, please follow the setup instructions in the manual.
*The passive PoE injector supports a cable length up to 30 meters, but the value may vary due to the environment and the quality of the Ethernet cable. For reliable performance of the PoE injector, Cat5e or above, 24AWG or thicker copper wire Ethernet cables are recommended. The included Ethernet cable is 1.2-meter long. If you need a longer cable, please purchase it separately.
**SIM card sold separately. This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the Quick Installation Guide for unlocking instructions.

Specifications

Wireless
Network Type

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Wi-Fi Class

N300

Wi-Fi (2.4 GHz)

300 Mbps

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Reception Sensitivity

11g 54M:-74.5dBm
11n HT20 MCS7:-74.5dBm
11n HT40 MCS7:-71.5dBm

Transmission Power

< 20 dBm (2.4 GHz)

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

smart connect
WPS
Wireless Schedule
Wireless Clients Statistics

Hardware
Dimensions

230.9 × 97.2 × 54.7 mm
(9.1 × 3.8 × 2.2 in)

Interfaces

MB118-4G:
1× 10/100 Mbps LAN (PoE in)
1× Nano SIM Card Slot
1× DC Port
PoE Injector:
1× PoE Out Port
1× LAN Port
1× DC Port

Antenna

2× External Detachable LTE Antennas +
2× Internal Wi-Fi Antennas

Button

Reset Button

External Power Supply

12V/1A
support 12V passive PoE,
support 802.3af / 802.3at PoE

LED

1× POWER
1× Internet
1× Wi-Fi
1× LAN
3× Signal

LTE Standard

Cat 4
150/50Mbps DL/UL

Software
Operation Mode

3G/4G Router
Wireless Router

Cellular Mode

4G Preferred
4G Only
3G Only

Cellular APN

Data Roaming
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management

WAN Mode

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

NAT Forwarding

ALG
Virtual Server
Port Triggering
UPnP
DMZ

Protocols

IPv4, IPv6

Data Settings

Data Statistics
Data Limit

Guest Network

2.4 GHz Guest Network

Parental Controls

Time Control
Website Filtering

DHCP

Server
DHCP Client List
Address Reservation

DDNS

MERCUSYS DDNS
DynDns
NO-IP

SMS

Inbox
New Message
Outbox
Drafts

Security

IPv4 SPI Firewall
Access Control
Service Filtering
IP & MAC Binding
IPv6 Firewall

System Settings

Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings

Device Management

MERCUSYS APP
Web GUI

System Language

English
Spanish
Italian
Polish
Russian

TR-069

√

Others
Package Contents

300 Mbps Wireless 4G LTE Outdoor/Indoor Router (MB118-4G)
2× Antennas
1× 1.2 m RJ45 Ethernet Cable
1× PoE Injector
1× DC Power Adapter
Quick Installation Guide
Window/Pole/Wall Mounting Kits

Environment

IP65 weatherproof protection
Operating Temperature: -30°C~60°C (-22°F~140°F)
Storage Temperature: -40°C~70°C (-40 °F~158 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
