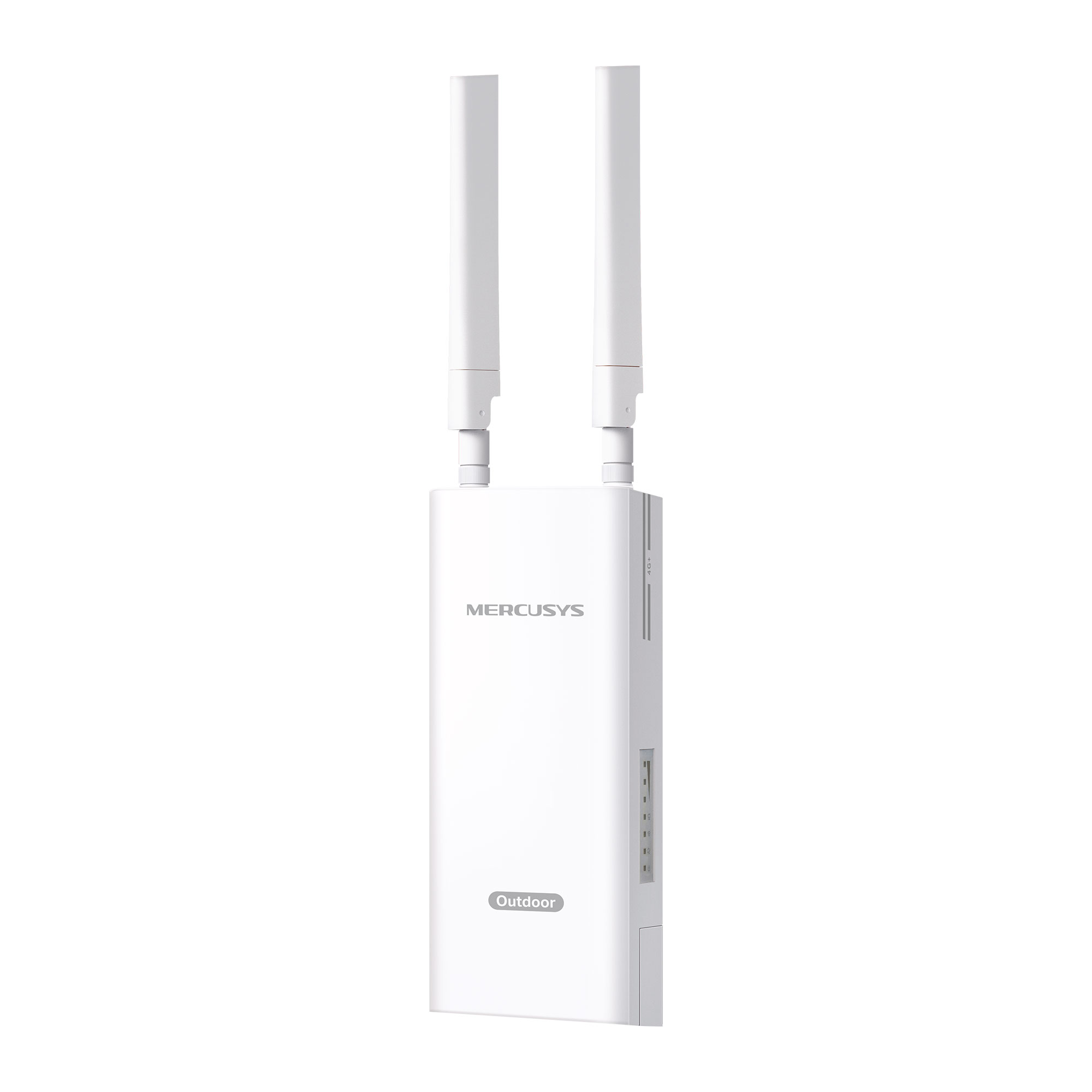

MB238-4G [V1] | 4G+ Cat6 AC1200 Wireless Dual-Band Gigabit Outdoor/Indoor Router
MB238-4G
4G+ Cat6 AC1200 Wireless Dual-Band Gigabit Outdoor/Indoor Router
-
4G+ Network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
-
Plug a Nano SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
-
Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
-
Durable Outdoor Enclosure - Robust outdoor connectivity and reliability with IP65 weatherproof protection§ and ±6kV lightning protection & ±15kV ESD protection△.
-
Multiple Mounting Installation - Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
-
PoE/DC Power Supply - Supports 802.3at PoE and passive PoE, enabling easy deployment.*
-
Maximum Network Coverage - Enjoy stable and efficient connections to every device thanks to the external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage
-
EasyMesh Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
Stay Connected Outdoors and Indoors
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Outdoor/Indoor Router
MB238-4G
-
LTE-Advanced
Cat 6 -
Dual-Band WiFi
-
PoE/DC Power Supply
-
Multiple Mounting Installation
-
Durable Outdoor Enclosure
-
Detachable LTE Antennas
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Maximum 4G download speeds depend on external factors such as the local 4G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. §This product has an IP65 dustproof and waterproof rating, but it is unsuitable for prolonged immersion or high-pressure water jets. Please install and use it according to the Quick Installation Guide; otherwise, the protective features may fail. △Tested under controlled laboratory conditions. Per CE standards, protection levels are: Lightning/Surge Protection at 2kV for Differential Mode (DM) and 4kV for Common Mode (CM), and ESD Protection at 4kV for Contact Protection and 8kV for Air Protection. For optimal protection, please follow the setup instructions in the manual. *The PoE Adapter supports a cable length up to 30 meters, but the value may vary due to the environment and the quality of the Ethernet cable. For reliable performance of the PoE adapter, Cat5e or above, 24AWG or thicker copper wire Ethernet cables are recommended. The included Ethernet cable is 1.2-meter long. If you need a longer cable, please purchase it separately. **SIM card sold separately. This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the Quick Installation Guide for unlocking instructions. ***EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.
- Wireless
- Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)- Wi-Fi Class
AC1200
- Wi-Fi (2.4 GHz)
300 Mbps
- Wi-Fi ( 5 GHz)
867 Mbps
- Wireless Standards
IEEE 802.11ac/a/b/g/n
- Frequency
5 GHz, 2.4 GHz
- Reception Sensitivity
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
- Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
- Wireless Security
WPA-PSK / WPA2-PSK / WPA3-SAE
- Wireless Functions
smart connect
WPS
Wireless Schedule
- Hardware
- Dimensions
230.9 × 97.2 × 54.7 mm
(9.1 × 3.8 × 2.2 in)- Interfaces
MB238-4G:
1× 1 Gbps LAN/WAN Port (PoE In)
1× Nano SIM Card Slot
1× DC Port
PoE Adapter:
1× PoE Out Port
1× LAN Port
1× AC Port
- Antenna
2× Detachable LTE Antennas
- Button
Reset Button
- External Power Supply
12V/1.5A
support 48V passive PoE,
support 802.3at PoE- LED
1× Power
1× Internet
1× Wi-Fi
1× LAN
3× Signal- LTE Standard
Cat 6
300/50Mbps DL/UL
- Software
- Operation Mode
3G/4G Router
Wireless Router- Cellular Mode
4G Mode
3G Mode- Cellular APN
Data Roaming
Band Search
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management- WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP- NAT Forwarding
ALG
Virtual Server
Port Triggering
UPnP
DMZ- Protocols
IPv4, IPv6
- Data Settings
Data Statistics
Data Limit- Guest Network
2.4 GHz Guest Network
5 GHz Guest Network- Parental Controls
Time Control
Website Filtering- DHCP
Server
DHCP Client List
Address Reservation- DDNS
MERCUSYS DDNS
DynDns
NO-IP- SMS
Inbox
New Message
Outbox
Drafts- QoS
√
- Security
IPv4 SPI Firewall
Access Control
IP & MAC Binding
IPv6 Firewall- System Settings
Time & Language
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings- Device Management
MERCUSYS APP
Web GUI- System Language
English
Deutsch
Español
Français
Italiano
Polski
Русский- TR-069
√
- Others
- Package Contents
4G+ Cat6 AC1200 Wireless Dual-Band Gigabit Outdoor/Indoor Router (MB238-4G)
2× Antennas
1× 1.2 m RJ45 Ethernet Cable
1× PoE Adapter
1× AC Power Cord
Quick Installation Guide
Window/Pole/Wall Mounting Kits- Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
