MB430-DSL [V1] | AC1200 Wireless Gigabit VDSL/ADSL Modem Router

MB430-DSL

New Comers

AC1200 Wireless Gigabit VDSL/ADSL Modem Router

Ultra-Fast Super VDSL: Up to 350 Mbps download speed with latest VDSL2 Profile 35b technology, 3.5× faster than standard VDSL2.†

Broad DSL Compatibility: Supports VDSL, ADSL2+, ADSL2, and ADSL for flexible ISP options.

1200 Mbps Dual-Band Wi-Fi: Enjoy smooth 4K streaming and low-latency gaming across multiple devices.‡

Flexible Internet Connections: Works with both DSL and fiber/cable networks for easy upgrades and provider changes.

Full Gigabit Ports: Full Gigabit ports provide fast, reliable wired connections for all your devices.§

USB 2.0 Port: Multi-purpose USB port supports file sharing, printer sharing, media streaming, and more.

EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home mesh WiFi, preventing drops and lag when moving between signals.

Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

Overview

Flexible Networking, Reliable Daily WiFi

AC1200 Wireless Gigabit VDSL/ADSL Modem Router

MB430-DSL
Super VDSL
Full Gigabit Ports
Super VDSL
350 Mbps
VDSL2
100 Mbps
ADSL2+
24 Mbps
1200 Mbps Dual-Band WiFi
867 Mbps
(5 GHz)
300 Mbps
(2.4 GHz)
EasyMesh-Compatible
Easy App Control
USB 2.0
WPA3
Security
VPN
Server

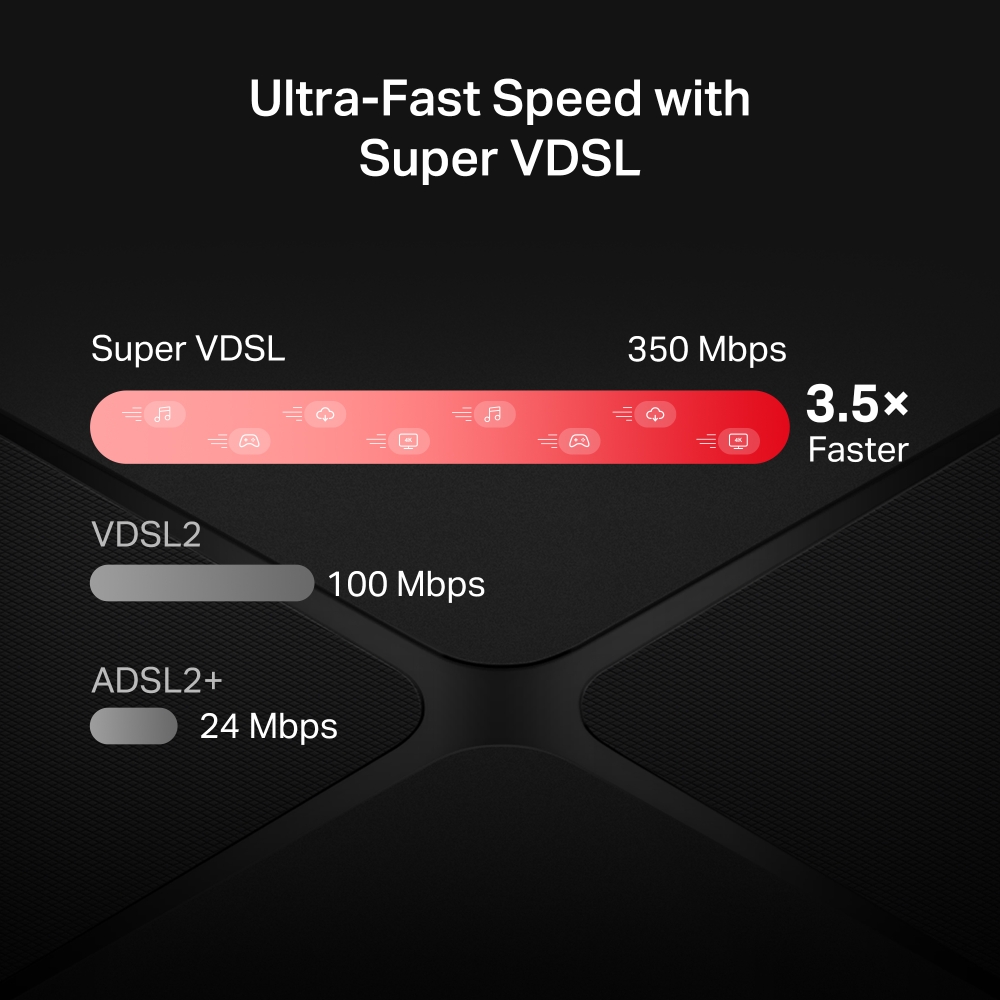

Ultra-Fast Speed with Super VDSL

MB430-DSL features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology, delivering download speed up to 350 Mbps. Backward compatibility with VDSL, ADSL2+, ADSL2, and ADSL ensures smooth upgrades and wide support for most ISPs.†

Super VDSL
VDSL2
ADSL2+
350 Mbps
3.5×
Faster
100 Mbps
24 Mbps

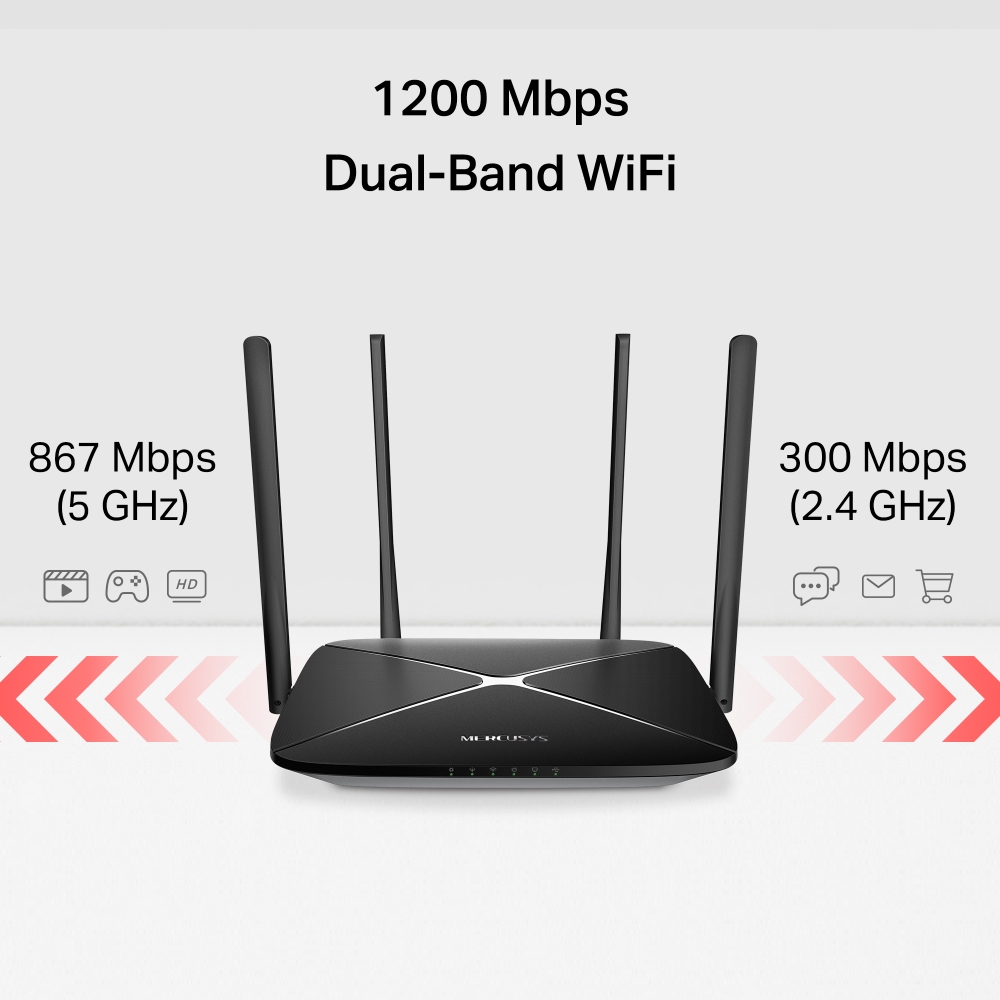

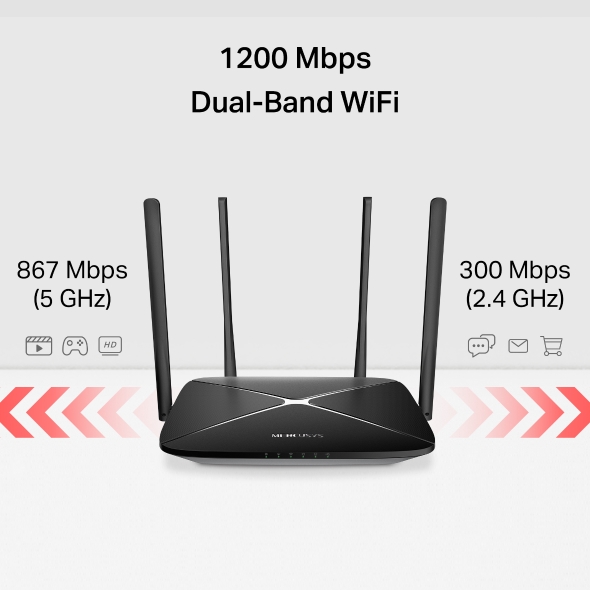

1200 Mbps Dual-Band WiFi

With up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, experience smooth 4K streaming, fast downloads, and low-latency online gaming—perfect for everyday use across multiple devices.‡

867 Mbps (5 GHz)
300 Mbps (2.4 GHz)

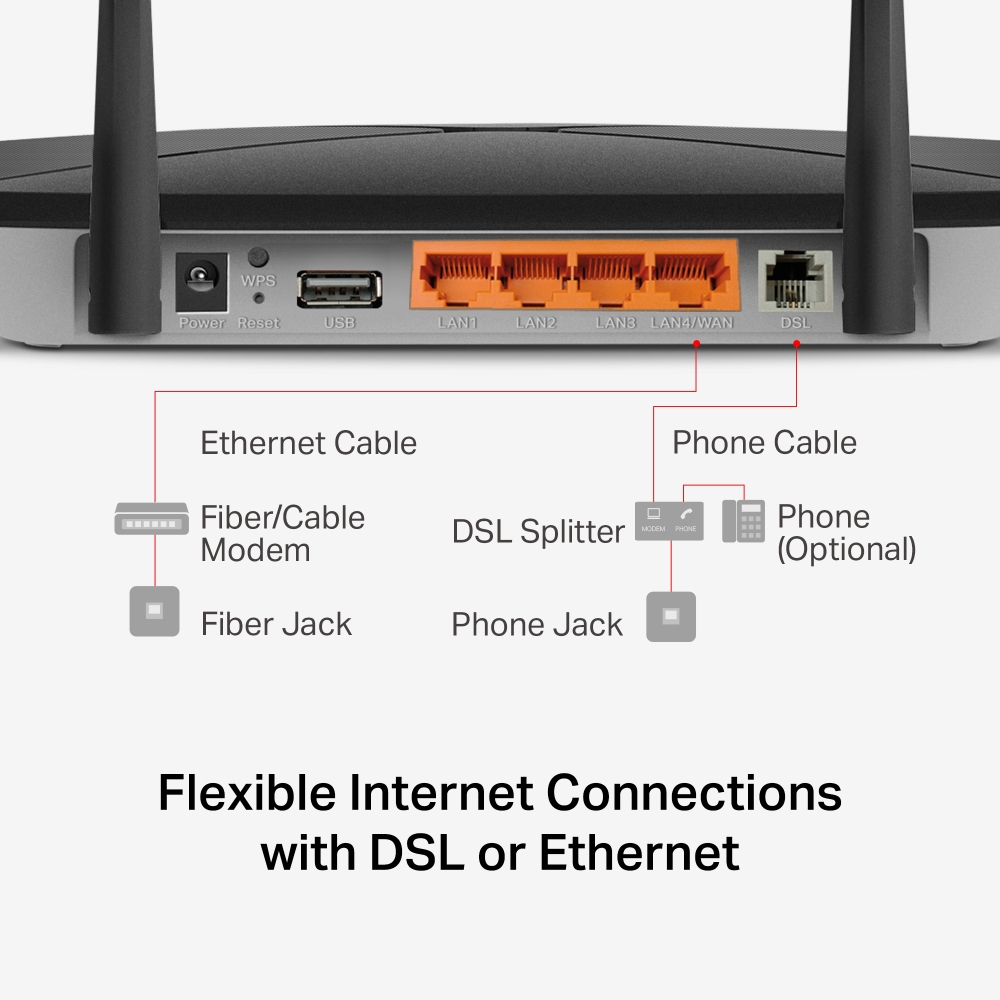

Flexible Internet Connections with DSL or Ethernet

MB430-DSL supports both DSL and fiber/cable connections, offering flexible internet access and future-ready networking.

Ethernet Cable
Fiber/Cable Modem
Fiber Jack
Phone Cable
DSL Splitter
Phone Jack
Phone
(Optional)

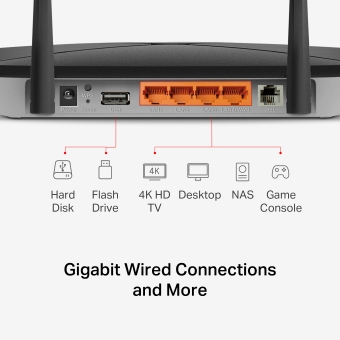

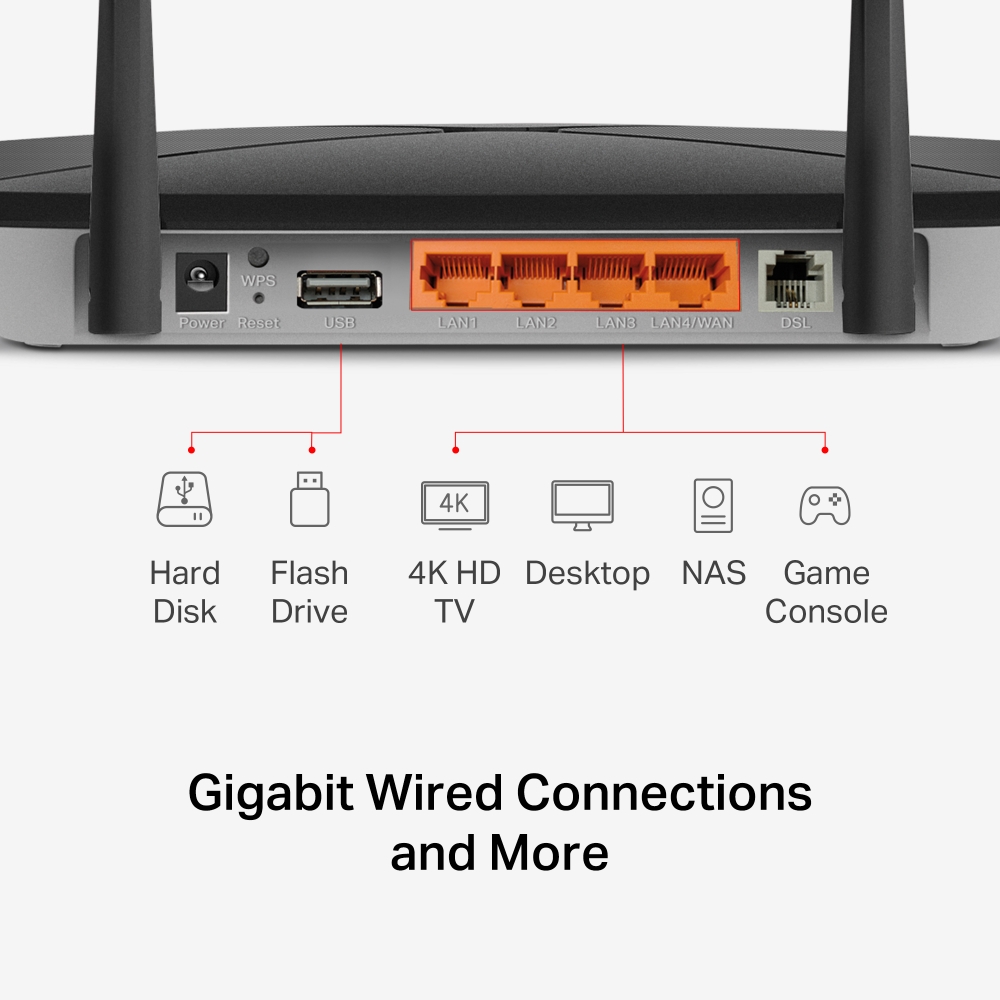

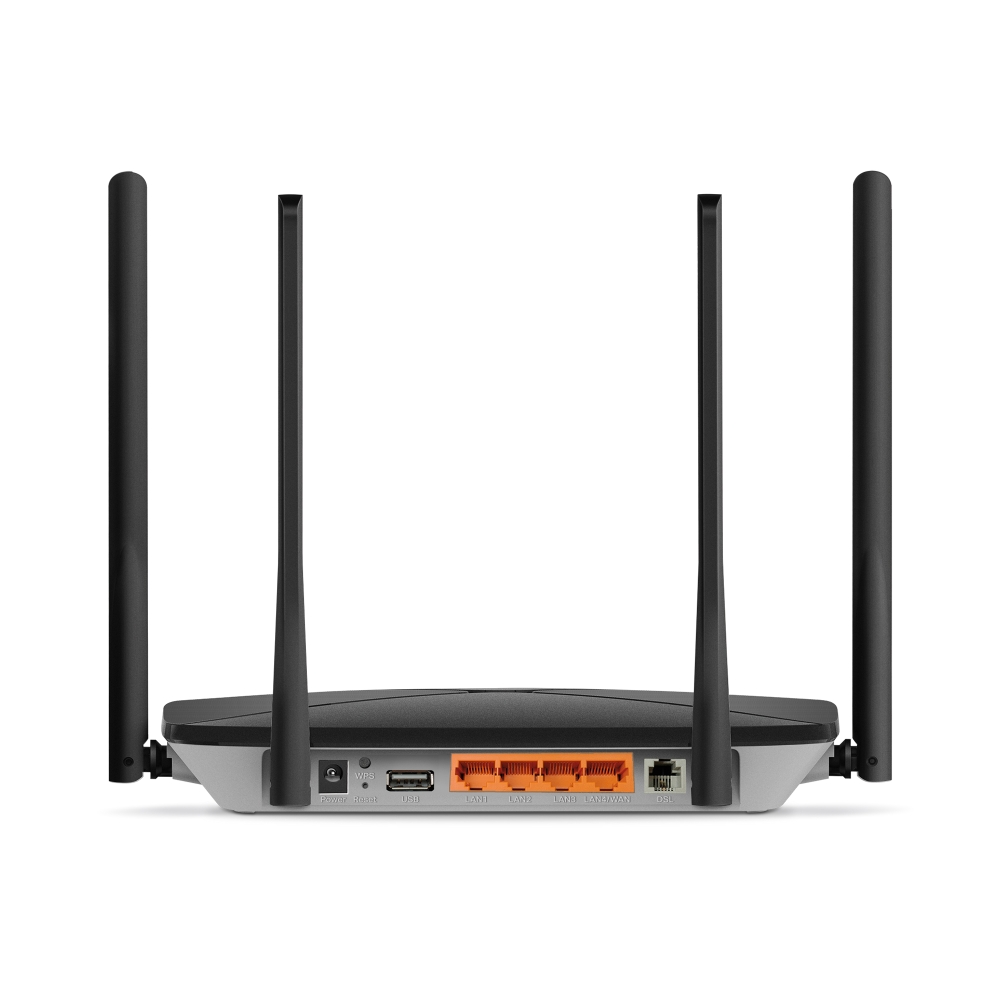

Gigabit Wired Connections and More

MB430-DSL offers 1× Gigabit WAN/LAN port and 3× Gigabit LAN ports for fast wired connections. § The USB 2.0 port also lets you enjoy local storage, media sharing, and remote FTP access with speeds faster than ever.

Hard Disk
Flash Drive
4K HD TV
Desktop
NAS
Game Console

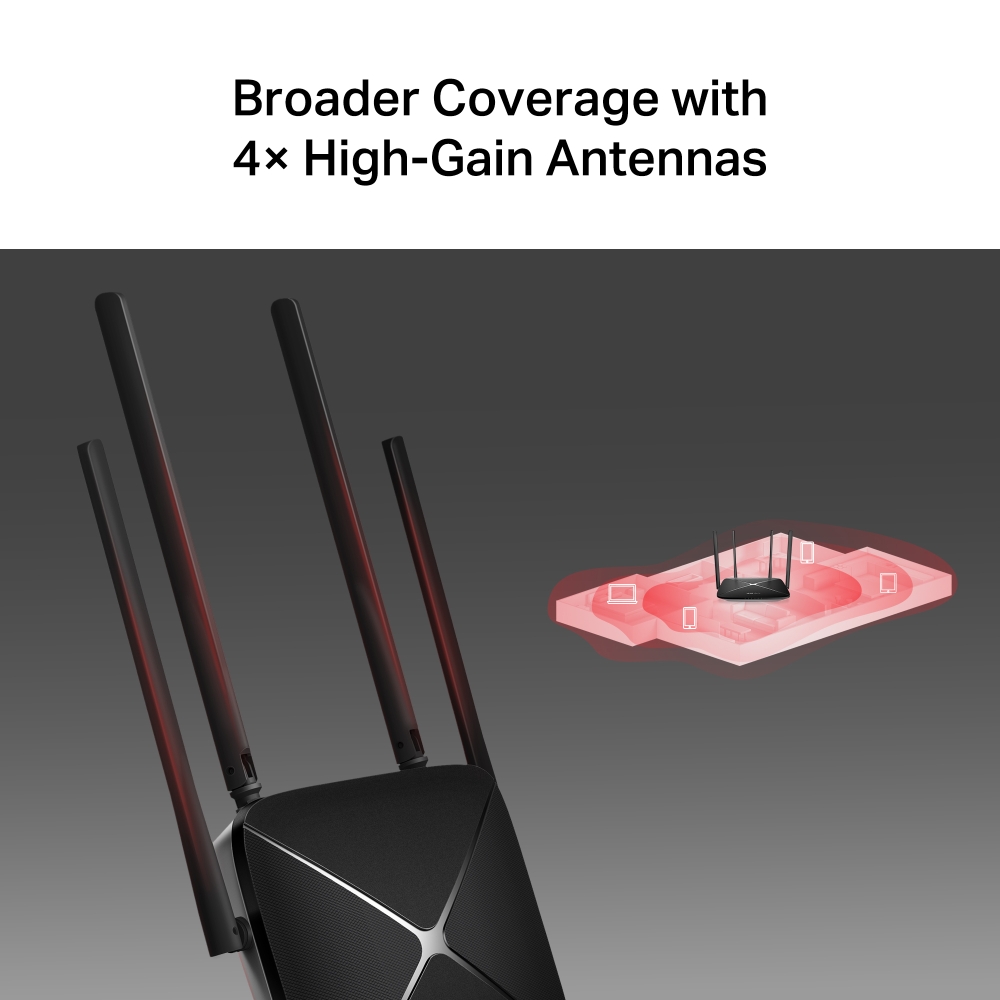

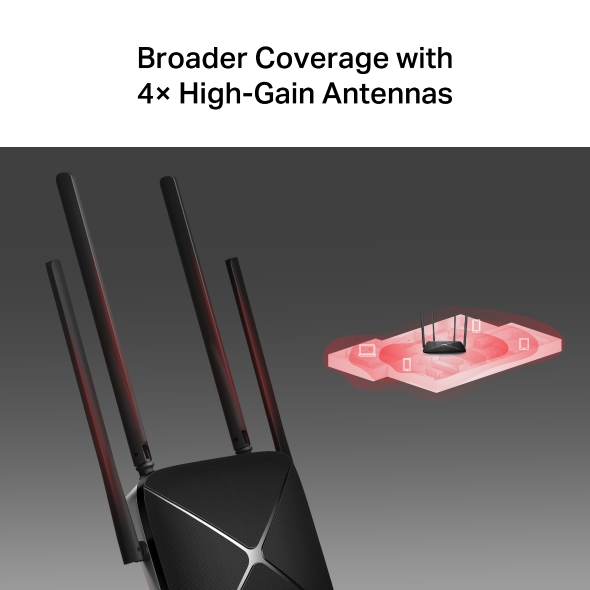

Broader Coverage with 4× High-Gain Antennas

Four external high-gain antennas deliver strong, stable signals throughout your home, eliminating dead zones for reliable coverage.

Cover Your Whole Home with EasyMesh

MB430-DSL is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!△

  • Flexible WiFi
    Range Expansion

  • Works with
    Different Vendors

  • Seamless WiFi
    Connections

Easy Setup and Management via the MERCUSYS App

Without needing technical knowledge or reading installation instructions in advance, just follow the on-screen directions with the MERCUSYS app to set up your router in minutes. The MERCUSYS app helps you set and manage your WiFi at home or away through your iOS or Android devices.

Apple Store
Google Store
QRcode

†Actual DSL downlink speeds vary between households. Factors affecting DSL speeds include the internet service level, real-time network capacity, equipment and client limitations, and environmental factors.
‡Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
§Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors and other environmental conditions.
△ EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.

Setup&App

MERCUSYS

Simple and Functional

See what’s compatible

MERCUSYS

The MERCUSYS app provides the easiest way for you to set up in minutes and manage your WiFi at home or away through your iOS or Android devices.

Apple Store
Google Store
QRcode
  •

    Easy Setup

  •

    Manage in Real-time

  •

    Quality of Services

  •

    Guest Network

  •

    Parental Controls

MERCUSYS Helps You Set Up in A Few Steps

Without any technical know-how or reading complicated instructions, simply follow the in-app instructions. Set up your mesh network in minutes.

  • Step 1:Find the Halo,Power Cable and Ethernet Cable in the box Halo Power Cable Ethernet Cable

    Step 1

    Find what you’ll need in the box

  • Step 2:Plug in your devices

    Step 2

    Plug in your devices

  • Step 3:Follow the on-screen directions with the MERCUSYS app

    Step 3

    Follow the on-screen directions with the MERCUSYS app

Manage Your WiFi in Real Time

With the MERCUSYS app, experience live network management. See who’s connecting to your network and manage it at any time with your iOS or Android devices.

Notice: The configuration page of different models may be different, please refer to the actual one.

  •
  •
  •
  •

Powerful Parental Controls

Easily manage your kids’ online time and content to create a safe and healthy online environment.

  • Create User Profiles

    Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.

  • Online Time Limits

    Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices for a long time to build a healthy network habit.

  • Block Inappropriate Websites

    Control which sites your kids visit by setting a block list.

  • Pause Internet Connection

    Suspend family members’ internet connections to take a break from the virtual world to enjoy some family time.

Manage and Secure Your Home Network

The MERCUSYS app helps you manage your WiFi at home or away through your iOS or Android devices.

  • link icon

    Check the Status of Connected Devices

    Intuitively view the working status of your Halo network and see what is connected. Prioritize or block devices as needed.

  • icon with right arrows

    Quality of Services

    Prioritizes devices you select to perform better.

  • alert icon

    New Device Access Alert

    The MERCUSYS app proactively sends out an alert to inform you when an unfamiliar device is connected. Tap to block the device if it is a security risk.

  • guest icon

    Set Up a Guest Network

    Provides a separate network for guests to ensure your security and privacy.




Everything in One App

Whether you’re looking to control a wide range of MERCUSYS routers, extenders, or Halo mesh systems, find it all on the app.

See what’s compatible

Compatible Products

Note: The device's firmware requires the latest version. Click here  to learn how to upgrade your firmware.

Note: Both listed and higher hardware versions of these models are compatible with the MERCUSYS app.



Supporting Multiple Languages

MERCUSYS app supports up to 26 languages, enabling easy network management for users all over the world.

  • English

  • Nederlands

  • Français

  • Deutsch

  • Italiano

  • 日本語

  • 한국어

  • Português

  • Español

  • 繁體中文

  • Русский язык

  • Português Brasil

  • Español
    (Latinoamérica)

  • Български

  • Українська мова

  • Polski

  • Română

  • Slovenčina

  • ไทย

  • Türkçe

  • Čeština

  • Tiếng Việt

  • Eλληνικά

  • Bahasa Melayu

  • Magyar

  • עברית

Specifications

Wireless
Wi-Fi Class

AC1200

Wi-Fi (2.4 GHz)

300 Mbps

Wi-Fi ( 5 GHz)

867 Mbps

Wireless Standards

IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Max Channel Width

80 MHz

Max Wi-Fi Modulation

256 QAM

Wireless Security

WPA/WPA2/WPA3

Wireless Functions

Guest Network
Multi-SSID
Band Steering
WPS

Hardware
Standards and Protocols

VDSL2:
ITU G.993.2, Up to 17a /30a/35b profile
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)

ADSL:
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs)

ADSL2:
ITU-T G.992.3 (G.dmt.bis)

ADSL2+
ITU-T G.992.5

Dimensions

222 × 140 × 32mm

Interfaces

1× GE WAN/LAN
3× GE LAN
1× RJ11
1× USB 2.0

Antenna

4× External Antennas

Button

1× WPS Button
1× Reset Button

Installation

Desktop
Wallmount

LED

SYS
DSL
Wi-Fi
Internet
LAN
USB

Retail Package Dimension

303 × 288 × 65mm

Units per Carton

10

Carton Dimension

600 × 325 × 355mm

Power

12V/1A

Software
Operation Mode

VDSL/ADSL Modem Router
Wireless Router

WAN Mode

DSL-WAN
Ethernet-WAN

NAT Forwarding

ALG
Virtual Servers
Port Triggering
DMZ
UPnP

Guest Network

2.4G Guest Network
5G Guest Network

Parental Controls

Profile Settings
Filter Level
Time Controls

DHCP

Server
Client
DHCP Client List
Address Reservation
DHCP Relay

DDNS

MERCUSYS
NO-IP
DynDNS

VPN Server

OpenVPN
PPTP
IPSec

Easymesh

Easymesh Compatible

QoS

Priority Control
QoS Rule List
IPTV QoS

Security

Firewall & DoS Protection
Service Filtering
Access Control
IP & MAC Binding
IPv6 Firewall

ISP Feature

CWMP
ISP Preset(Agile Config)

System

Firmware Upgrade
Backup and Restore
Administration
System Log
Time Settings
Reboot schedule
LED Control
Traffic Statistics

Diagnostics

Ping
Traceroute
Nslookup

LED Management

LED Control
Night Mode

Device Management

MERCUSYS APP
Webpage

Cloud

MERCUSYS Cloud

Language

German
English
Italian
Polish
Russian
Turkish

Advanced Features

USB Sharing

Others
Package Contents

AC1200 VDSL/ADSL Modem Router MB430-DSL
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable
RJ11 DSL Cable
External Splitter

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
