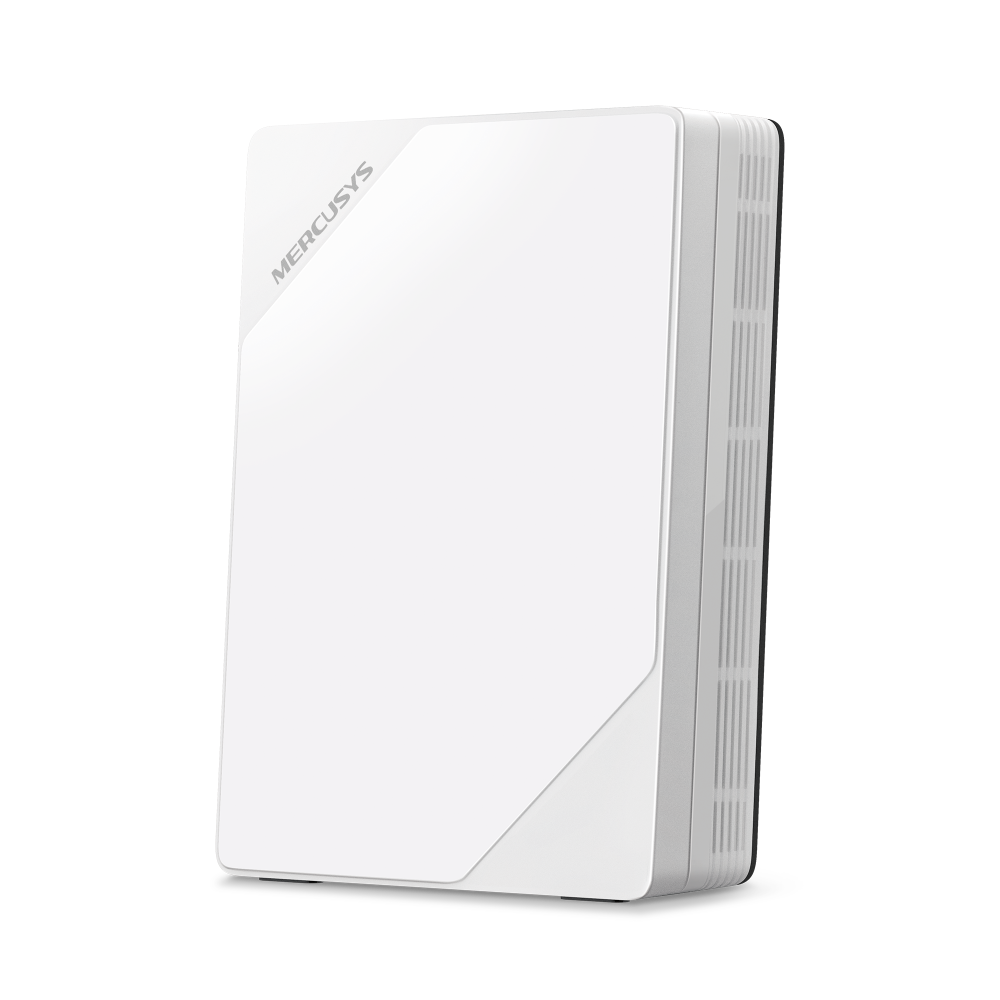

MB510-5G [V1] | 5G AX1500 Wireless Dual Band Gigabit Router
MB510-5G
5G AX1500 Wireless Dual Band Gigabit Router
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 2.9 Gbps. Convert your 5G network into WiFi and share it with multiple WiFi devices.§
- AX1500 Dual Band WiFi 6 – Speeds up to 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.‡
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.△
- Simultaneous Connection – Enjoy sharing internet access with up to 256 WiFi devices.

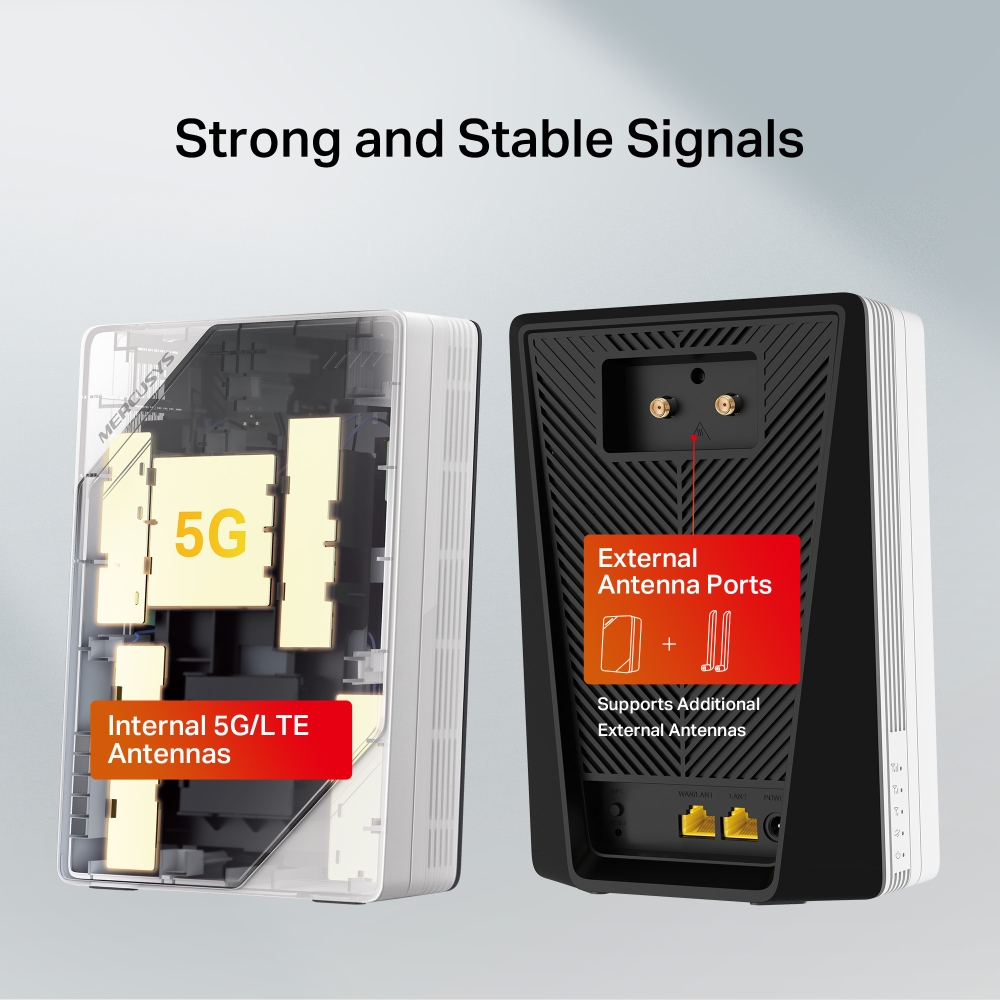

- Maximized Coverage – Advanced internal antennas deliver fast, stable connections, while external ports support additional antennas for extended range.
- Full Gigabit Ports– Plug an Ethernet cable into the WAN/LAN port for flexible access if you can't get a 5G connection.*
- EasyMesh-Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- Easy App Control – The MERCUSYS app helps you set up in minutes. Manage your WiFi at home or away through your iOS or Android devices.
Leap into the 5G Era:
Unlock Fast Internet Anywhere
5G AX1500 Wireless Dual-Band Router
Unmatched Convenience and Versatility
Ideal for homes without fiber, this device offers fast, stable WiFi with no rewiring required. No need for professional installation teams. Just insert a SIM card and power on. Perfect for both home and trip.
-
Home Network
-
Motorhome Trip
-
For CCTV Systems
5G Cellular Networks
With massive MIMO, optimized OFDM, and more, 5G technology delivers higher multi-Gig peak data speeds, ultra low latency, more reliability, and increased network capacity. Join the pros and experience the sheer performance of next-gen cellular networks.
Up to
19×
Faster than 4G-LTE Cat4
-
5G
2.9 Gbps
-
4G-LTE Cat4
Superior 5G Speed and WiFi 6 for Reliable WiFi‡
Working as a 5G router, MB510-5G effortlessly converts a 5G/4G signal into WiFi and share it with multiple devices. Whether you're streaming, gaming, or attending video conferences, enjoy a seamless and uninterrupted online experience!

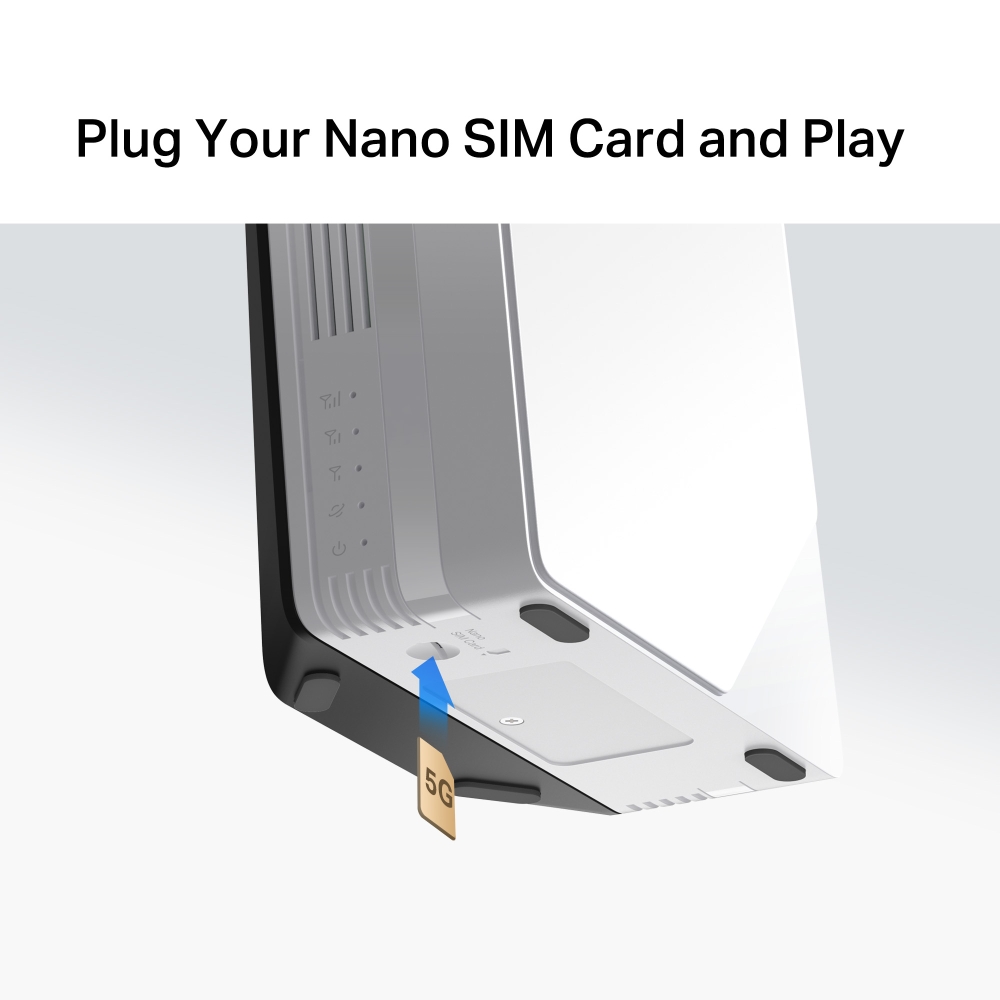

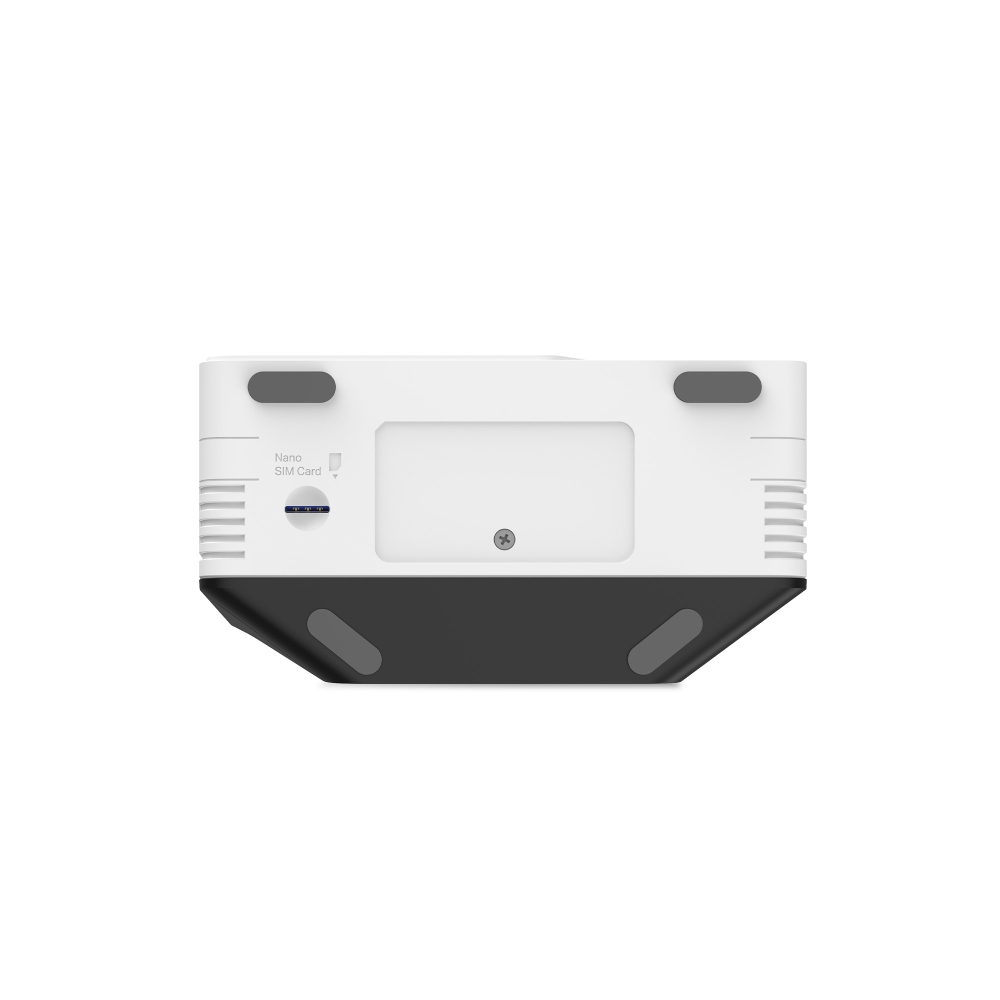

Plug Your Nano SIM Card and Play
No complex wiring or professional setup needed. Simply insert a nano SIM card and power on the router to turn 5G into WiFi for multiple devices.
-
Nano SIM
-
Micro SIM
-
Mini-SIM
Notes: Make sure your SIM card is unlocked. If not, you can:
a. Set up the router via the MERCUSYS app and follow the app instructions to unlock your SIM card.
b. Log in to the router's web management page and go to Advanced > Network > PIN Management to verify.

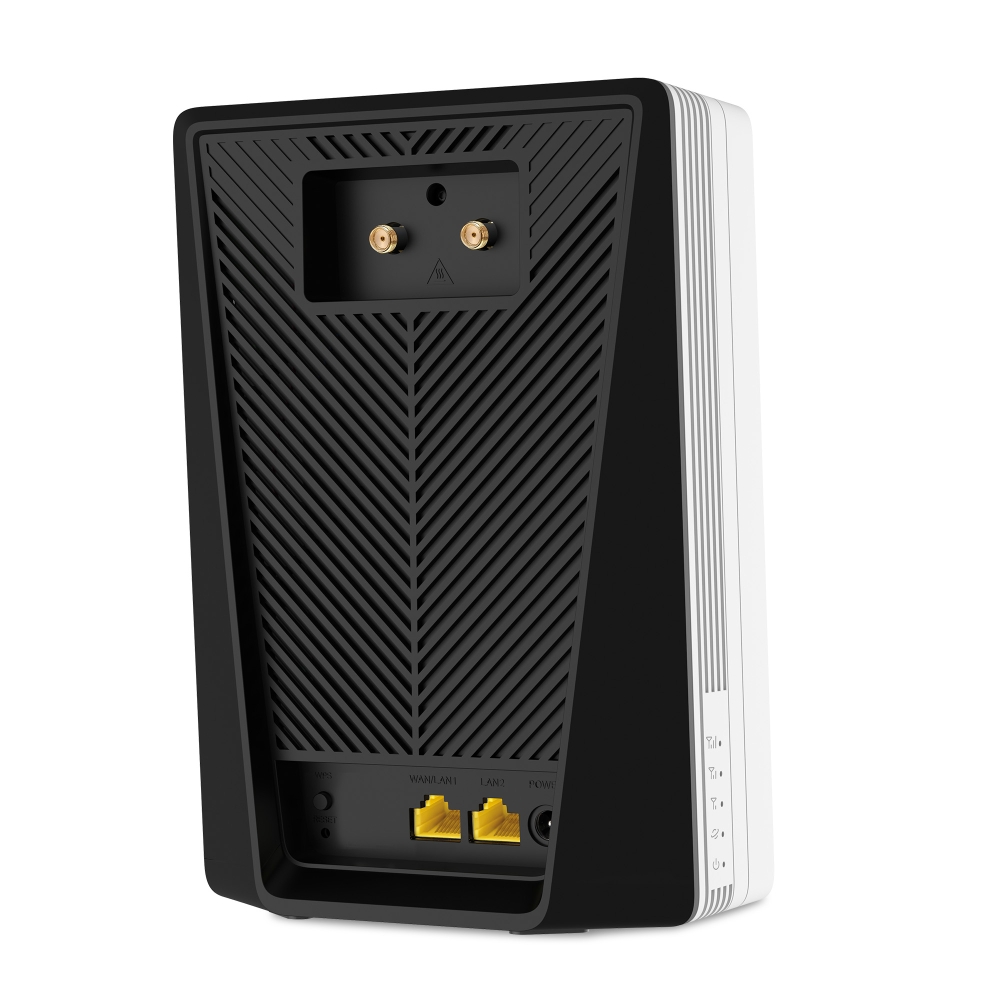

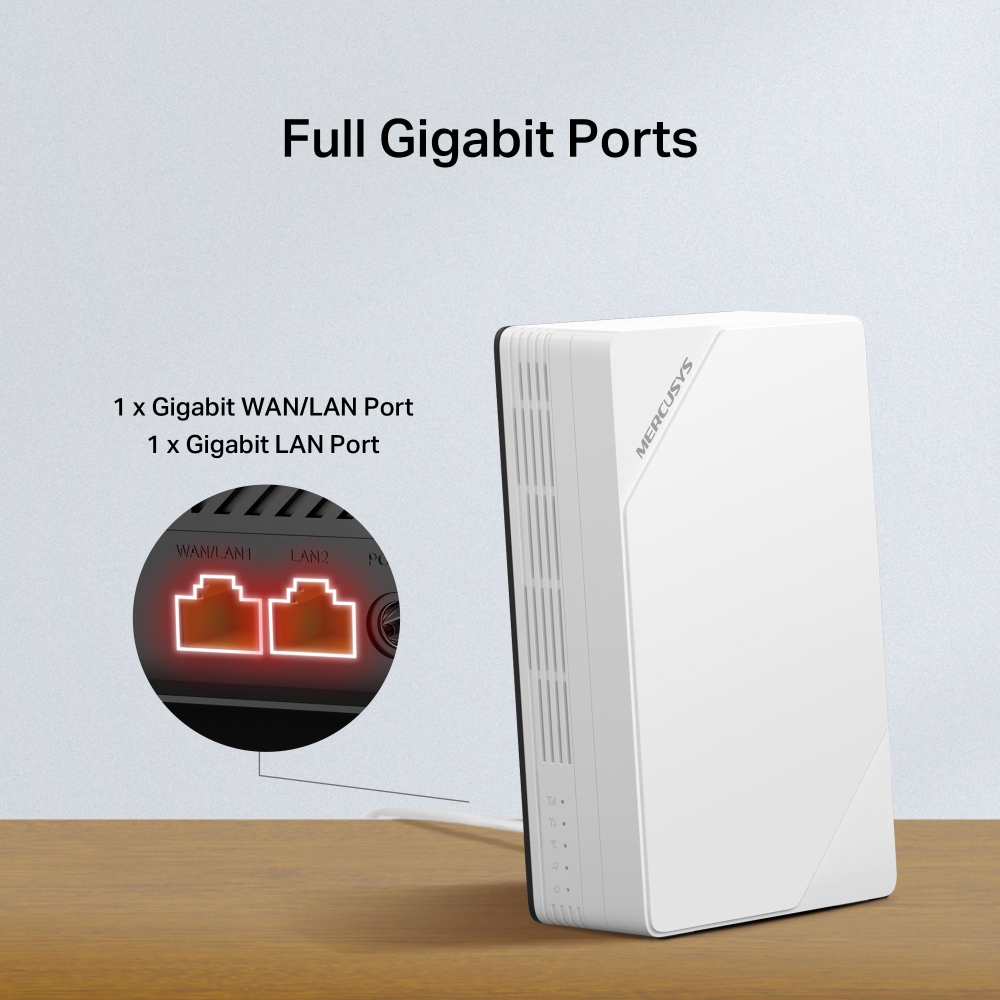

Versatile Ports for Every Need
1 x Gigabit LAN Port
Share WiFi with Your Friends
A remarkable number of wireless devices are compatible with this 5G router without any issues. Up to 256 simultaneous connections for tablets, laptops, mobile phones, and other devices.
Cover Your Whole Home with EasyMesh
MB510-5G is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy scalable and seamless mesh WiFi throughout your home!△
-
Flexible WiFi
Range Expansion -
Works with
Different Vendors -
Seamless WiFi
Connections
Easy Setup and Management via the MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
Comprehensive Management
-
Parental Controls
Set effective policies to ensure your children enjoy safe and responsible internet access.
-
Guest Network
Provides a separate network for guests to ensure your security and privacy.
-
Data Settings
Set a maximum data limit to prevent overspending and monitor your monthly usage with the Monthly Data Statistics feature.
-
Messaging
Set up the Message Center to access SMS features and receive alerts when nearing your data limit.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax) and its features including OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features.
§Maximum 5G/4G download speeds depend on external factors such as the local 5G/4G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Actual supported frequency bands may vary slightly in different regions due to certification.
△SIM card sold separately. This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the Quick Installation Guide for unlocking instructions.
*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
**EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the WiFi EasyMesh certification.
- Cellular
- Cellular Standards
5G 2.9Gbps/1.25Gbps DL/UL
LTE 600Mbps/150Mbps DL/UL- Cellular Bands
5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
LTE-TDD:B38/B40/B41
WCDMA:B1/B2/B5/B8- SIM
- 1× Nano SIM Card Slot
- Wireless
- Wi-Fi Class
AX1500
- Wi-Fi (2.4 GHz)
- 300 Mbps
- Wi-Fi (5 GHz)
1201 Mbps
- Wireless Standards
IEEE 802.11ax/ac/a/b/g/n
- Max Channel Width
80MHz
- Reception Sensitivity
5 GHz:
11ax HE20: -64 dBm
11ax HE40: -61 dBm
11ax HE80: -59 dBm
11ax HE160: -56 dBm
11ac VHT20: -70 dBm
11ac VHT40: -67 dBm
11ac VHT80: -64 dBm
2.4 GHz:
11g 54M: -74dBm
11n HT20: -73dBm
11n HT40: -70dBm- MAX Capacity
256
- Recommended Clients Limit
128
- Wireless Security
WPA-PSK / WPA2-PSK / WPA3-SAE/WPA2-Enterprise
- Wireless Functions
Smart connect
WPS
Wireless Schedule
Wireless Clients Statistics
Easymesh
Multi-SSID
- Hardware
- Dimensions
190 × 130 × 69.7 mm
(7.5 × 5.1 × 2.7 in)- Antenna
- Internal
- Interfaces
1× GE LAN/WAN Port
1× GE LAN Port
2× 5G/4G External Antenna Ports
1× Nano SIM Card Slot- Button
WPS, Reset Button
- Installation
Desktop
- LED
1× POWER
1× Internet
3× Signal- Retail Package Dimension
250 × 240 × 89mm
- Units per Carton
12
- Carton Dimension
540 × 510 × 250mm
- Power
12V/2A
- Software
- Operation Mode
5G/4G/3G Router
Wireless Router- Cellular Mode
5G Preferred
5G Only
4G Preferred
4G Only
3G Only- Cellular APN
Data Roaming
Network Search
Band Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management- WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP- NAT Forwarding
ALG
Virtual Server
Port Triggering
UPnP
DMZ- Protocols
IPv4, IPv6
- IPTV
√
- Data Settings
Data Statistics
Data Limit- Guest Network
2.4 GHz Guest Network
5 GHz Guest Network- Parental Controls
Time Control
Website Filtering- DHCP
Server
DHCP Client List
Address Reservation- DDNS
DynDns
NO-IP- VPN Server
Open VPN
PPTP VPN
IPSec VPN
WireGuard VPN- VPN Client
Open VPN
PPTP VPN
WireGuard VPN- SMS
Inbox
New Message
Outbox
Drafts- Easymesh
√
- QoS
√
- Security
IPv4 SPI Firewal
Service Filtering
Access Control
IP & MAC Binding
IPv6 Firewall- Kill Switch
√
- ISP Feature
TR-069
- System
Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot Schedule
Administration
System Log
Traffic Statistics- Diagnostics
Internet connection test
Ping & Traceroute & Nslookup- LED Management
LED Control
Night Mode- Device Management
MERCUSYS APP
Web GUI- Cloud
Firmware Upgrade over the Cloud
Remote Management- Language
Czech
Danish
English
Spanish
French
Italian
Polish
Romanian
Russian
Turkish
Hungarian
Indonesian
Chinese - Taiwan
- Others
- Certifications
CE,BSMI,NCC
- Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
DNS
• Port: 53 Protocol: TCP/UDP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20002 Protocol: TCP/UDP
UPnP
Plug and Play
• Port: 1900 Protocol: TCP/UDP- Package Contents
5G AX1500 Wireless Dual Band Router (MB510-5G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide- Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
