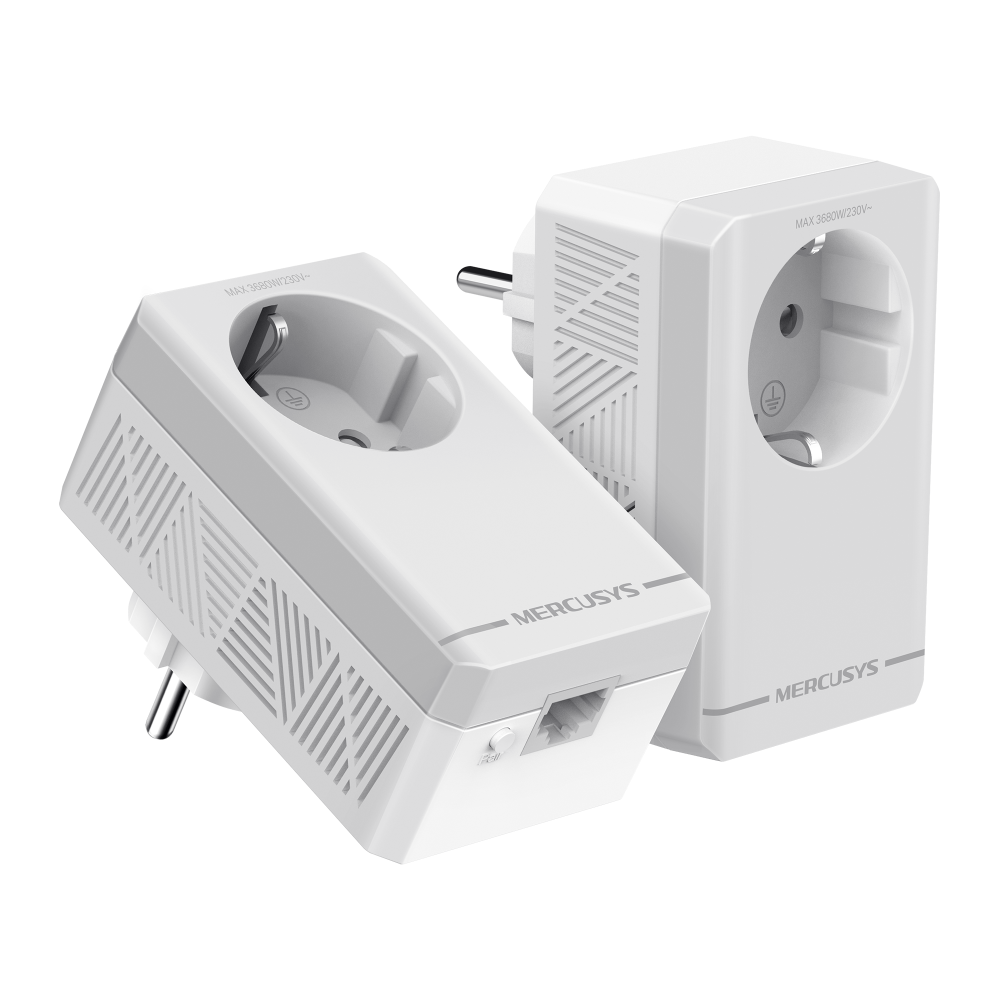

MP300P KIT [V1] | AV600 Passthrough Powerline Starter Kit
MP300P KIT
AV600 Passthrough Powerline Starter Kit
- 600 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2‡
- Plug & Play — No wiring and configuration required—simply plug in
- Power Saving — Embrace eco-friendliness with your adapters by automatically switching to power-saving mode when not in use, conserving up to 85% energy
- Easy Expansion — Expand coverage by simply adding more Powerline adapters
- Extra Power Socket — Convenient for additional devices
Power Your Internet with Your Home's Existing Electrical Circuits
AV600 Passthrough Powerline Starter Kit
MP300P KIT
AV600
600 Mbps
HomePlug AV2
Extra Power Scoket
300-Meter
Range
Compatible with All Routers
Plug, Pair, and Play
4K
Streaming
Extreme Online Gaming
Graphics- Intensive Applications
300-Meter Range
No New Wires or Drilling
600 Mbps HomePlug AV2

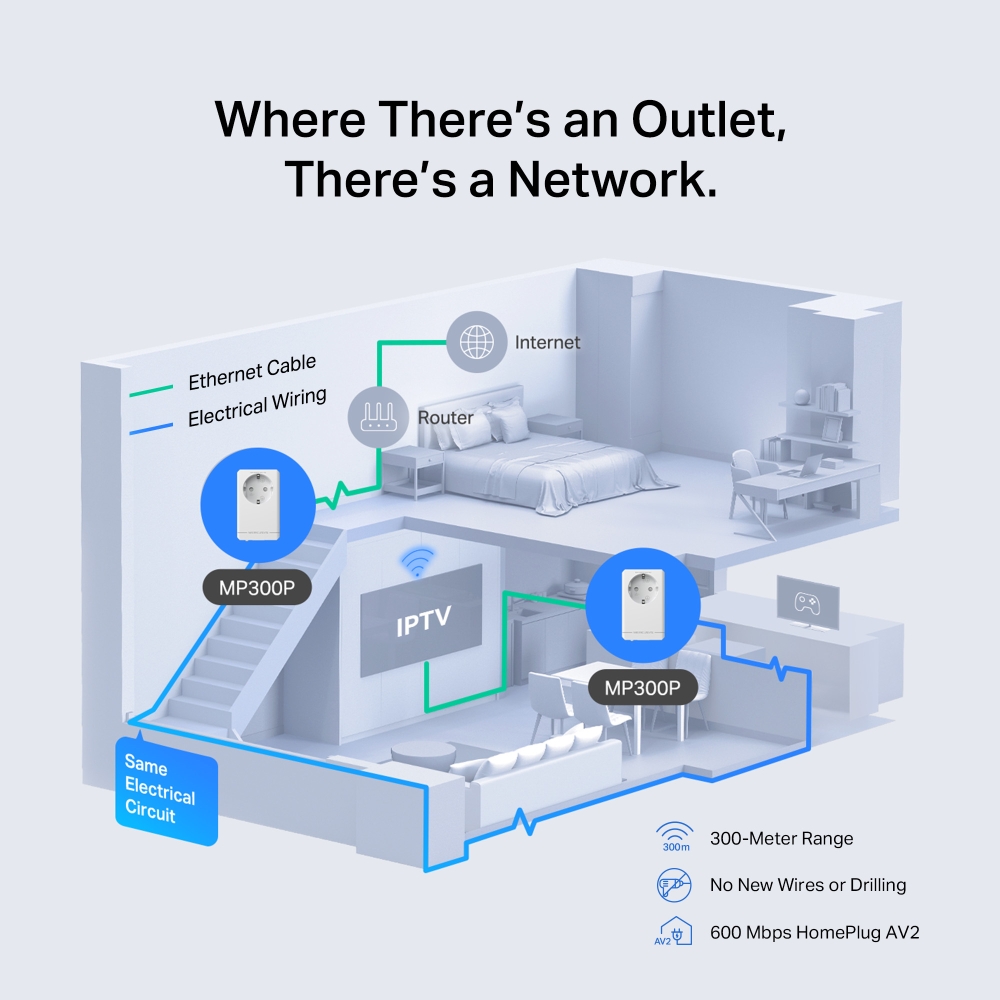

Where there’s an Outlet, There’s a Network.
The MP300P Kit transmits network data via existing electrical circuits, avoiding any negative influence obstacles have on the network. Enjoy a stable extended network with a transmission distance of up to 300 meters (on the same electrical circuit). Perfect for 4K streaming, online gaming, and graphics-intensive applications.

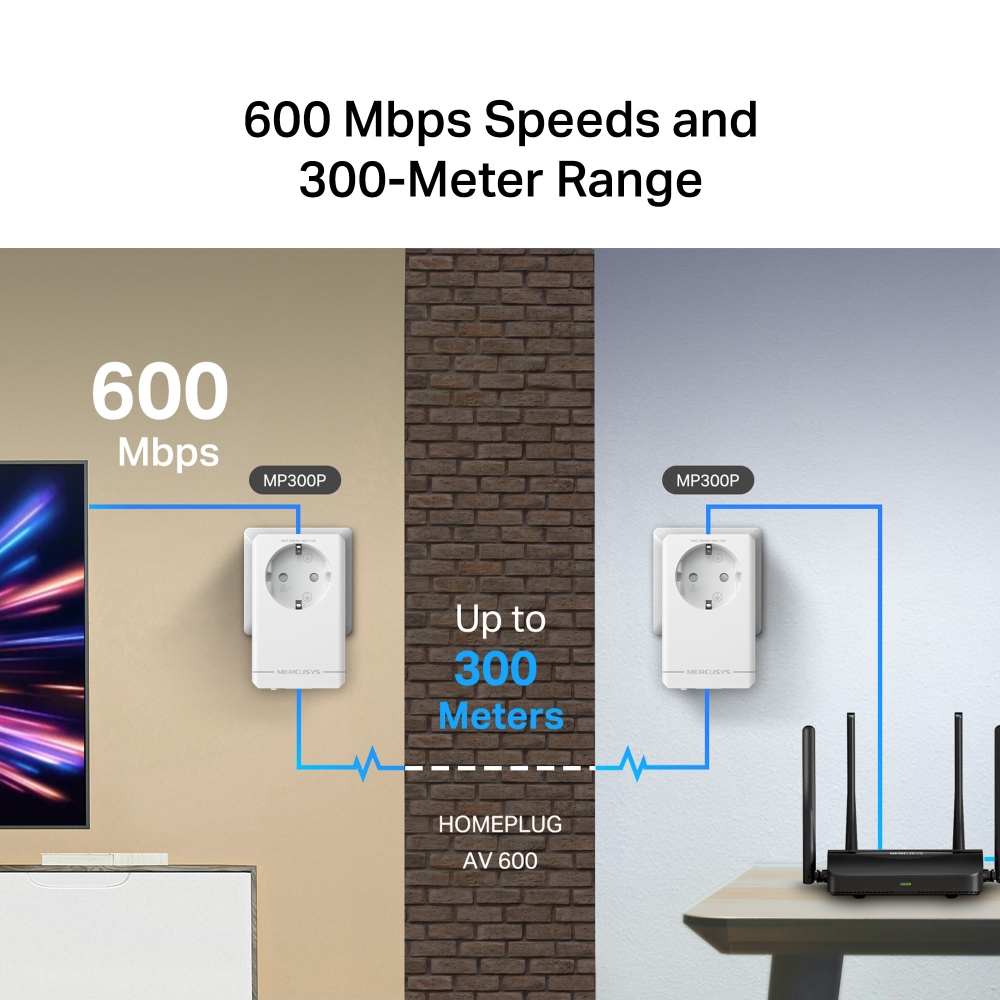

600 Mbps Speeds and 300-Meter Range
Leveraging cutting-edge HomePlug AV2 technology, the MP300P KIT delivers seamless, and wired connections, supporting data transfer rates of up to 600 Mbps* across electrical wiring for distances of up to 300 meters. Enjoy uninterrupted HD streaming, online gaming, and large file downloads with its dependable powerline connectivity.
300
Meters
AV600

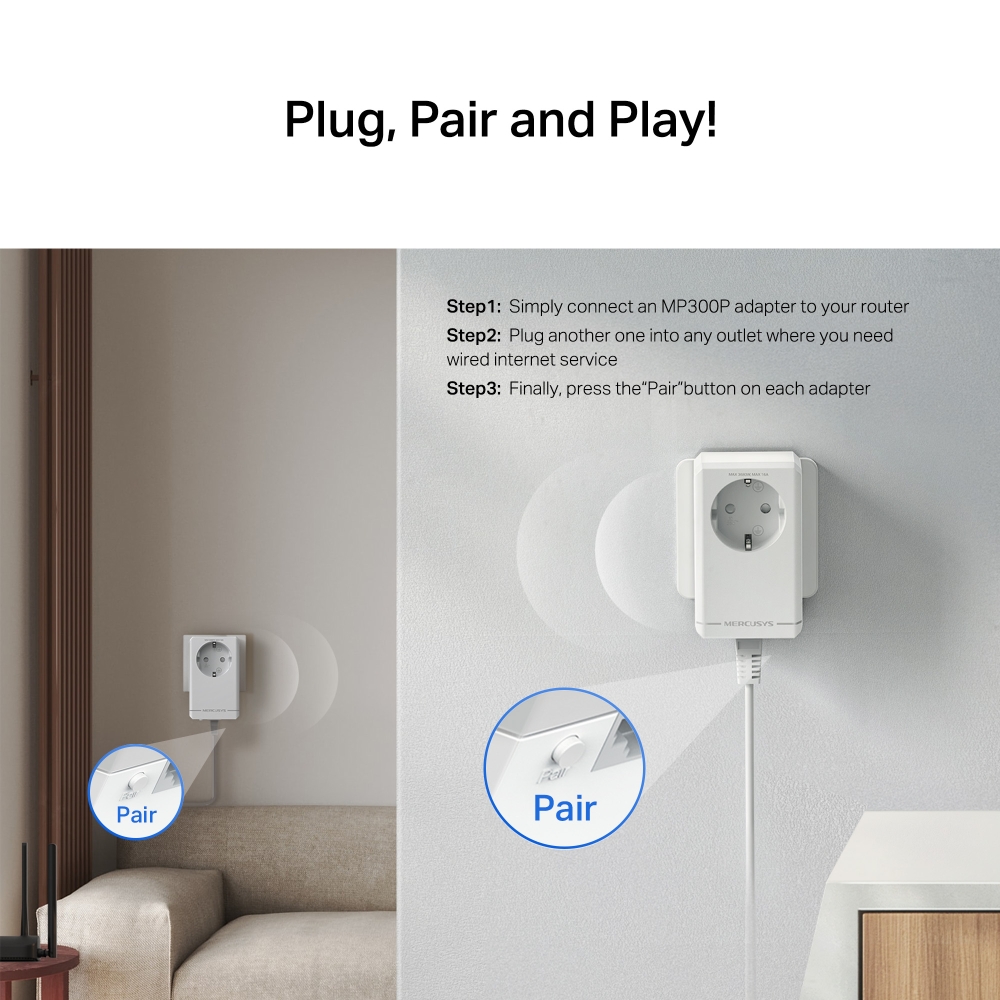

Plug, Pair and Play!
Immediately extend your network as soon as you connect one, without complex wiring and configuration.
- Step1: Simply connect an MP300P adapter to your router
- Step2: Plug another one into any outlet where you need wired internet service
- Step1: Finally, press the “Pair” button on each adapter
Saves up to 85% on Power
Embrace eco-friendliness with your adapters by automatically switching to power-saving mode when they are not in use, thereby conserving energy by up to 85%.**
Power-saving Mode
85%
LESS
Easy Expansion
If a typical two-pack kit doesn’t meet all your networking needs, simply add more Powerline adapters to expand your network to any room.
Appearance
95mm
58mm
42mm
Extra Power Socket
Extra Power Socket
LED Indicator
Helps you know the work status of your Powerline adapter
Ethernet Port
Provides high-speed wired connections for PCs, IPTVs, and game consoles
Pair Button
Simply push the Pair button on the adapters and quickly set up a more secure Powerline network
* Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline adapters separated between two or more service panels. **Actual power saving data will vary due to network conditions and environmental factors. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
- Hardware
- Standards and Protocols
HomePlug AV2, HomePlug AV,
IEEE 802.3, IEEE 802.3u- Dimensions
58 × 42 × 95 mm
- Button
Pair button
- LED
Power
- Power
Maximum: 3.43 W (230 V/50 Hz)
Typical: 3.05 W (230 V/50 Hz)
Standby: 0.75 W (230 V/50 Hz)- Range
300 Meters over electrical circuit
- Software
- Modulation Technology
OFDM (PLC)
- Security
Powerline Security: 128-bit AES
- Others
- Certifications
CE, RoHS

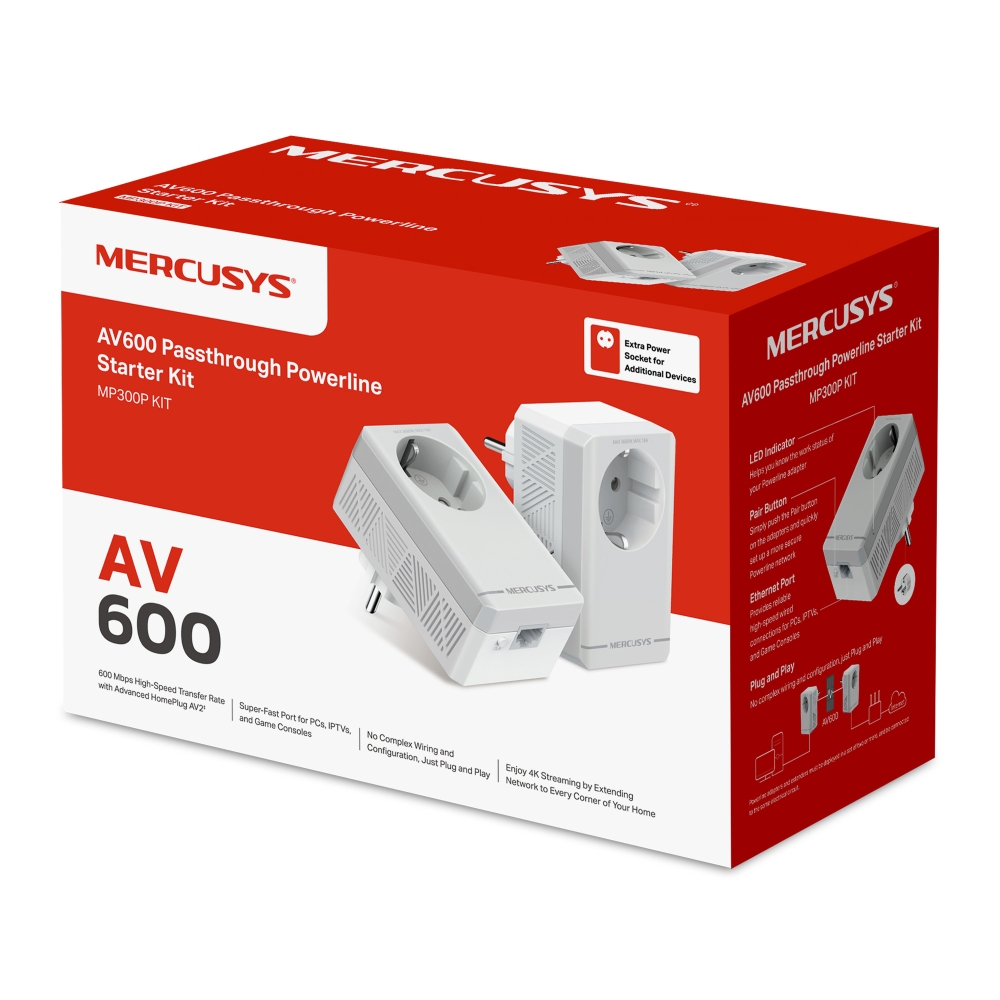

- Package Contents
2× MP300P
2× Ethernet Cables
Quick Installation Guide
- Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
