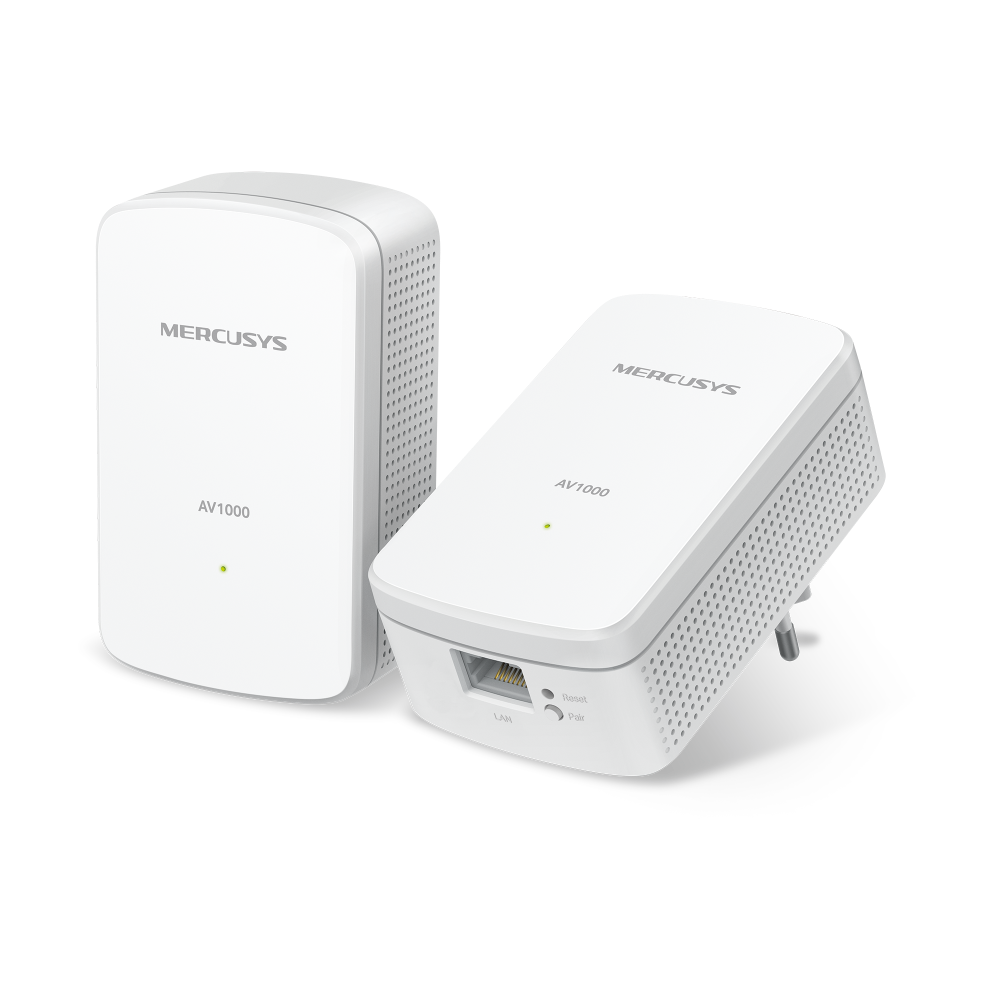

MP500 KIT [V1, V2] | AV1000 Gigabit Powerline Starter Kit
AV1000 Gigabit Powerline Starter Kit

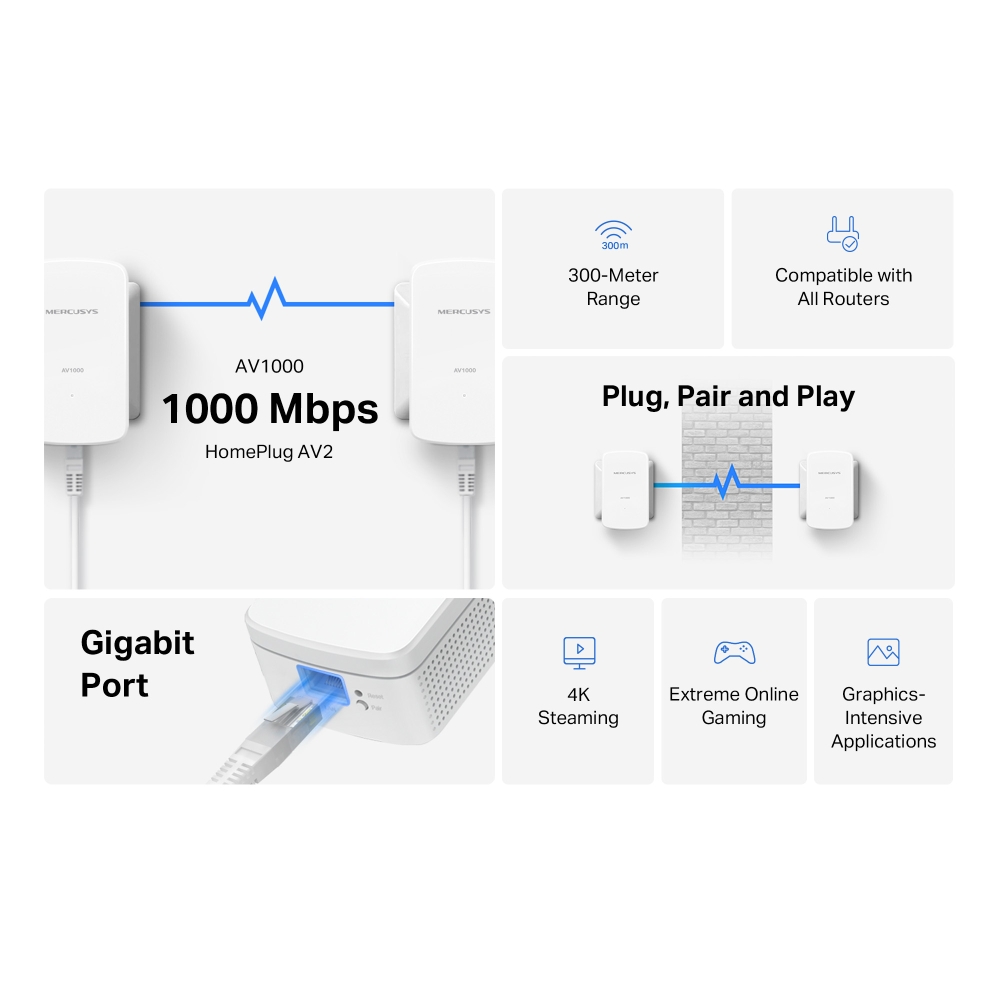

- 1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2
- Super-Fast Wired Connection — A gigabit port provides high-speed internet to PCs, IPTVs, and game consoles
- Plug & Play — No wiring and configuration required—simply plug in
- Easy Expansion — Expand coverage by simply adding more Powerline adapters
Range
All Routers
Steaming

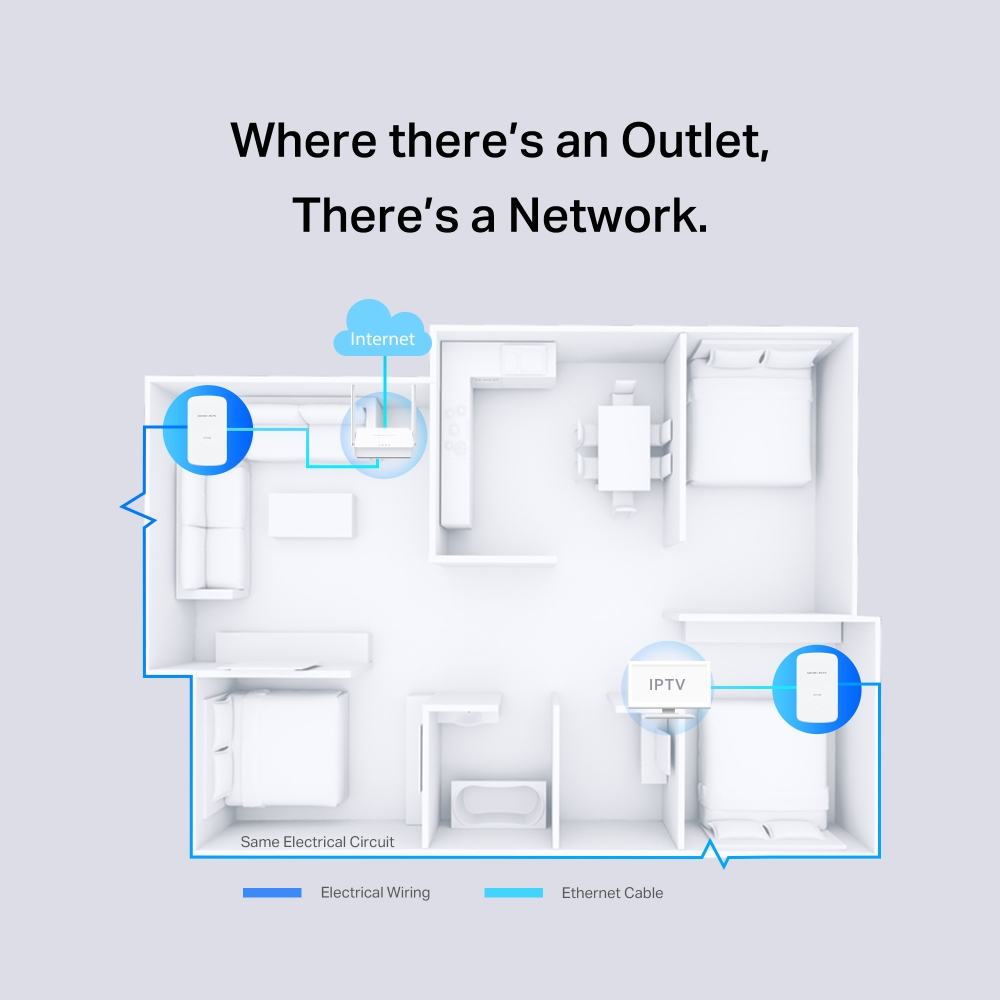

Where there’s an Outlet,
There’s a Network.
The MP500 Kit transmits network data via existing electrical circuits, avoiding any negative influence obstacles have on the network. Enjoy a stable extended network with a transmission distance of up to 300 meters (on the same electrical circuit). Perfect for 4K streaming, online gaming, and graphics-intensive applications.†
-
300-Meter Range
-
No New Wires or Drilling
-
1000 Mbps HomePlug AV2

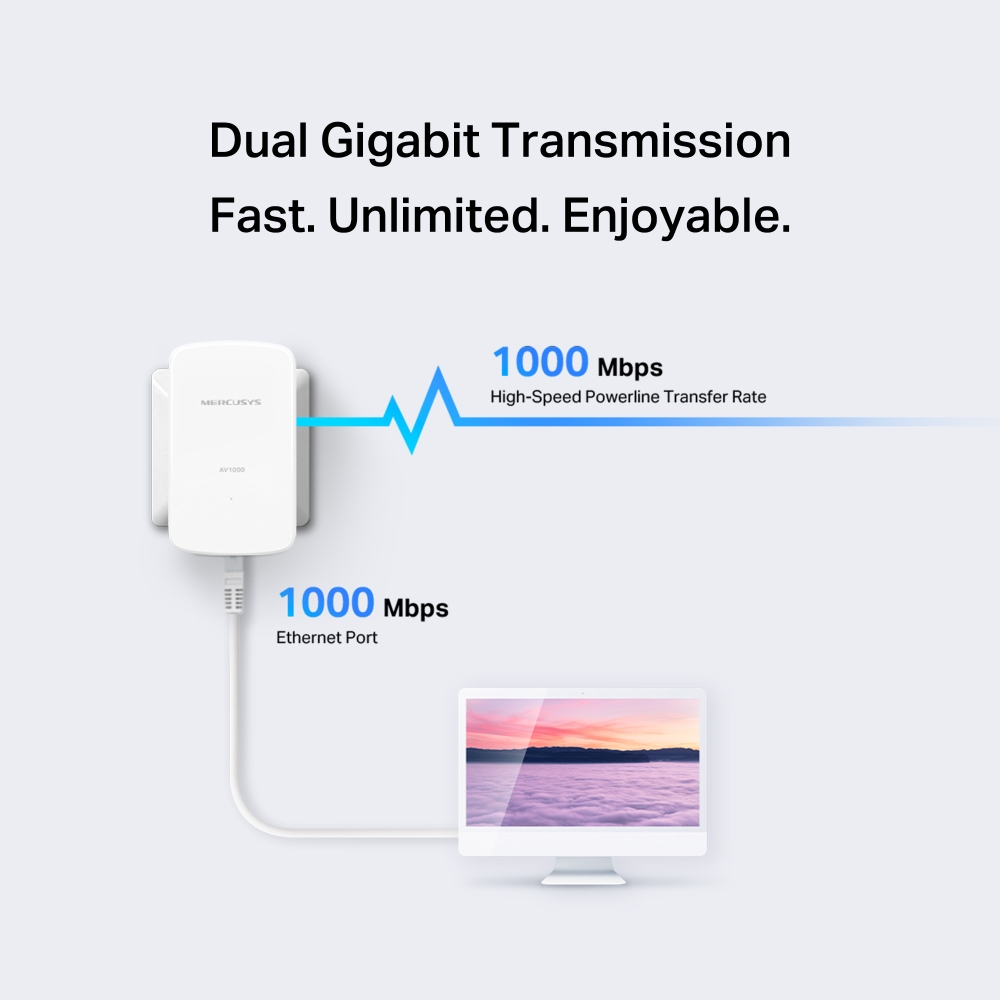

Dual Gigabit Transmission Fast. Unlimited. Enjoyable.
Equipped with advanced HomePlug AV2 technology, the maximum powerline transmission rate reaches a stunning 1000 Mbps—with a gigabit port that delivers a high-quality network through any one of your outlets.‡
-
4K Steaming
-
Extreme Online Gaming
-
Graphics-Intensive Applacations

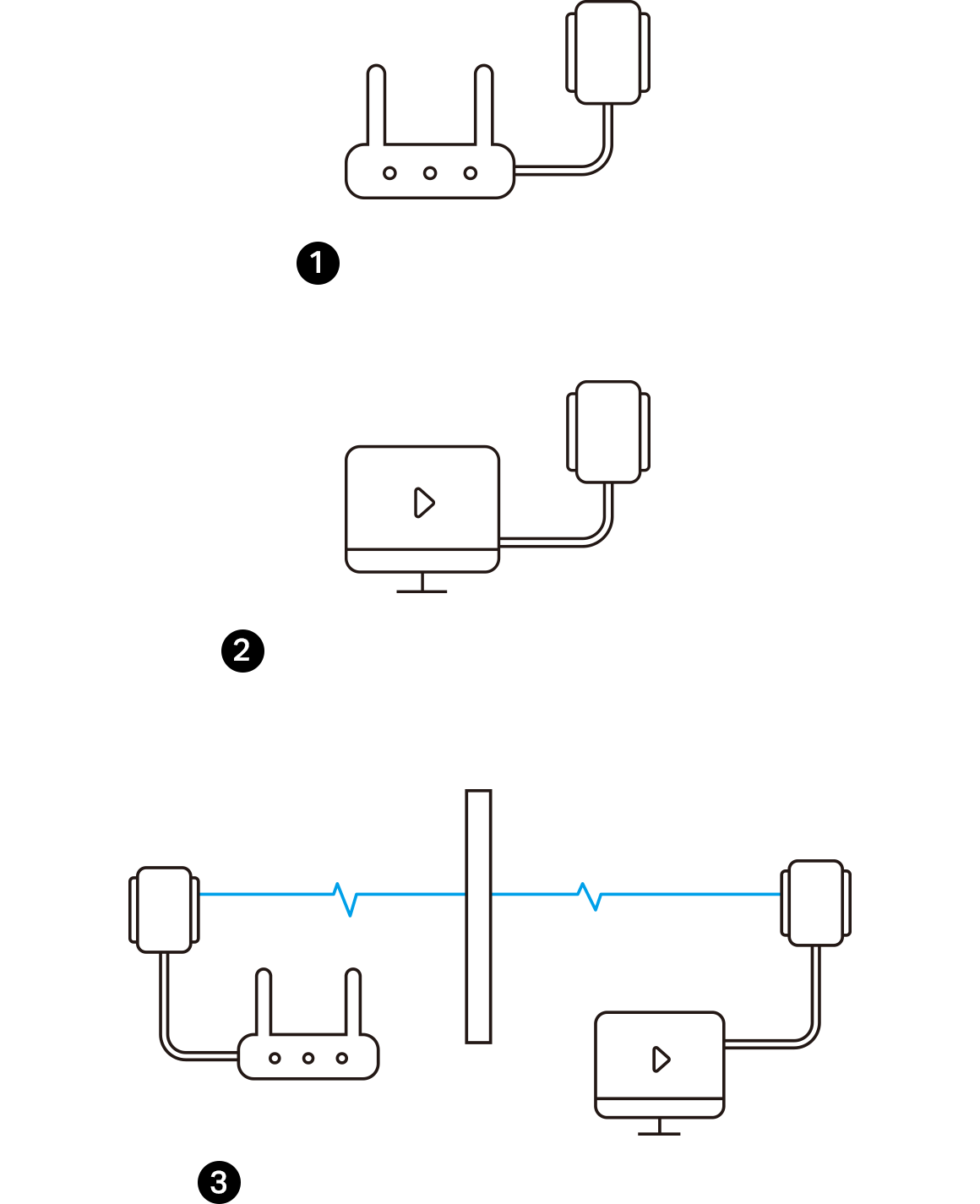

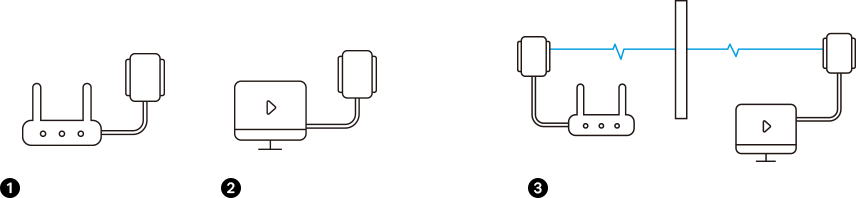

Plug and Play

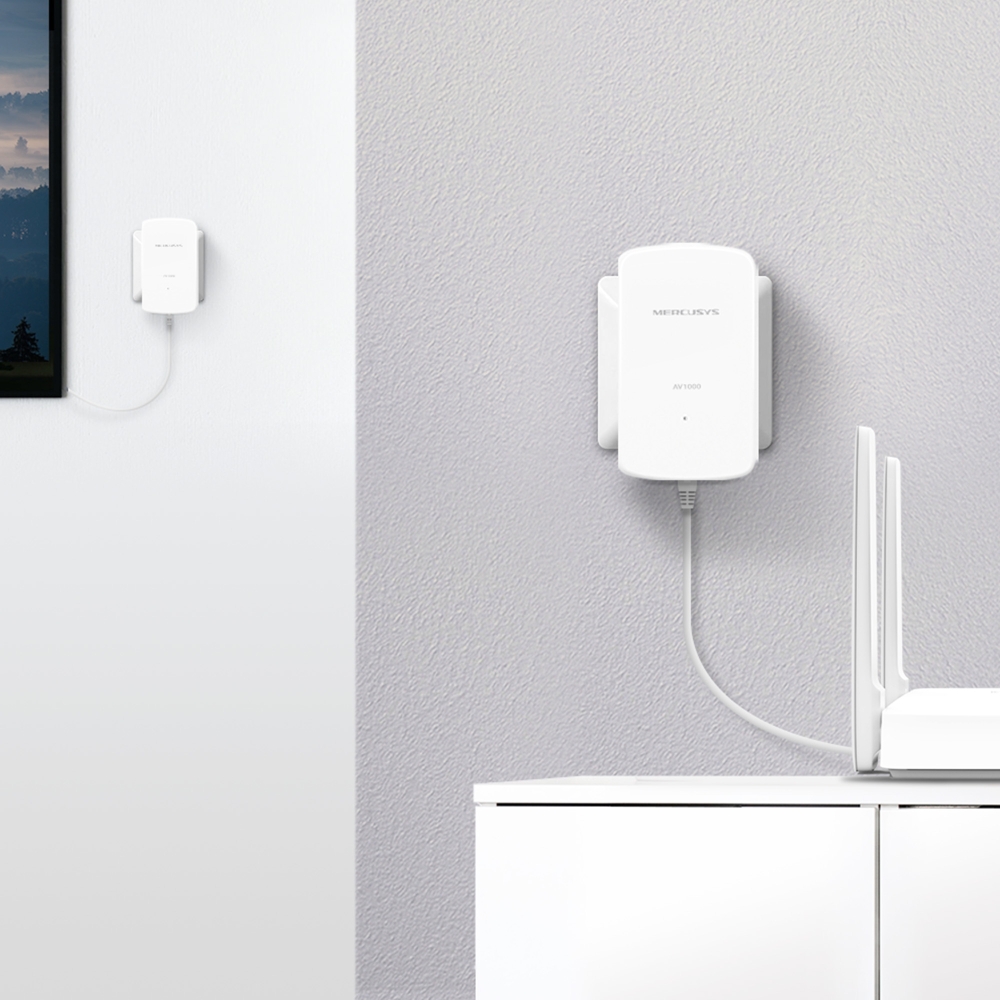

Immediately extend your network as soon as you connect one, without complex wiring and configuration. Simply connect an MP500 adapter to your router and plug another one into any outlet where you need wired internet service.
Easy Expansion
If a typical two-pack kit doesn’t meet all your networking needs, simply add more Powerline adapters to expand your network to any room.

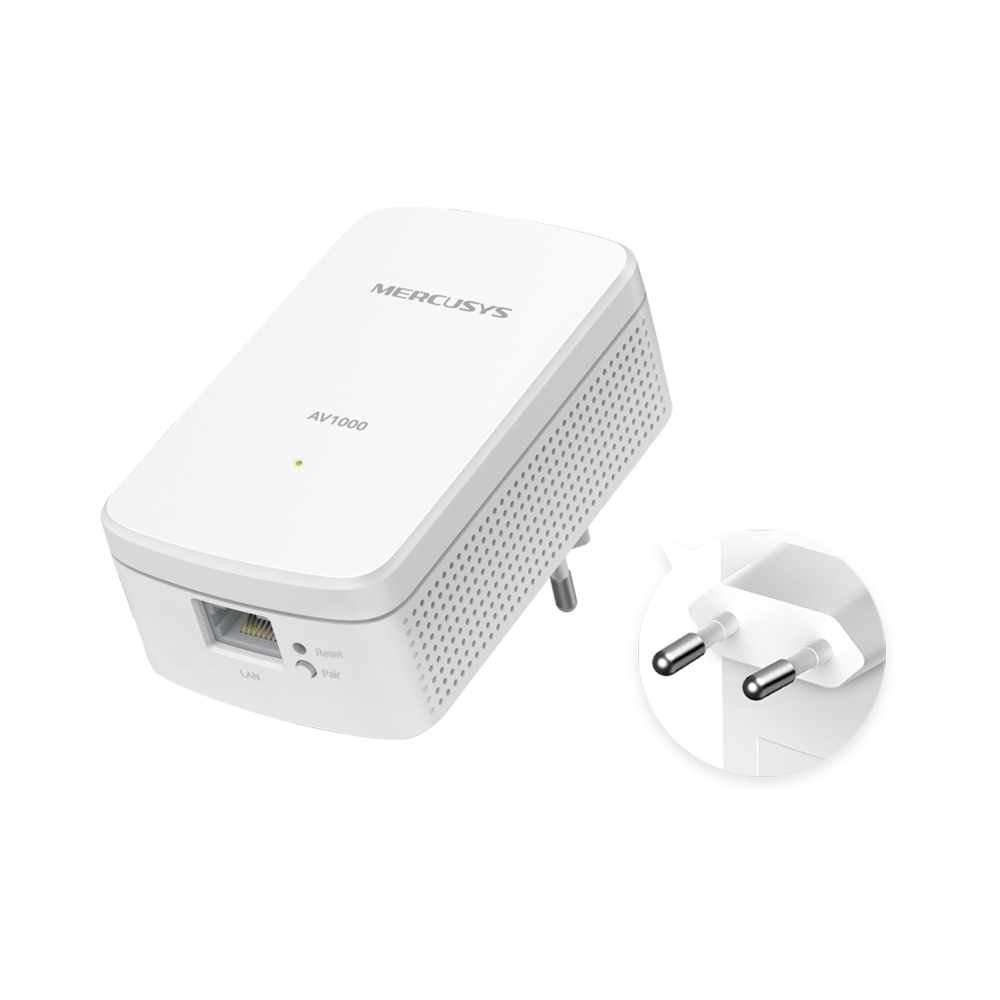

Appearance
*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. †Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated. ‡Maximum Powerline signal rates are the physical rates derived from HomePlug AV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline adapters separated between two or more service panels.
- Hardware
- Standards and Protocols
HomePlug AV2, HomePlug AV, IEEE 1901,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab- Dimensions
101*60*36 mm
- Button
Pair, Reset Button
- LED
Power
- Power
Maximum: 3.7 W (230 V/50 Hz)
Typical: 3.1 W (230 V/50 Hz)
Standby: 1.2 W (230 V/50 Hz)
- Range
300 Meters over electrical circuit
- Software
- Modulation Technology
OFDM (PLC)
- Security
Powerline Security: 128-bit AES
- Others
- Certifications
CE, RoHS
- Package Contents
Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Quick Installation Guide- Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
