MR27BE [V1, V2] | BE3600 Dual Band Wi-Fi 7 Router

BE3600 Dual Band Wi-Fi 7 Router

Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

Newest Wi-Fi 7: Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.

Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.

2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.§

Maximized Coverage: 4× Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.

EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*

Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

Make Your Home Network Enter a New Era

BE3600 Dual-Band Wi-Fi 7 Router

MR27BE

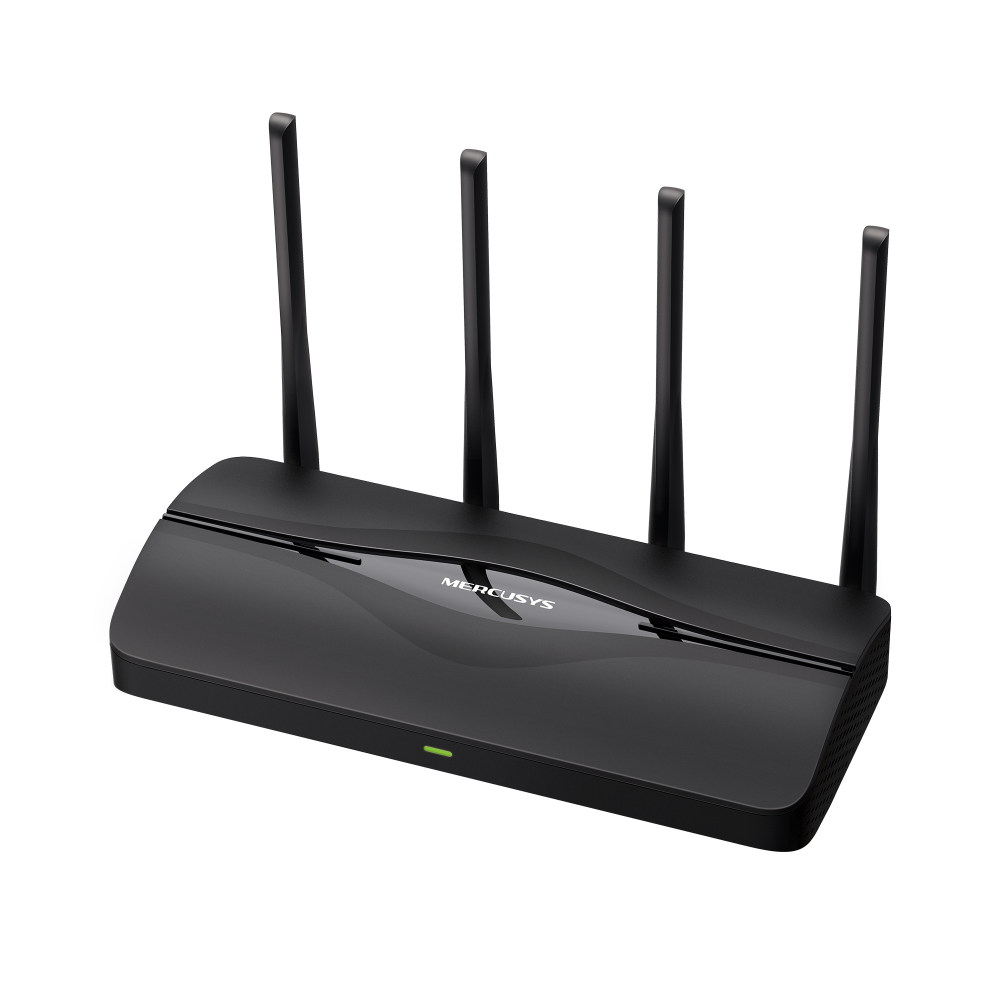

MR27BE Product Image
  • 3.6 Gbps Dual-Band Speeds

  • 2.5G Multi-Gigabit Ports

  • Support for AI QoS

  • EasyMesh-Compatible

  • VPN Client and Server Supported

  • Easy Setup and Use

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Up to 150 device connections is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other loT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features. The 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. This router may not support all the mandatory features as ratified in the IEEE 802.11be specification. Further software upgrades for feature availability may be required.
§2.5 Gbps internet speeds require compatible service plans and equipment.
*EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.

MERCUSYS

Simple and Functional

See what’s compatible

MERCUSYS

The MERCUSYS app provides the easiest way for you to set up in minutes and manage your WiFi at home or away through your iOS or Android devices.

  •

    Easy Setup

  •

    Manage in Real-time

  •

    Quality of Services

  •

    Guest Network

  •

    Parental Controls

MERCUSYS Helps You Set Up in A Few Steps

Without any technical know-how or reading complicated instructions, simply follow the in-app instructions. Set up your mesh network in minutes.

  • Step 1:Find the Halo,Power Cable and Ethernet Cable in the box Halo Power Cable Ethernet Cable

    Step 1

    Find what you’ll need in the box

  • Step 2:Plug in your devices

    Step 2

    Plug in your devices

  • Step 3:Follow the on-screen directions with the MERCUSYS app

    Step 3

    Follow the on-screen directions with the MERCUSYS app

Manage Your WiFi in Real Time

With the MERCUSYS app, experience live network management. See who’s connecting to your network and manage it at any time with your iOS or Android devices.

Notice: The configuration page of different models may be different, please refer to the actual one.

  •
  •
  •
  •

Powerful Parental Controls

Easily manage your kids’ online time and content to create a safe and healthy online environment.

  • Create User Profiles

    Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.

  • Online Time Limits

    Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices for a long time to build a healthy network habit.

  • Block Inappropriate Websites

    Control which sites your kids visit by setting a block list.

  • Pause Internet Connection

    Suspend family members’ internet connections to take a break from the virtual world to enjoy some family time.

Manage and Secure Your Home Network

The MERCUSYS app helps you manage your WiFi at home or away through your iOS or Android devices.

  • link icon

    Check the Status of Connected Devices

    Intuitively view the working status of your Halo network and see what is connected. Prioritize or block devices as needed.

  • icon with right arrows

    Quality of Services

    Prioritizes devices you select to perform better.

  • alert icon

    New Device Access Alert

    The MERCUSYS app proactively sends out an alert to inform you when an unfamiliar device is connected. Tap to block the device if it is a security risk.

  • guest icon

    Set Up a Guest Network

    Provides a separate network for guests to ensure your security and privacy.




Everything in One App

Whether you’re looking to control a wide range of MERCUSYS routers, extenders, or Halo mesh systems, find it all on the app.

See what’s compatible

Compatible Products

Note: The device's firmware requires the latest version. Click here  to learn how to upgrade your firmware.

Note: Both listed and higher hardware versions of these models are compatible with the MERCUSYS app.



Supporting Multiple Languages

MERCUSYS app supports up to 26 languages, enabling easy network management for users all over the world.

  • English

  • Nederlands

  • Français

  • Deutsch

  • Italiano

  • 日本語

  • 한국어

  • Português

  • Español

  • 繁體中文

  • Русский язык

  • Português Brasil

  • Español
    (Latinoamérica)

  • Български

  • Українська мова

  • Polski

  • Română

  • Slovenčina

  • ไทย

  • Türkçe

  • Čeština

  • Tiếng Việt

  • Eλληνικά

  • Bahasa Melayu

  • Magyar

  • עברית

Wireless
Wi-Fi Class
BE3600
Wi-Fi (2.4 GHz)
688Mbps
Wi-Fi (5 GHz)
2880Mbps
Wireless Standards
802.11be/ax/ac/a/b/g/n
Max Channel Width
160MHz
Reception Sensitivity
2.4G:
11be EHT20 MCS0: -96dBm
11be EHT20 MCS13: -61dBm
11be EHT40 MCS0: -94dBm
11be EHT40 MCS13: -58dBm

5G:
11be EHT20 MCS0: -95dBm
11be EHT20 MCS13: -61dBm
11be EHT40 MCS0: -93dBm
11be EHT40 MCS13: -58dBm
11be EHT80 MCS0: -91dBm
11be EHT80 MCS13: -54dBm
11be EHT160 MCS0: -88dBm
11be EHT160 MCS13: -52dBm
Max Wi-Fi Modulation
4k QAM
Wireless Security
WPA/WPA2/WPA3
Wireless Functions
Guest Network
IoT Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness
Hardware
Dimensions
250 × 119 × 43.3 mm
(9.8 × 4.7 × 1.7 in)
Interfaces
1× 2.5G WAN
1× 2.5G LAN
3× 1G LAN
Antenna
2× 5G External Antennas
2× 2.4G External Antennas
Button
1× WPS 1× Reset
Installation
Desktop
Wall-mount
LED
1× SYS
Retail Package Dimension
324×256×72mm
Units per Carton
6
Carton Dimension
440×265×330mm
Software
WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Protocols
IPv4
IPv6
IPTV
IGMP Proxy
IGMP Snooping
Bridge/Custom
Tag VLAN
Guest Network
2.4G Guest Network
5G Guest Network
6G Guest Network
Parental Controls
Profile Settings
Time Control
Pause the Internet
Website Filtering
DHCP
Address Reservation
DHCP Client List
Server
DDNS
MERCUSYS
NO-IP
DynDNS
VPN Client
OpenVPN
WireGuard
PPTP
L2TP/IPSec
QoS
AI QoS
Security
SPI Firewall
Access Control
IP & MAC Binding
Kill Switch
P
ISP Feature
CWMP
ISP Preset(Agile Config)
Superadmin
System
Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot
Diagnostics
Ping
Traceroute
LED Management
LED Control
Night Mode
Device Management
MERCUSYS APP
Webpage
Cloud
MERCUSYS ID
Language
Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan
Advanced Features
Multi-Link Operation (MLO)
Multi-RUs
OFDMA
MU-MIMO
BSS Color
Beamforming
Others
Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DNS
DNS
• Port: 53   Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP

App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP
Package Contents
• BE3600 Wi-Fi 7 Router MR27BE
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
