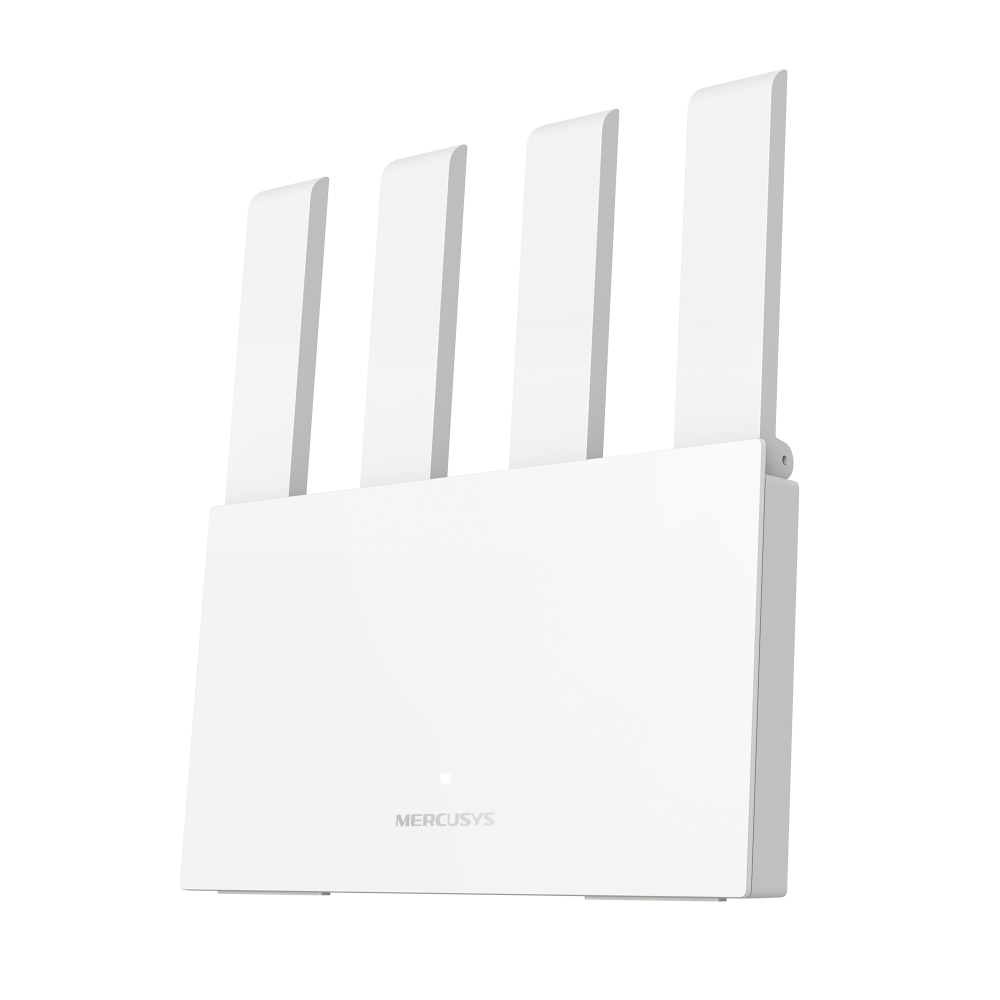

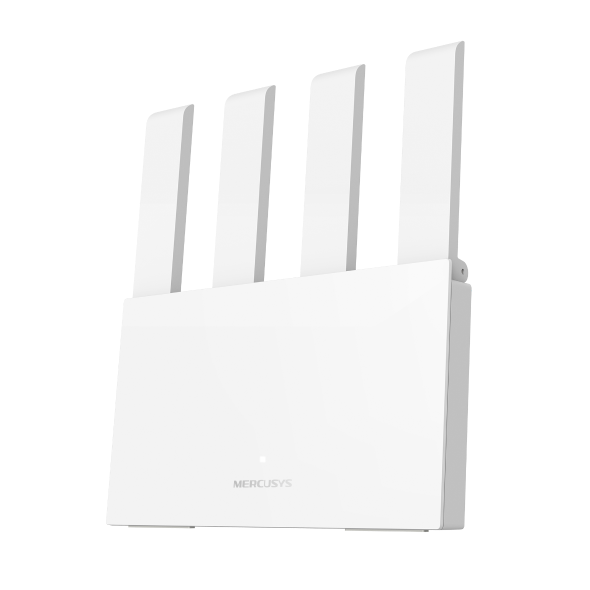

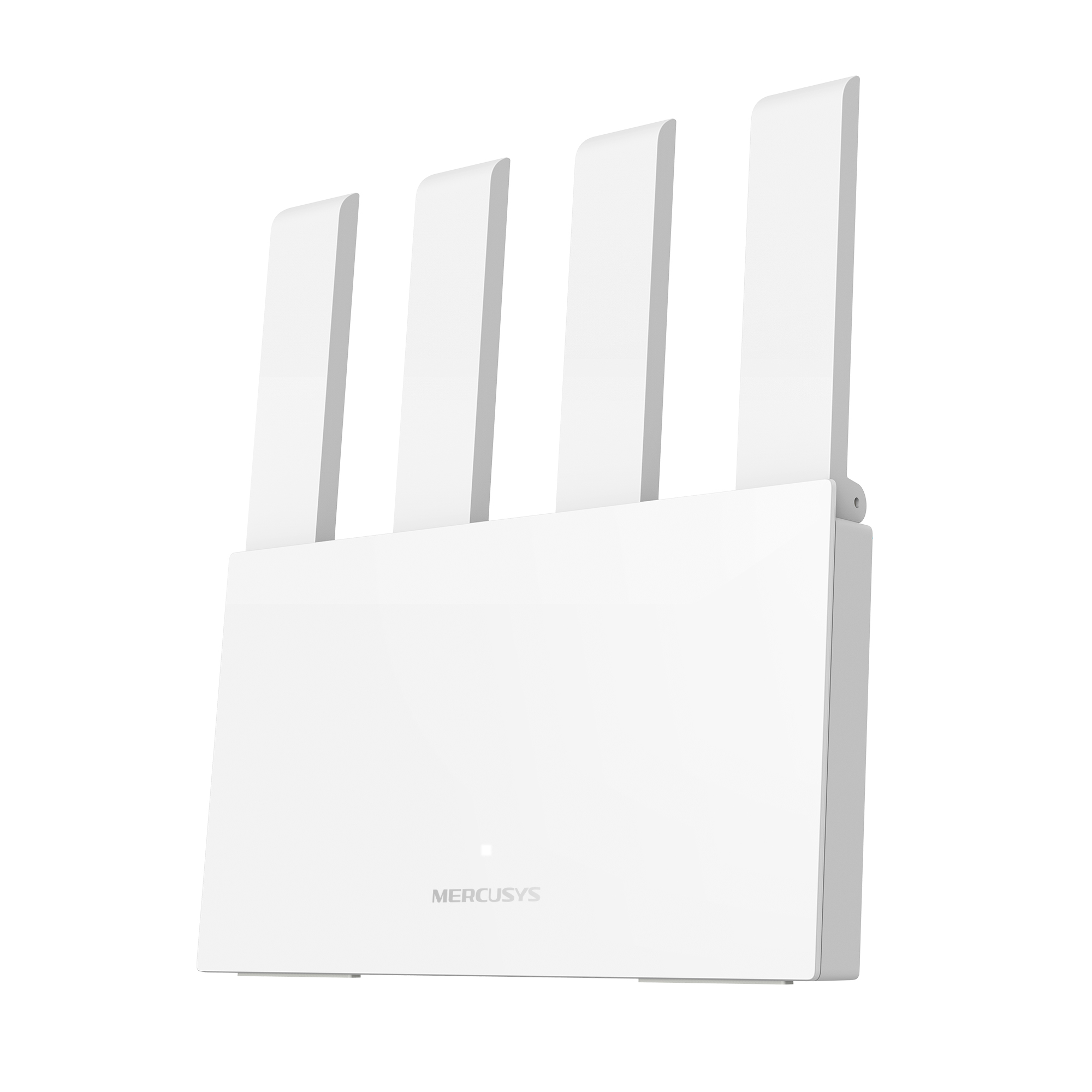

MR81WX [V1] | AX3000 Dual-Band Wi-Fi 6 Router
MR81WX
AX3000 Dual-Band Wi-Fi 6 Router
Wi-Fi 6 Technology: Wi-Fi 6 technology achieves up to 3x faster speeds, higher capacity and lower latency compared to the previous generation of Wi-Fi 5.†
Next-Gen 3 Gbps Speeds: Reaches incredible speeds up to 3 Gbps (2402 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band) for faster streaming and gaming like you have never experienced before. ‡
Gigabit Wired Connections: 5× 1 Gigabit Ports make full use of your internet access and transfer data at dizzying speeds for peak performance. §
VPN Client and Server Supported: WireGuard, OpenVPN, L2TP, and PPTP supported, enabling secure remote access and private connections effortlessly.
Minimize Lag for All Devices and Applications: Experience ultra-smooth entertainment whether you are streaming 4K videos, gaming online, or even video chatting.
More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with MR81WX as it focuses signal strength to your devices using Beamforming technology and four antennas.
Easy Setup: Conveniently manage everything with the MERCUSYS app.
†Use of 802.11ax (Wi-Fi 6), and features including OFDMA, 160 MHz Channel, MU-MIMO, 1024-QAM, BSS Coloring, and Target Wake Time (TWT) requires clients to also support the corresponding features. Actual power reduction by Target Wake Time may vary as a result of network conditions, client limitations, and environmental factors. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. ‡Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Up to 150 device connections is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other loT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. §1 Gbps internet speeds require compatible service plans and equipment.
- Wireless
- Wi-Fi Class
AX3000
- Wi-Fi (2.4 GHz)
574Mbps
- Wi-Fi ( 5 GHz)
2402Mbps
- Wireless Standards
802.11ax/ac/a/b/g/n
- Max Channel Width
160MHz
- Max Wi-Fi Modulation
1024 QAM
- Wireless Security
WPA/WPA2/WPA3
- Wireless Functions
Guest Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness
- Hardware
- Interfaces
1× GE WAN
4× GE LAN- Antenna
4×External Omni-directional Antennas
- Button
1× WPS Button
1× Reset Button- Installation
Desktop
Wall-mount- LED
1× SYS
- IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
- Software
- Operation Mode
Router/AP mode
- WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP- NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP- Protocols
IPv4
IPv6- Guest Network
2.4G Guest Network
5G Guest Network- Parental Controls
Profile Settings
Time Control
Pause the Internet
Website Filtering- DHCP
Address Reservation
DHCP Client List
DHCP Server- DDNS
MERCUSYS
NO-IP
DynDNS- VPN Server
OpenVPN
PPTP
L2TP/IPSec
WireGuard- VPN Client
OpenVPN
PPTP
L2TP/IPSec
WireGuard- Easymesh
Easymesh Compatible
- QoS
Time Settings
Priority Control- Security
SPI Firewall
Access Control
IP & MAC Binding- Kill Switch
Support
- ISP Feature
CWMP
ISP Preset(Agile Config)
Superadmin- System
Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot- Diagnostics
Ping
Traceroute- LED Management
LED Control
Night Mode- Device Management
MERCUSYS APP
Webpage- Cloud
MERCUSYS ID
- Language
Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese - Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan- Advanced Features
OFDMA
BSS Color
Beamforming
- Others
- Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
