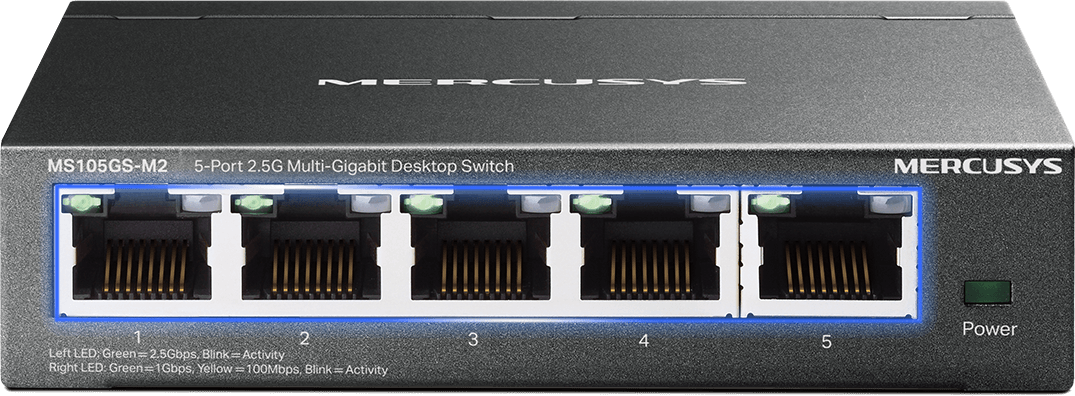

MS105GS-M2 [V1] | 5-Port 2.5G Multi-Gigabit Desktop Switch
MS105GS-M2
5-Port 2.5G Multi-Gigabit Desktop Switch
- Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, providing up to 25 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6E/6 AP, 4K video, and more.
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for noise-sensitive environments.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Plug and Play. Easy installation, no configuration required.
Super-Fast Speed with Hassle-Free Cabling
MS105GS-M2 delivers 2.5 times faster network performance than traditional Gigabit switches. With Hassle-Free Cabling technology, it works with Cat5e; Cat6; Cat6a and above cables without upgrading your cabling.
-
CAT5e
-
CAT6
-
CAT6a
-
2.5Gbps 2.5× Faster
-
1Gbps
Feel the Excellent Performance of 2.5G
Muti-Gigabit Bandwidth and Devices
MS105GS-M2 is flexible and fully compatible with computer, AP, 4K Video, game console and more. This makes it perfect for use in café, small office, and even dormitory environments.
-
2.5G Gaming
Computer -
2.5G
Wi-Fi7/6 AP -
Game
Console -
4K
Video -
2.5G
NAS/Sever -
Network Video
Recorder
Plug and Play
MS105GS-M2 offers auto-negotiation; automated MDl/MDIX and QoS. There is no additional configuration needed. lt is simple to use, saving time and effort.
Connect to Power
Connect to Devices
Enjoy
Durable, Silent, and Flexible
-
Durable & Silent
MS105GS-M2’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated.
-

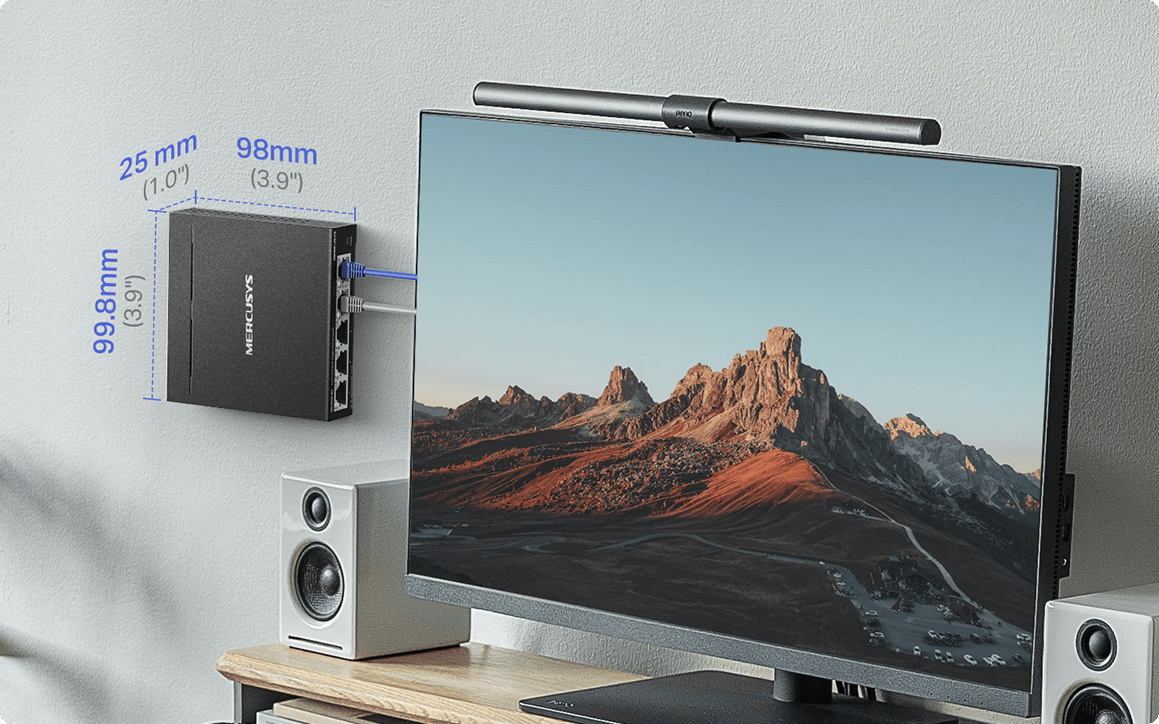

Wall Mount & Small
MS105GS-M2 is flexible and small, you can put it on desk or wall mount to meet your demand.
Multiple Application Scenarios
-
Small Office
For computers and printers
-
Wi-Fi Coverage
For APs in café, store and restaurant
-
Workstation
For professional needs
-
LAN Parties
For entertainment with friends
*Only Cat5e or better cables do not need to be replaced
- Hardware
- Standards and Protocols
IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
- Interfaces
5 100 Mbps/1 Gbps/2.5 Gbps Auto-Negotiation RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
- External Power Supply
External Power Adapter (Output: 9 VDC / 0.6 A)
- Fan Quantity
Fanless
- Jumbo Frame
12 KB
- Switching Capacity
25 Gbps
- LED
Power, Link/Act
- MAC Address Table
4K, Auto-learning, Auto-aging
- Max Power Consumption
5.81 W
- Max Heat Dissipation
19.754 BTU/h
- Software
- Transfer Method
Store and Forward
- Performance
- Packet Forwarding Rate
18.6 Mpps
- General
- Dimensions ( W x D x H )
3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
- Others
- Certifications
CE, RoHS
- Package Contents
• 5-Port 2.5G Multi-Gigabit Desktop Switch MS105GS-M2
• Power Adapter
• Installation Guide
• Rubber Feet- Environment
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
