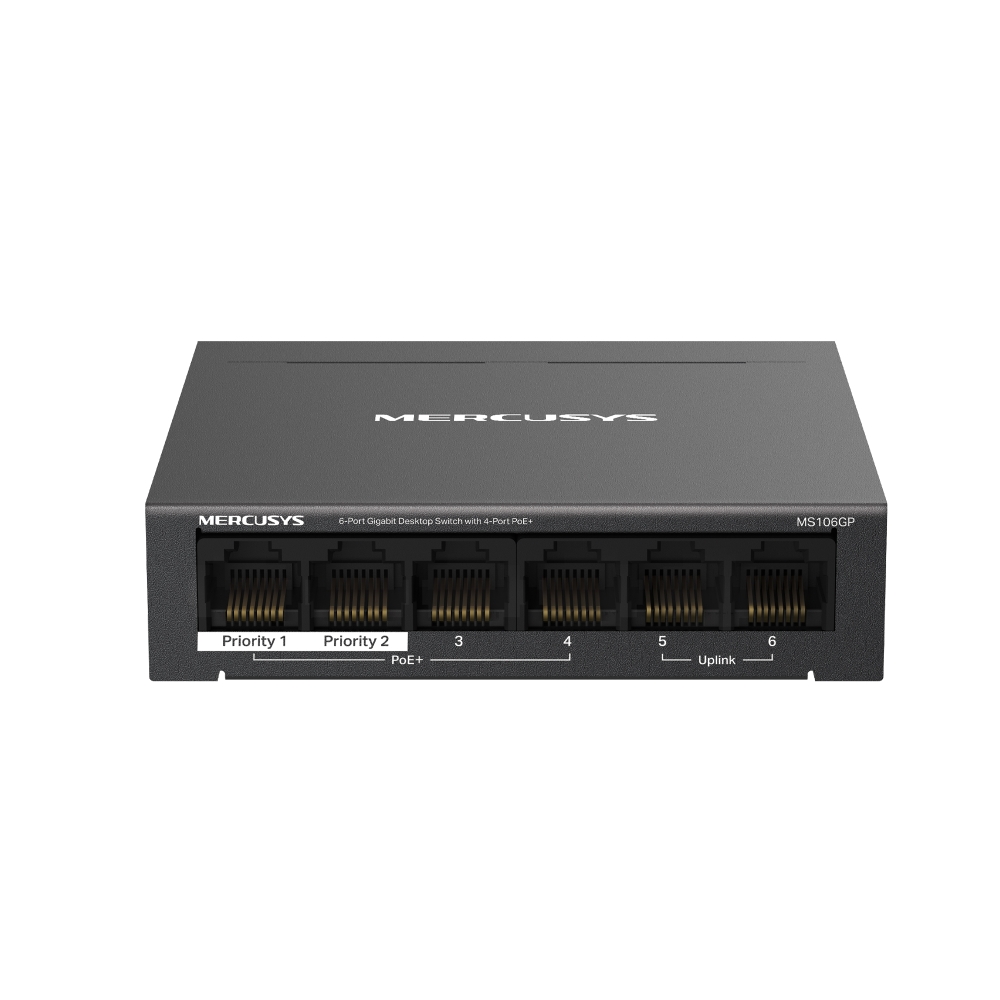

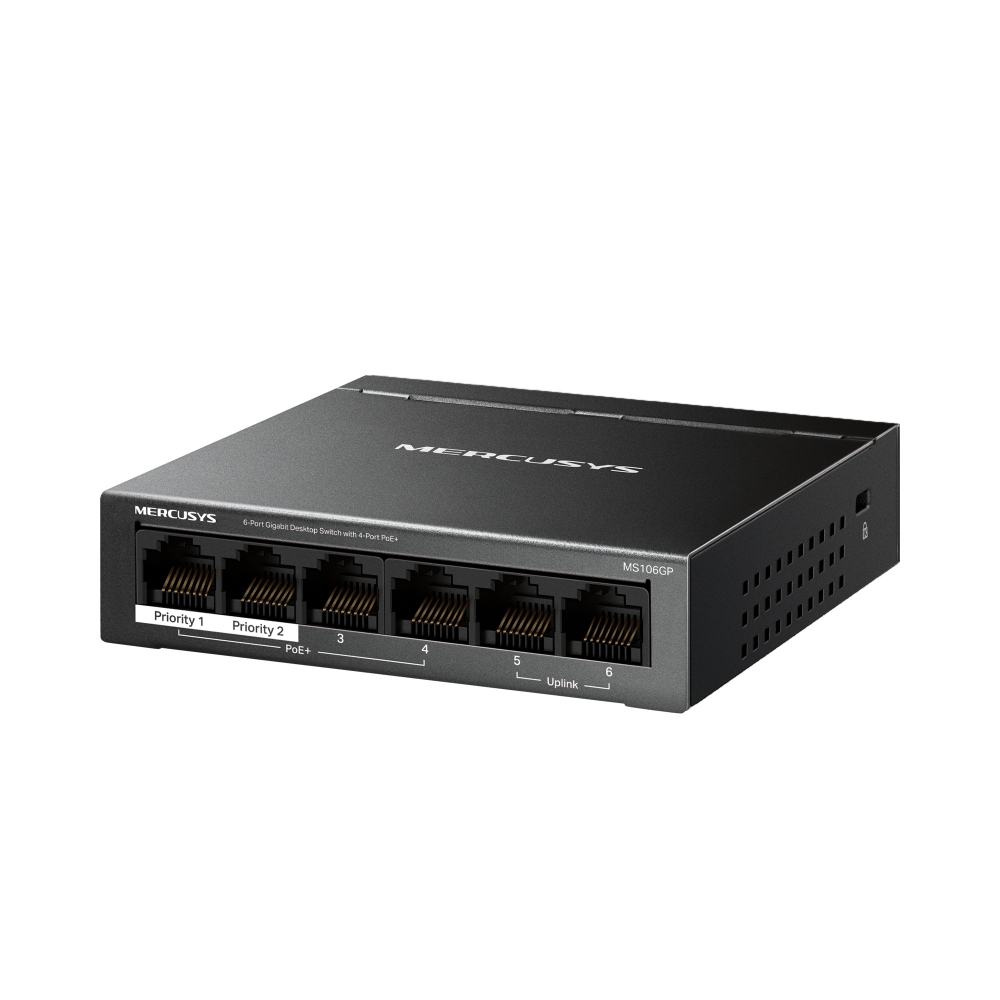

MS106GP [V1] | 6-Port Gigabit Desktop Switch with 4-Port PoE+

MS106GP

6-Port Gigabit Desktop Switch with 4-Port PoE+

  • Fast Gigabit Ports: 6×Gigabit RJ45 ports with 4 PoE+ ports
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*. Works with IEEE 802.3af/at compliant PDs
  • 2× Uplink Ports: MS106GP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
  • Longer transmission: Increases PoE transmission distance to 250 m by Extend Mode**
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

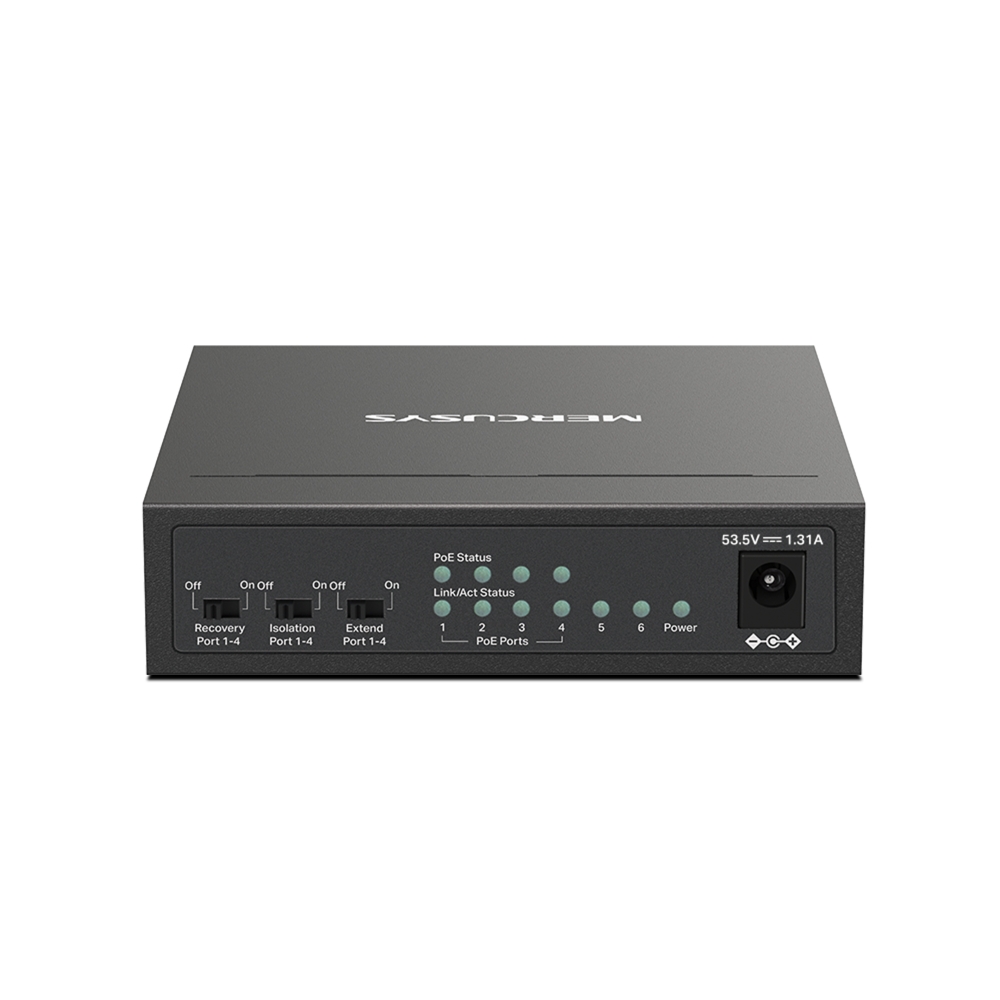

  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Plug and Play: Simple to use, saving time and effort
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life

Overview

Connect fast
Keep it simple

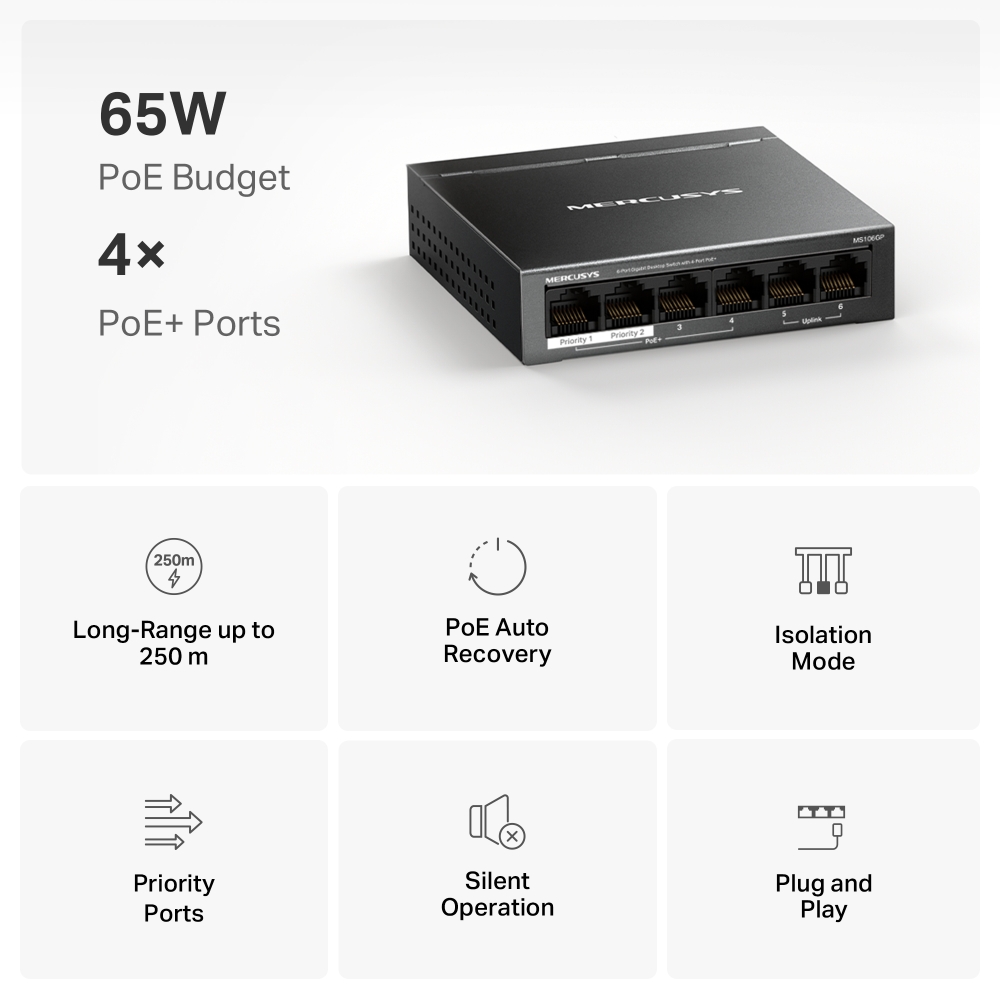

6-Port Gigabit Desktop Switch
with 4-Port PoE+

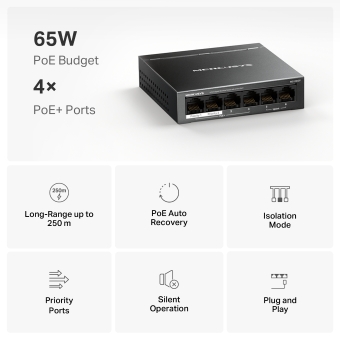

MS106GP
65W
PoE Budget
4×
PoE+ Ports
Long-Range
up to 250 m
PoE Auto
Recovery
Isolation
Mode
Priority
Ports
Silent
Operation
Plug and
Play

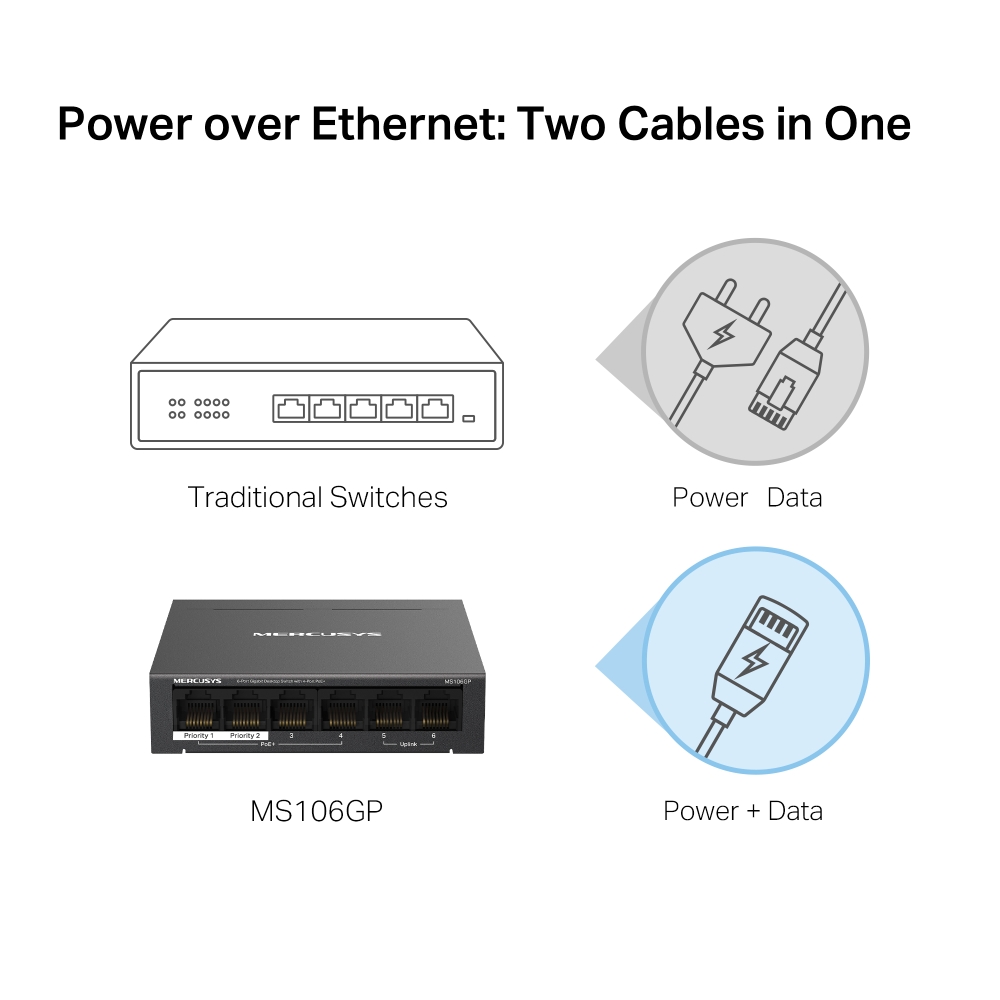

High Power PoE+ for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 4 PoE+ ports supports a maximum power supply of 30 W. The total 65 W PoE power budget* can be applied in various scenarios such as surveillance, offices, dormitories, and small businesses, since MS106GP is compatible with devices such as IP cameras, APs, IP phones, PCs, etc.

65W
Total Power Budget
30W
Max on Each Port
Power and Data
Access Point
IP Camera
IP Phone
Data Only
Data Only
Internet
Router
Network Video Recorder
Data and Power

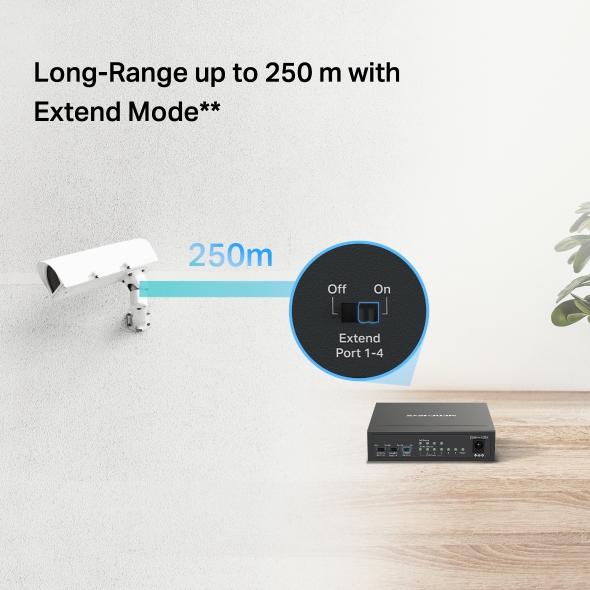

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS106GP has four long-range ports with PoE+.
Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.



High Performance, Easy to Use

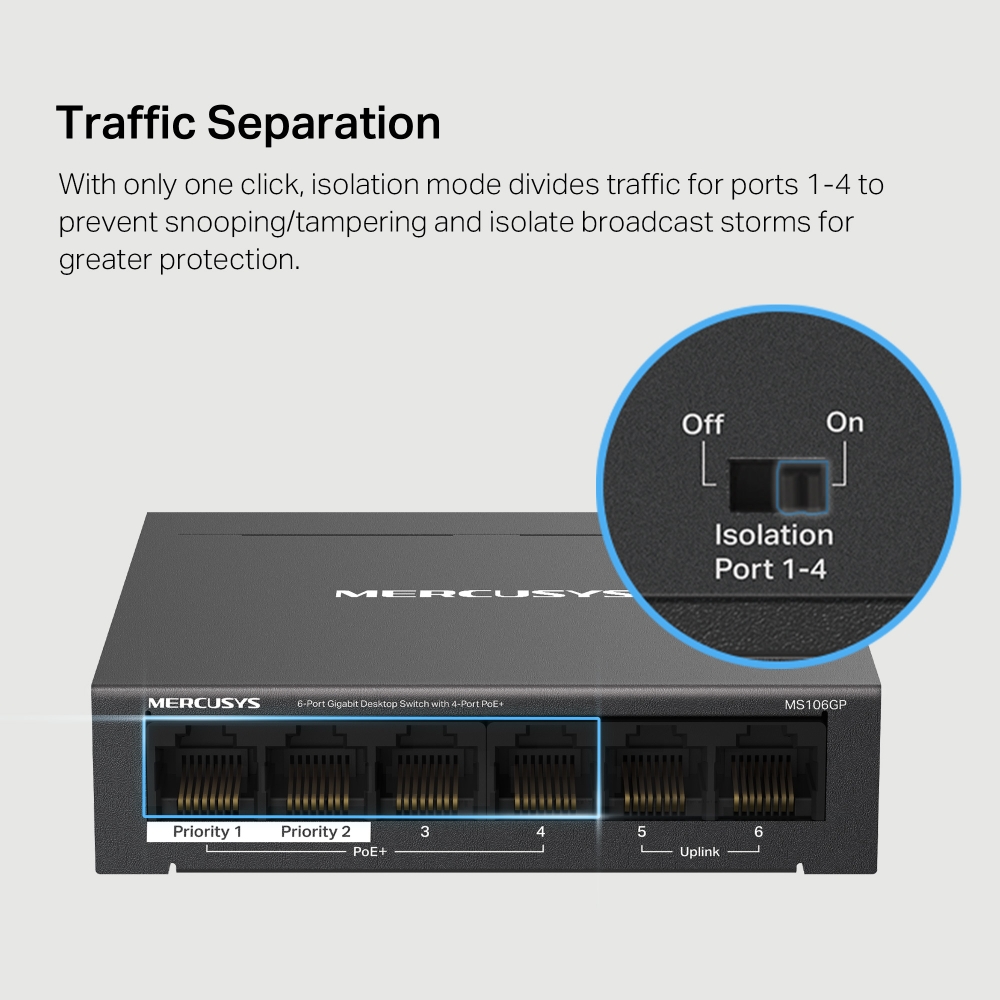

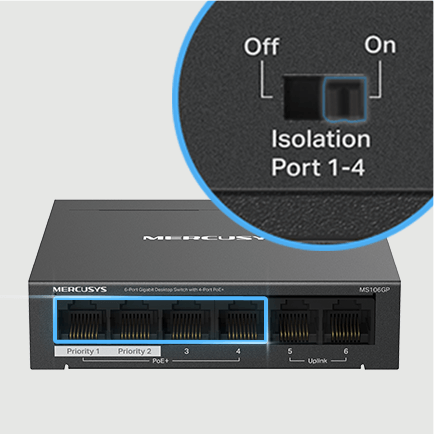

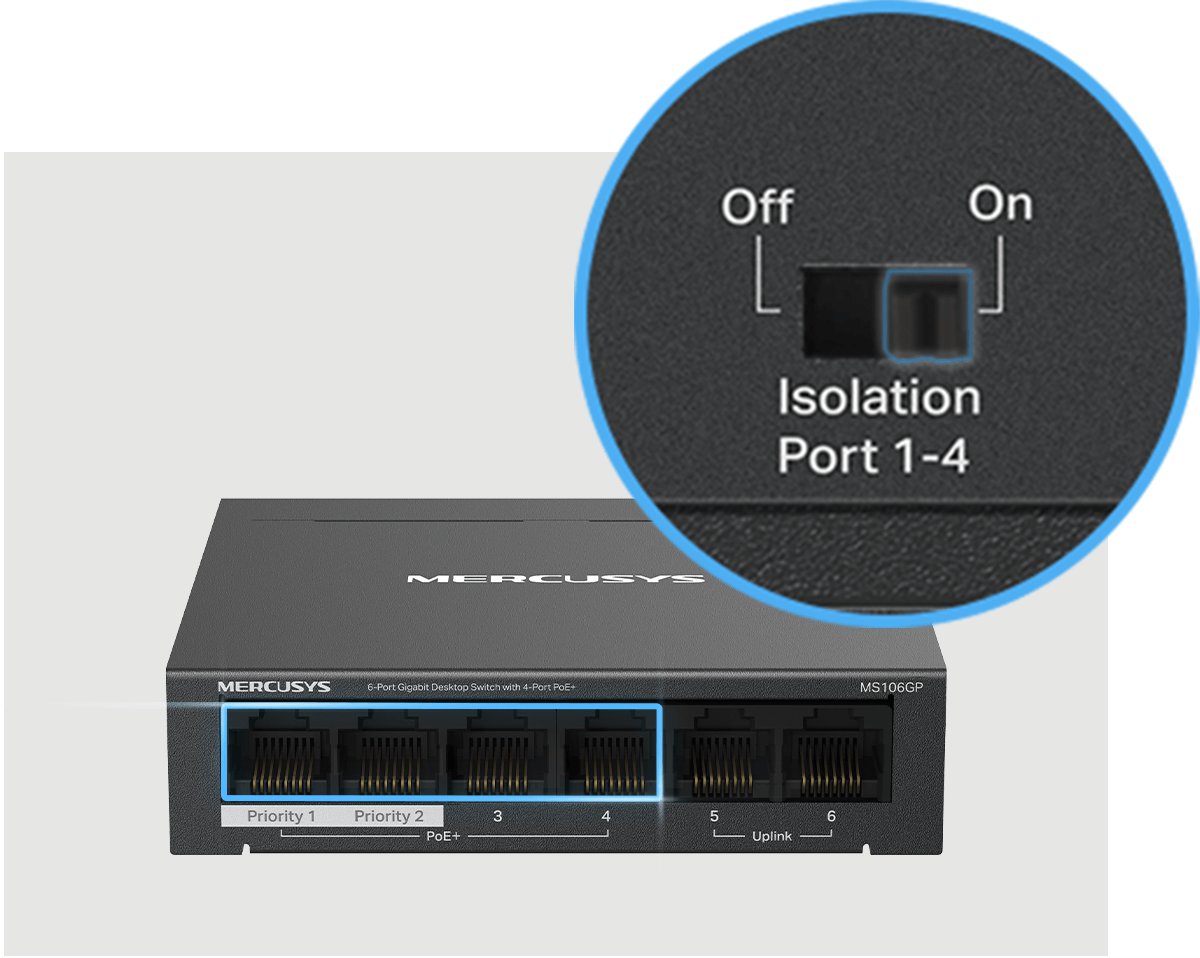

  • Traffic Separation

    With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.

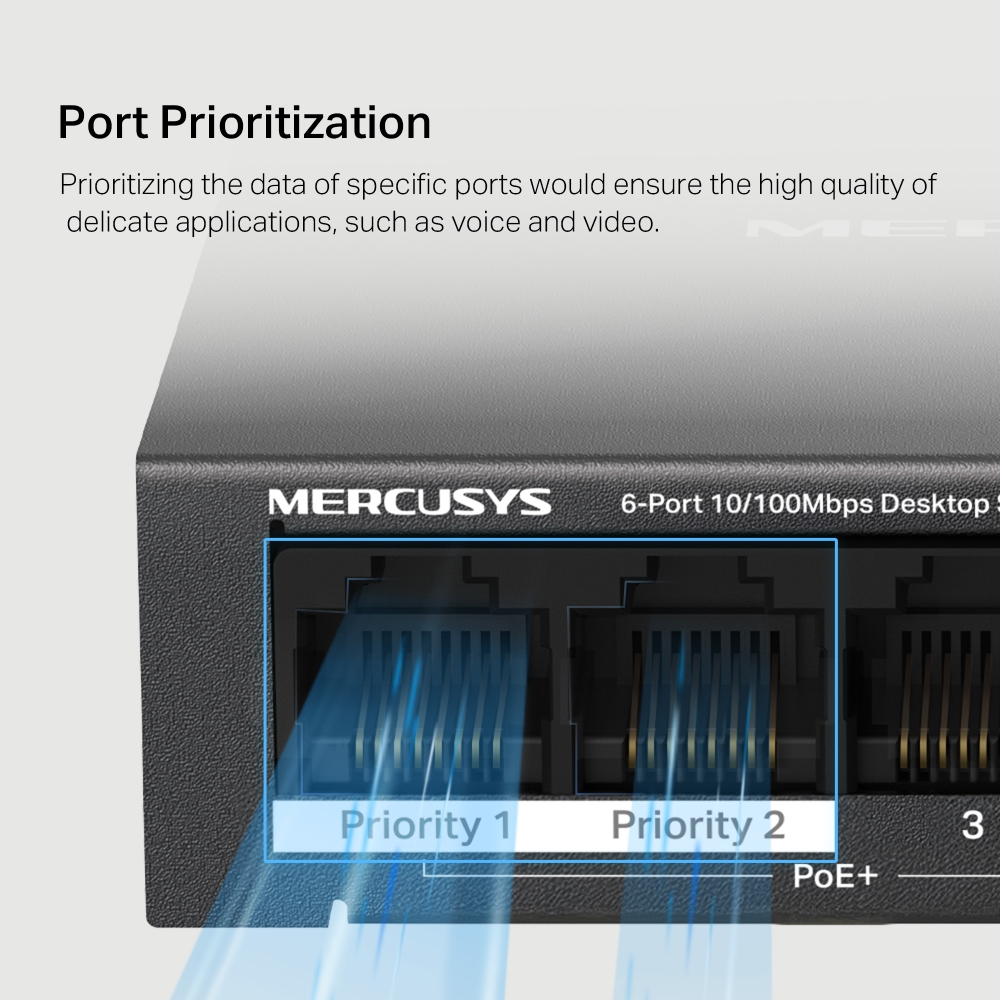

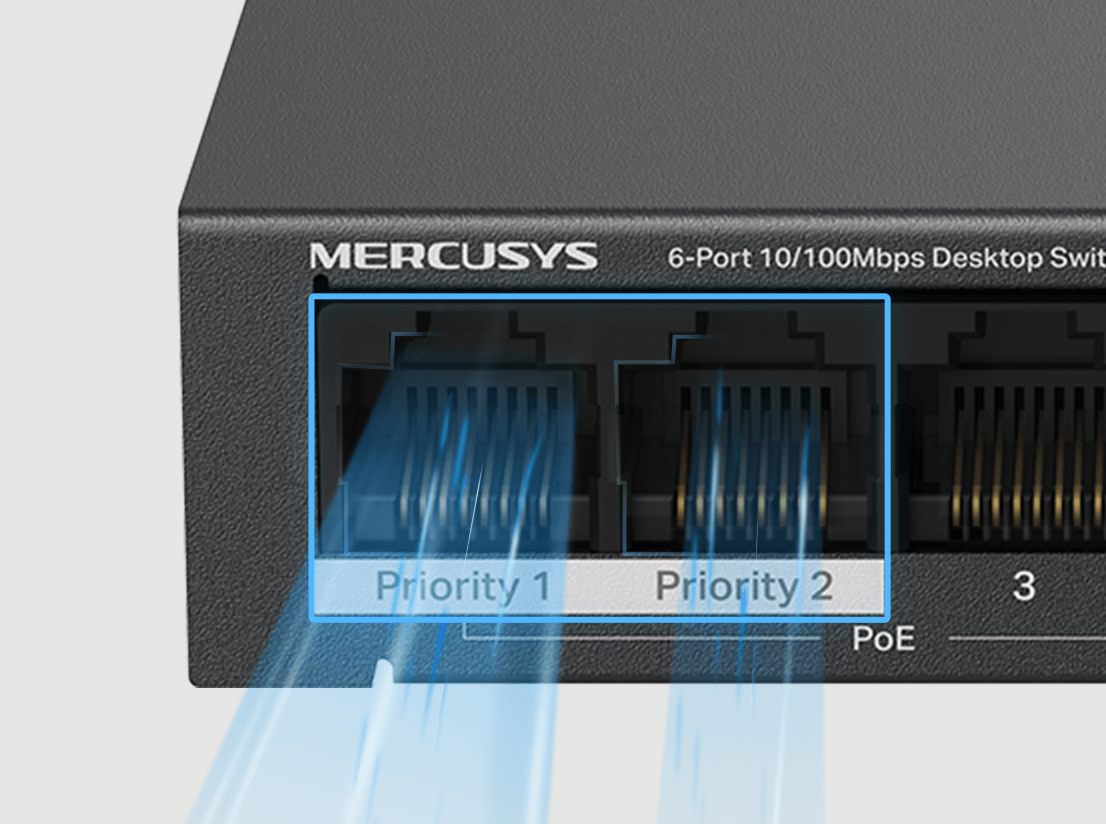

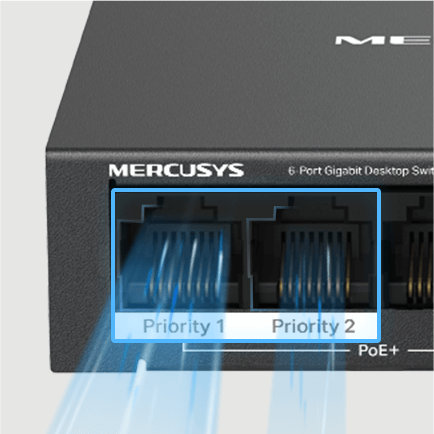

  • Port Prioritization

    Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video.

  • IP Camera

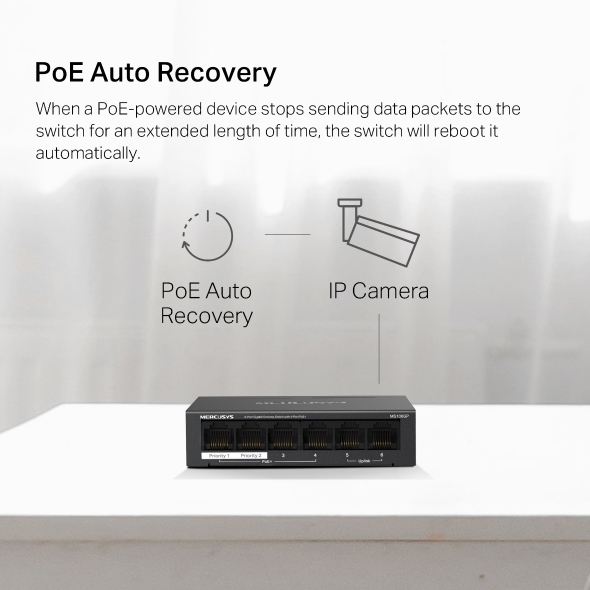

    PoE Auto Recovery

    PoE Auto Recovery

    When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

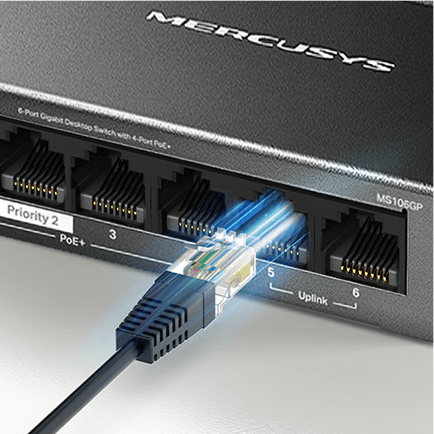

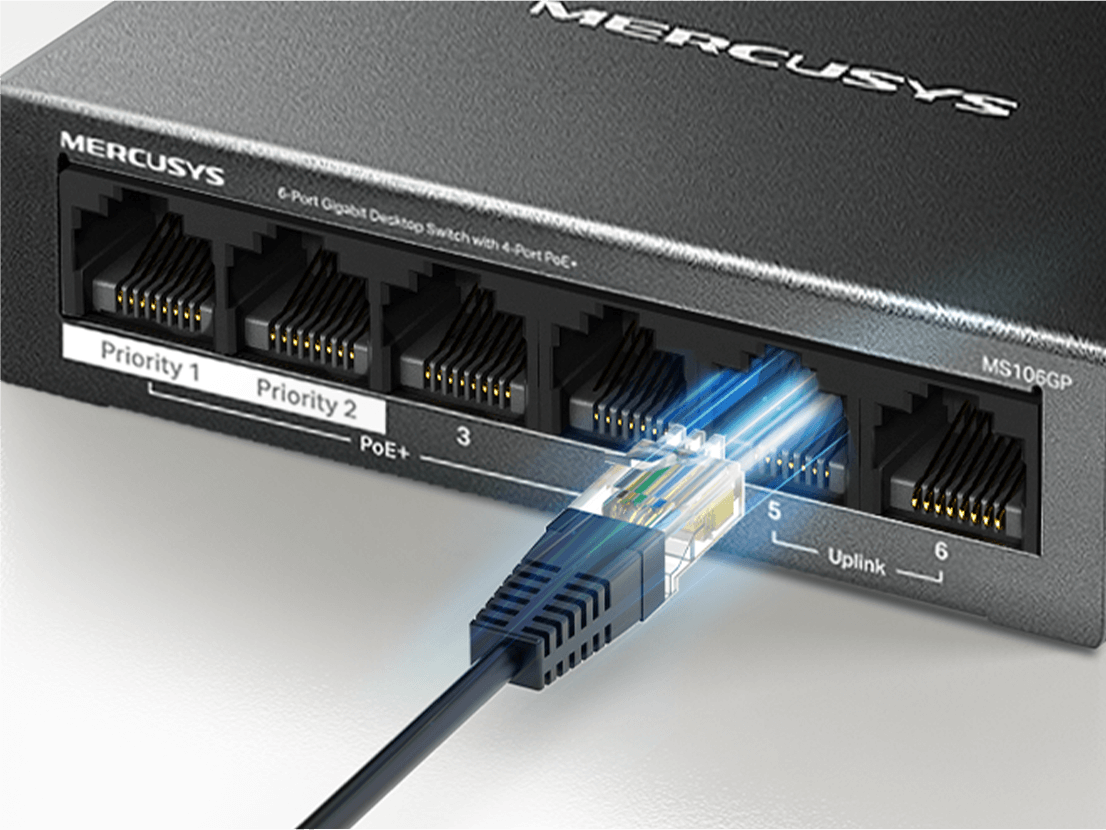

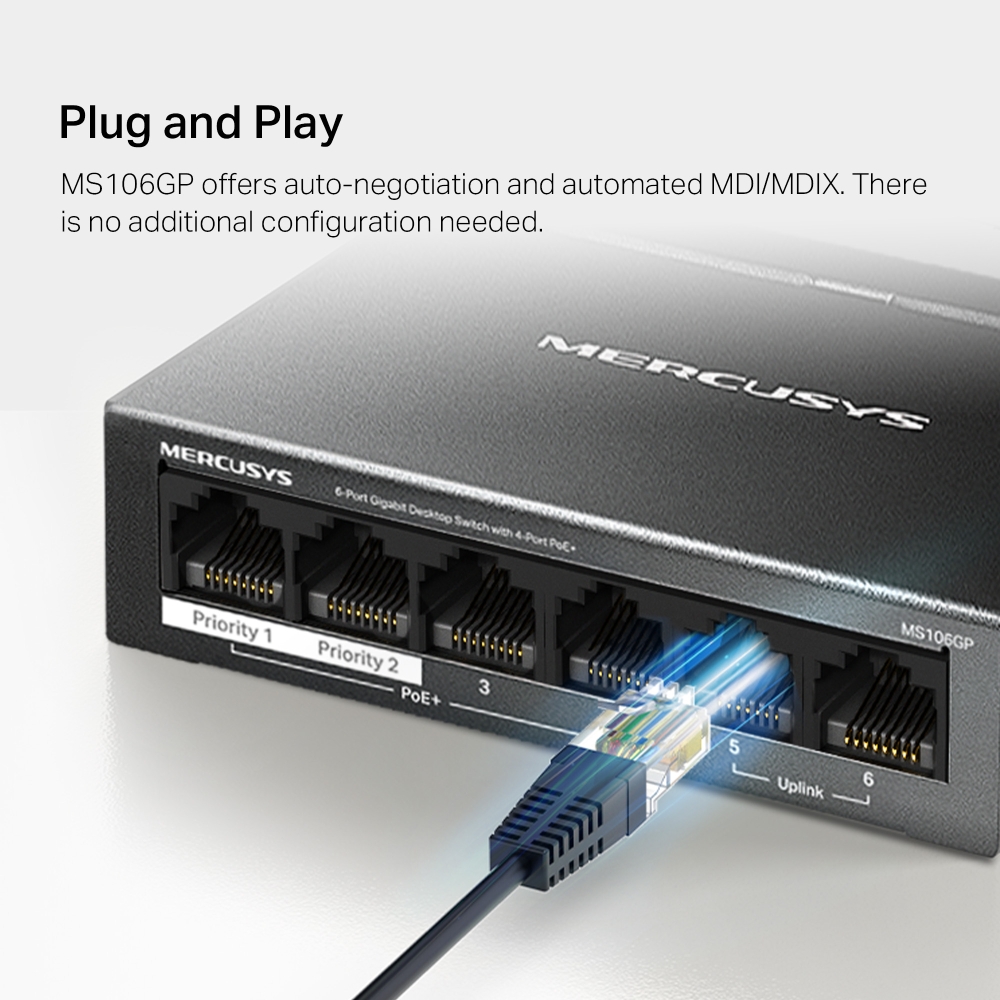

  • Plug and Play

    MS106GP offers auto-negotiation and automated MDI/MDIX. There is no additional configuration needed.

Durable, Silent, and Flexible

  • Durable & Silent

    MS106GP’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated.

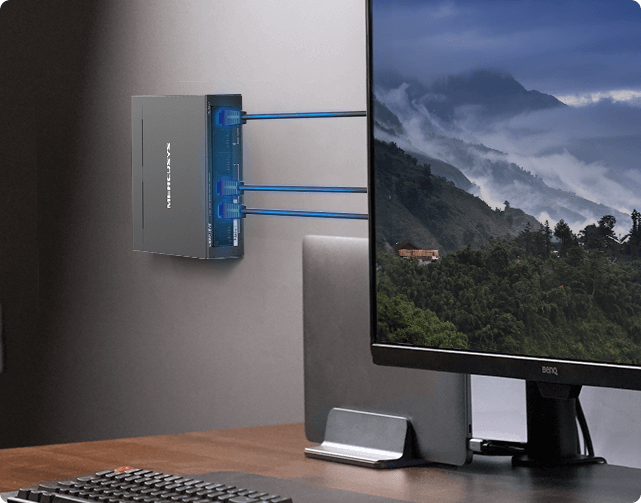

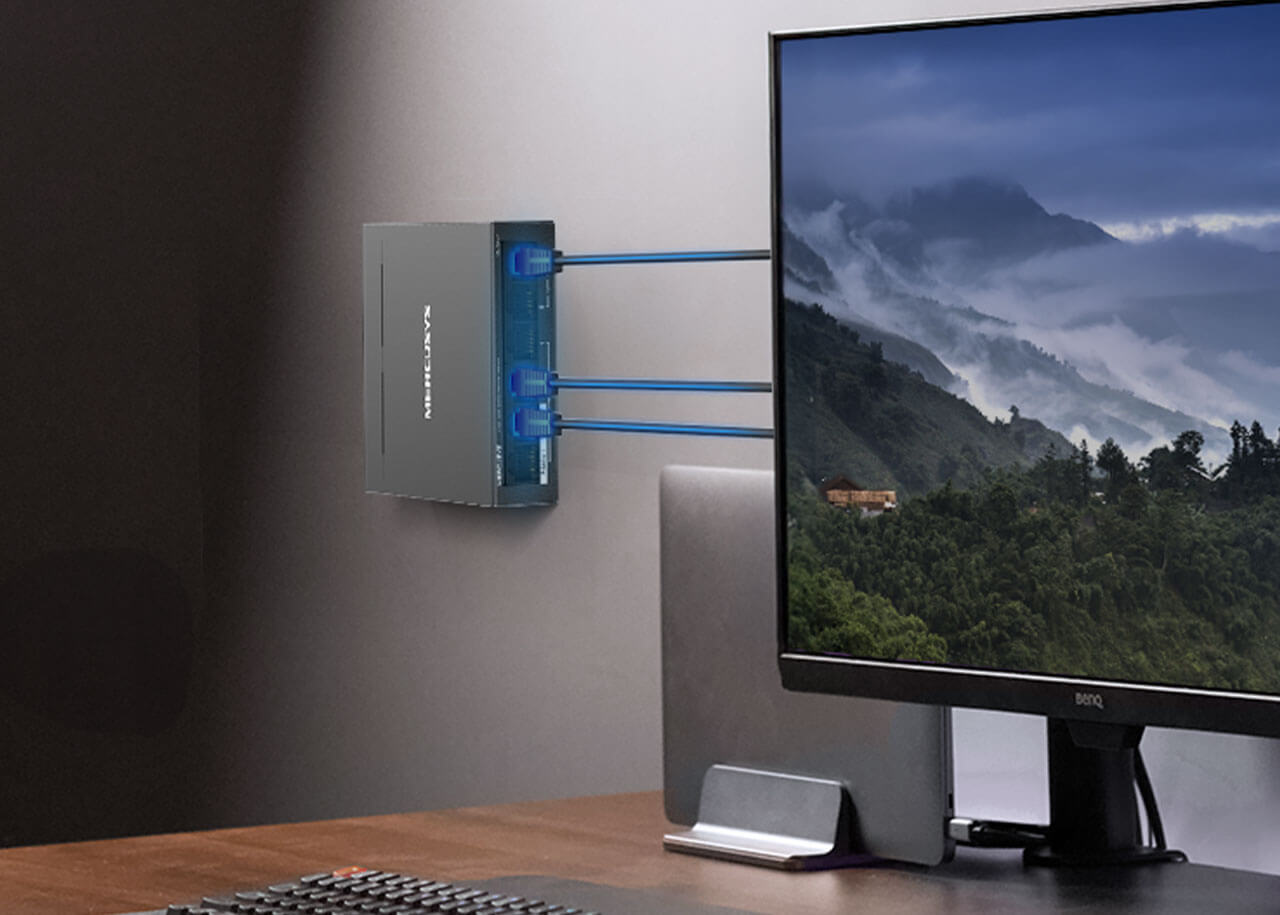

  • Wall Mount & Small

    MS106GP is flexible and small, you can put it on desk or wall mount to meet your demand.

Better for Multiple Scenarios

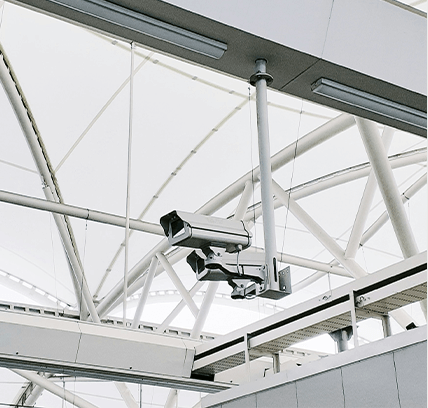

  • Surveillance

    For IP Cameras

  • Small Office

    For computers and printers

  • Small Business

    For APs in cafés, stores and restaurants

  • Conference Call

    For IP Phones

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Specifications

Hardware
Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x,
IEEE 802.3af, IEEE 802.3at

PoE Ports

PoE Standard: compatible with 802.3af/at PDs
PoE Port 1–4, up to 30 W per port
PoE Power Budget 65 W*

Dimensions

3.9 × 3.9 × 1.0 in (99.8 × 98 × 25mm)

Interfaces

6× 10/100/1000 Mbps PoE+ RJ45 Ports

Transmission Medium

10BASE-T: 2-pair UTP/STP of Cat. 3 or above (≤100 m)
100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (≤100 m)

Fan Quantity

0

Switching Capacity

12 Gbps

LED

Power, Link/Act, PoE Status

MAC Address Table

2K, Auto-learning, Auto-aging

Max Power Consumption

69.64 W (110V/60 Hz @ 25 °C, with 65 W PD connected)

Max Heat Dissipation

237.47 BTU/hr (110V/60 Hz @ 25 °C, with 65 W PD connected)
237.13 BTU/hr (220V/50 Hz @ 25 °C, with 65 W PD connected)

Others
Certifications

CE, RoHS

Environment

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
