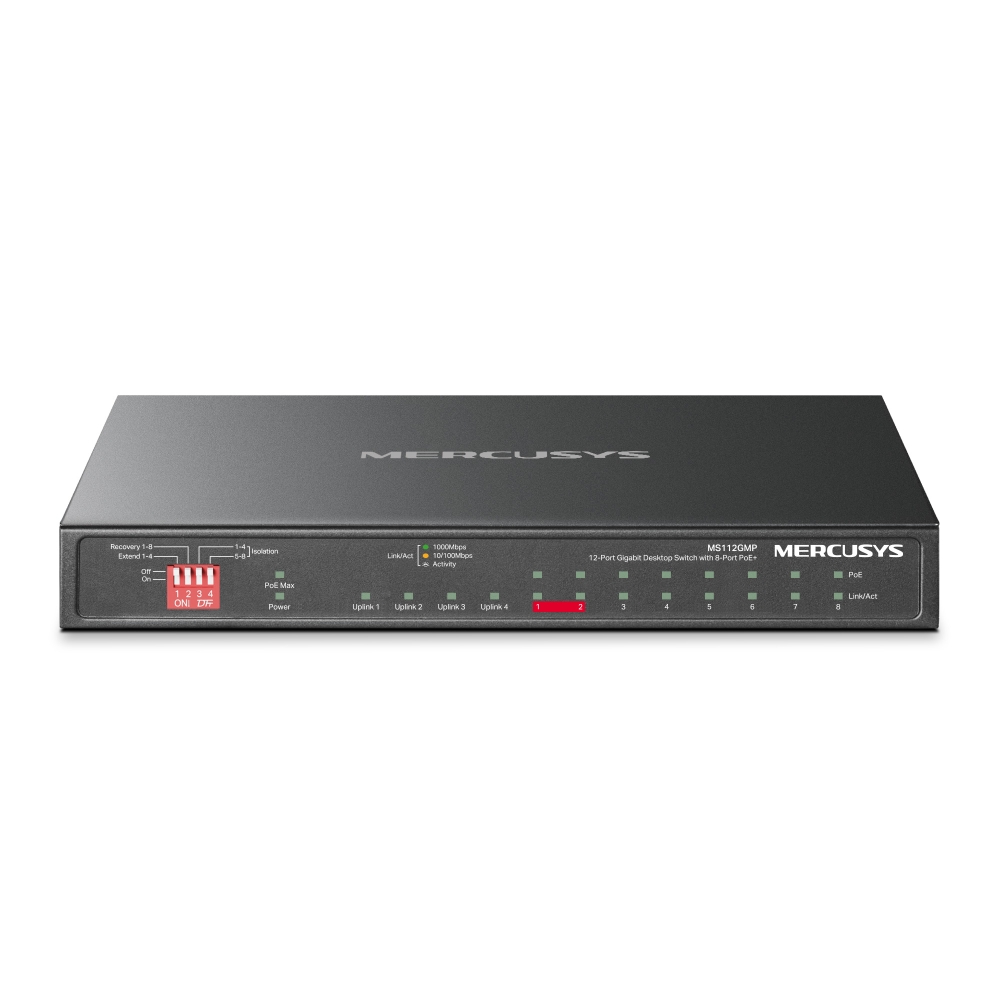

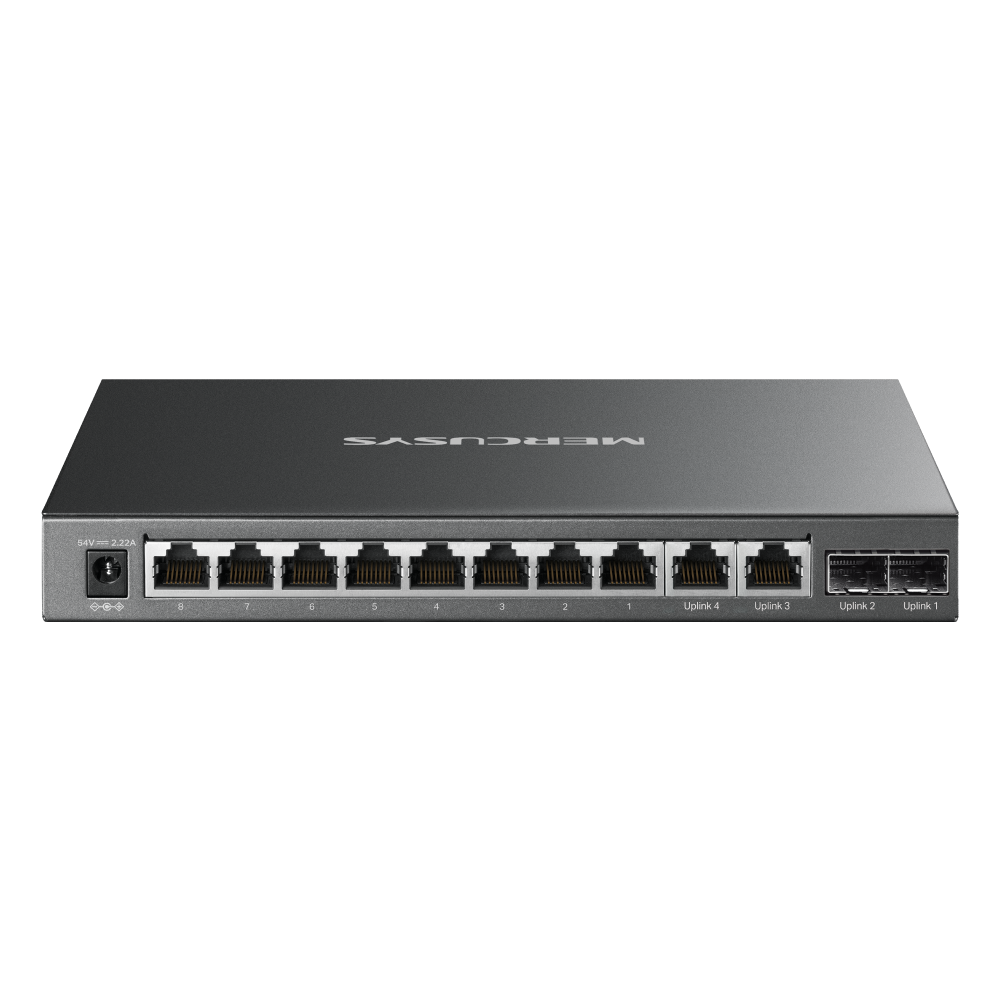

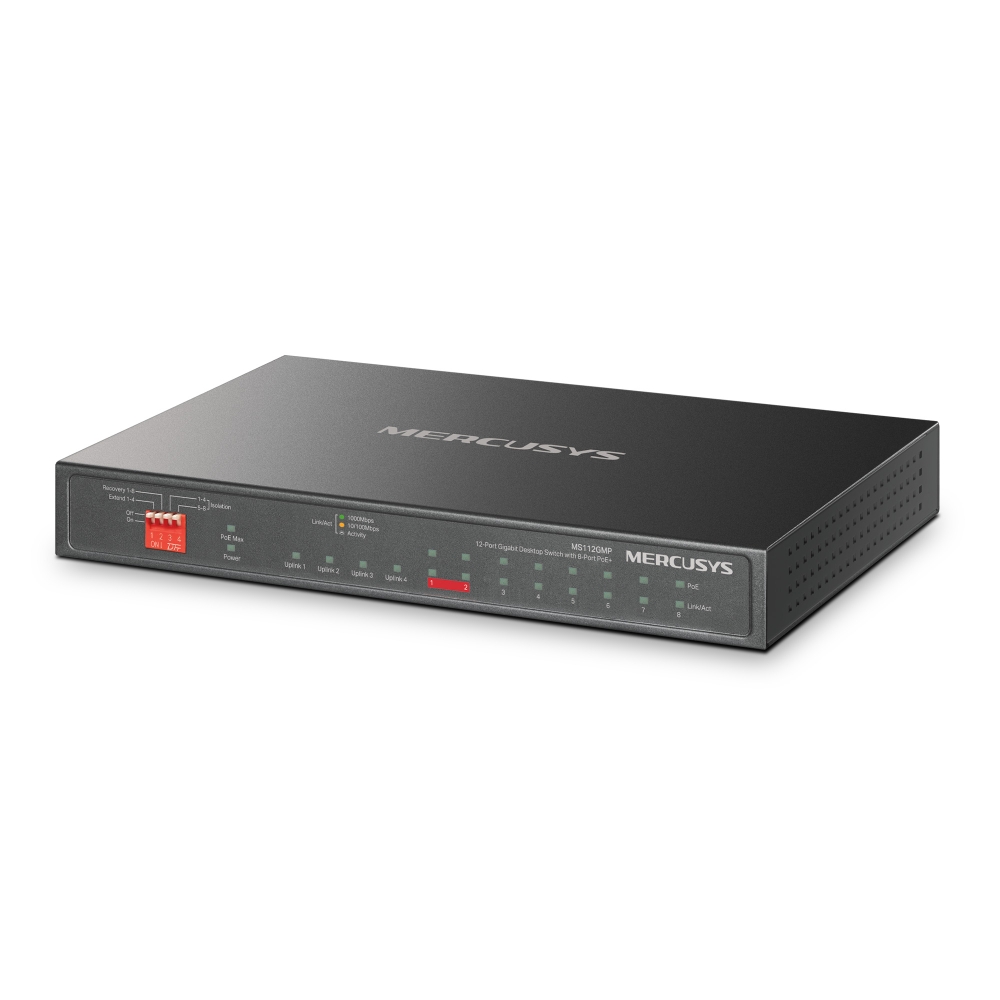

MS112GMP [V1] | 12-Port Gigabit Desktop Switch with 8-Port PoE+

MS112GMP

12-Port Gigabit Desktop Switch with 8-Port PoE+

  • 8× Gigabit PoE+ ports, and 4× Gigabit Uplink Ports
  • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 110 W*
  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
  • Up to 250 m data and power transmission range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
  • Plug and play with no configuration required
  • Fanless design reduces power consumption and works silently in its location

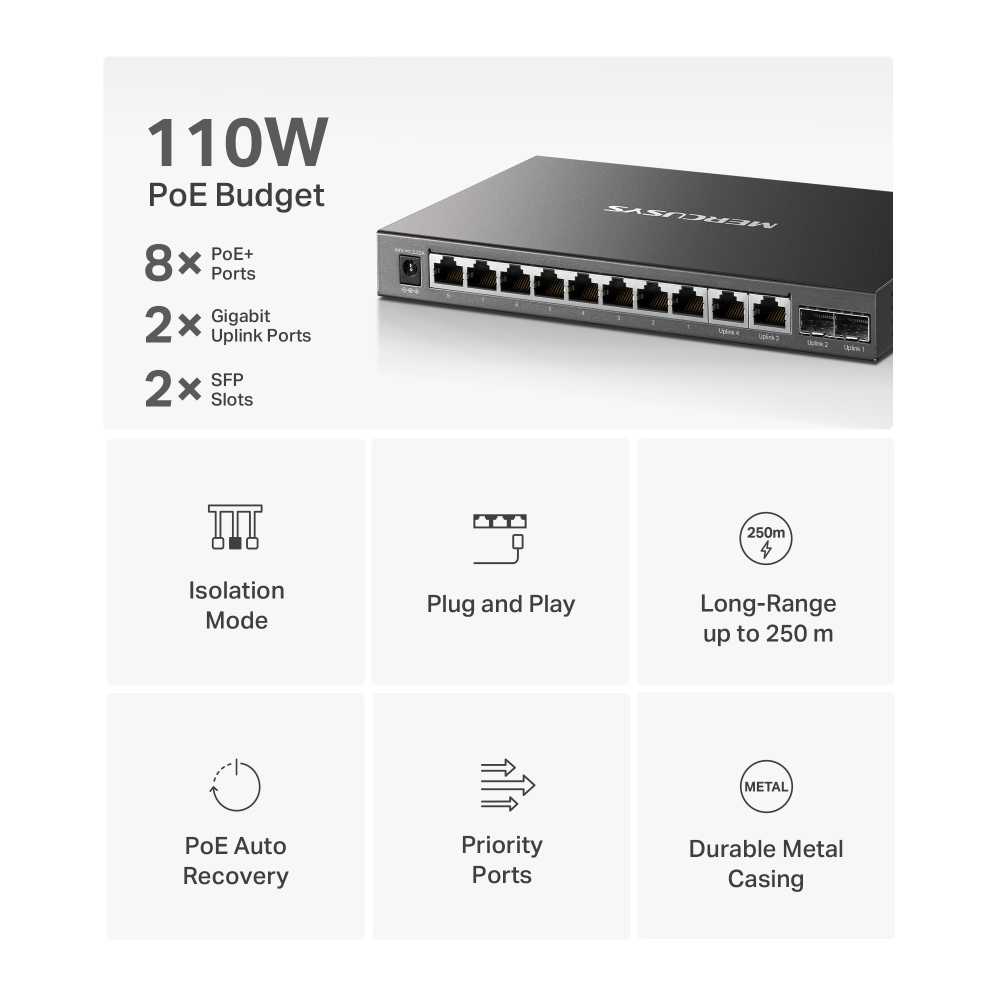

Overview

12-Port Gigabit Desktop
Switch with 8-Port PoE+

MS112GMP
110W
PoE Budget
8×
PoE+ Ports
2×
Gigabit Uplink Ports
2×
SFP Slots
PoE Auto
Recovery
Long-Range
up to 250 m
Isolation
Mode
Priority
Ports
Durable Metal
Casing
Plug and
Play

8 PoE+ Ports for Network Deployment

Each of the 8 PoE+ ports supports a maximum power supply of 30 W. The total 110 W PoE power budget* can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS112GMP is compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

30W
Max on
Each Port
110W
Total Power
Budget
Power and Data
Data Only
IP Camera
IP Phone
Access Point
Network Video Recorder
Router
Internet

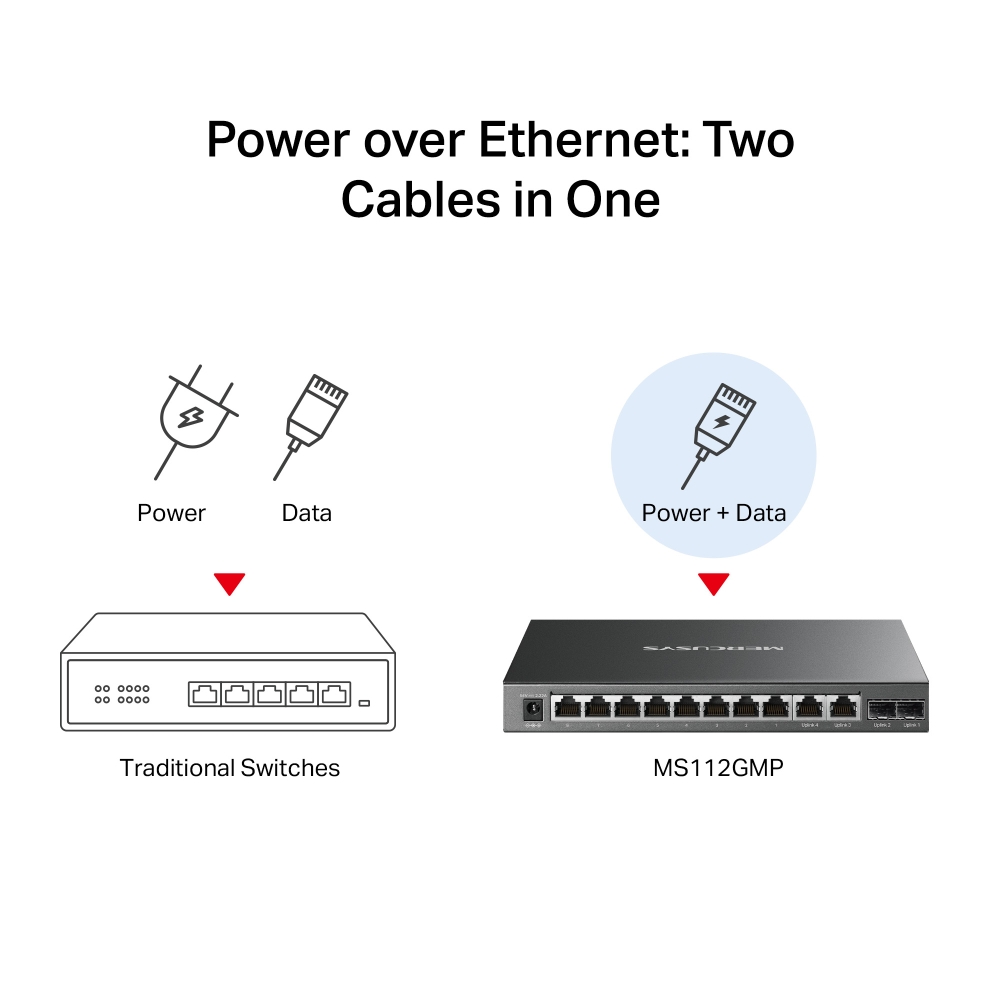

Power over Ethernet: Two Cables in One

  • Traditional Switches
    Power
    Data
  • MS112GMP
    Power + Data

PoE ports offer several advantages: They simplify installation without needing electricians, reduce costs by eliminating extra cables and adapters, provide greater flexibility for deployment in various situations, and improve power usage efficiency and protect devices from power surges.

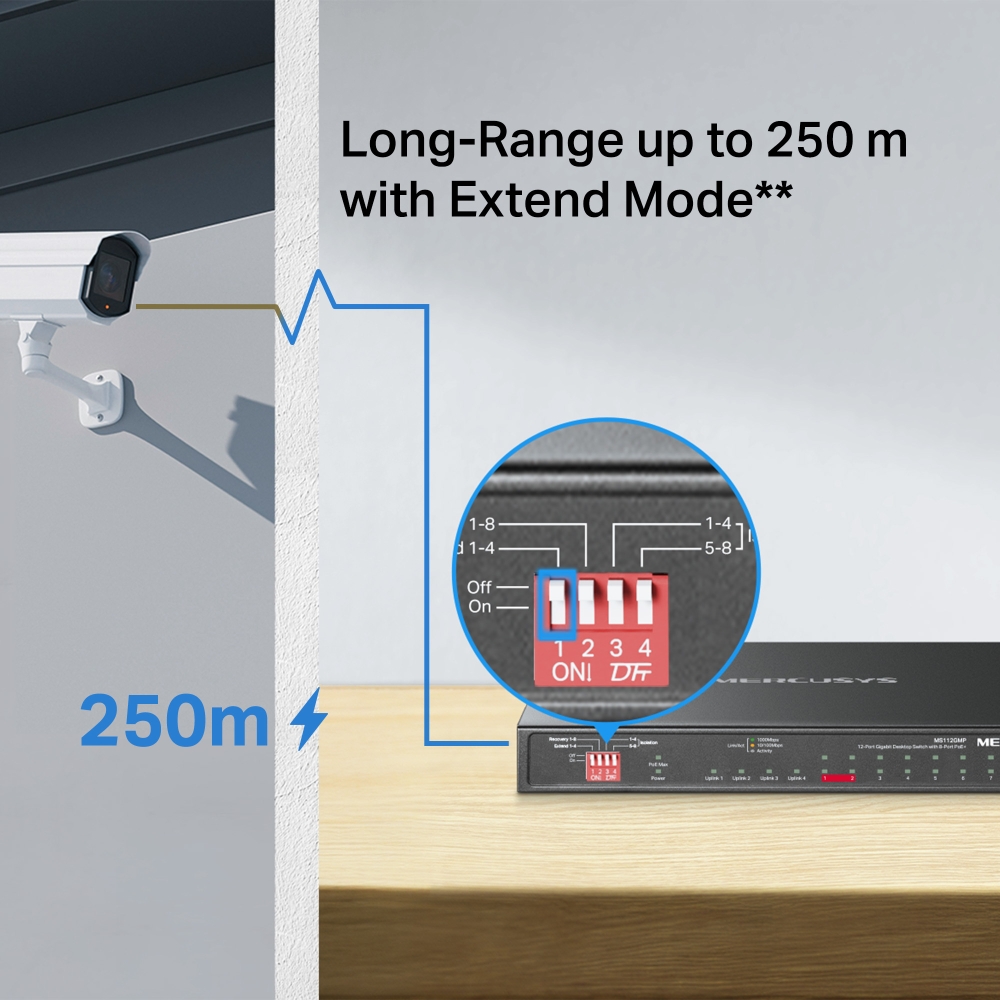

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS112GMP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

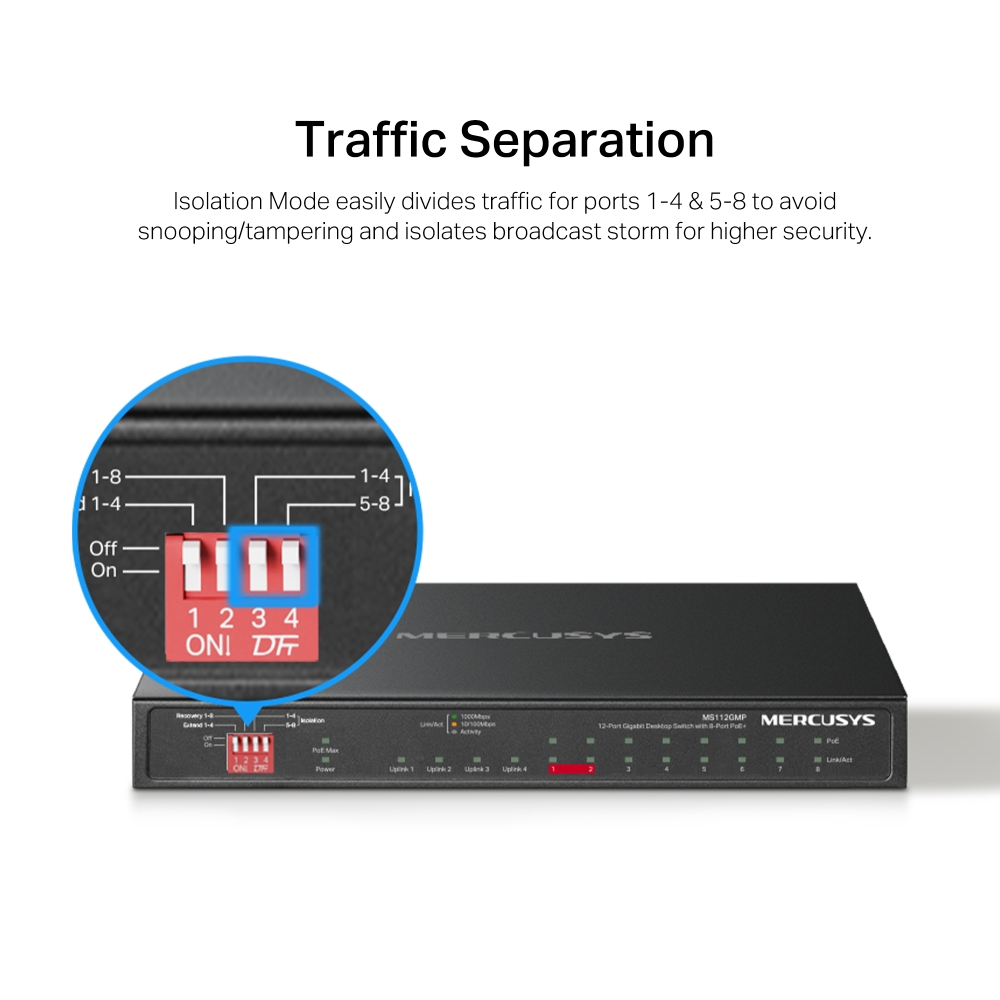

  • Traffic Separation

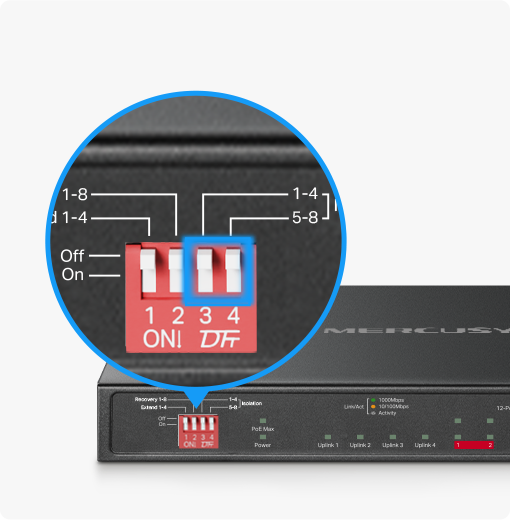

    Isolation Mode easily divides traffic for ports 1-4 & 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

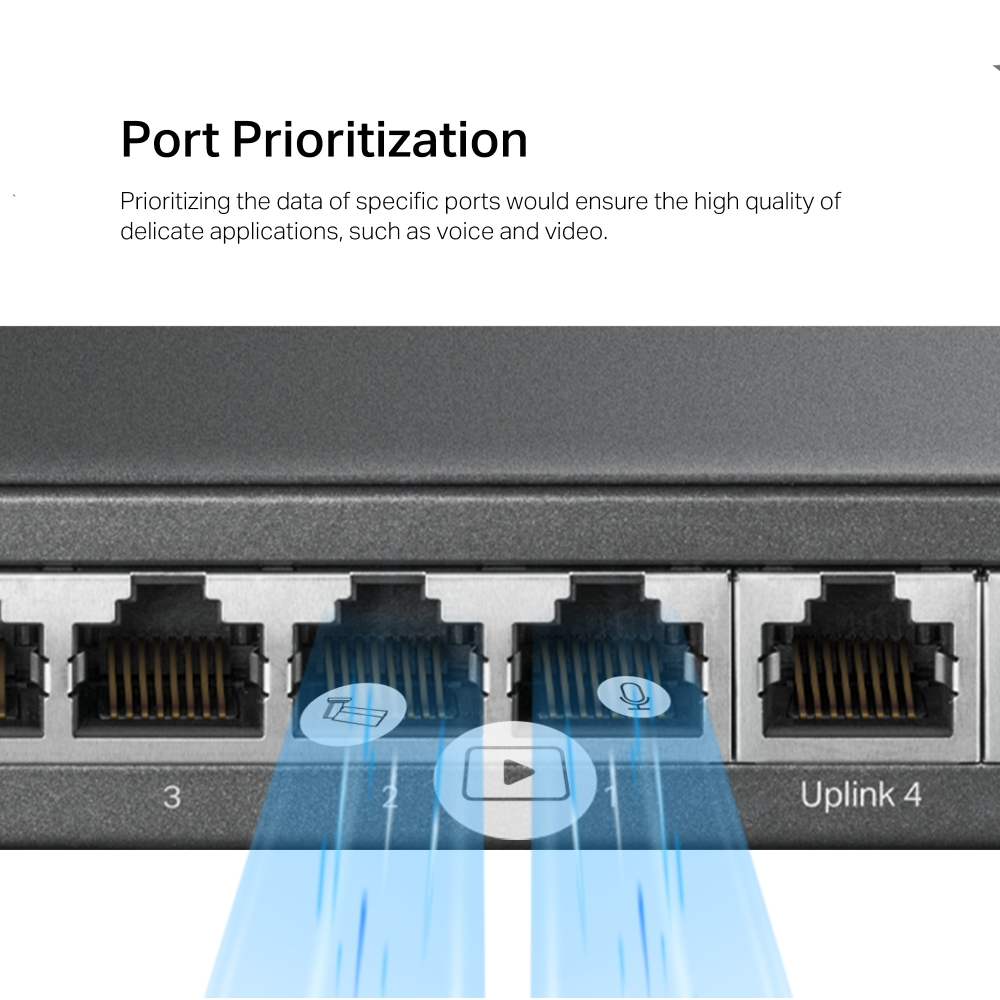

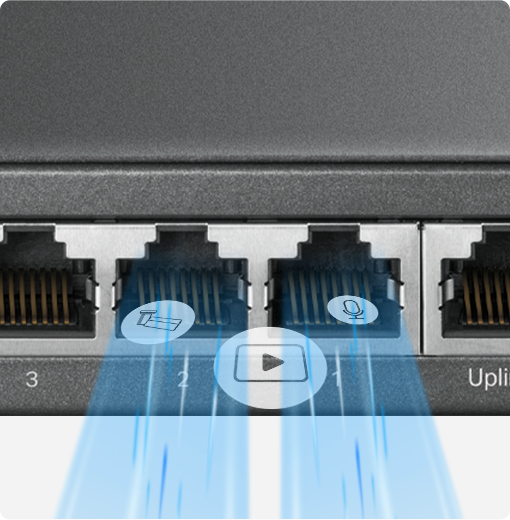

  • Port Prioritization

    Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

  • PoE Auto Recovery
    IP Camera

    PoE Auto Recovery

    The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

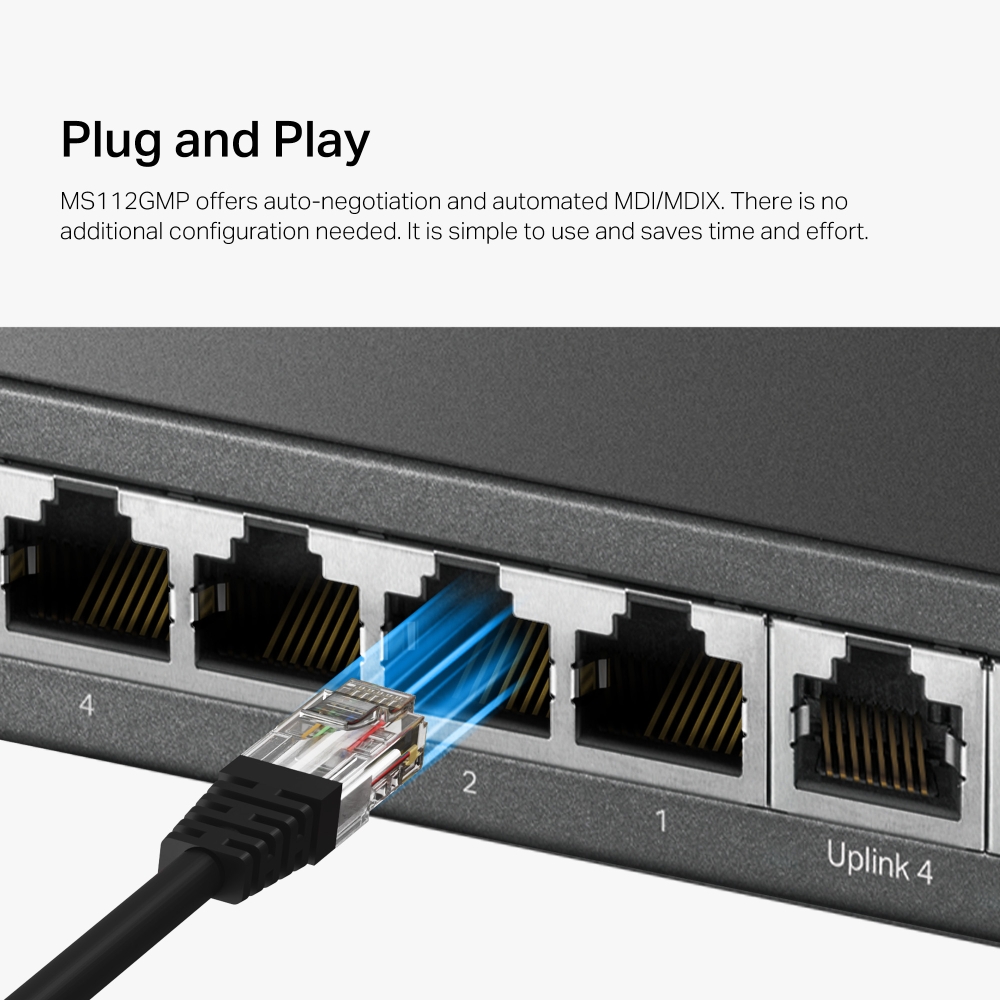

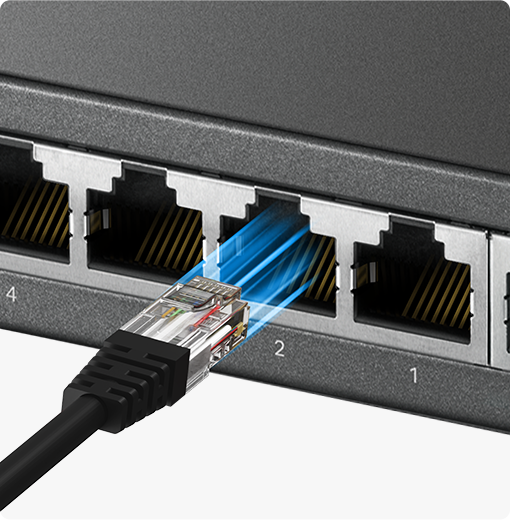

  • Plug and Play

    MS112GMP offers auto-negotiation and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

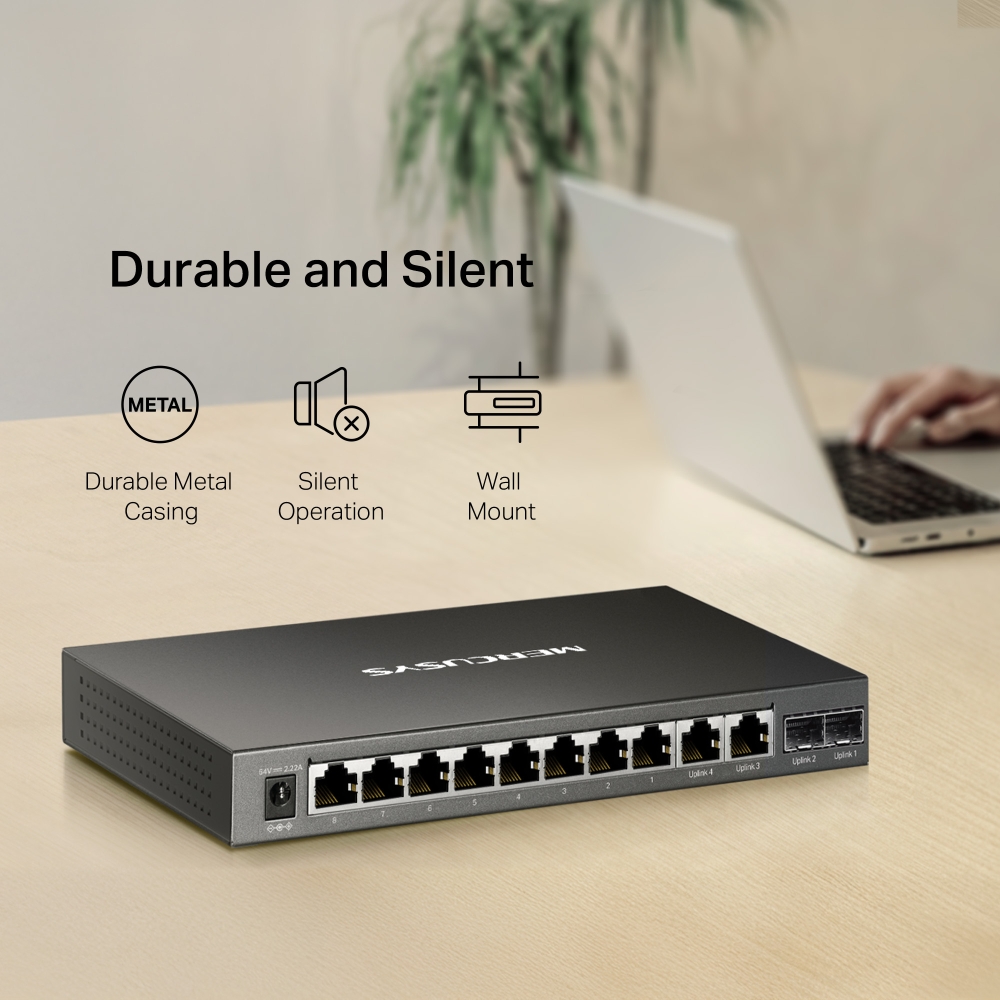

Durable and Silent

MS112GMP’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated. And you can put the switch on desk or wall mount to meet your demand.

  • Durable Metal
    Casing

  • Silent
    Operation

  • Wall
    Mount



*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Specifications

Hardware
Dimensions

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PoE Ports

RJ45 Ports
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 110 W

Interfaces

• 8× 10/100/1000 Mbps PoE+  Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable
(maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

External Power Supply

External Power Adapter (Output: 54VDC / 2.22A)

Fan Quantity

Fanless

Physical Security Lock

Yes

Jumbo Frame

15 KB

Switching Capacity

24 Gbps

MAC Address Table

8K

Max Power Consumption

• 10.37W（220/50HZ no PD connected）
• 124.32 W (220V / 50Hz with 110 W PD connected)

Max Heat Dissipation

• 423.11 BTU/hr (110V/60 Hz @ 25 °C, with 110 W PD connected)
• 423.93 BTU/hr (220V/50 Hz @ 25 °C, with 110 W PD connected)

Software
Transfer Method

Store-And-Forward

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• MAC Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Performance
Packet Forwarding Rate

17.856 Mpps

Others
Certifications

CE, RoHS

Package Contents

• MS112GMP
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: -10℃~40℃ (14℉~104℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
