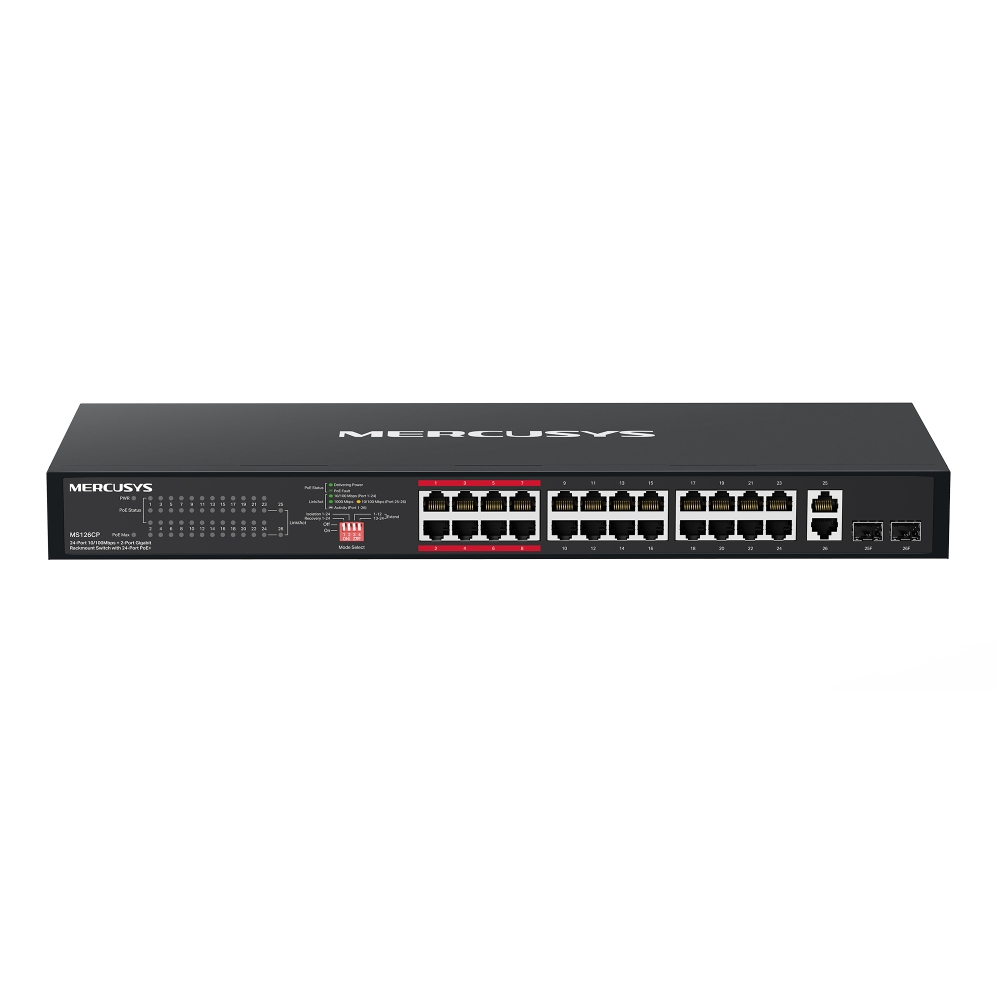

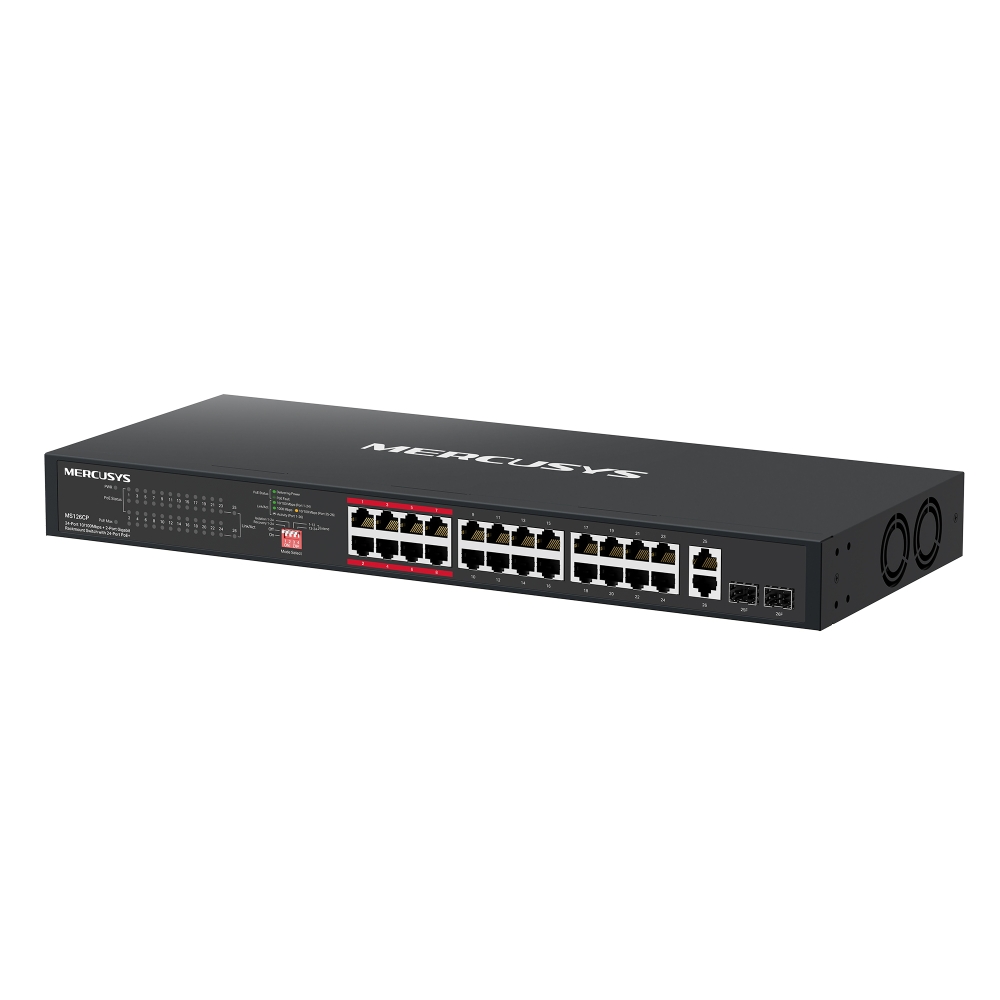

MS126CP [V1] | 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

MS126CP

24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

Full Gigabit Ports: 24× Gigabit PoE+ ports, 2× Gigabit Combo RJ45 ports, and 2× Gigabit Combo SFP Slots
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 295 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
Isolation Mode: One click to divide traffic for specific ports for stability and security
Priority Mode: Guarantees the quality of sensitive applications like video monitor
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Plug and Play: No configuration or central management required

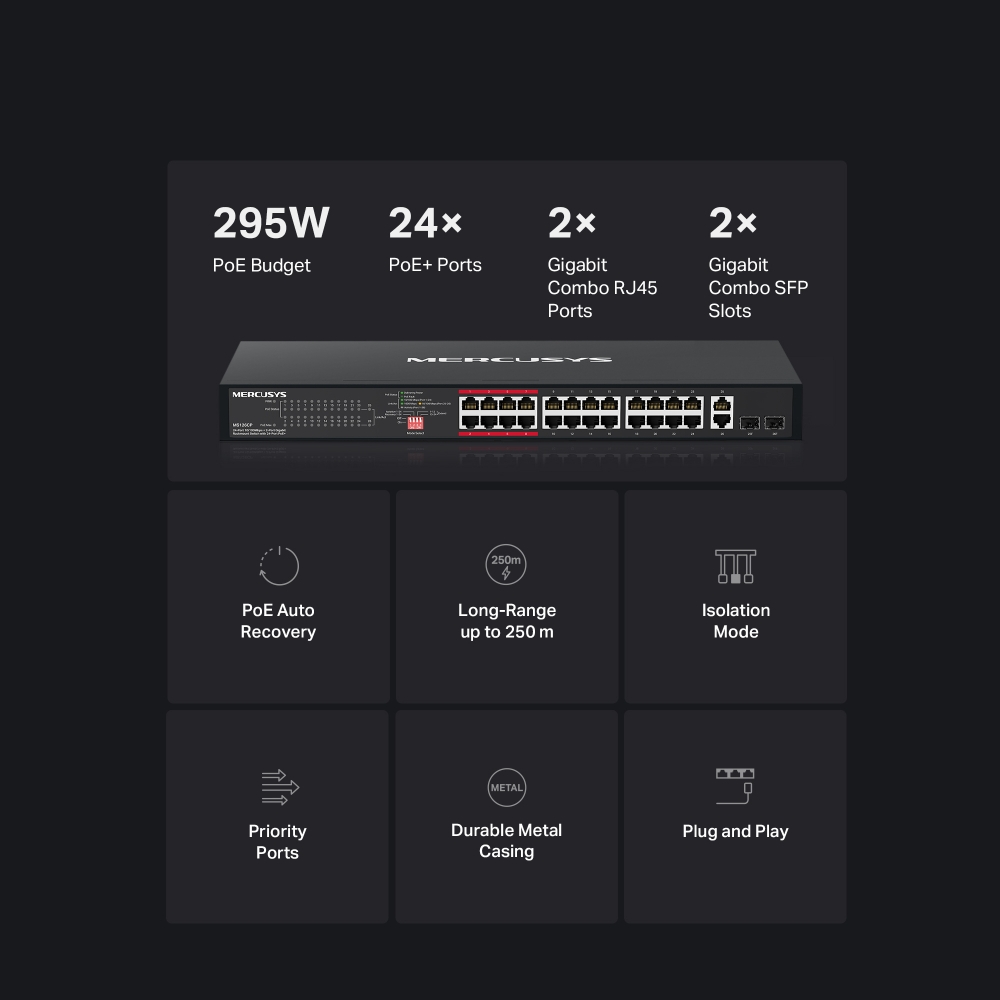

Overview

295W

PoE Budget

24×

PoE+ Ports

2×

Gigabit
Combo RJ45 Ports

2×

Gigabit
Combo SFP Slots

PoE Auto
Recovery

Long-Range
up to 250 m

Isolation
Mode

Priority
Ports

Durable Metal
Casing

Plug and
Play

24 PoE+ Ports (295 W Budget) for Network Deployment

Ports 1-24 support PoE+, and each of them supports a maximum of 30 W. MS126CP provides 2 Gigabit combo ports (2 RJ45/2 SFP) for uplink devices. The total 295 W PoE power budget* for the 24× PoE+ ports can be applied in various scenarios, including surveillance, offices, and small businesses, since MS126CP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, network video recorders, etc.

30W

Max on
Each Port

295W

Total Power
Budget

Power and Data

Data Only

IP Camera

IP Phone

Access Point

Network Video Recorder

Router

Internet

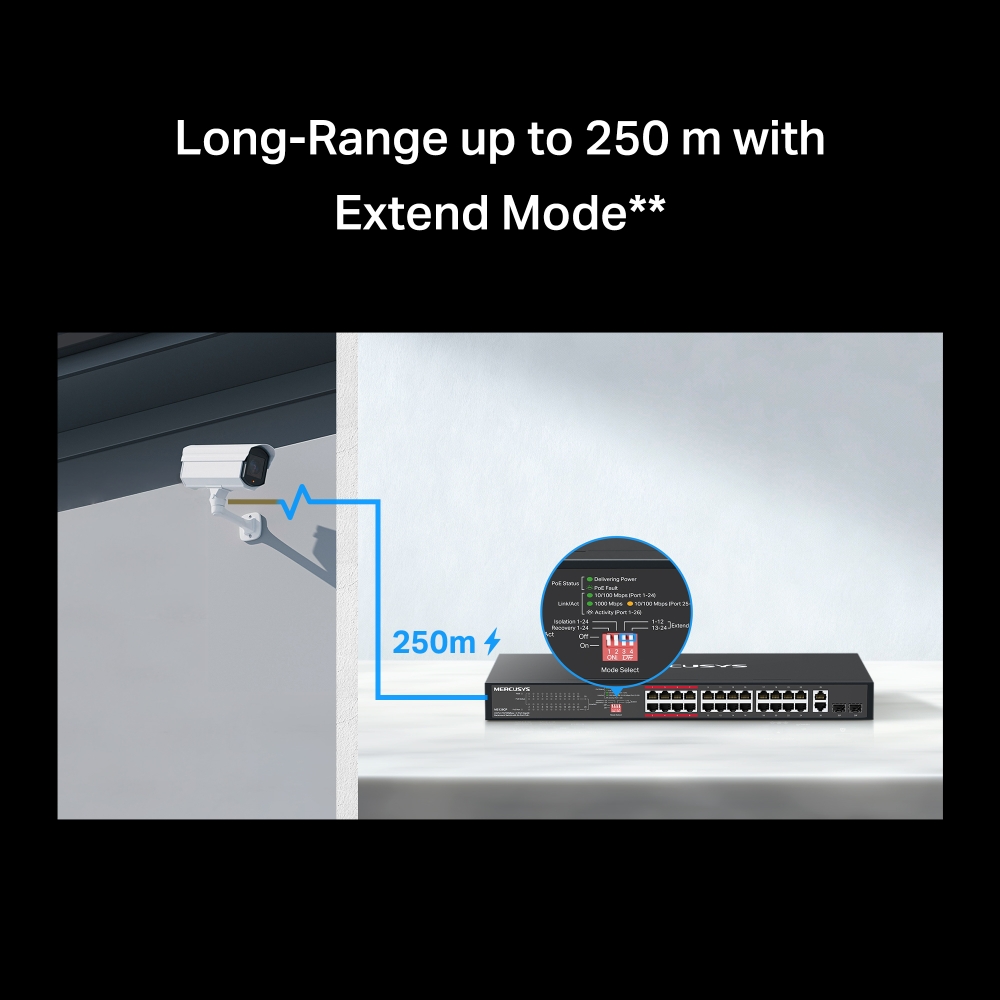

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS126CP has 24 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

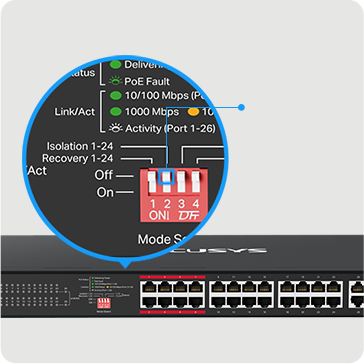

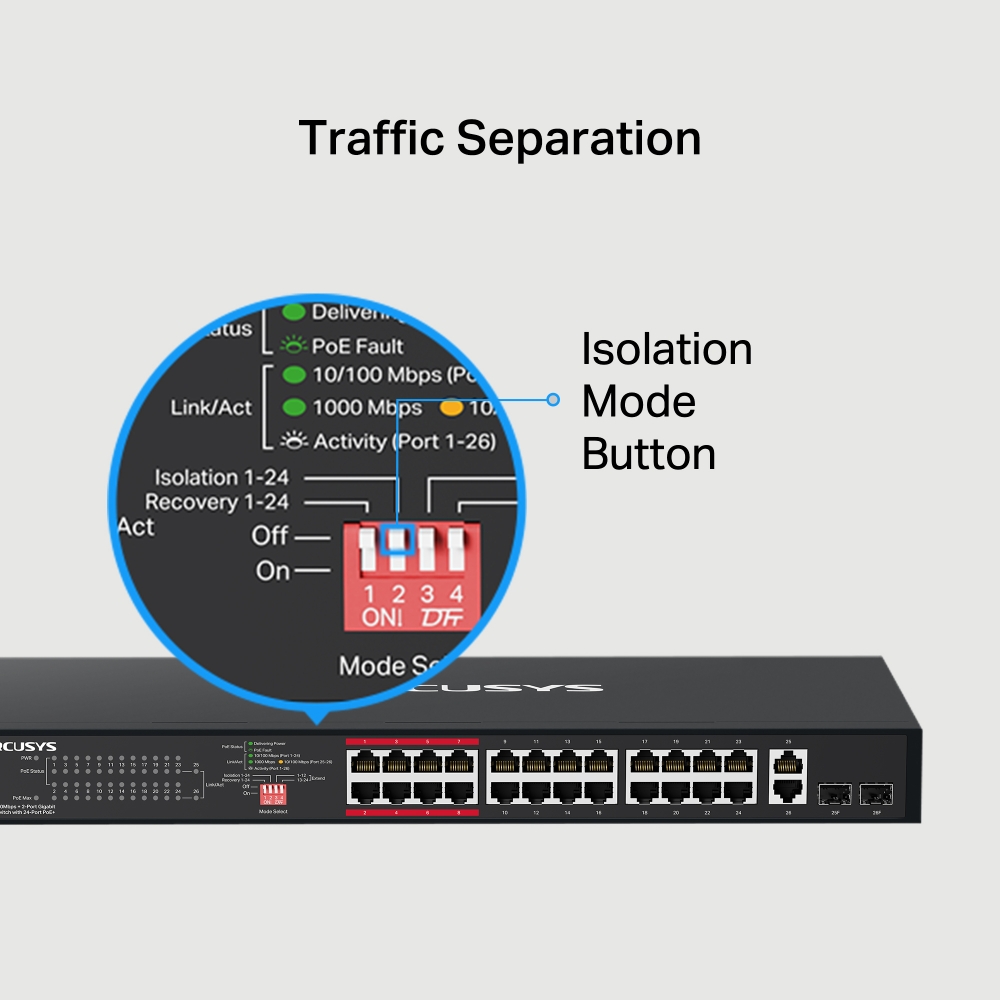

Isolation Mode Button

Traffic Separation

With only one click, isolation mode divides traffic for ports 1-24 to prevent snooping/tampering and isolate broadcast storms for greater protection.

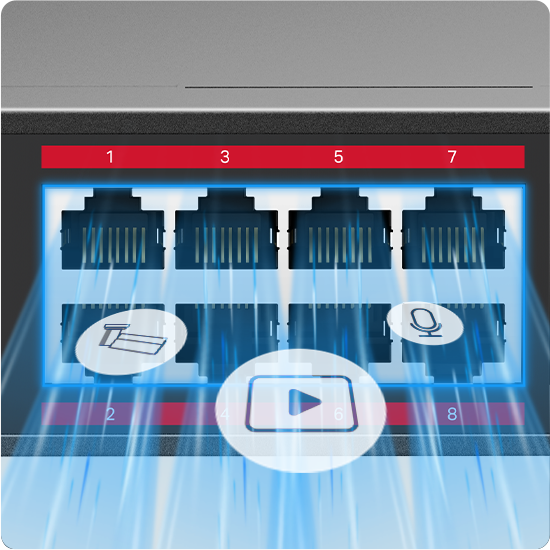

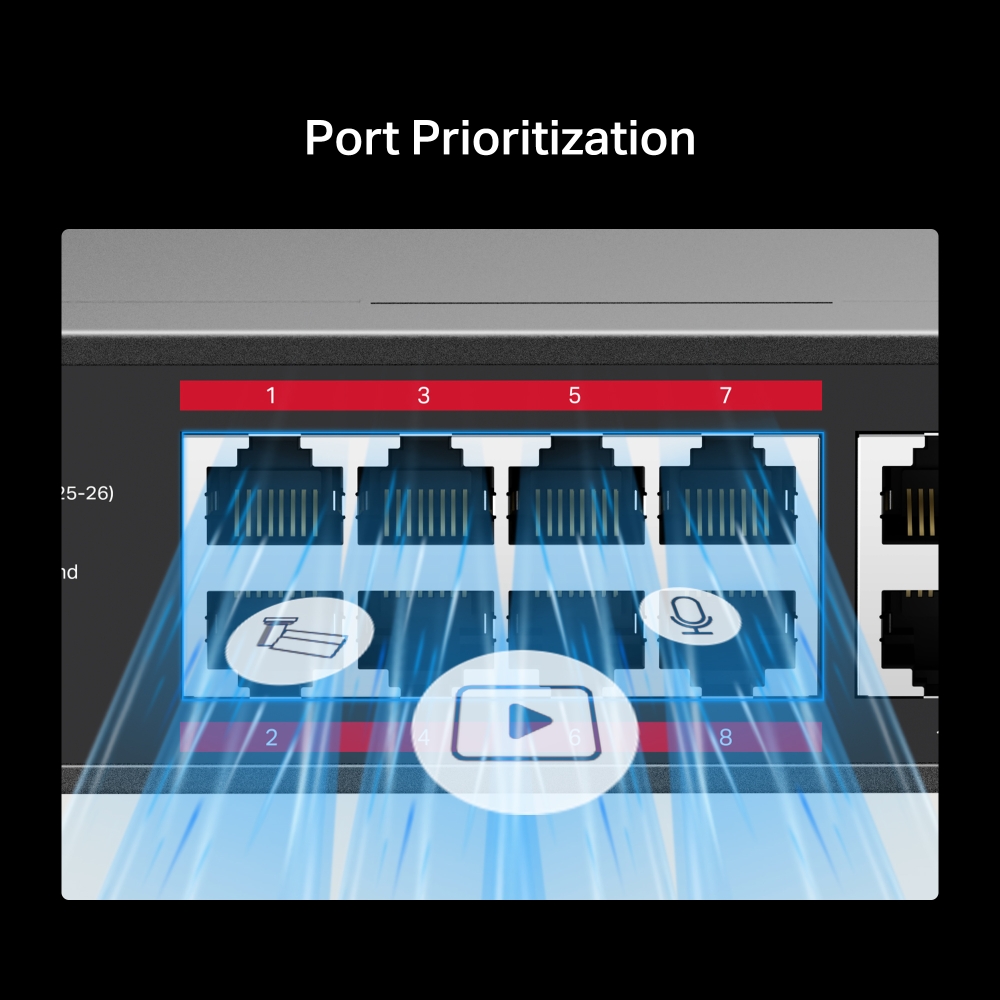

Port Prioritization

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video.

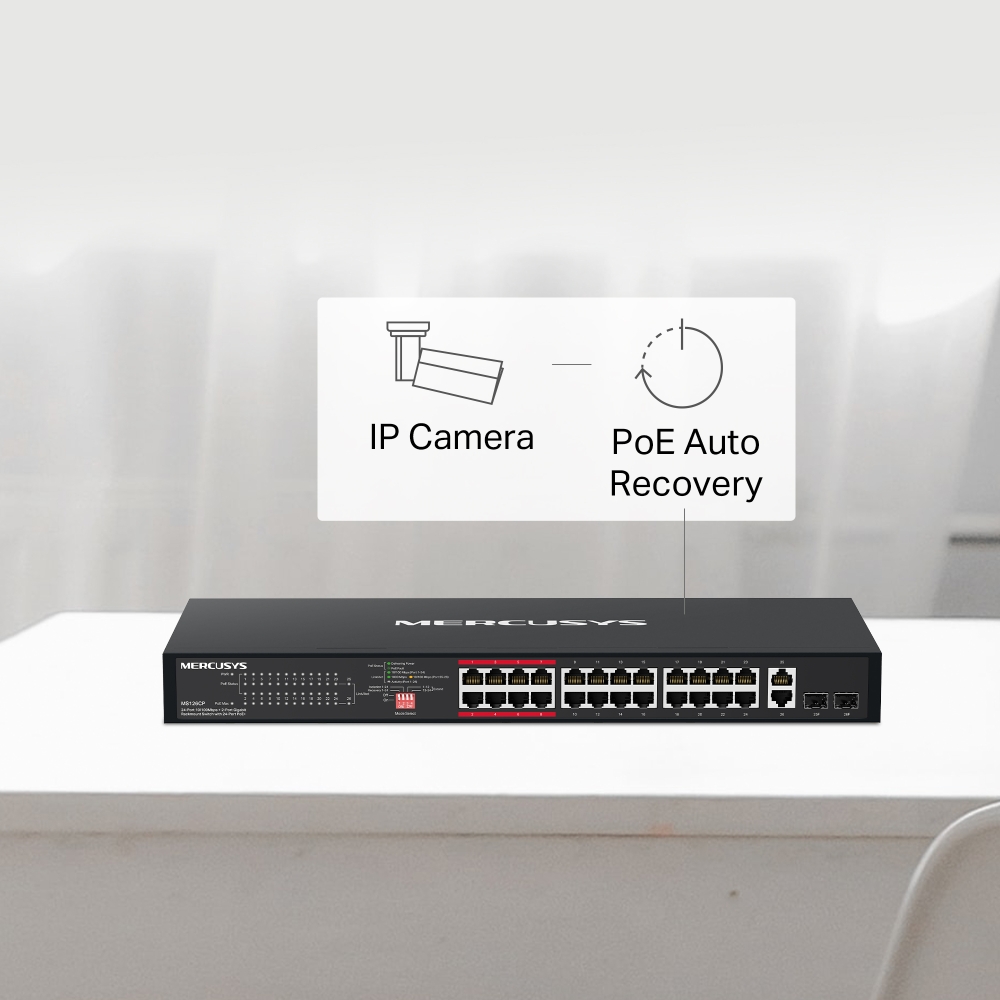

PoE Auto Recovery

IP Camera

PoE Auto Recovery

When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

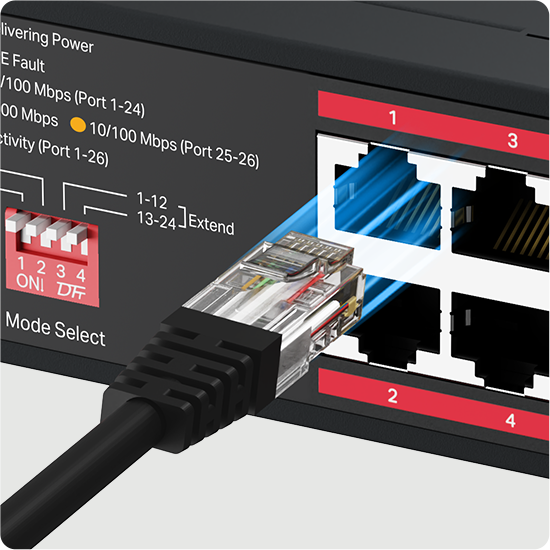

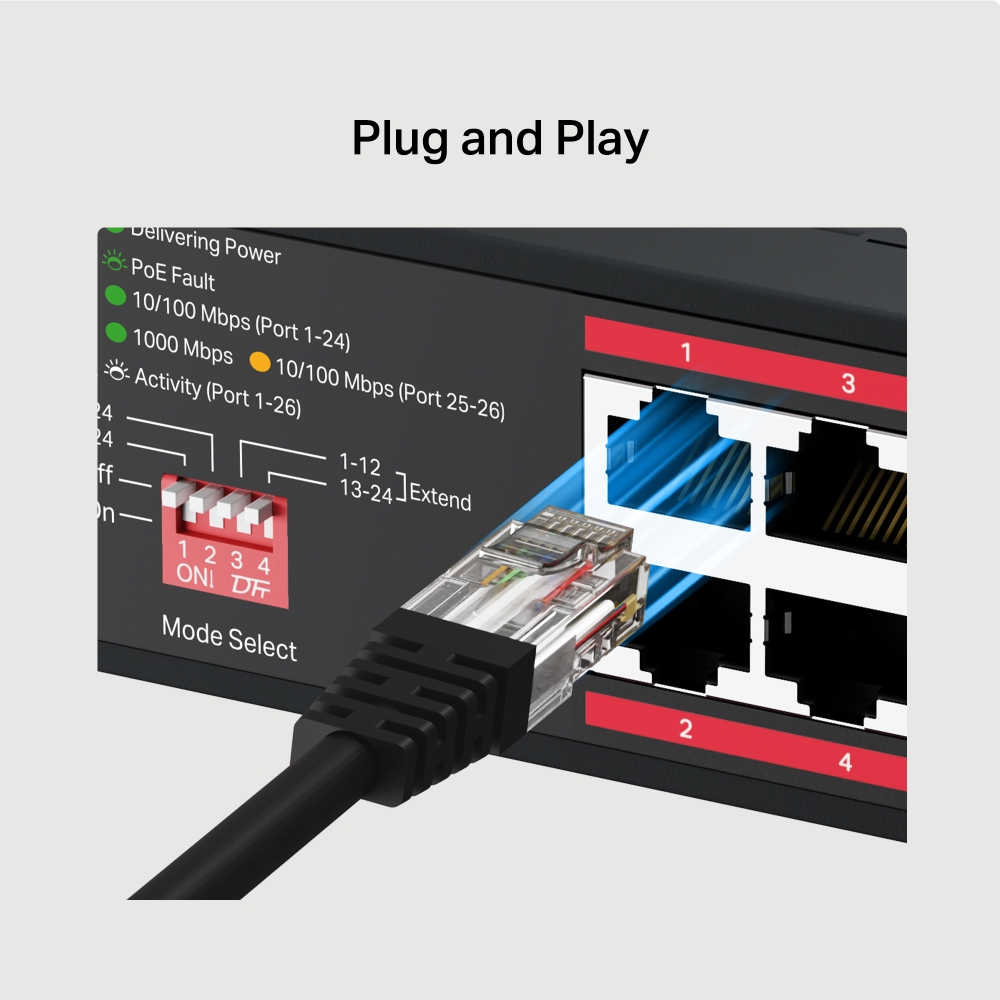

Plug and Play

MS126CP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Surveillance

For IP Cameras
Business Wi-Fi

For Access Points
Office Networking

For Computers and Printers

Durable and Flexible

MS126CP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
