MT235 [V1] | 300 Mbps LTE-Advanced Mobile Wi-Fi

MT235

Coming Soon

300 Mbps LTE-Advanced Mobile Wi-Fi

  • 4G+ Network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
  • Dual-Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
  • More Connections – Share with friends internet access for up to 32 devices simultaneously.
  • Intuitive Screen Display for Easier Use –  All useful info at a glance. Easily stay data budget and avoid going over the monthly data cap.
  • Long usage – 3300 mAh battery for 10 hours.
  • SIM Card Plug and Play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
  • Easy App Control – Management with the MERCUSYS App.

Overview

Go and Connect Anywhere

300 Mbps LTE-Advanced Mobile Wi-Fi

MT235

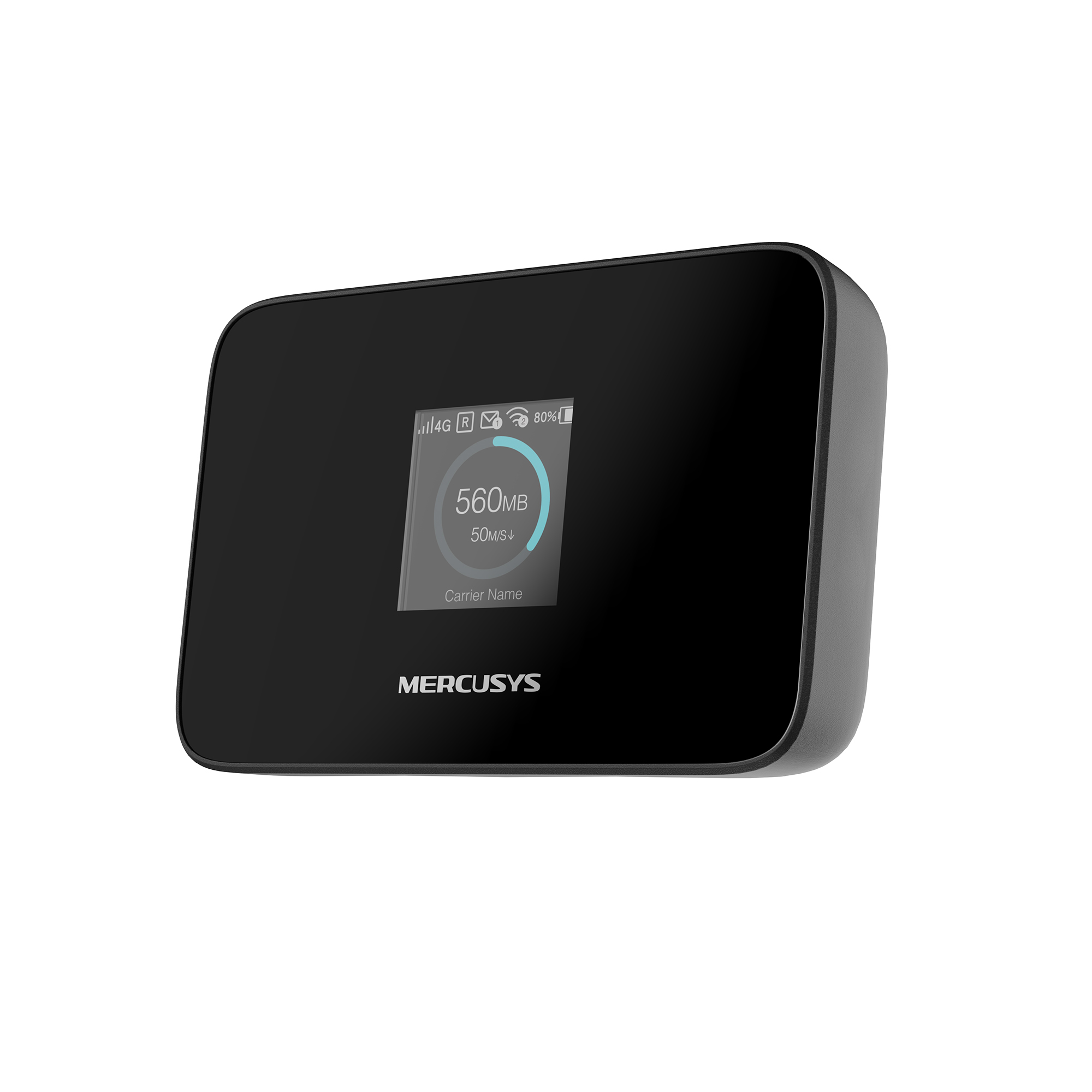

MT235 Product Image

  • LTE-Advanced
    Cat 6

  • Dual-Band WiFi

  • Intuitive Screen Display
    for Easier Use

  • Plug a SIM card
    and play

  • Connections up to 32 Devices

  • Easy App Control

†Maximum 4G download speeds depend on external factors such as the local 4G network coverage, data plan, real-time network capacity, client limitations, and environmental factors.
‡Actual battery time may vary due to different user environments.
§SIM card sold separately. This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the Quick Installation Guide for unlocking instructions.
△Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Specifications

Wireless
Network Type

Support 4G/3G network

FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 ΜHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 ΜHz)

Wireless Standards

IEEE 802.11ac/a/b/g/n

Frequency

5 GHz, 2.4 GHz

Transmission Power

2.4 GHz: <20dBm

5 GHz: ＜23dBm

Wireless Security

Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast

Hardware
Dimensions

111.1 × 71.6 × 24.2 mm

(4.37 × 2.82 × 0.95 mm)

Interfaces

1 USB-C port for power supply
1 Nano SIM card slot

Button

Power Button, Menu Button, Reset Button

External Power Supply

5V/2A

Antenna Type

Internal Antennas

Data Rates

4G LTE Speed: DL: 300 Mbps, UL: 50 Mbps

WiFi Speed: 867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz

Screen Display

1.44 inch TFT

Software
DHCP

Server, Client, DHCP Client List

Others
Network Services Enabled by Default

Web Server

Manage and configure device through web

• Port: 80/443   Protocol: HTTP/HTTPS

DHCP/DHCPv6

IP address assignment

• Port: 67/547   Protocol: UDP

DNS

DNS

• Port: 53   Protocol: UDP

Dropbear

Manage and configure device through app

• Port: 20001   Protocol: SSH

App management

Manage and configure device through app

• Port: 20002   Protocol: TMP

Package Contents

300 Mbps LTE-Advanced Mobile Wi-Fi (MT235)
USB-C Cable
Quick Installation Guide

Environment

Operating Temperature: 0°C~35°C (32°F ~95°F)
Storage Temperature: -40°C~60°C (-40°F ~140°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

System Requirements

Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
