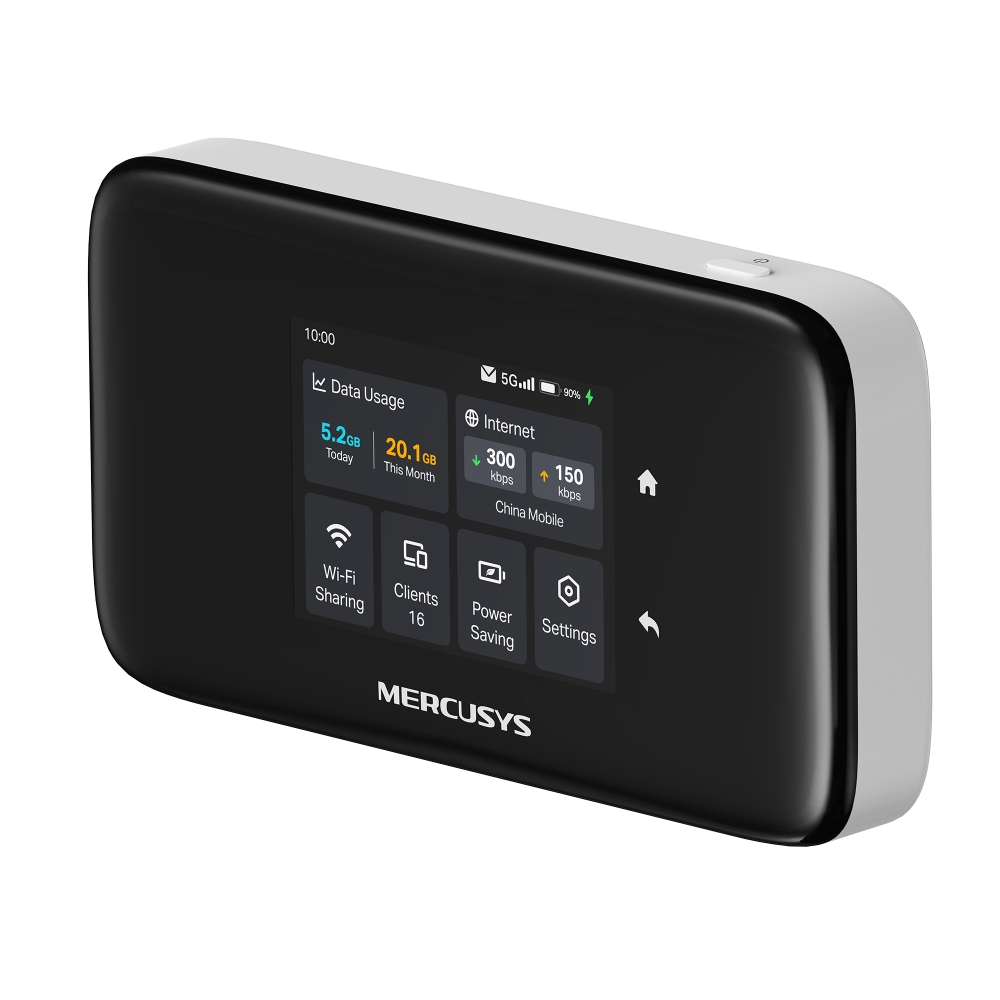

MT520 [V1] | 5G Mobile Wi-Fi
MT520
5G Mobile Wi-Fi
- Boost Your 5G Speed – Take advantage of your advanced 5G network with download speeds up to 3.4 Gbps. Convert your 5G network into WiFi and share it with multiple WiFi devices.
- AXE3600 Tri-Band WiFi 6E – Speeds up to 2880 Mbps on the 5 GHz or 6GHz and 688 Mbps on the 2.4 GHz band.
- More Connections – Share with friends internet access for up to 32 devices simultaneously.
- Touch Screen for Easier Use – All useful info at a glance.
- Long usage – 4680 mAh battery for 10 hours.
- SIM Card Plug and Play – Go anywhere and connect everywhere easily.
- Easy App Control – Management with the MERCUSYS App.
You Are
†Maximum 5G download speeds depend on external factors such as the local 5G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. ‡Actual battery time may vary due to different user environments. §SIM card sold separately. This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the Quick Installation Guide for unlocking instructions. △Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
- Wireless
- Network Type
• 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78
• 4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32/B71
TDD-LTE: B38/B40/B41/B42/B43
• 3G: HSPA+/HSPA/WCDMA: B1/B5/B8- Wireless Standards
IEEE 802.11ax/ac/a/b/g/n
- Frequency
6 GHz, 5 GHz, 2.4 GHz
- Transmission Power
<20dBm
- Wireless Security
Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
- Hardware
- Interfaces
1× USB-C Port for Power Supply
1× Gigabit WAN/LAN Port
1× Nano SIM Card Slot
1× Micro SD Card Slot
2× TS-9 Antenna Ports- Button
Power On/Off
- External Power Supply
4680 mAh Rechargeable Battery
Charge Voltage: 5V-3A, 9V-2A, 12V-1.5A- Antenna Type
Internal Antennas
- Data Rates
5G Speed: DL: 3.4 Gbps, UL: 900 Mbps
4G/LTE Speed: DL: 1.6 Gbps, UL: 200 Mbps
WiFi Speed: 2880 Mbps on 6 GHz or 5 GHz + 300 Mbps on 2.4 GHz
- Software
- DHCP
Server, Client, DHCP Client List
- Others
- Package Contents
5G Mobile Wi-Fi (MT520)
USB-C CablePower Adapter
Quick Installation Guide- System Requirements
Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
