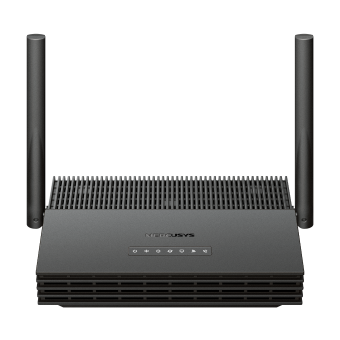

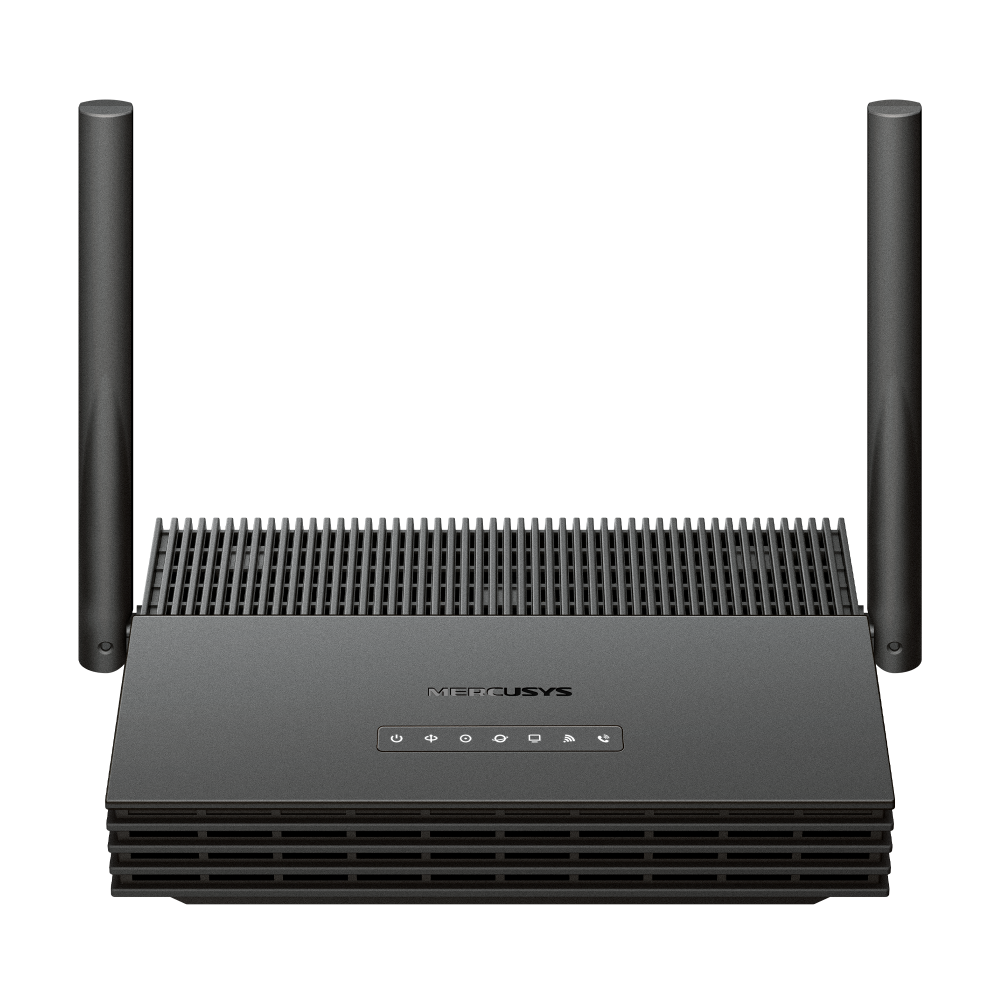

MF80Xv [V1] | AX3000 Dual Band Wi-Fi 6 VoIP XPON Router

MF80Xv

New Comers

AX3000 Dual Band Wi-Fi 6 VoIP XPON Router

  • Superfast Dual-Band WiFi: Up to 3 Gbps Wi-Fi speed, 574 Mbps on 2.4 GHz, 2402 Mbps on 5 GHz†
  • Full Gigabit Ports: Empowers wired devices to attain optimal performance, ensuring seamless HD streaming and an unparalleled gaming experience‡
  • Supports VoIP Calls: Support multiple VolP accounts and provides advanced call features such as caller lD, callwaiting, hold, and forwarding-exceeding traditional landline capabilities
  • MU-MIMO：Simultaneously transfers data to multiple devices delivering performance that is twice as fast*
  • Flexible Switching Mode：The EPON + GPON dual mode provides enhanced flexibility for fiber internet access
  • Easy Remote Management: Supports the OMCl (ONU Management Control Interface) protocol, enabling centralized configuration and management

Overview

AX3000 Dual Band Wi-Fi 6 VoIP XPON Router

MF80Xv
Dual-Band WiFi Speeds up to 3 Gbps
5 GHz
2.4 GHz
2402 Mbps
574 Mbps
XPON Dual Modes
GPON
EPON
Fiber Access:
2.5 Gbps
Gigabit Ethernet
Access
OMCI Remote Management
VoIP Calls
VPN Support
Parental Controls
Smooth
IPTV
Easy App Control

Superfast WiFi 6 to 3 Gbps

Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

5 GHz
2.4 GHz
2402 Mbps
574 Mbps

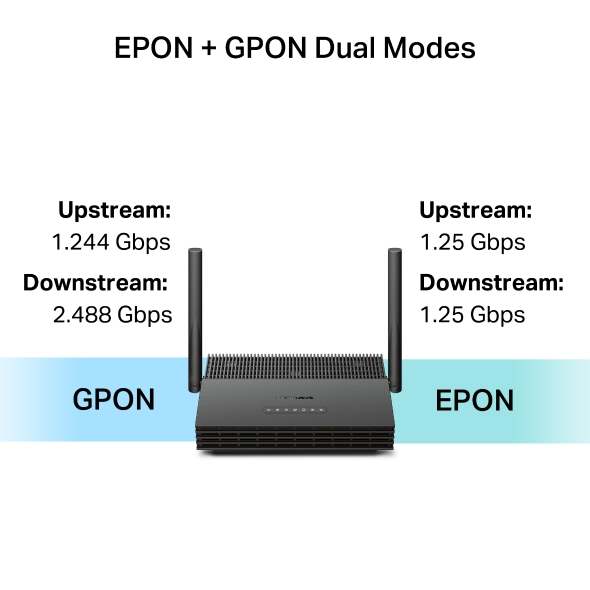

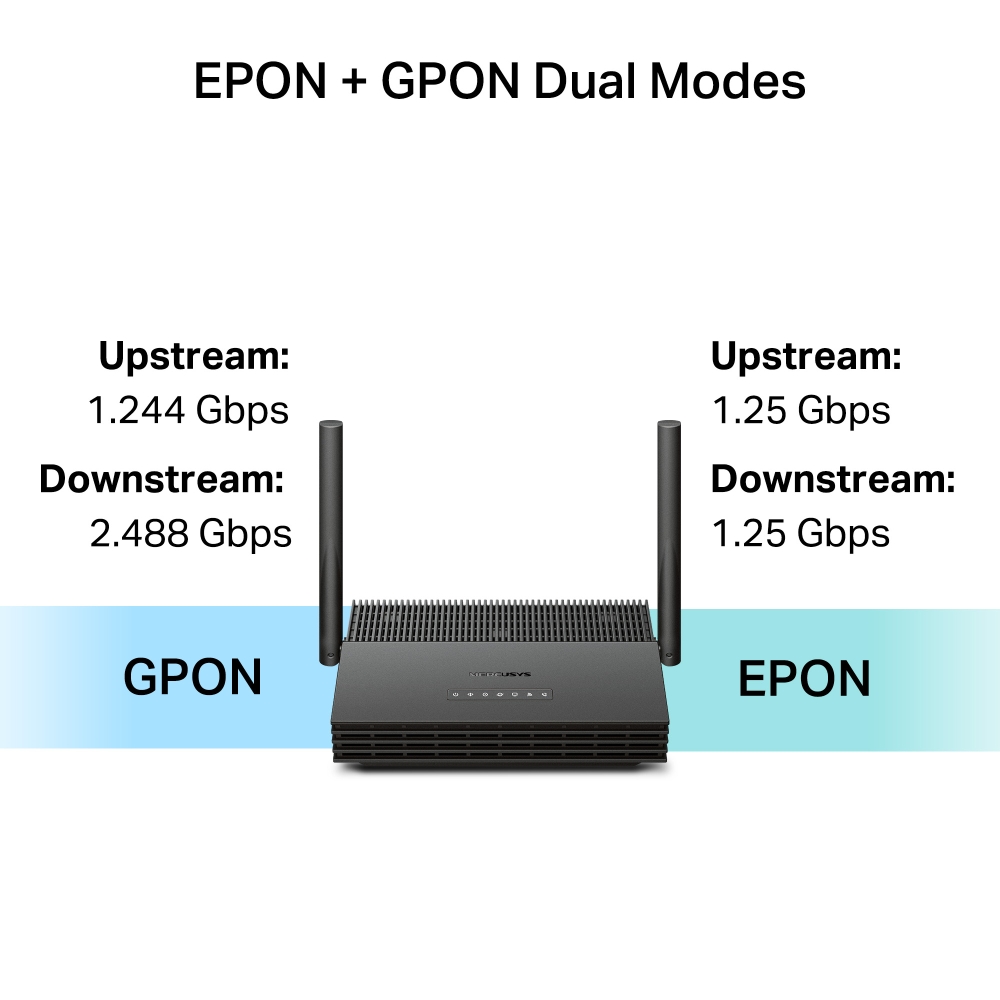

EPON + GPON Dual Modes

With dual-mode GPON and EPON, MF80Xv provides internet speeds up to 2.5 Gbps via GPON, meeting high-speed home networking needs.

GPON
Upstream: 1.244 Gbps
Downstream: 2.488 Gbps
EPON
Upstream: 1.25 Gbps
Downstream: 1.25 Gbps

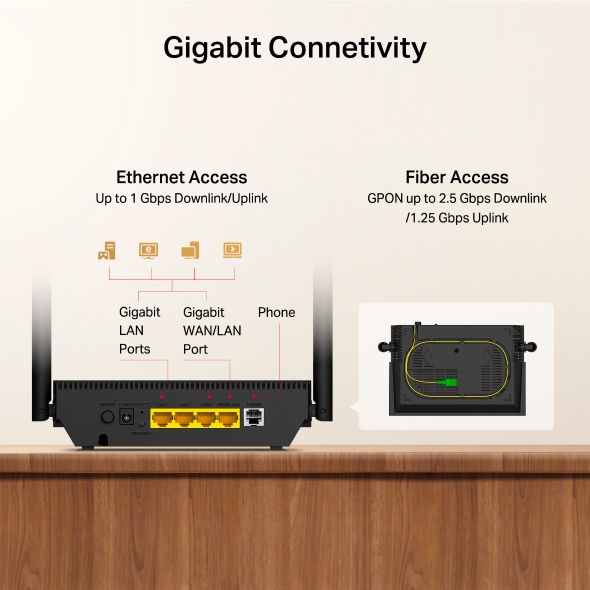

Gigabit Connectivity

With Gigabit WAN/LAN ports and an SC/APC port, MF80Xv delivers fast and reliable connections up to 10× faster than fast Ethernet, ideal for game consoles, smart TVs, and computers.

Gigabit
LAN Ports
Gigabit
WAN/LAN Port
Phone
Ethernet Access
Up to 1 Gbps Downlink/Uplink
Fiber Access
GPON up to 2.5 Gbps Downlink/1.25 Gbps Uplink

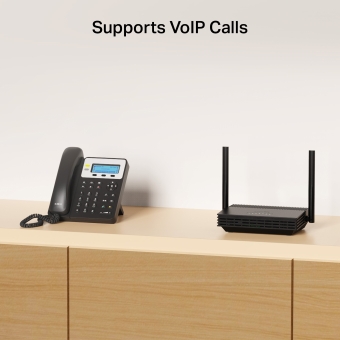

Supports VoIP Calls

You can effortlessly initiate or receive phone calls over the Internet by simply connecting their device to an existing telephone set.

Connect More Devices

Supports multiple devices simultaneously with OFMDA and MU-MIMO technology, ensuring all connected devices receive data more efficiently.

  • OFDMA

    Delivers greater network capacity and efficiency

  • MU-MIMO

    Connects more devices simultaneously

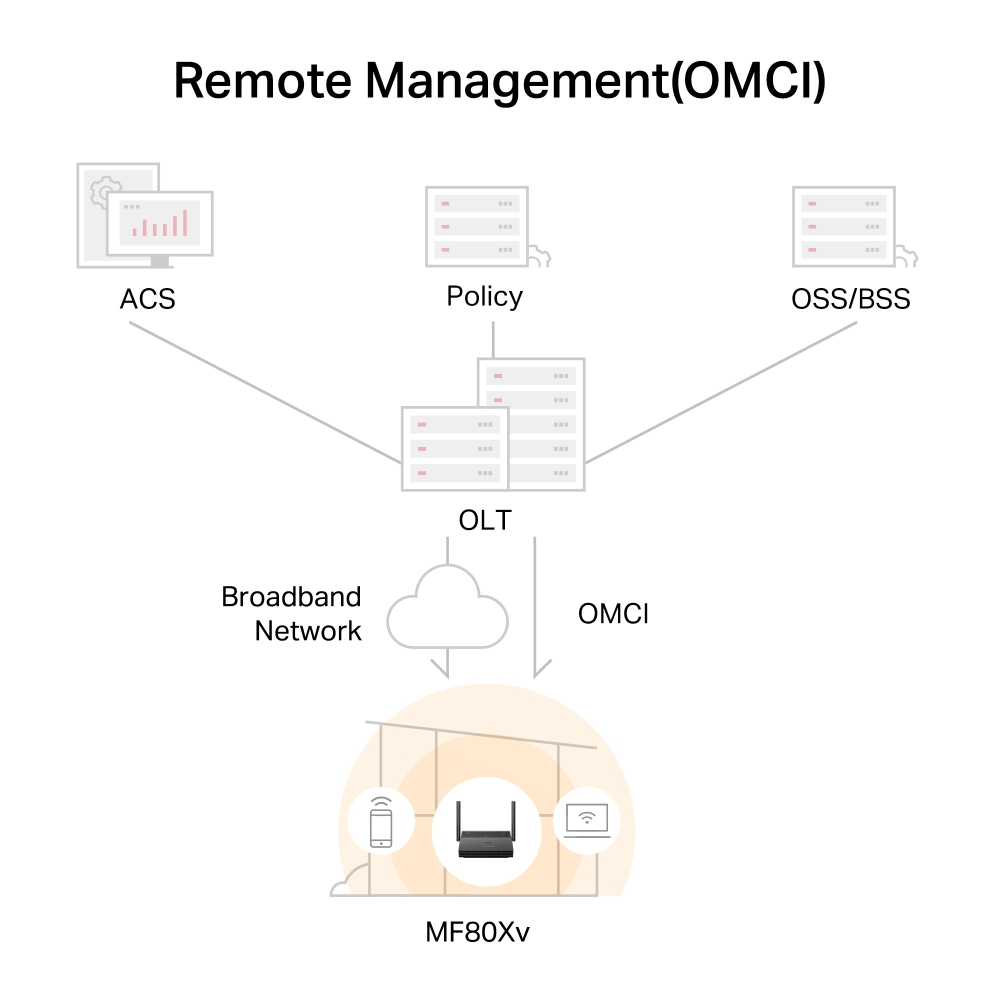

Remote Management

Supports the OMCI (ONU Management Control Interface) protocol, enabling centralized configuration and management.

ACS
Policy
OSS/BSS
OLT
OMCI
Broadband
Network
MF80Xv

Wider WiFi Coverage

Equipped with high-performance dual-band antennas and advanced beamforming technology, the system intelligently adapts WiFi coverage to perfectly align with your home environment. By concentrating and directing signal strength with precision, it ensures unparalleled connectivity for every device throughout your space.

Other Router
Without Beamforming
MF80Xv

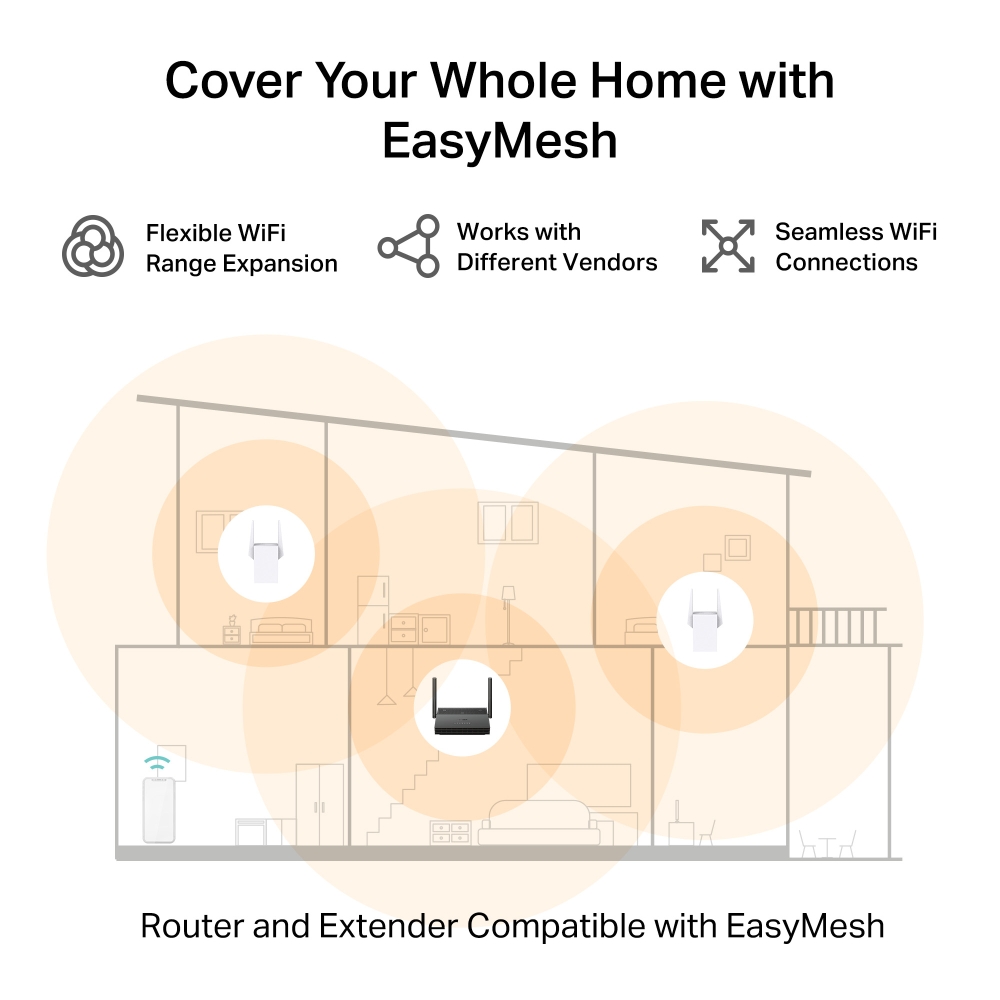

Cover Your Whole Home with EasyMesh

MF80X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other routers or APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!*

  • Flexible WiFi
    Range Expansion

  • Works with
    Different Vendors

  • Seamless WiFi
    Connections

  • Traditional Router and Extender

  • Router and Extender Compatible with EasyMesh

Powerful Network Protection

  • Access Control

    Block unwanted devices and protect against suspicious Wi-Fi access and intruders.

  • Parental Controls

    Easily manage your kids’ online time and content to create a healthy online environment for all.

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure.






†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client imitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
*Use of MU-MlMO requires clients that also support MU-MIMO.
‡Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
**MERCUSYS EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.

Setup&App

MERCUSYS

Simple and Functional

See what’s compatible

MERCUSYS

The MERCUSYS app provides the easiest way for you to set up in minutes and manage your WiFi at home or away through your iOS or Android devices.

Apple Store
Google Store
QRcode
  •

    Easy Setup

  •

    Manage in Real-time

  •

    Quality of Services

  •

    Guest Network

  •

    Parental Controls

MERCUSYS Helps You Set Up in A Few Steps

Without any technical know-how or reading complicated instructions, simply follow the in-app instructions. Set up your mesh network in minutes.

  • Step 1:Find the Halo,Power Cable and Ethernet Cable in the box Halo Power Cable Ethernet Cable

    Step 1

    Find what you’ll need in the box

  • Step 2:Plug in your devices

    Step 2

    Plug in your devices

  • Step 3:Follow the on-screen directions with the MERCUSYS app

    Step 3

    Follow the on-screen directions with the MERCUSYS app

Manage Your WiFi in Real Time

With the MERCUSYS app, experience live network management. See who’s connecting to your network and manage it at any time with your iOS or Android devices.

Notice: The configuration page of different models may be different, please refer to the actual one.

  •
  •
  •
  •

Powerful Parental Controls

Easily manage your kids’ online time and content to create a safe and healthy online environment.

  • Create User Profiles

    Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.

  • Online Time Limits

    Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices for a long time to build a healthy network habit.

  • Block Inappropriate Websites

    Control which sites your kids visit by setting a block list.

  • Pause Internet Connection

    Suspend family members’ internet connections to take a break from the virtual world to enjoy some family time.

Manage and Secure Your Home Network

The MERCUSYS app helps you manage your WiFi at home or away through your iOS or Android devices.

  • link icon

    Check the Status of Connected Devices

    Intuitively view the working status of your Halo network and see what is connected. Prioritize or block devices as needed.

  • icon with right arrows

    Quality of Services

    Prioritizes devices you select to perform better.

  • alert icon

    New Device Access Alert

    The MERCUSYS app proactively sends out an alert to inform you when an unfamiliar device is connected. Tap to block the device if it is a security risk.

  • guest icon

    Set Up a Guest Network

    Provides a separate network for guests to ensure your security and privacy.




Everything in One App

Whether you’re looking to control a wide range of MERCUSYS routers, extenders, or Halo mesh systems, find it all on the app.

See what’s compatible

Compatible Products

Note: The device's firmware requires the latest version. Click here  to learn how to upgrade your firmware.

Note: Both listed and higher hardware versions of these models are compatible with the MERCUSYS app.



Supporting Multiple Languages

MERCUSYS app supports up to 26 languages, enabling easy network management for users all over the world.

  • English

  • Nederlands

  • Français

  • Deutsch

  • Italiano

  • 日本語

  • 한국어

  • Português

  • Español

  • 繁體中文

  • Русский язык

  • Português Brasil

  • Español
    (Latinoamérica)

  • Български

  • Українська мова

  • Polski

  • Română

  • Slovenčina

  • ไทย

  • Türkçe

  • Čeština

  • Tiếng Việt

  • Eλληνικά

  • Bahasa Melayu

  • Magyar

  • עברית

Specifications

Wireless
Wi-Fi Class

Wi-Fi 6 (802.11ax)

Wi-Fi (2.4 GHz)

574 Mbps

Wi-Fi ( 5 GHz)

2402 Mbps

Wireless Standards

2.4 GHz：802.11b/g/n/ax
5 GHz：802.11a/n/ac/ax

Max Channel Width

160 MHz

MAX Capacity

128+128

Recommended Clients Limit

64+64

Wireless Security

WPA/WPA2-Personal, WPA2-Personal, WPA2/WPA3-Personal

Wireless Functions

AP Isolation, Airtime Fairness

Hardware
Standards and Protocols

ITU-T G.984.1, G.984.2, G.984.3, G.984.4, G.988

Dimensions

170×112.5×45.8 mm

Antenna

2×External Dual-Band Antennas
1×Onboard 5 GHz Antenna

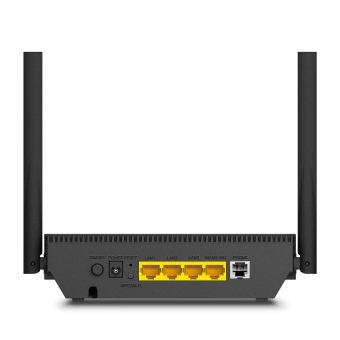

Interfaces

4× GE, 1× SC/APC, 1× FXS

Button

1× Power On/Off
1×WPS/Wi-Fi
1×Reset

Retail Package Weight

575g

Installation

Wall Mounted

Desktop Style

Data Rates

Upstream: 1.244 Gbps(GPON), 1.25 Gbps (EPON)
Downstream: 2.488 Gbps(GPON), 1.25 Gbps (EPON)

LED

7 LED，Internet and Phone are emerald green/red dual color light, LOS is red light, others are emerald green light

Retail Package Dimension

217x211x54 mm

Units per Carton

20

Carton Dimension

450×440×290 mm

IPTV

√

Power

12V/1.5A

Max Power Consumption

16.2W

Software
Operation Mode

Wireless Router

WAN Mode

GPON/EPON

NAT Forwarding

√

Protocols

IPv4/IPv6

Parental Controls

√

Guest Network

√

DHCP

√

DDNS

MERCUSYS/NO-IP/DynDNS

VPN Server

√

Easymesh

√

QoS

√

Security

√

ISP Feature

√

System

√

Diagnostics

√

LED Management

√

Device Management

√

Cloud

√

Language

EN

Advanced Features

TWT, MU-MIMO, OFDMA

Others

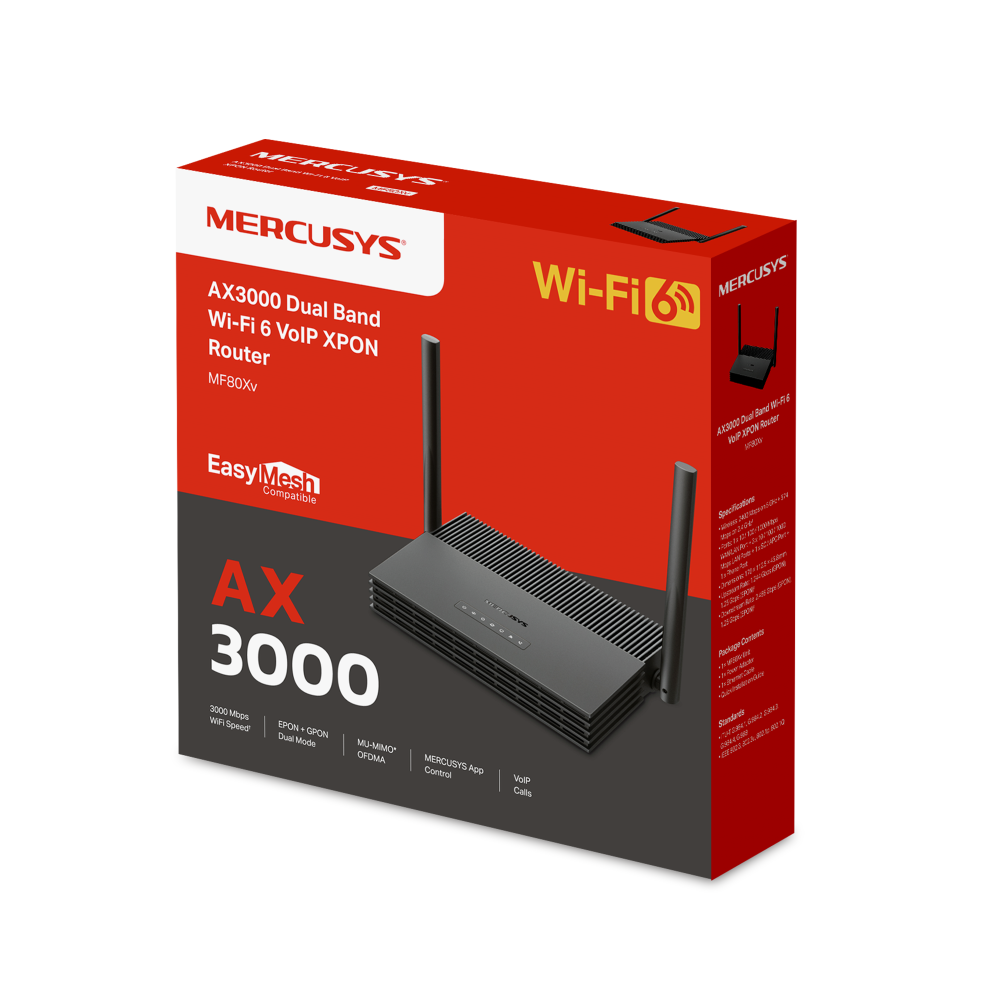

Package Contents

XPON Router MF80Xv
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide

Environment

Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
