MS110CMP
8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
- 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
- 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

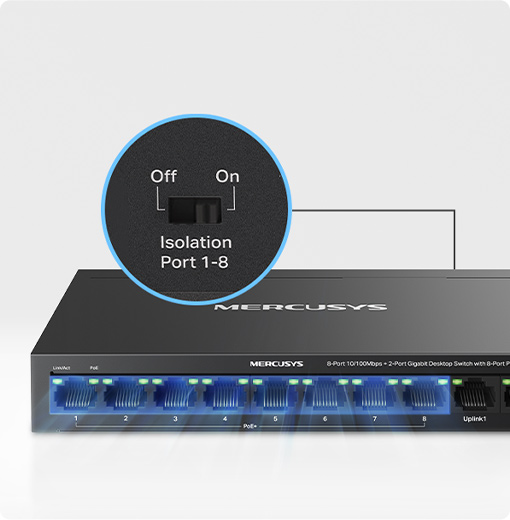

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Plug and Play: Simple to use and saves time and effort

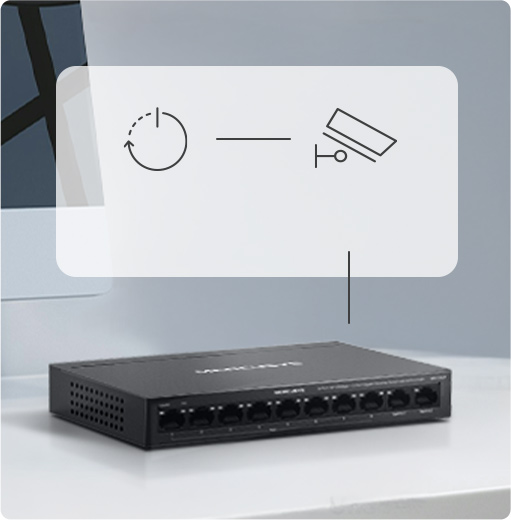

- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
The MS110CMP is a 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+, ideal for small and medium business IP surveillance with a 115 W PoE budget. The plug-and-play design makes it for easy deployment without the need for a technician.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
- Hardware
- Standards and Protocols
IEEE 802.3x Flow Control
- PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 115 W- Dimensions
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
- Interfaces
8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply
External Power Adapter (Output: 54V/2.2A)
- Installation
Desktop / Wall Mount
- Data Rates
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex- Jumbo Frame
2 KB
- Switching Capacity
5.6 Gbps
- MAC Address Table
2K
- Max Power Consumption
3.79W（220 V / 50 Hz, no PD connected）
130.49W（220 V / 50 Hz, with 115W PD connected
- Max Heat Dissipation
12.92 BTH/h （no PD connected)
444.97 BTH/h（with 115W PD connected）
- Others
- Package Contents
• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)
• Power Adapter
• Quick Installation Guide- Environment
Operating Temperature: -10℃~40℃ (14℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
