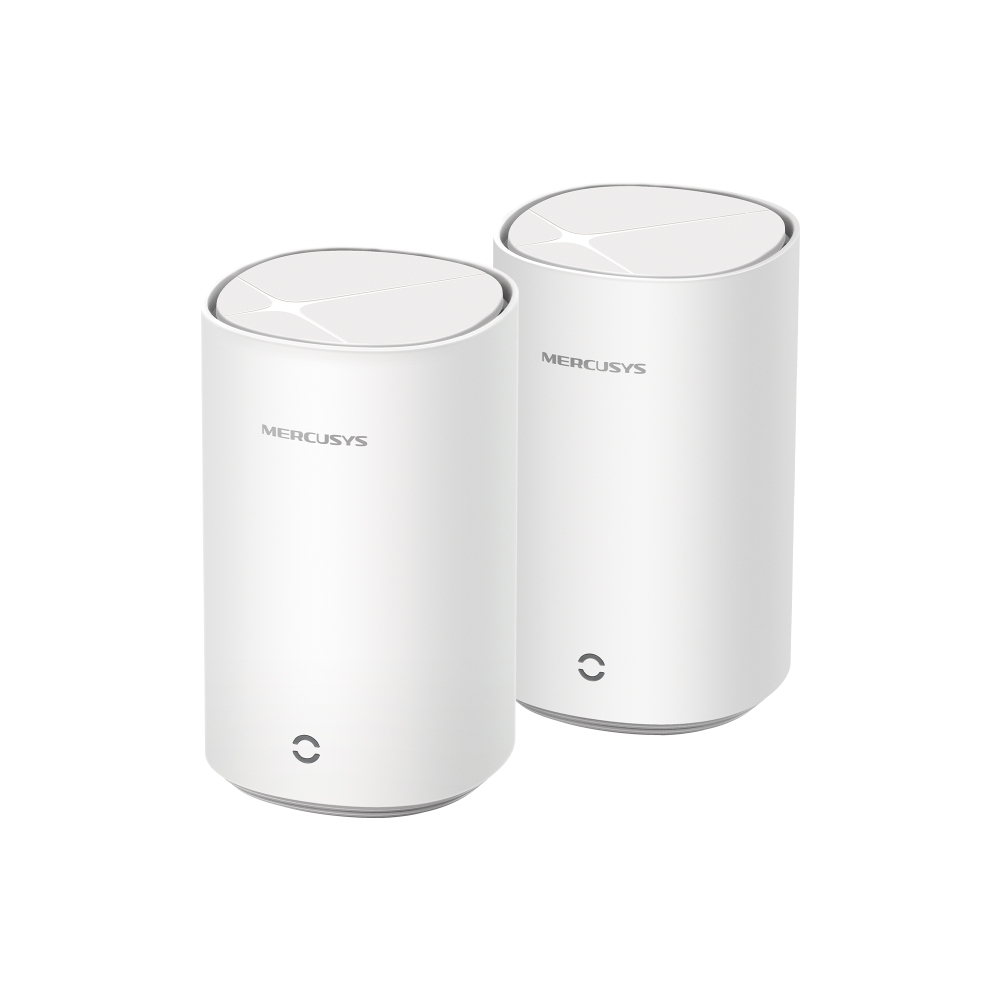

Halo E27BE [V1] 2-pack | BE3600 Whole Home Mesh Wi-Fi 7 System
Halo E27BE
BE3600 Whole Home Mesh Wi-Fi 7 System
- Blazing-Fast 3.6 Gbps Dual-Band Speeds – 2880 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.†
- Powerful Wi-Fi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.△
- Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.‡
- Whole Home Coverage – Blanket up to 5,000 ft²/460 m² (ideal for 3-5 bedroom houses) with high-speed Wi-Fi, eliminating Wi-Fi dead zones at your home.†
- 2.5 Gbps Multi-Gig Port – 1× 2.5 Gpbs and 2× Gigabit ports per Halo E27BE unit for lightning-fast wired connections.§
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your Wi-Fi. You can also manage your kids’ online time and contents.
*Please note that the Halo H series and S series cannot work together. Halo E85X is compatible with other units from the Halo E & Halo H series to form a Mesh network.
-
watch video: How to Set Up MERCUSYS Whole Home Mesh Wi-Fi System (H90X as an example)
How to Set Up MERCUSYS Whole Home Mesh Wi-Fi System (H90X as an example)
Blazing Wi-Fi 7 Speeds,
Flowing Through
Your Home!

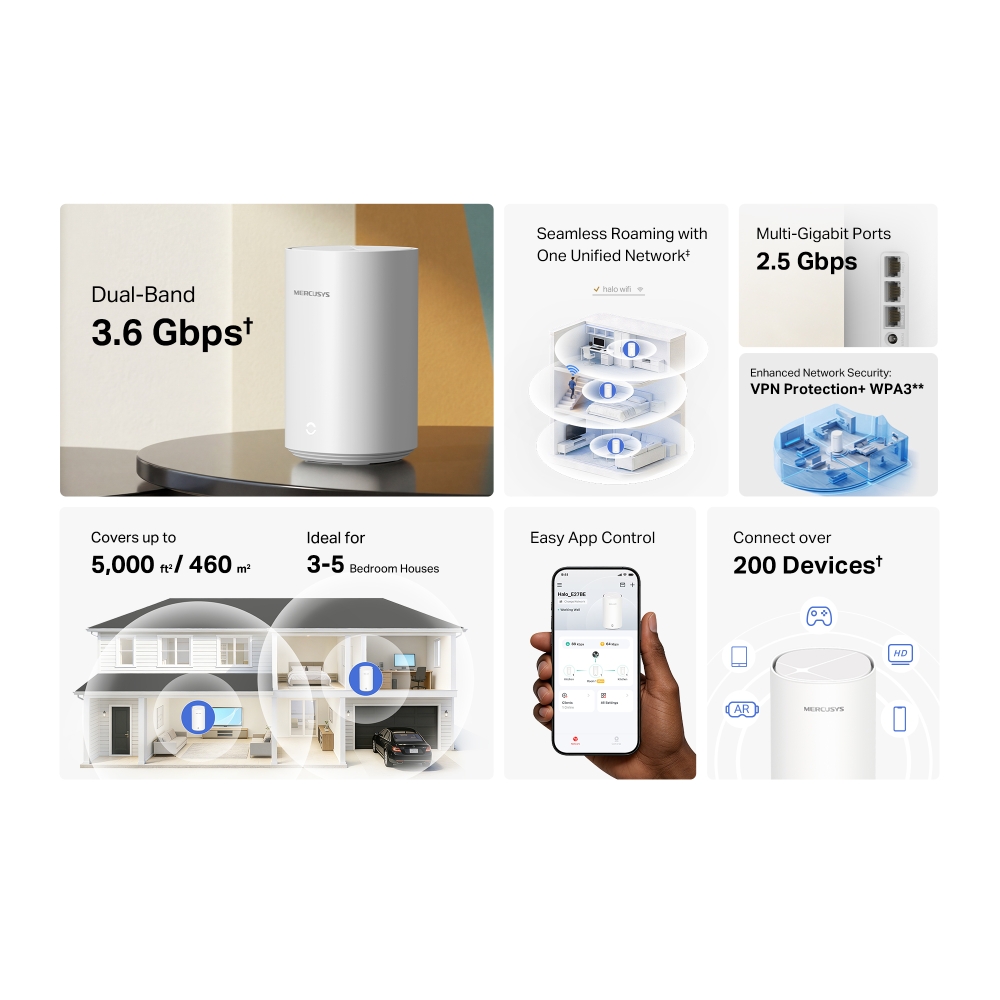

BE3600 Whole Home Mesh Wi-Fi 7 System
3.6 Gbps†
2.5 Gbps
VPN Protection+ WPA3**
5,000 ft2 / 460 m2
3-5 Bedroom Houses
200 Devices†

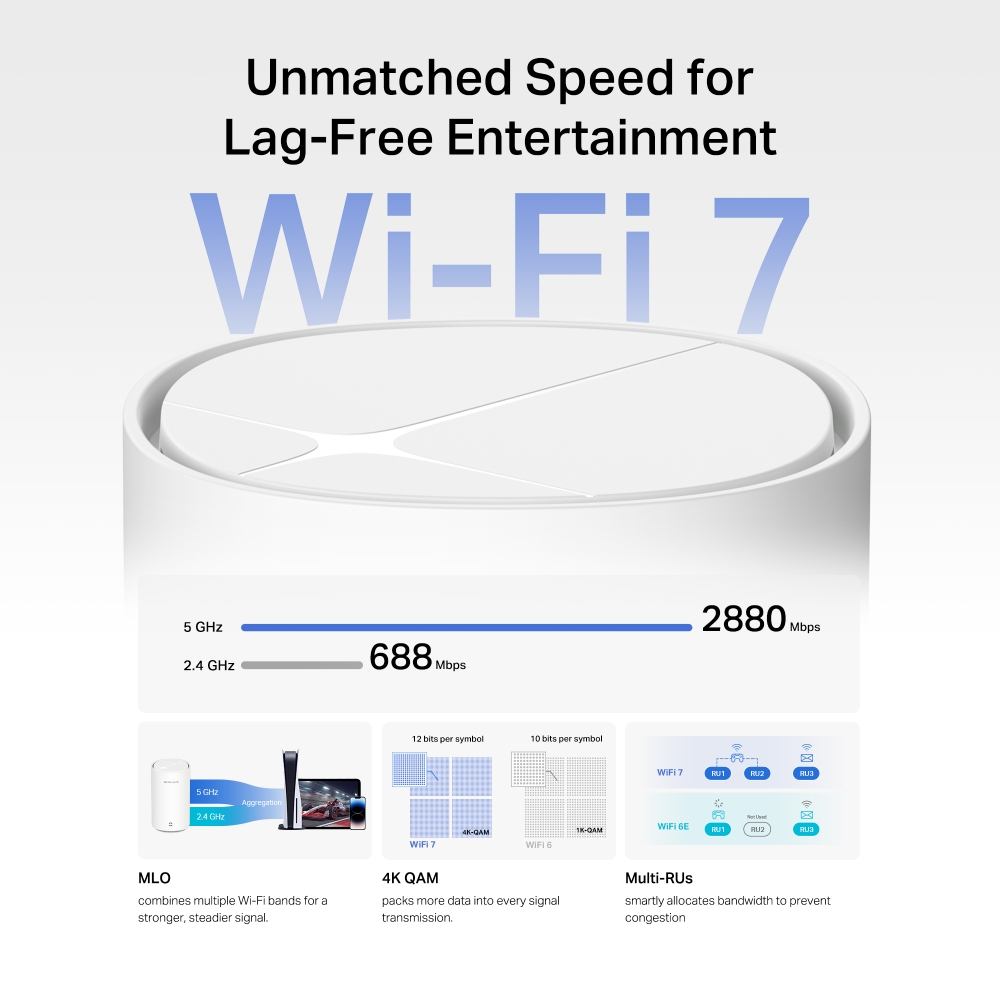

Unmatched Speed for Lag-Free Entertainment
Powered by Wi-Fi 7's 4K QAM technology, the Halo E27BE reaches 3.6 Gbps for smoother gaming and streaming.△
-
5 GHz
2880 Mbps
-
2.4 GHz
688 Mbps
-
MLO
combines multiple Wi-Fi bands for a stronger, steadier signal.
-
4K QAM
packs more data into every signal transmission.
-
Multi-RUs
smartly allocates bandwidth to prevent congestion.

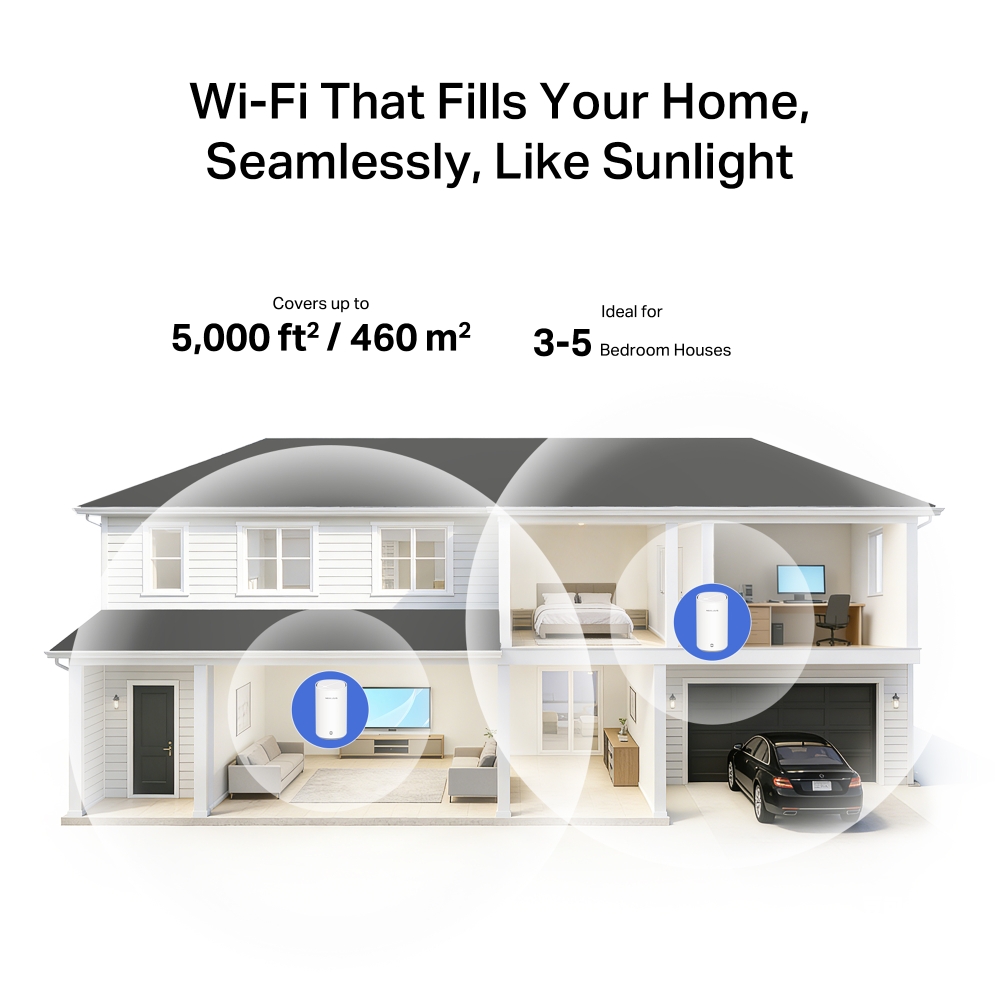

Wi-Fi That Fills Your Home, Seamlessly, Like Sunlight
One seamless network for your entire home with Halo E27BE. Move freely and enjoy flawless video calls, streaming, and gaming—from room to room.†
-
Covers up to
5,000 ft2 / 460 m2 -
Ideal for
3-5 Bedroom Houses
Truly Seamless Wi-Fi. No More “Switching” Hassle.
Halo E27BE lets your Wi-Fi roam with you. Enjoy clear calls, smooth streaming, and stable high speed wherever you move.‡
-
Powerful Signal Amplifiers
Refined signal amplifiers and receivers cast strong, stable WiFi signals.
-
Beamforming
Supports Beamforming technology to concentrate wireless signal strength towards devices.
-
Self-Healing
Auto-chooses the best connection route between Halos according to the stability of the network.

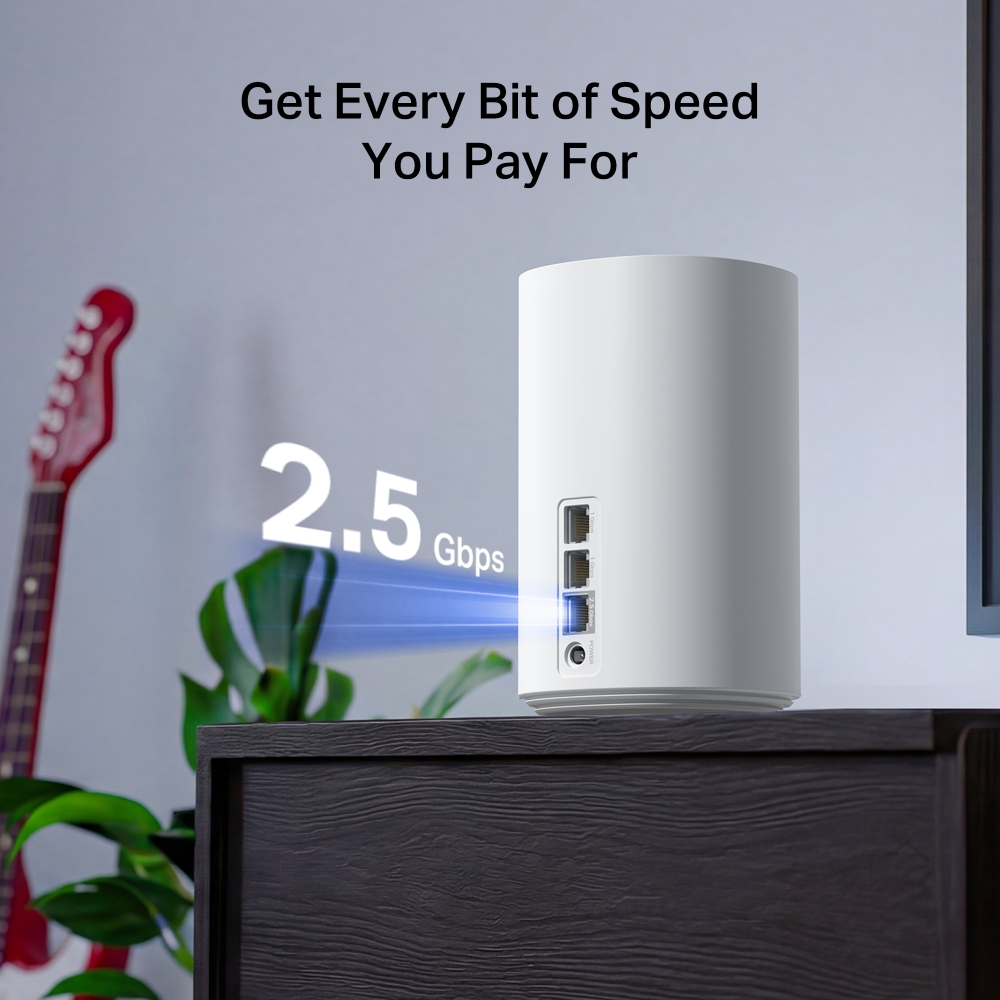

Get Every Bit of Speed You Pay For
2.5 Gbps and dual Gigabit ports unleash your ISP’s full speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.§

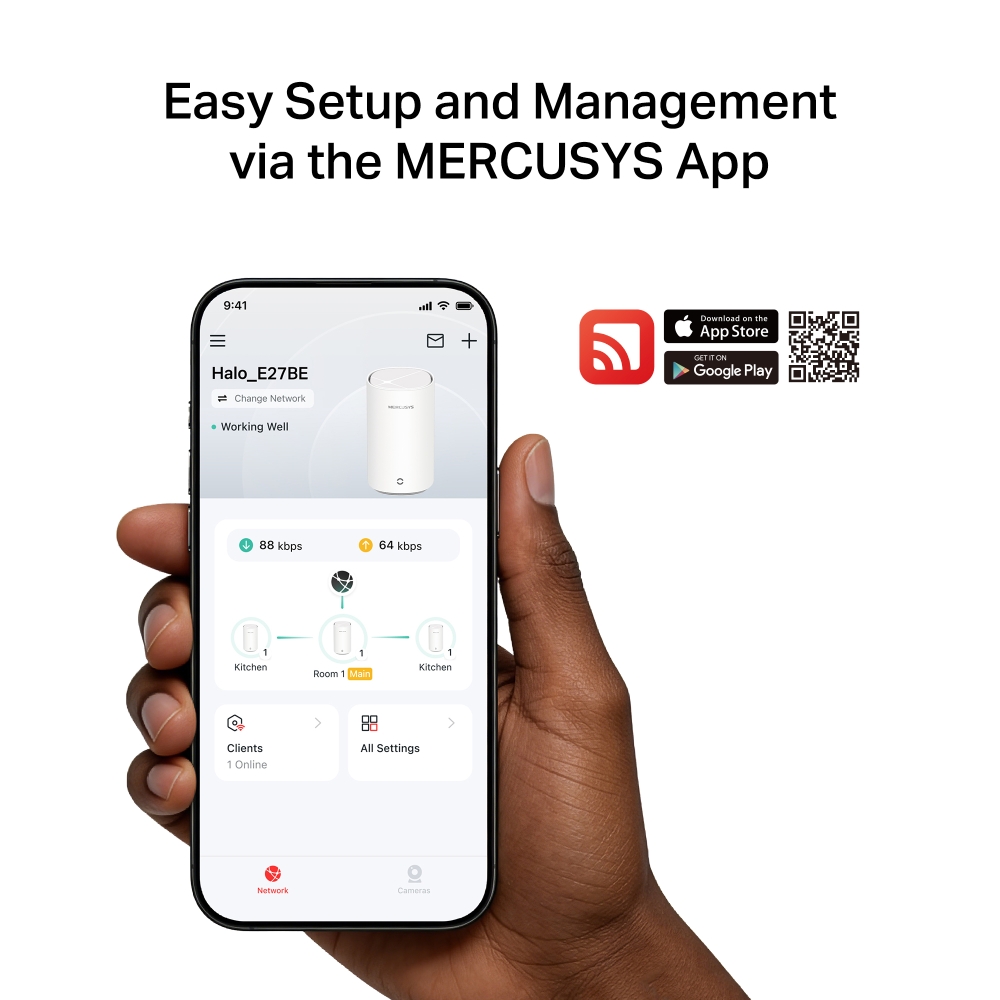

Easy Setup and Management via the MERCUSYS App
Follow the on-screen directions to set up your network.
-

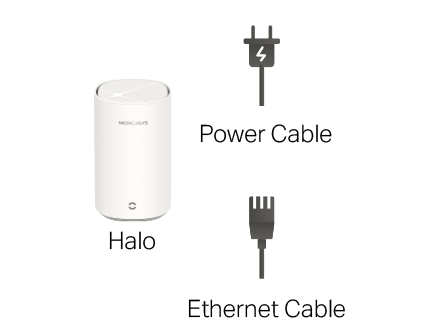

Step 1
Find what you’ll need in the box
-

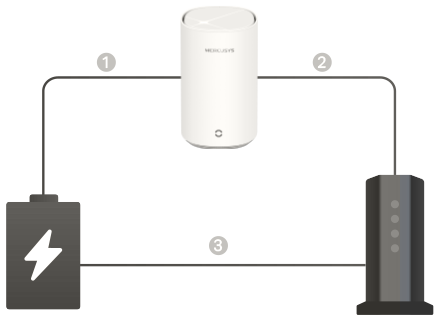

Step 2
Plug in your devices
-

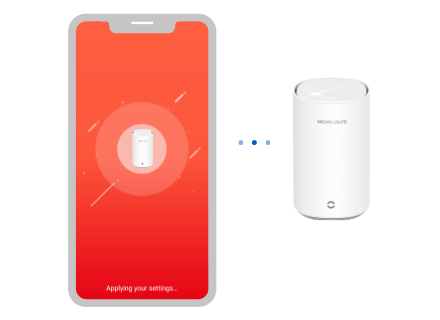

Step 3
Follow the on-screen directions with the app to configure the main Halo
-

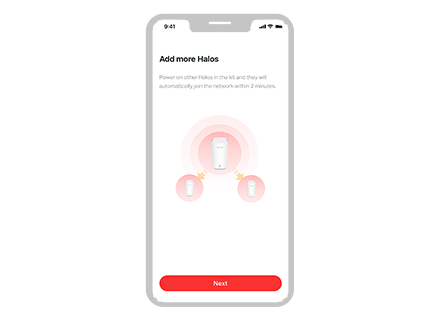

Step 4
Power up the included add-on unit and it will automatically join the network
-
Parental Controls
-
Check the Status of Connected Devices
-
Quality of Service
-
Guest Network
-
New Device
Access Alert -
Monthly Reports
Protect Your Kids Online
Manage screen time and content effortlessly to create a safer online environment.
-
Personalized Profiles
Individual settings for each member
-
Healthy Habits
Screen Time Limits for study & sleep
-
Safe Browsing
Block inappropriate sites automatically
-
Quality Time
Instant pause from virtual to family
Engineered for More Devices
With Wi-Fi 7, Halo E27BE lets 200+ phones, TVs, and consoles run in parallel - No more device traffic jams.†

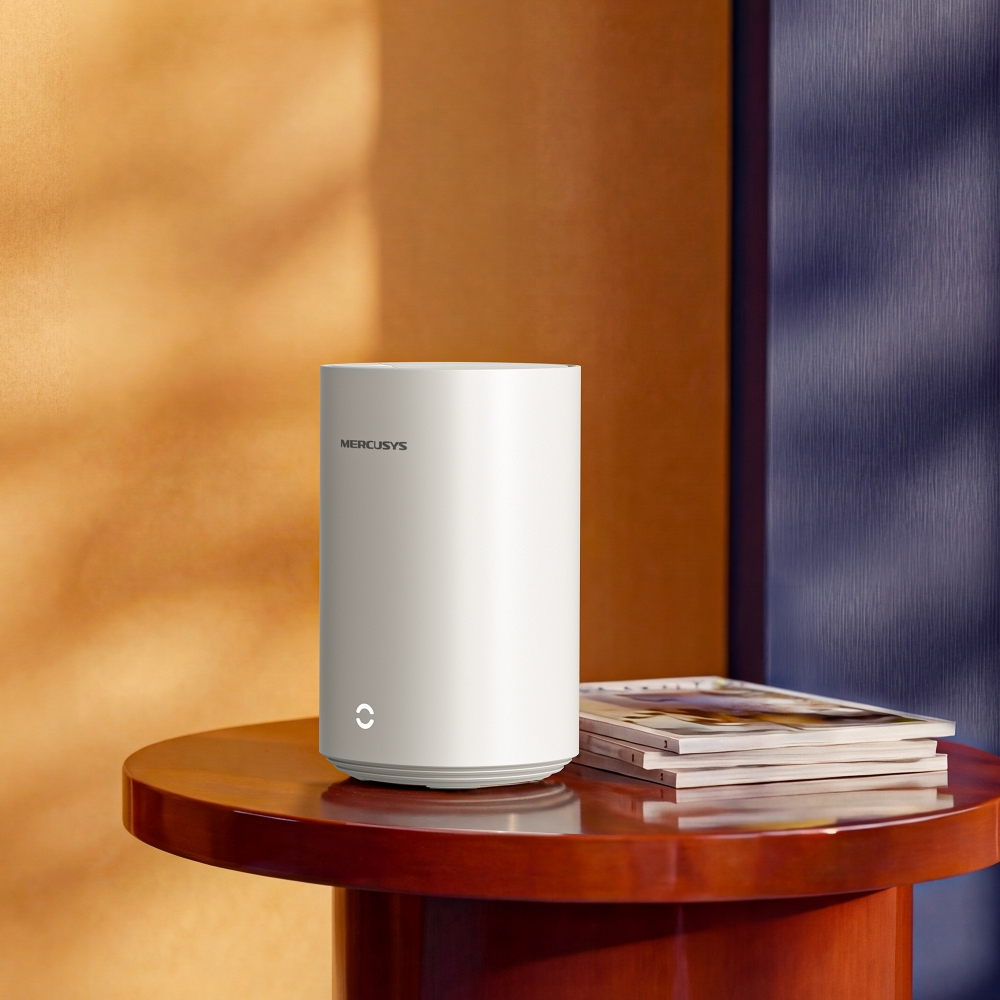

Blends into Life
Powerful within, Elegant without
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Seamless roaming requires clients to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. △Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features. This Halo may not support all the mandatory features as ratified in the IEEE 802.11 ax/be specification. Further software upgrades for feature availability may be required. §2.5 Gbps and 1 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time. *Please note that the Halo E & Halo H series cannot work together with Halo S series. Halo E27BE is compatible with other units from the Halo E & Halo H series to form a Mesh network. **Use of WPA3 requires clients to also support WPA3.
-
Wireless
| Wireless Standards | Wi-Fi 7 |
|---|---|
| WiFi Speeds | 2880 Mbps on 5 GHz, 688 Mbps on 2.4 GHz |
| Reception Sensitivity | 2.4GHz:
11BE EHT20 MCS0:-97dBm
11BE EHT20 MCS11:-68dBm 11BE EHT40 MCS 0:-95dBm 11BE EHT40 MCS11:-64dBm 5GHz:
11BE EHT20 MCS0:-98dBm
11BE EHT20 MCS13:-63dBm 11BE EHT40 MCS13:-59dBm 11BE EHT80 MCS13:-56dBm 11BE EHT160 MCS13:-56dBm |
| Transmission Power | 2.4 GHz < 20dBm (EIRP) |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3 |
| Mesh protocol | 802.11k/v/r |
-
Hardware
| Dimensions | 100 × 100 × 167.65 mm (3.9 × 3.9 × 6.6 in) |
|---|---|

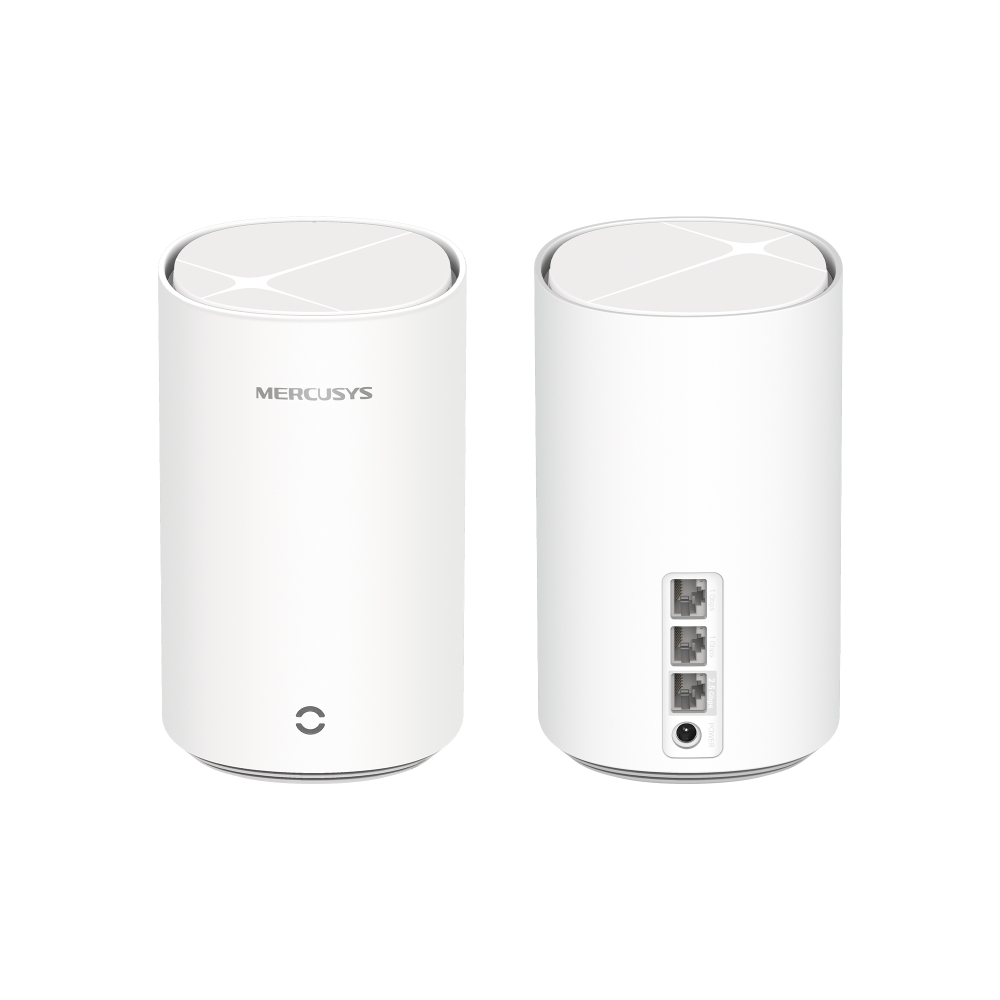

| Interfaces | 1× 2.5 Gbps Port + 2× 1 Gbps Ports (WAN/LAN auto-sensing) |
| Button | Reset button |
-
Software
| Operation Mode | Router, Access Point |
|---|---|
| Quality of Service | WMM |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Local Management, Remote Management, Multi-Managers |
| Firewall Security | SPI Firewall |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4 GHz Guest Network, |
| DHCP | Server, Client |
| VPN Client | OpenVPN |
| VPN Server | OpenVPN |
-
Others
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443; Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67; Protocol: UDP DNS DNS • Port: 53; Protocol: TCP & UDP App management Manage and configure device through app • Port: 20001; Protocol: TCP • Port: 20002; Protocol: UDP |
|---|---|
| Package Contents | 2-pack 2× Halo E27BE Units |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F ~ 140°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing |
