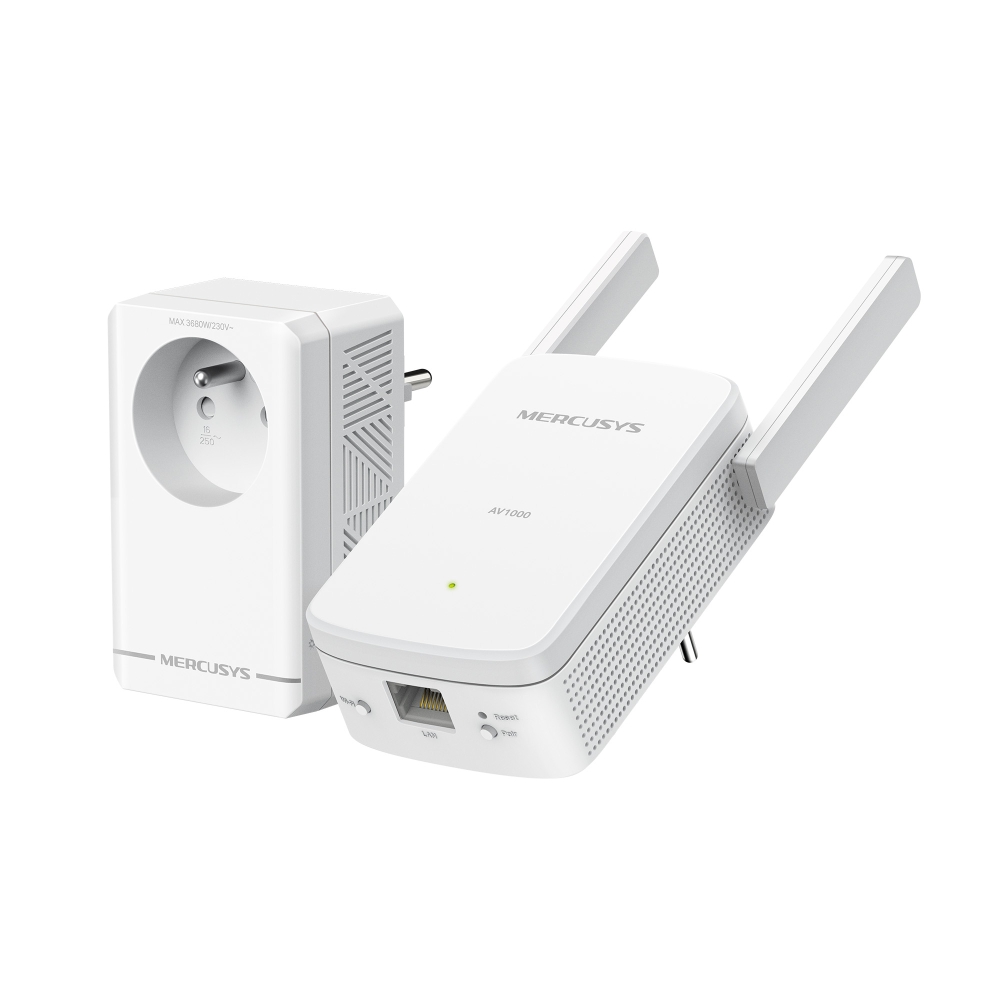

MP515 KIT [V1] | AV1000 Gigabit Powerline Wi-Fi Kit
MP515 KIT
AV1000 Gigabit Powerline Wi-Fi Kit
- 1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2.
- Eliminate WiFi Dead Zones — Extend 300 Mbps WiFi wherever you need via your home’s existing wiring.
- Super-Fast Wired Connections — A gigabit port for PCs, IPTVs, and game consoles.
- Plug & Play — Say goodbye to complex wiring and configuration, just plug and play.
- Easy Expansion — Expand coverage by simply adding more Powerline adapters.
-
watch video: How to Set up MERCUSYS Powerline WiFi Kit
How to Set up MERCUSYS Powerline WiFi Kit
Range
Steaming

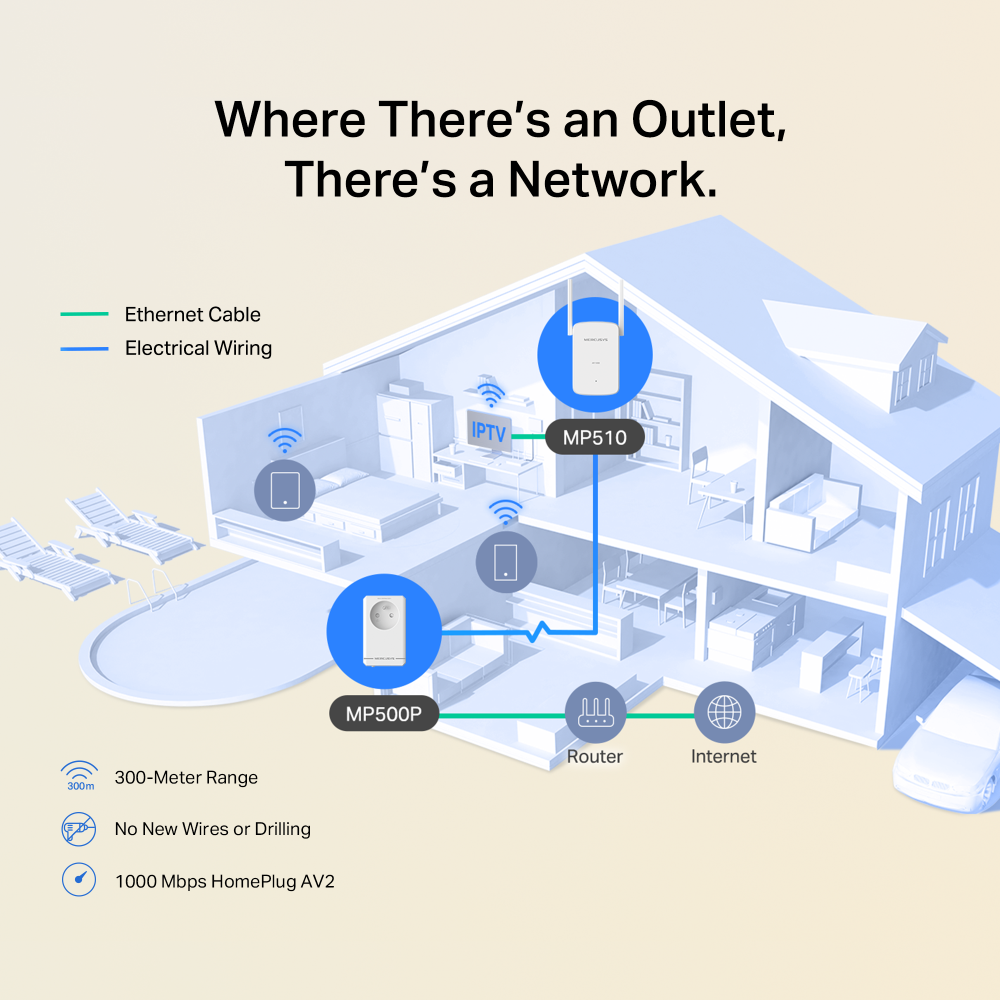

Where there’s an Outlet, There’s a Network.
Uses your home’s electrical wiring to extend your network beyond walls. Delivers a stable transmission distance of up to 300 meters on the same circuit, perfect for 4K streaming and online gaming.
-
300-Meter Range
-
No New Wires or Drilling
-

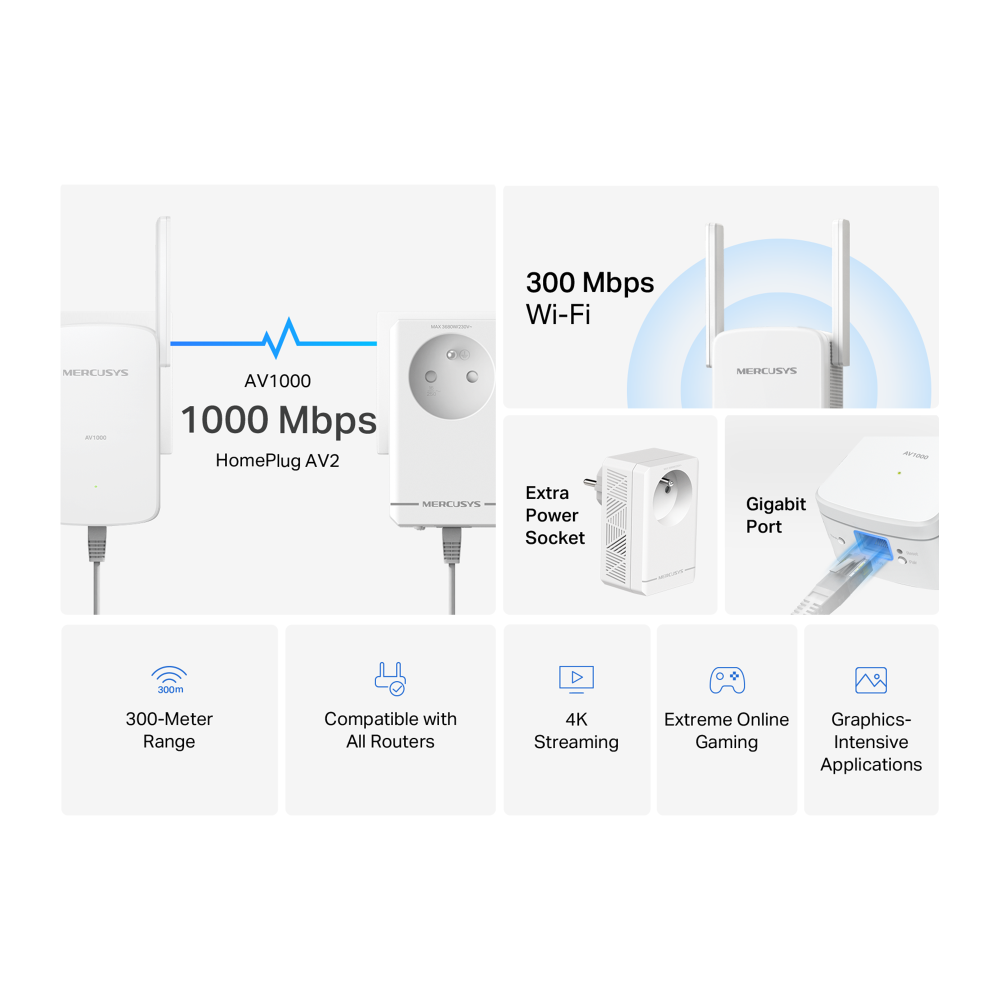

1000 Mbps HomePlug AV2

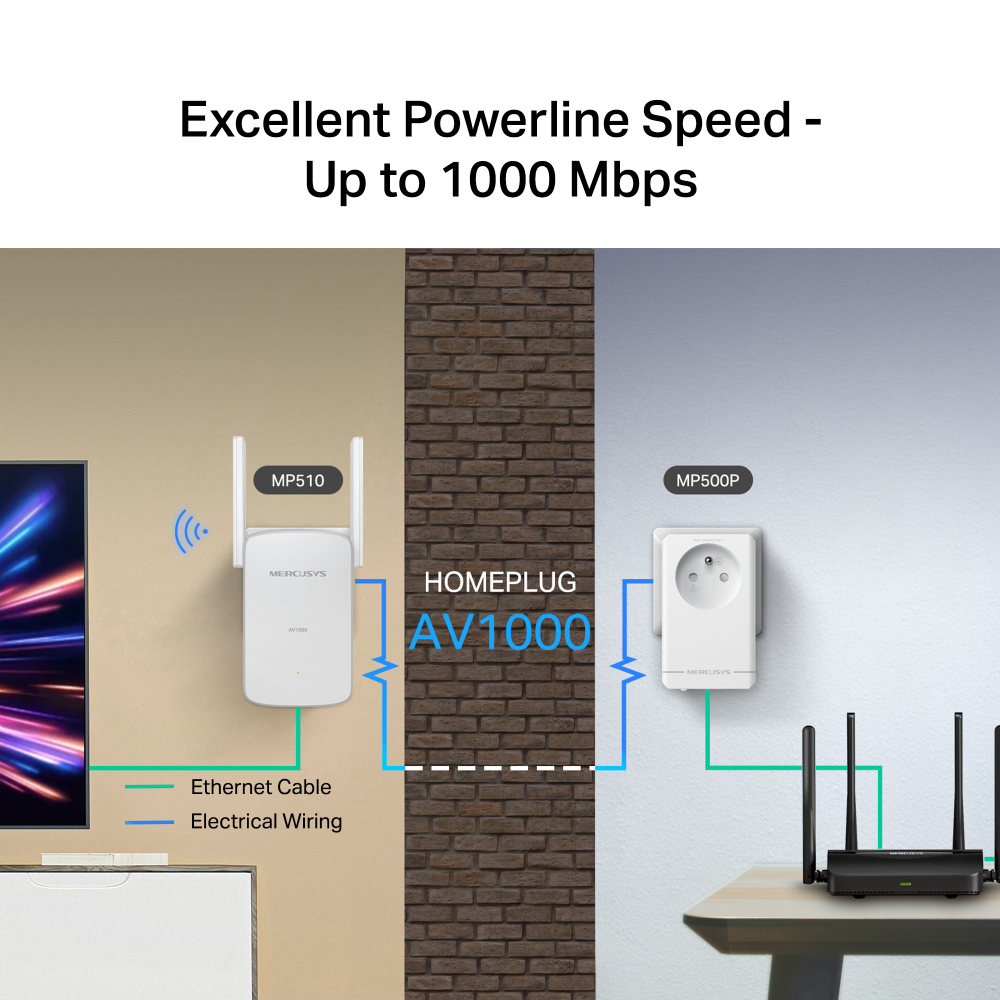

Excellent Powerline Speed - Up to 1000 Mbps
Powered by HomePlug AV2, MP515 KIT delivers fast, reliable wired connections with speeds up to 1000 Mbps over electrical wiring. Enjoy uninterrupted HD streaming, online gaming, and large file downloads. †

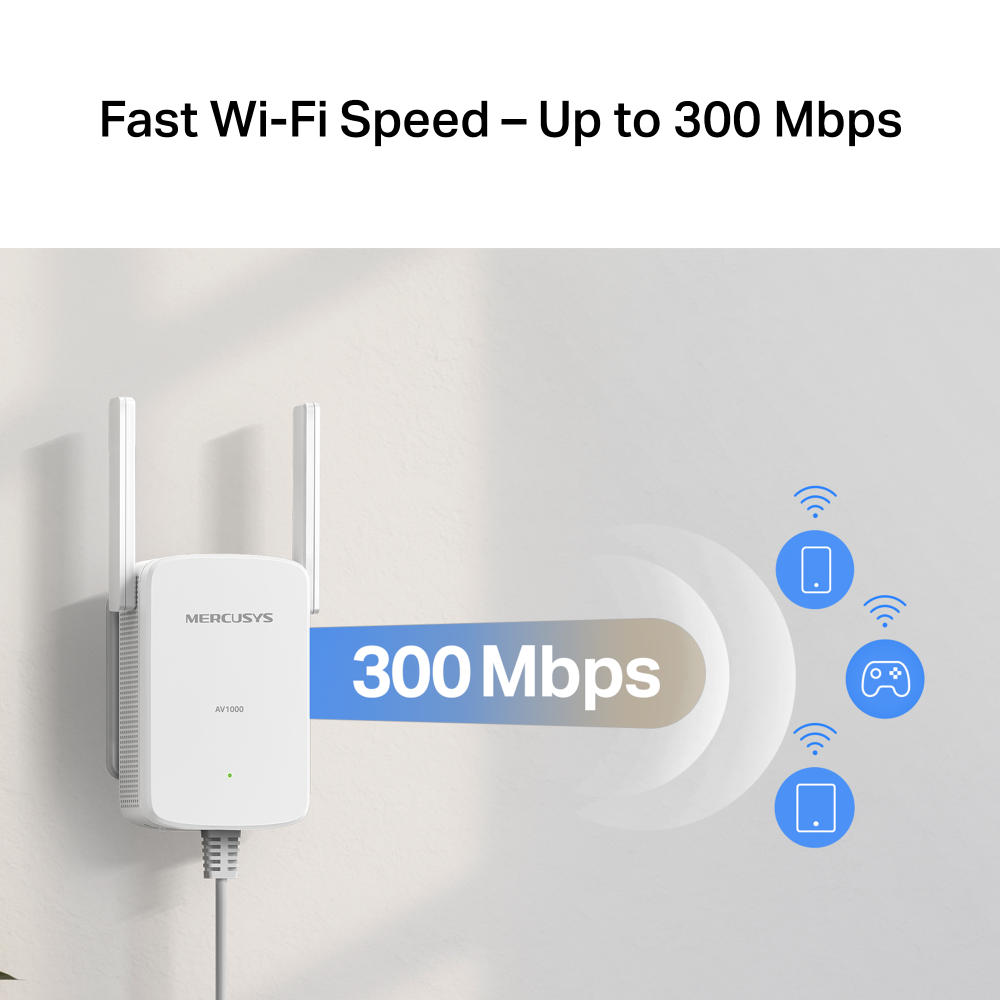

Fast Wi-Fi Speed – Up to 300 Mbps
The integration of an impressive 300 Mbps speed with the convenience of powerline networking enables you to establish fast and reliable connections throughout your entire home.§

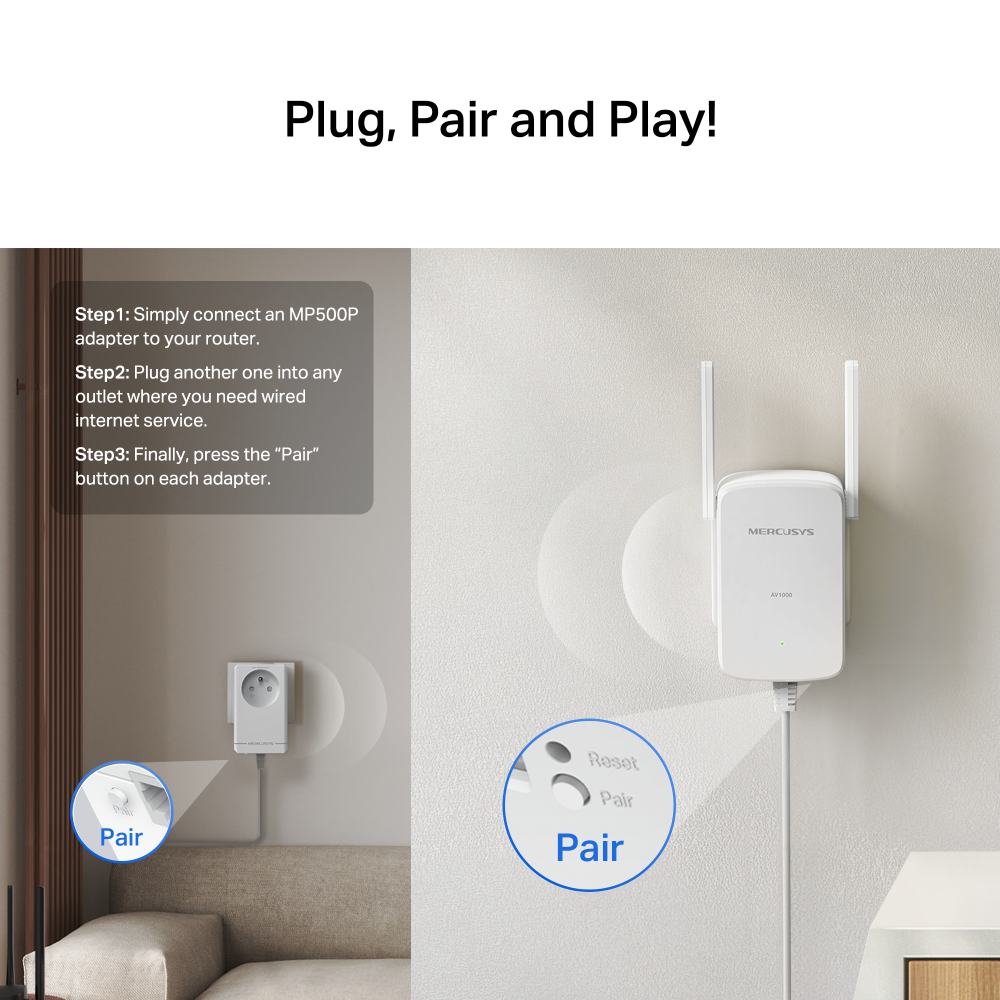

Plug, Pair and Play!
-
Step1: Simply connect an MP500P adapter to your router.
-
Step2: plug another one into any outlet where you need wired internet service.
-
Step3: Finally, press the “Pair” button on each adapter.

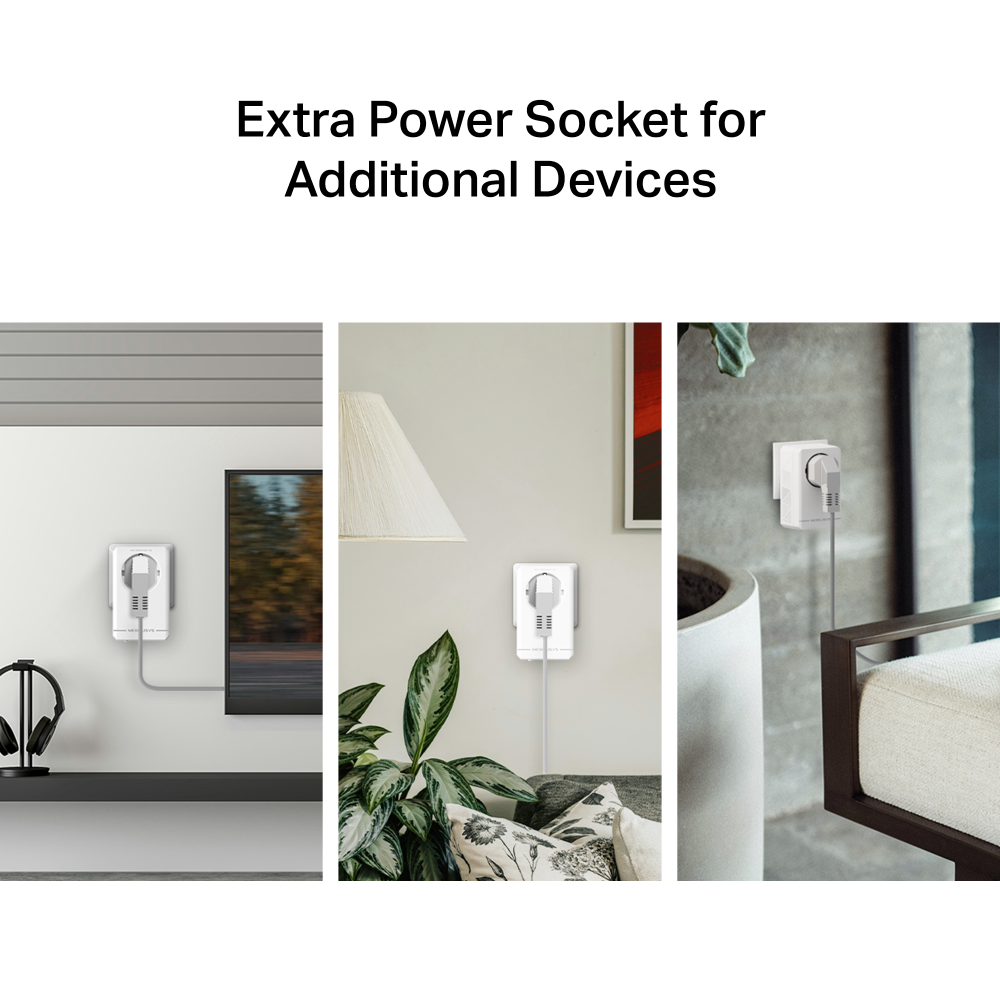

Extra Power Socket for Additional Devices
The integrated power socket (up to 16A*) means that you can still get power from the outlet for your other devices. Just plug your device into the integrated socket the same way you would with a normal wall outlet.
Easy Expansion
If a typical two-pack kit doesn't meet all your networking needs, simply add more Powerline adapters to expand your network to any room.

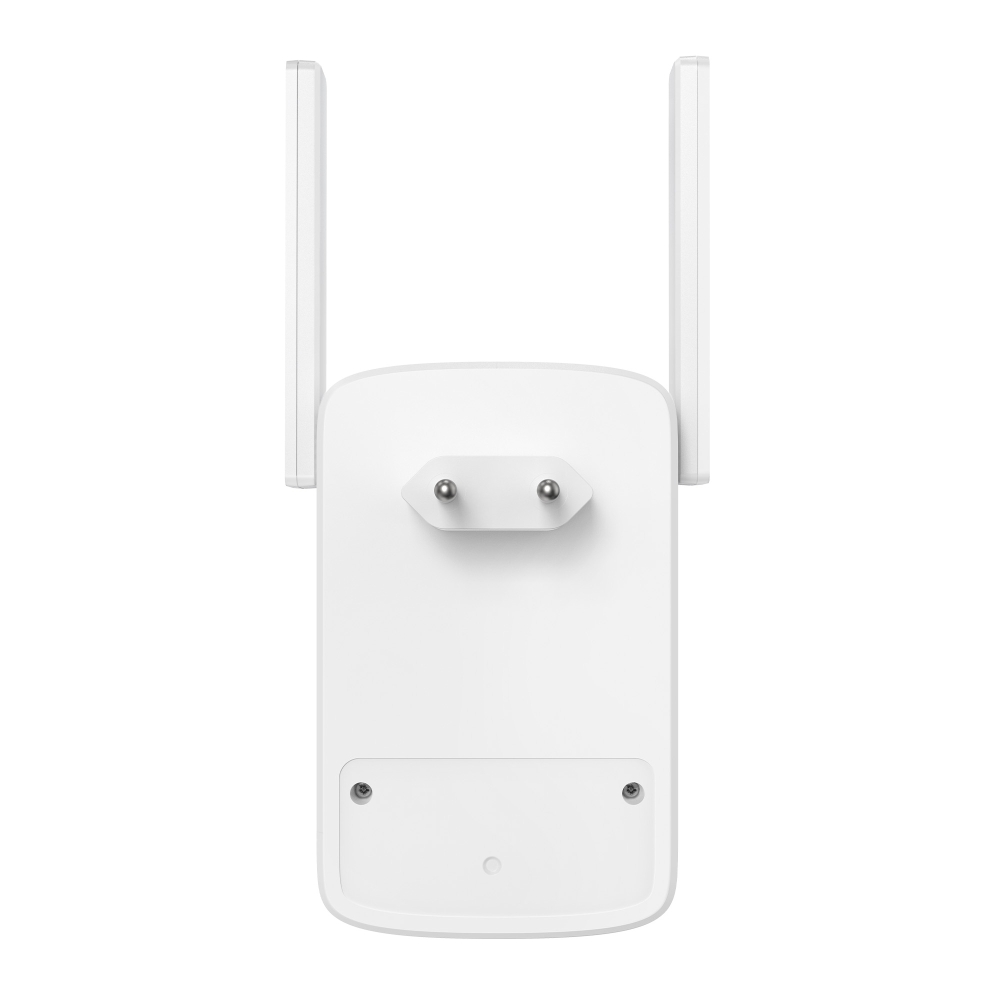

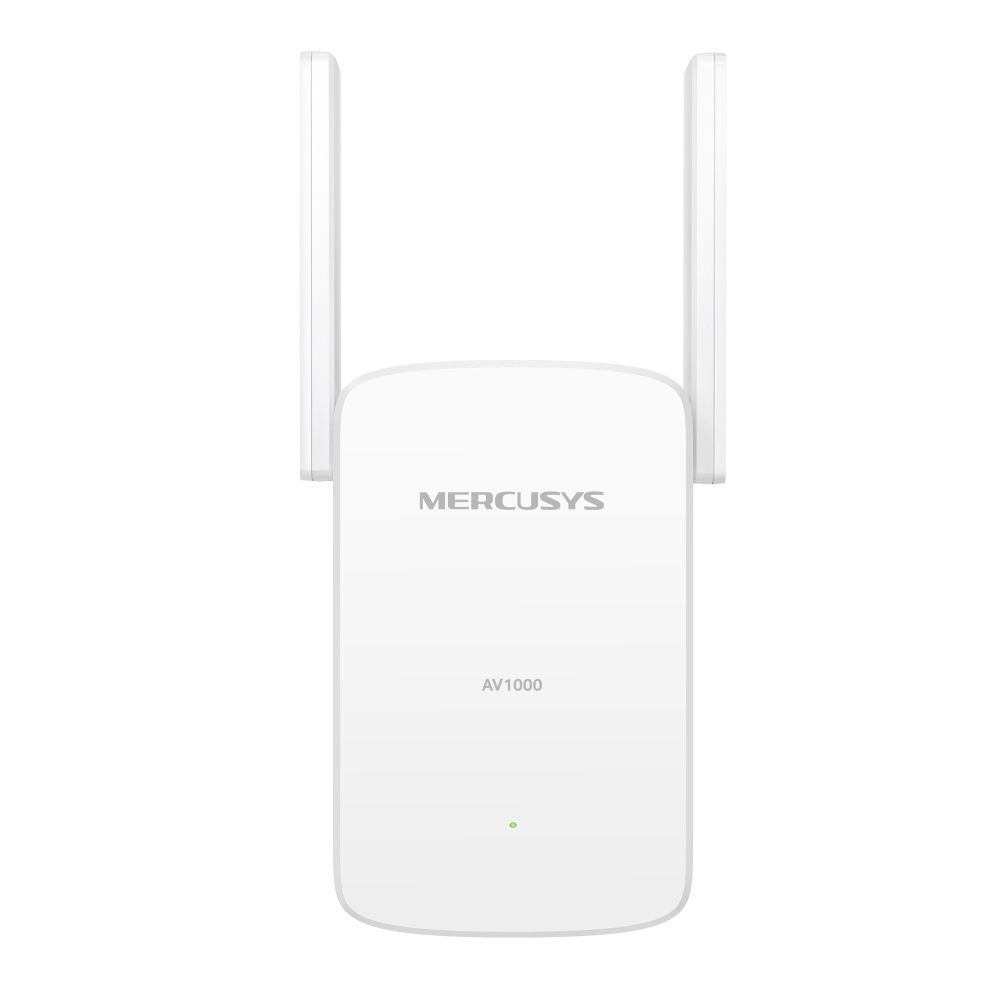

Appearance
* Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline adapters separated between two or more service panels. **Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
-
Wireless
| Wi-Fi Class | N300 |
|---|---|
| Wi-Fi (2.4 GHz) | 300 Mbps |
| Wireless Standards | IEEE802.11b/g/n |
| Max Channel Width | 40 MHz |
-
Hardware
| Standards and Protocols | HomePlug AV2 |
|---|---|
| Dimensions | MP510: 84.6 × 39 × 112 mm |
| Interfaces | MP500P: 1× Gigabit Port |
| Antenna | 2× External Antennas |
| Button | MP500P: 1× Pair/Reset |
| LED | Power |
| Retail Package Dimension | 200 × 146 × 100 mm |
| Units per Carton | 16 |
| Carton Dimension | 425 × 315 × 425 mm |
| Power | MP500P: Maximum: 3.7 W, Typical: 3.1 W, Network Standby: 2 W, Power Saving: 1.1 W |
| Range | Up to 300 meters over an existing electrical circuit |
-
Software
| Modulation Technology | OFDM (PLC) |
|---|---|
| Security | Powerline: 128-bit AES Encryption |
| Device Management | Webpage |
-
Others
| Certifications | CE, RoHS |
|---|---|
| Network Services Enabled by Default | Web Server |
| Package Contents | • AV1000 Gigabit Passthrough Wi-Fi Kit |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) |
