MB230-4G [V1, V1.20, V2] | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
- 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection – Enjoy and share internet access with up to 64 Wi-Fi devices.
- 4G/3G ExternalAntenna Ports – Enable connect external antennas for wider coverage.
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
- EasyMesh Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.△
-
watch video: Faster and Smoother with 4G+ Speed and Dual Band WiFi
Faster and Smoother with 4G+ Speed and Dual Band WiFi
4G +
Cat 6 up to 300 Mbps
Connect up to
64 Devices
Stable and
Strong Signal
SIM Card Plug
and Play
Dual Band 1200 Mbps WiFi
Available WAN
Connection
Enhanced
WPA3 Security
Easy App
Control
867 Mbps
5 GHz
300 Mbps
2.4 GHz

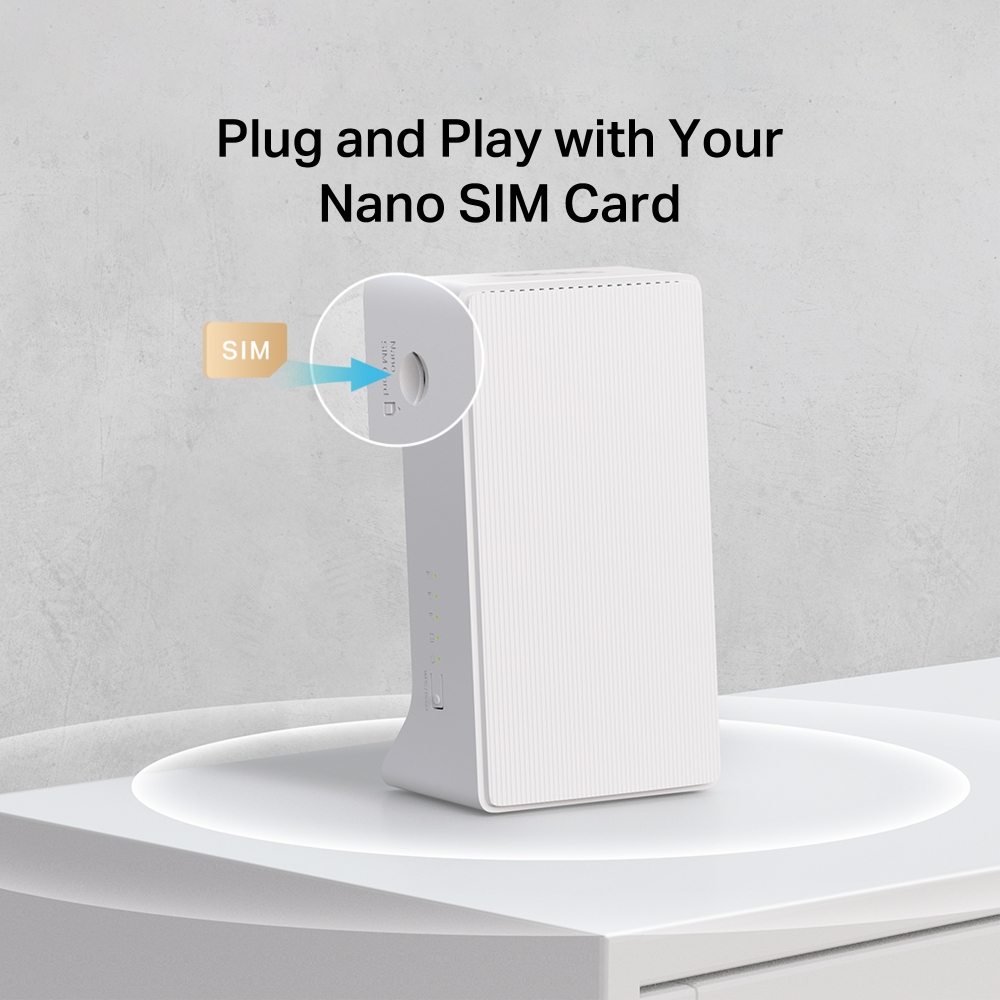

Plug and Play with Your Nano SIM Card
Compatible with FDD-LTE and TDD-LTE, working with most service providers worldwide. Simply insert a nano SIM card and power on the router to share your network with multiple WiFi devices.
Notes: Make sure your SIM card is unlocked. If not, you can:
a. Set up the router via the MERCUSYS app and follow the app instructions to unlock your SIM card.
b. Log in to the router's web management page and go to Advanced > Network > PIN Management to verify.
WiFi Wherever You Need It
Enjoy unmatched convenience and versatility with fast, stable WiFi whether you’re at home or working remotely.
Home Office
Temporary Store
Remote Area
Holiday Home
Extra Fast 4G+ Cat6 Speed for Reliable WiFi
Working as a 4G+ WiFi router, MB230-4G uses 4G+ Cat6 technology to achieve superfast speeds up to 300 Mbps download and 50 Mbps upload. It can also share dual band WiFi network speeds up to 1.2 Gbps. The 2.4 GHz band is perfect for music streaming and online shopping, while the 5 GHz band, with speeds of 867 Mbps, handles bandwidth-intensive HD streaming and gaming.
50 Mbps
300 Mbps
4G LTE
2× LTE Speed
867 Mbps 5 GHz
300 Mbps 2.4 GHz
CH#1
CH#2
4G + Cat 6 Router
Designed for Maximum Network Coverage
Advanced internal LTE antennas ensure fast, stable connections for all your devices, and external antenna ports enable connecting external antennas for wider coverage.
Internal high gain antennas
External
antenna ports
Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G works as a router, which can connect to cable, fiber, and DSL modems or provide internet for wired devices. Its reliable wireless access can serve up to 64 devices simultaneously.
Note: When the router is set to Wireless Router mode, it can be used as the WAN port to connect the DSL/cable Modem or Ethernet outlet. To change to this mode, refer to Set Up the Router in Wireless Router Mode. (You can check the steps in the User Guide.)
Wired Connection
Ethernet WAN
Easy Setup and Management via the MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
Learn More about the MERCUSYS App
Comprehensive Data Control
Flow Switch
Turn your 4G network access on or off to avoid unexpected data usage.
Roaming Switch
If your 4G nano SIM card supports roaming, you can easily turn it on or off to access.
Setting Limit
Set a data limit to prevent overspending and receive SMS alerts as you approach it.
†Maximum wireless signal rates are the physical rates derivedfrom IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors,including building materials, obstacles, volume and density of traffic, and client location. ‡Maximum 4G download speeds depend on external factors such as the local 4G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. △EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. *Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
MERCUSYS
The MERCUSYS app provides the easiest way for you to set up in minutes and manage your WiFi at home or away through your iOS or Android devices.
MERCUSYS Helps You Set Up in A Few Steps
Without any technical know-how or reading complicated instructions, simply follow the in-app instructions. Set up your mesh network in minutes.
-
Halo Power Cable Ethernet CableStep 1
Find what you’ll need in the box
-
Step 2
Plug in your devices
-
Step 3
Follow the on-screen directions with the MERCUSYS app
Manage Your WiFi in Real Time
With the MERCUSYS app, experience live network management. See who’s connecting to your network and manage it at any time with your iOS or Android devices.
Notice: The configuration page of different models may be different, please refer to the actual one.
Powerful Parental Controls
Easily manage your kids’ online time and content to create a safe and healthy online environment.
-
Create User Profiles
Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.
-
Online Time Limits
Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices for a long time to build a healthy network habit.
-
Block Inappropriate Websites
Control which sites your kids visit by setting a block list.
-
Pause Internet Connection
Suspend family members’ internet connections to take a break from the virtual world to enjoy some family time.
Manage and Secure Your Home Network
The MERCUSYS app helps you manage your WiFi at home or away through your iOS or Android devices.
Check the Status of Connected Devices
Intuitively view the working status of your Halo network and see what is connected. Prioritize or block devices as needed.
Quality of Services
Prioritizes devices you select to perform better.
New Device Access Alert
The MERCUSYS app proactively sends out an alert to inform you when an unfamiliar device is connected. Tap to block the device if it is a security risk.
Set Up a Guest Network
Provides a separate network for guests to ensure your security and privacy.
Everything in One App
Whether you’re looking to control a wide range of MERCUSYS routers, extenders, or Halo mesh systems, find it all on the app.
See what’s compatibleCompatible Products
Note: The device's firmware requires the latest version. Click here to learn how to upgrade your firmware.
Note: Both listed and higher hardware versions of these models are compatible with the MERCUSYS app.
Supporting Multiple Languages
MERCUSYS app supports up to 26 languages, enabling easy network management for users all over the world.
-
English
-
Nederlands
-
Français
-
Deutsch
-
Italiano
-
日本語
-
한국어
-
Português
-
Español
-
繁體中文
-
Русский язык
-
Português Brasil
-
Español
(Latinoamérica) -
Български
-
Українська мова
-
Polski
-
Română
-
Slovenčina
-
ไทย
-
Türkçe
-
Čeština
-
Tiếng Việt
-
Eλληνικά
-
Bahasa Melayu
-
Magyar
-
עברית
- Cellular
- Cellular Standards
- Cat 6
300/50 Mbps DL/UL - Cellular Bands
- EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) - SIM
- 1× Nano SIM Card Slot
- Wireless
- Wi-Fi Class
- AC1200
- Wi-Fi (2.4 GHz)
- 300 Mbps
- Wi-Fi (5 GHz)
- 867 Mbps
- Wireless Standards
- IEEE 802.11ac/a/b/g/n
- Max Channel Width
- 80 MHz
- Reception Sensitivity
- 11g 6 Mbps: -95 dBm
11g 54 Mbps: -77 dBm
11n HT20 MCS7: -74 dBm
11n HT40 MCS7: -71 dBm
11a 6 Mbps: -92 dBm
11a 54 Mbps: -75 dBm
11ac VHT20 MCS8: -70 dBm
11ac VHT40 MCS9: -65 dBm
11ac VHT80 MCS9: -61 dBm - MAX Capacity
- 64
- Recommended Clients Limit
- 32
- Wireless Security
- WPA-PSK / WPA2-PSK / WPA3-SAE
- Wireless Functions
- Smart connect
WPS
Wireless Schedule
- Hardware
- Dimensions
- 95 × 61.05 × 165.97 mm
(3.74 × 2.40 × 6.53 in) - Interfaces
- 1× GE LAN/WAN Port
1× GE LAN Port
2× 4G/3G External Antenna Ports(Only v1.20)
1× Nano SIM Card Slot - Antenna
- Internal
- Button
- 1×WPS/Reset Button
- Installation
- Desktop
- LED
- 1× POWER
1× LAN
3× Signal - Retail Package Dimension
- 210 × 132 × 110.5
- Units per Carton
- 12
- Carton Dimension
- 430 × 275 × 340
- Software
- Cellular Mode
- 4G Mode
3G Mode - Cellular APN
- Data Roaming
Band Search
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management - WAN Mode
- Dynamic IP
Static IP
PPPoE
PPTP
L2TP - NAT Forwarding
- ALG
Virtual Server
Port Triggering
UPnP
DMZ - Protocols
- IPv4
IPv6 - Data Settings
- Data Statistics
Data Limit - Guest Network
- 2.4 GHz Guest Network
5 GHz Guest Network - Parental Controls
- Time Control
Website Filtering - DHCP
- Server
DHCP Client List
Address Reservation - DDNS
- DynDNS
NO-IP - SMS
- Inbox
New Message
Outbox
Drafts - QoS
- √
- Security
- IPv4 SPI Firewall
Access Control
IP & MAC Binding
IPv6 Firewall - ISP Feature
- TR-069
- System
- Time & Language
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings - LED Management
- LED Control
Night Mode - Device Management
- MERCUSYS APP
Web GUI - Cloud
- Firmware Upgrade over the Cloud
Remote Management - Language
- English
Deutsch
Español
Français
Italiano
Polski
Русский
- Others
- Certifications
- CE
- Network Services Enabled by Default
- Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
DNS proxy
Processing DNS packets (DNS)
• Port: 53 Protocol: TCP/UDP
App management
Manage and configure device through app
• Port: 20002 Protocol: UDP - Package Contents
- 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide - Environment
- Operating Temperature: 0 °C~40 °C (32 °F~104 °F)
Storage Temperature: -40 °C~60 °C (-40 °F~140 °F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
