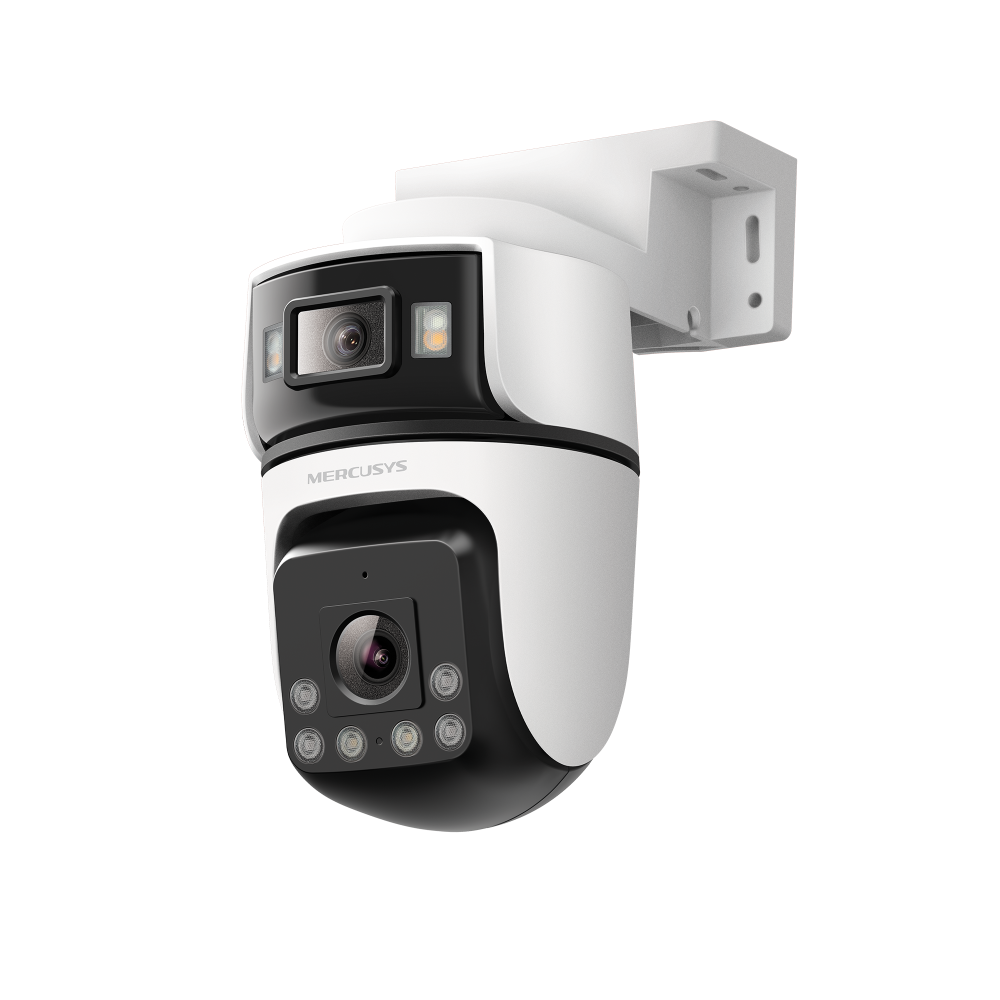

MC545D [V1] | Outdoor Dual Lens Pan/Tilt Security Camera
MC545D
Outdoor Dual Lens Pan/Tilt Security Camera

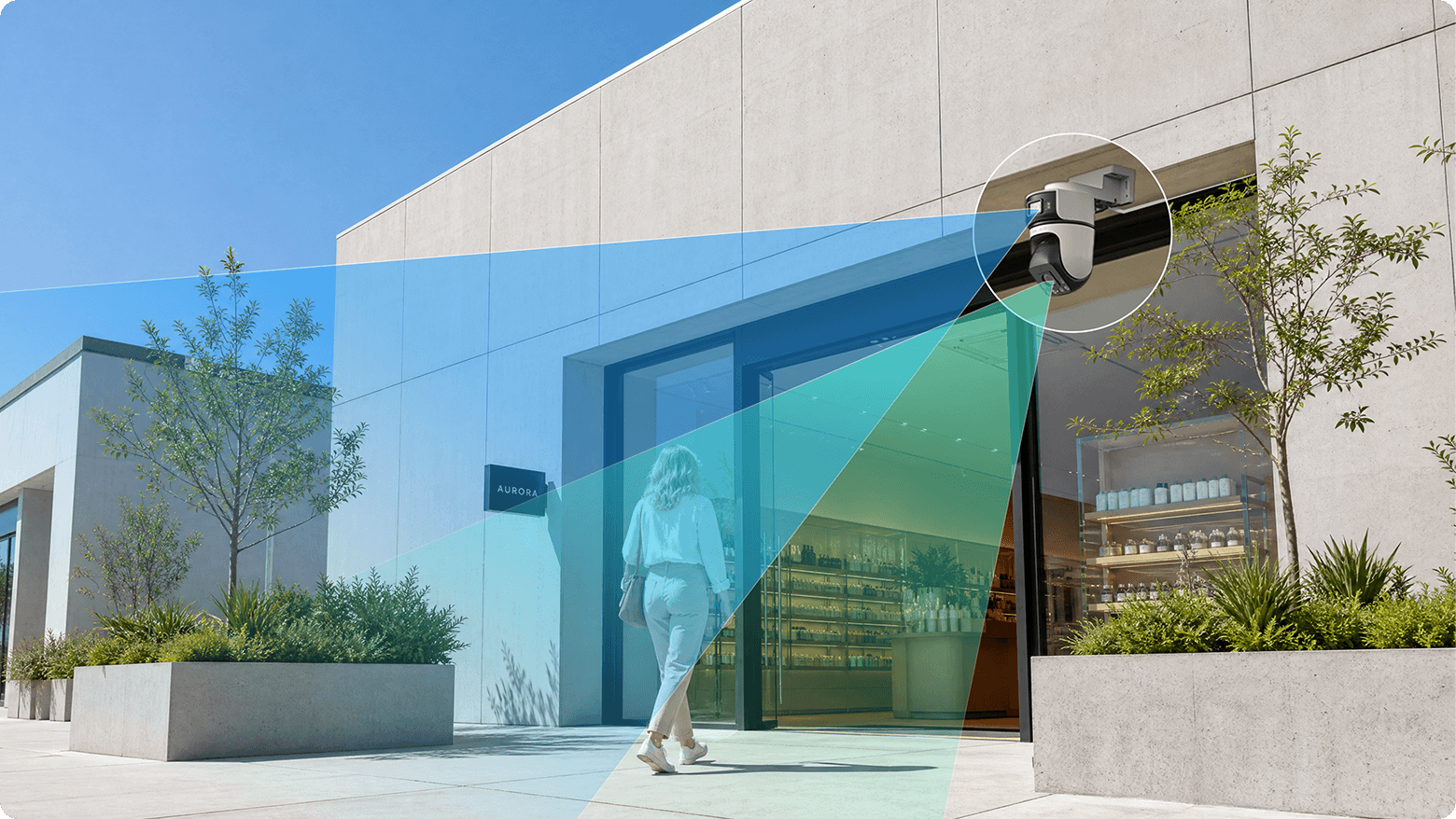

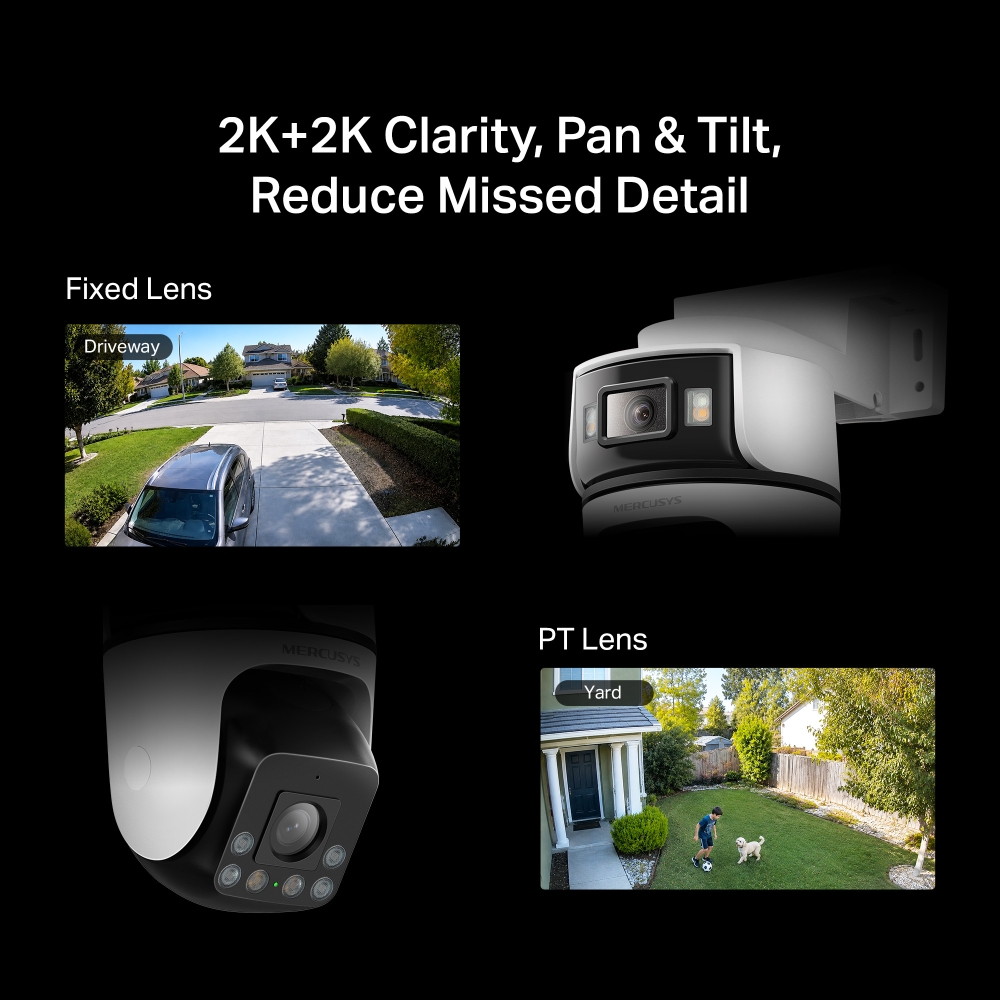

- Dual Views, Fewer Outdoor Blind Spots – Watch two areas at once with a fixed lens for key-area coverage and a pan-tilt lens for flexible viewing around your driveway, yard, gate, or storefront.

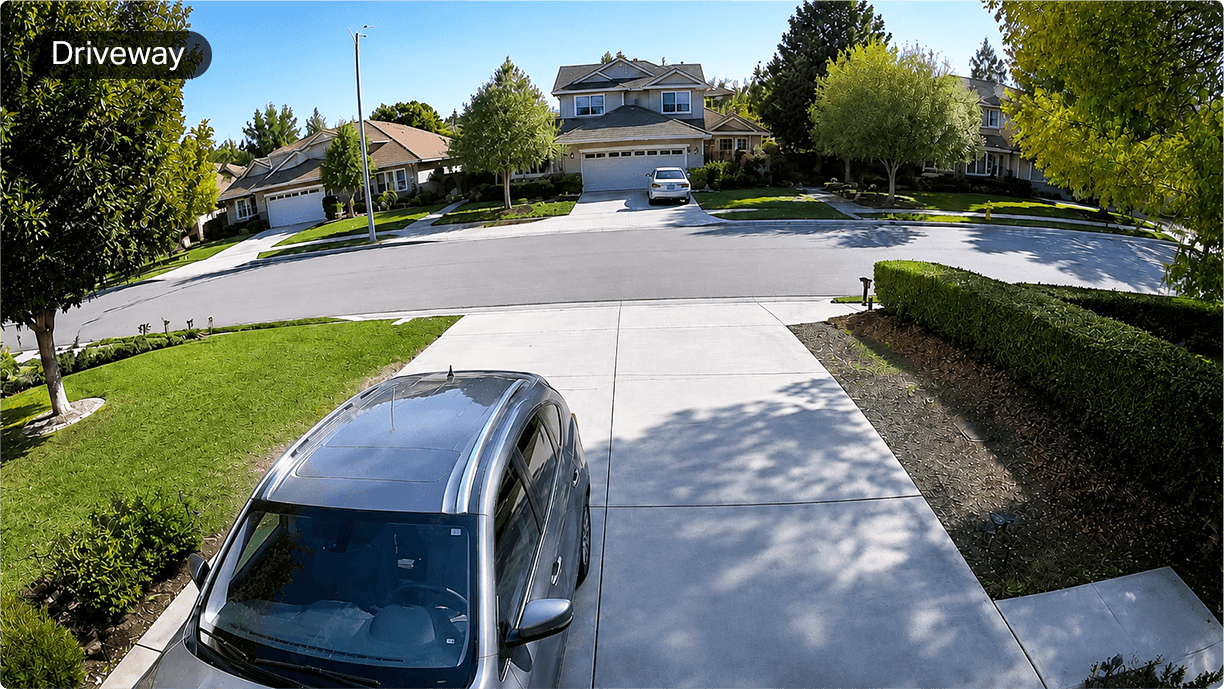

- 2K + 2K Clarity, Color Night Vision – Dual 2K lenses capture sharper details, helping you recognize people, vehicles, packages, and movement more clearly in live view or playback.
- Free AI Detection & Auto Tracking – The pan-tilt camera follows detected motion, while person and motion detection help you focus on important activity and reduce unnecessary checking.

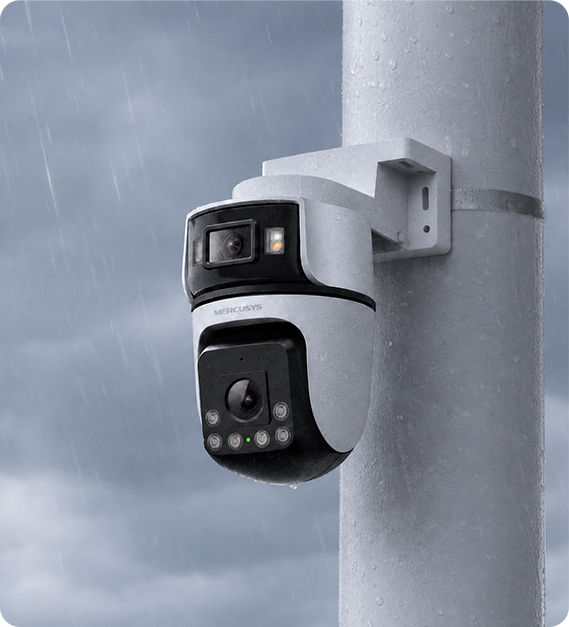

- Easy Setup & Active Deterrence – Connect via Wi-Fi or wired Ethernet for flexible setup. Built with IP65 weather resistance for outdoor use and red-and-blue warning lights to help deter unwanted visitors around your home, or business.

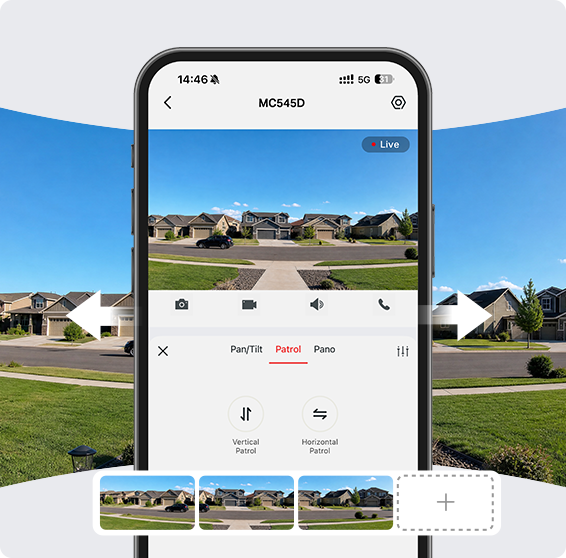

- App Control & Storage Options – Use the MERCUSYS app to view live footage, receive alerts, and talk through the camera. Save recordings locally with a microSD card or choose cloud storage for added flexibility.†
†microSD card sold separately. Actual storage capacity depends on the size of the microSD card used. Subscribe for cloud storage at https://www.mercusys.com/cameracare/ ‡Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device's specifications. *The Fixed lens can be manually adjusted, and the PT lens can be remote adjusted through Mercusys App. **Product appearances and specifications can change without prior notices.
-
Camera
| Image Sensor | Fixed Lens & Pan-Tilt Lens: 1/2.8” CMOS Sensor |
|---|---|
| Lens | Fixed Lens & Pan-Tilt Lens: |
| Motion Range | Fixed Lens: |
| Night Vision | Fixed Lens & Pan-Tilt Lens: |

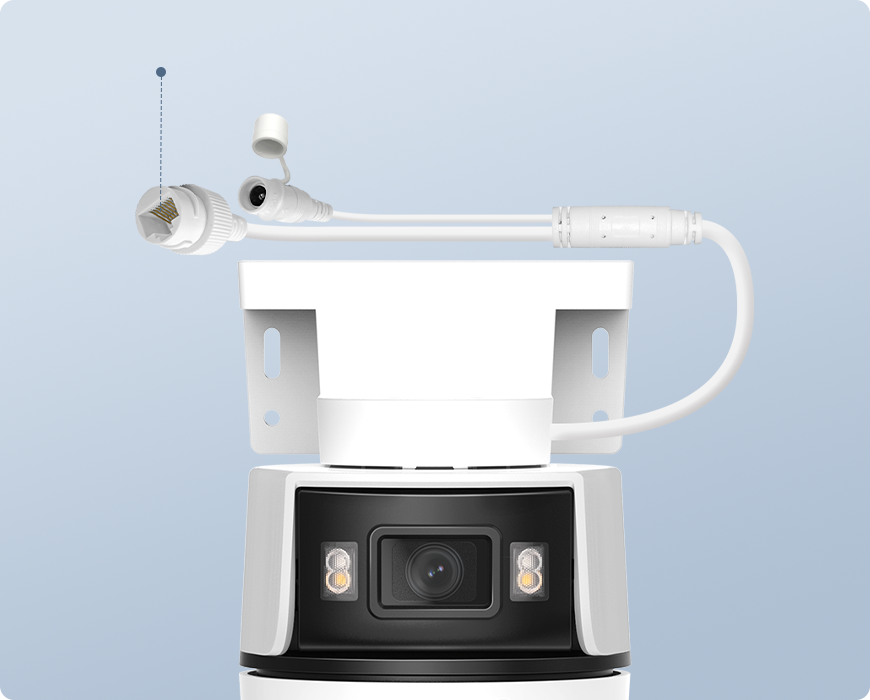

| Interface & Button | Ethernet Port |
-
Video & Audio
| Maximum Resolution | Fixed Lens & Pan-Tilt Lens: 2K (2304 × 1296 px) |
|---|---|
| Digital Zoom | Fixed Lens & Pan-Tilt Lens: 10.8 × |
| Frame Rate | 15 fps |
| Live View | Yes |
| Image Enhancement | WDR |
| Audio Input & Output | Built-In Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99.4 dB (Level measured at 4-inch/10-cm distance) |
-
Hardware
| Power | Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.30 W. How to activate and deactivate wireless network: The wireless function can be automatically disconnected by connecting the wire. |
|---|
-
Storage

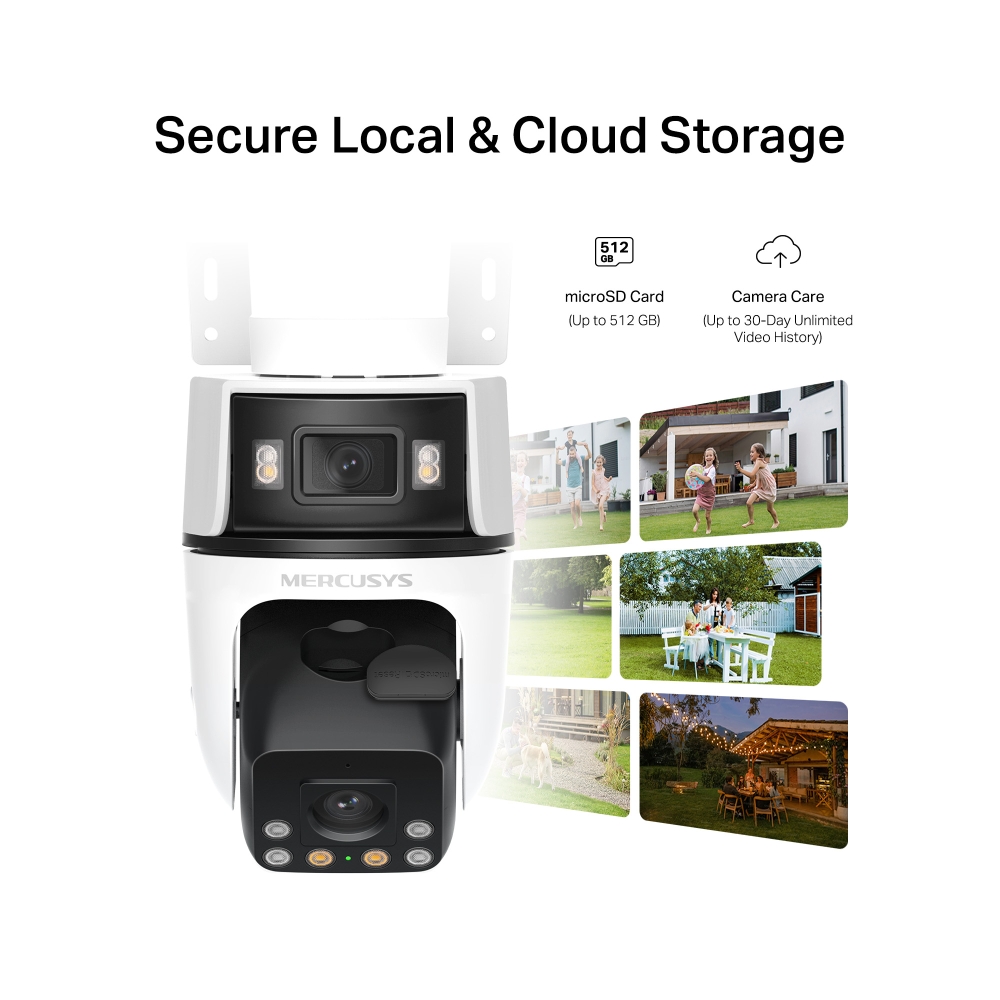

| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
|---|---|
| Cloud Storage | MERCUSYS Camera Care Cloud Storage Services (Subscription required) |
-
Software
| Security | 128-bit AES Encryption with SSL/TLS |
|---|
-
Network
| Network Connectivity | Connect via Wi-Fi or Ethernet |
|---|---|

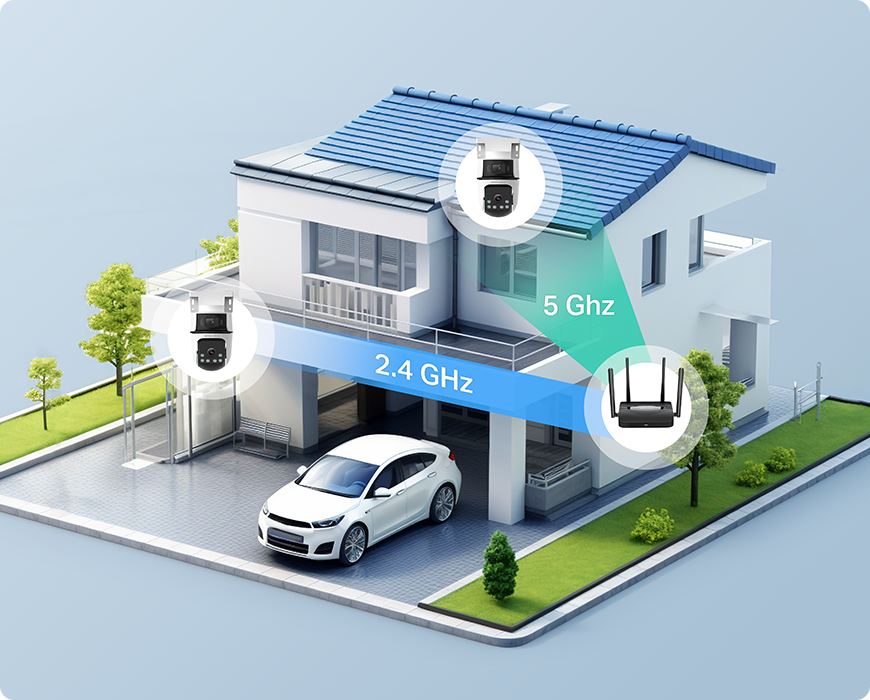

| Wireless Connectivity | IEEE 802.11 a/b/g/n 2.4 GHz /5 GHz Wi-Fi |
| RTSP | Yes |
| ONVIF | Yes |
-
Power
| Power Source | 12V DC Power Adapter |
|---|---|
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12.0 V, 1.0 A (DC Power) |
-
General
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
|---|---|

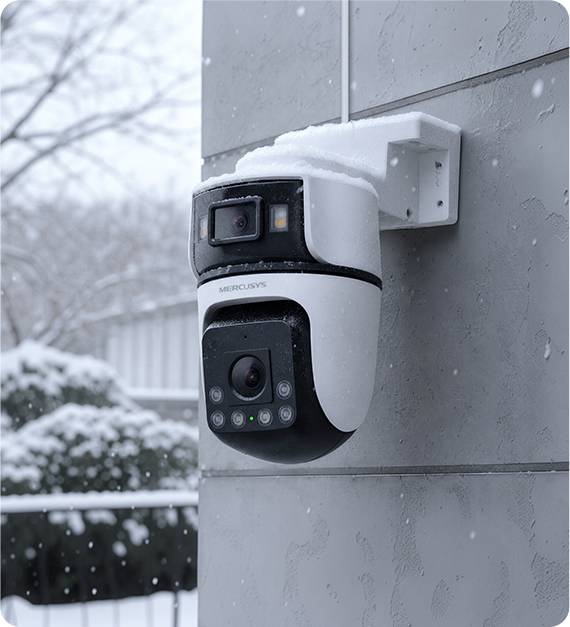

| Weather Resistance | IP65 |

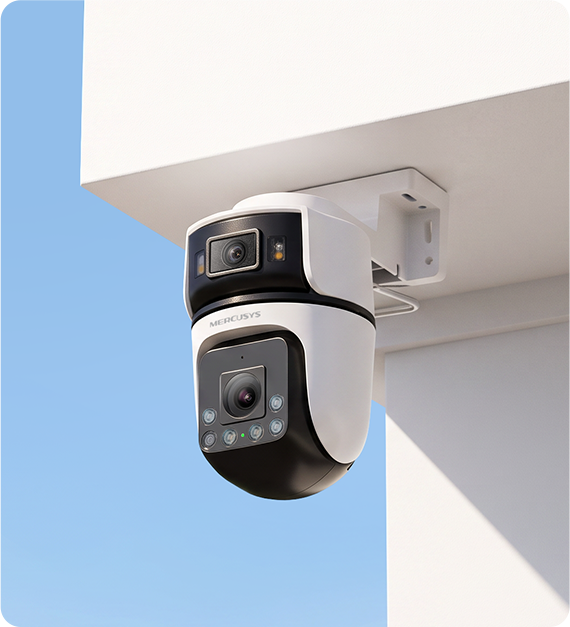

| Mounting Options | Ceiling-Mounted |
| Operating Temperature | -20 ℃~50 ℃ (-4 ℉~122 ℉) |
| Storage Temperature | -40 ℃~60 ℃ (-40 ℉~140 ℉) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%~90% RH, Non-condensing |
| Dimensions ( W x D x H ) | 98.6 × 151.0 × 188.6 mm (3.88 × 5.94× 7.43 in) |
-
Detection & Notifications
| AI Detection | Motion Detection |
|---|---|

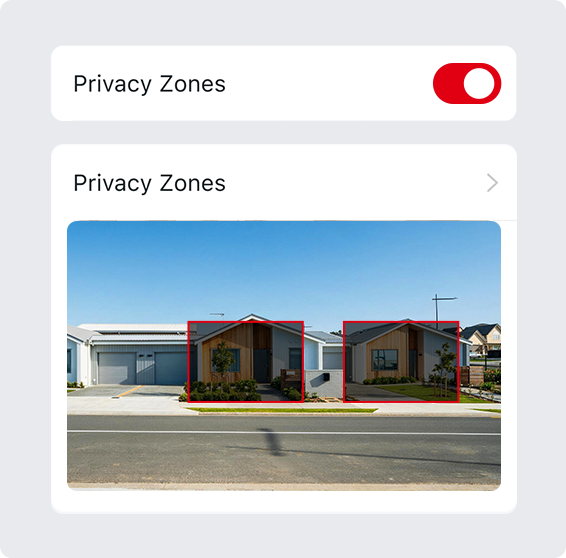

| Activity Zones | Yes |
| Output Notification | System Notification |
-
Others
| Certifications | CE,NCC,BSMI,NTRA,KC,RCM, EAA |
|---|---|
| Package Contents | MC545D Camera (Mounting Bracket Include) × 1 |
