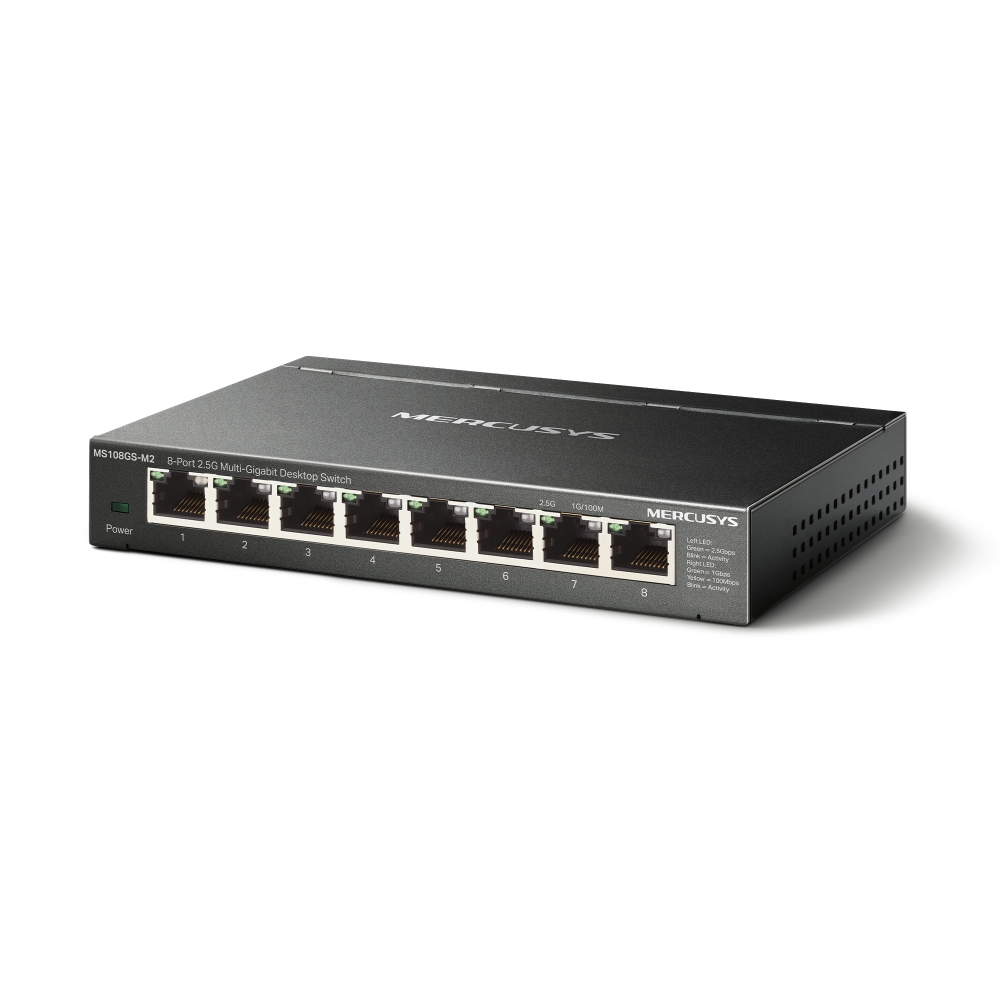

MS108GS-M2 [V1, V2] | 8-Port 2.5G Multi-Gigabit Desktop Switch

Coming Soon

8-Port 2.5G Multi-Gigabit Desktop Switch



•Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, providing up to 40 Gbps of switching capacity.
•Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6E/6 AP, 4K video, and more.
•Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
•Loop Prevention. Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
•Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
•Silent Operation. Industry-leading fanless design ensures silent operation, ideal for noise-sensitive environments.
•Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
•Plug and Play. Easy installation, no configuration required.



Overview

High Speed Transmission
High Efficient Working

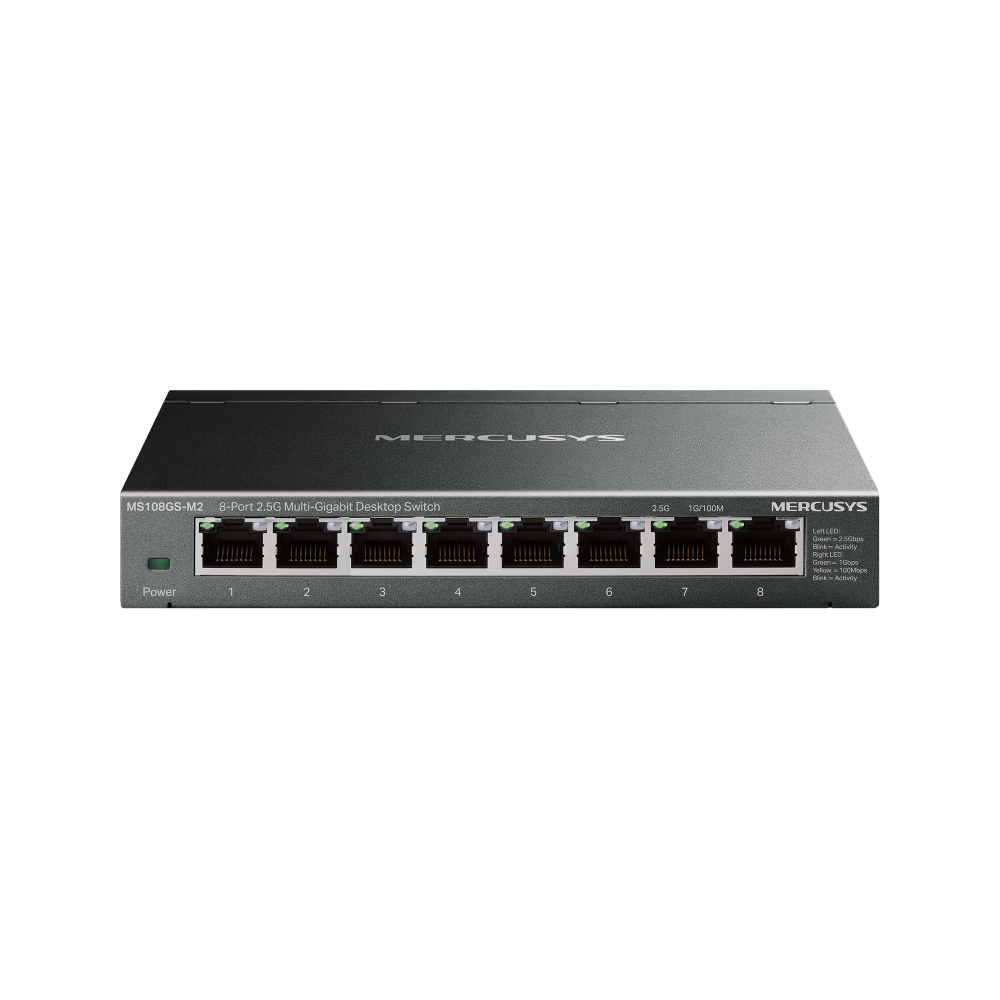

8-Port 2.5G Multi-Gigabit Desktop Switch

MS108GS-M2

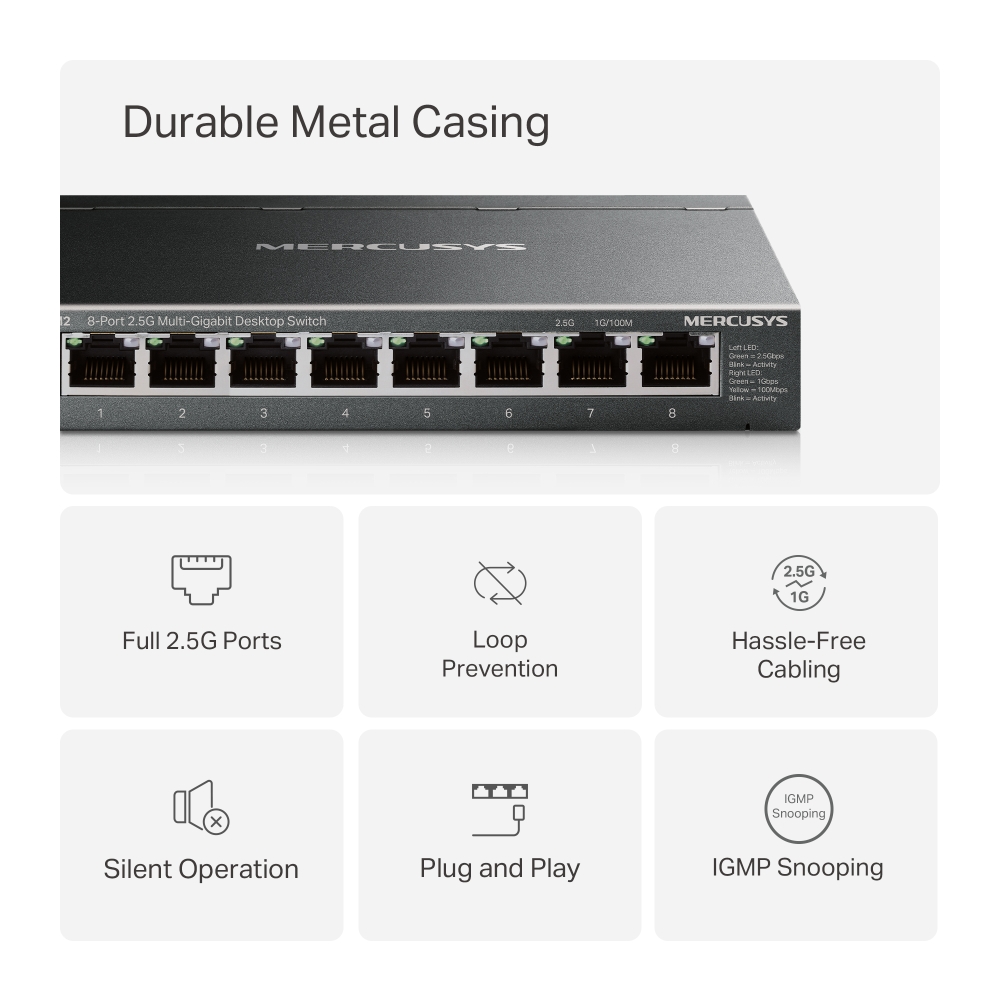

Durable Metal Casing
Full 2.5G Ports
Loop Prevention
Hassle-Free Cabling
Silent Operation
Plug and Play
IGMP Snooping

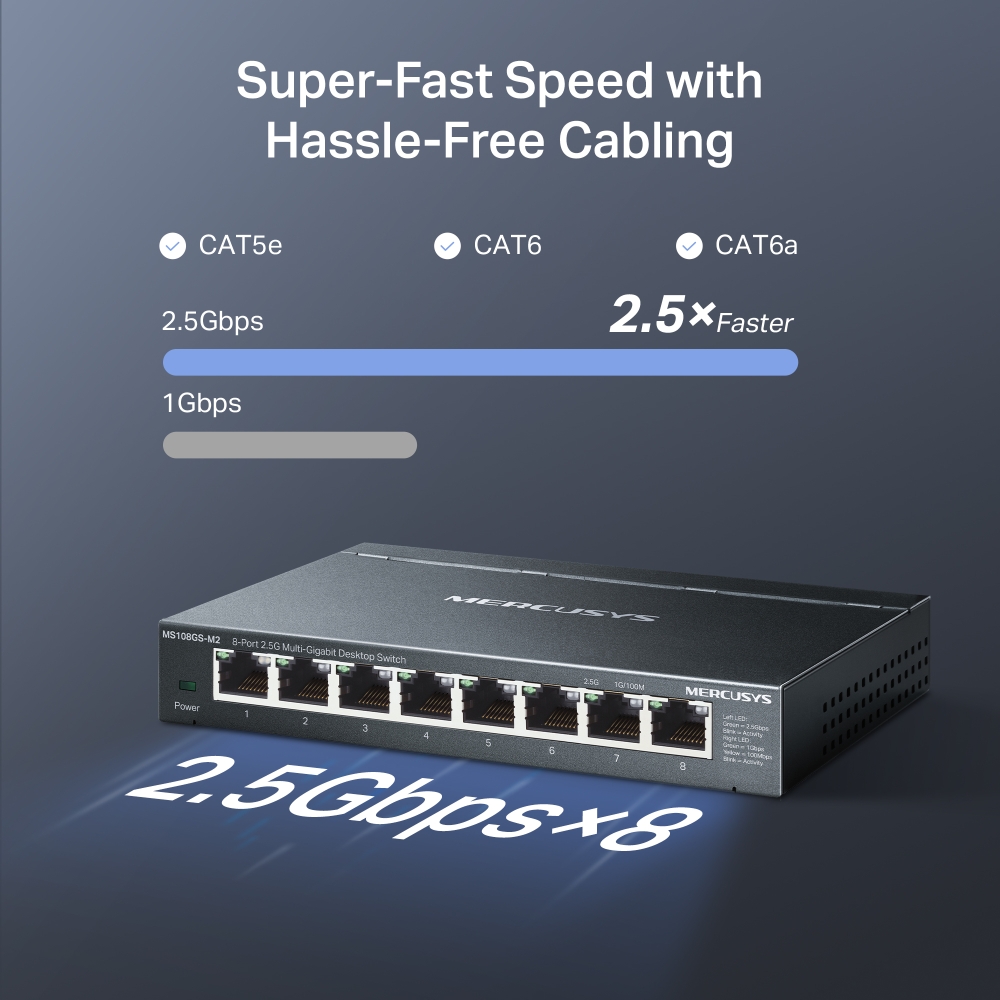

Super-Fast Speed with Hassle-Free Cabling

MS108GS-M2 delivers 2.5 times faster network performance than traditional Gigabit switches. With Hassle-Free Cabling technology, it works with Cat5e; Cat6; Cat6a and above cables without upgrading your cabling.

  • CAT5e

  • CAT6

  • CAT6a

  • 2.5Gbps 2.5× Faster

  • 1Gbps

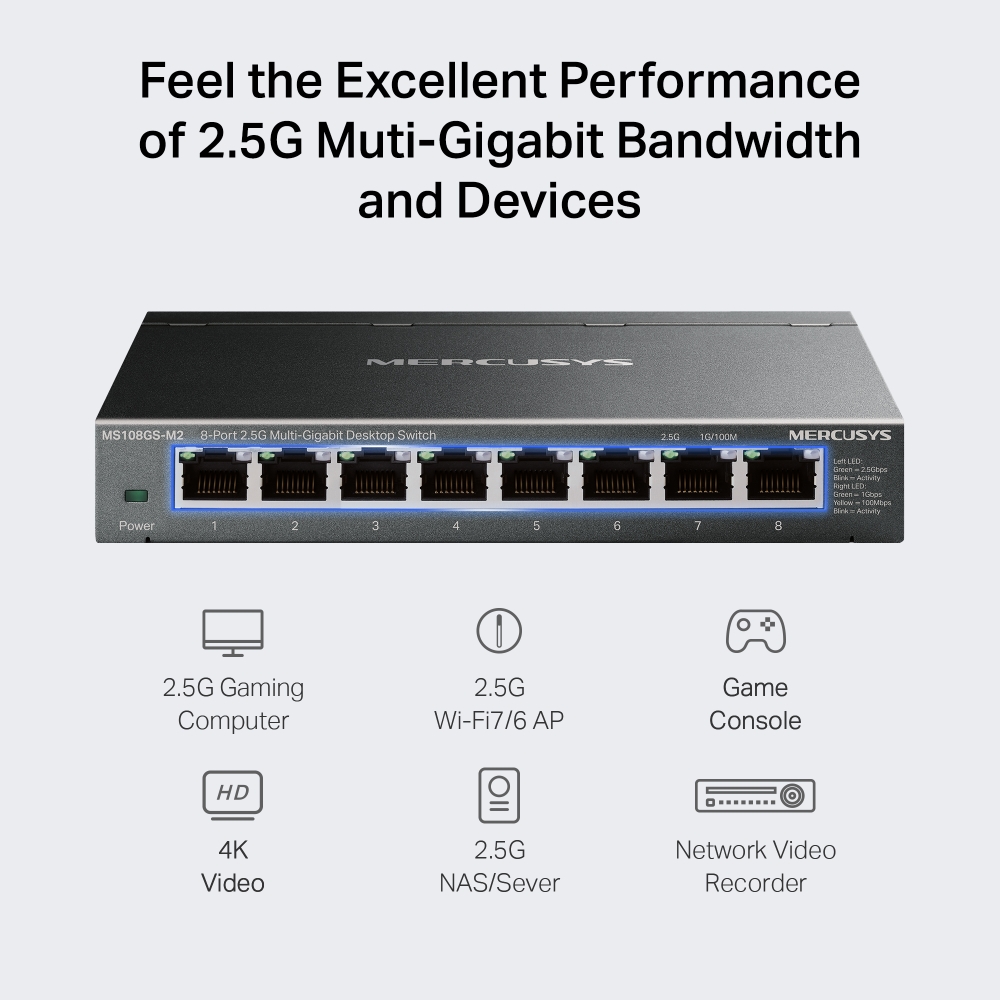

Feel the Excellent Performance of 2.5G
Muti-Gigabit Bandwidth and Devices

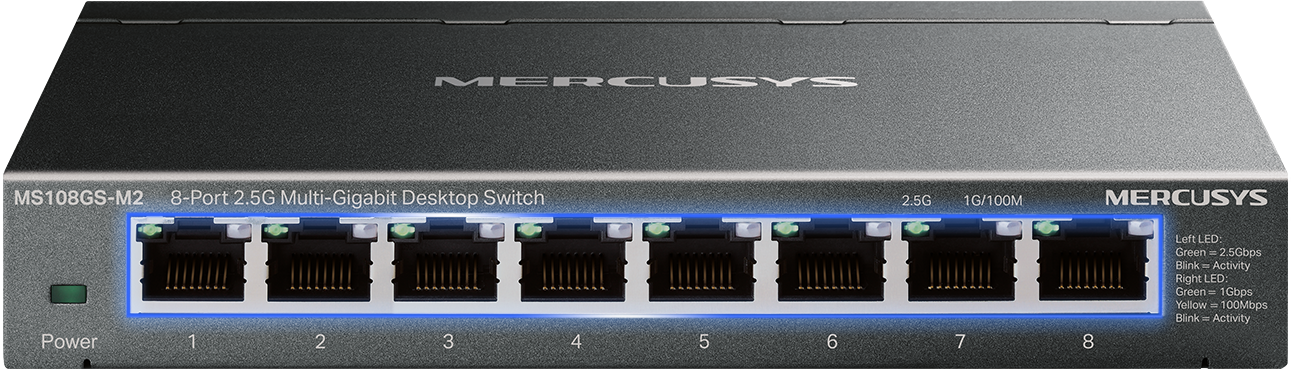

MS108GS-M2 is flexible and fully compatible with computer, AP, 4K Video, game console and more. This makes it perfect for use in café, small office, and even dormitory environments.

MS105GS-M2

  • 2.5G Gaming
    Computer

  • 2.5G
    Wi-Fi7/6 AP

  • Game
    Console

  • 4K
    Video

  • 2.5G
    NAS/Sever

  • Network Video
    Recorder

Prevent Network Loops

Automatically detect loops and block the corresponding port while the power and port indicator flash slowly to alert. Easy to monitor and address loop-related issues within your network.

Detection
Loop Prevention Mode Button
Loop Prevention

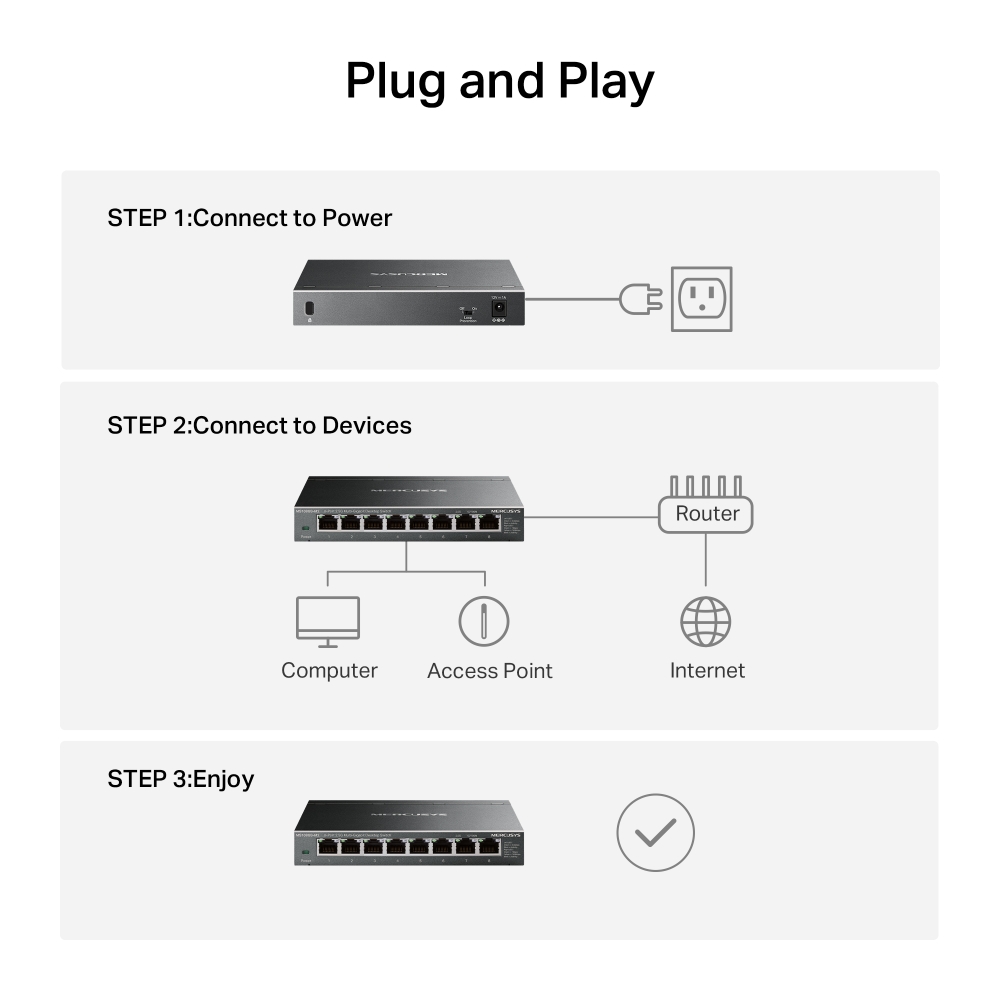

Plug and Play

MS108GS-M2 offers auto-negotiation; automated MDl/MDIX and QoS. There is no additional configuration needed. lt is simple to use, saving time and effort.

STEP 1:
Connect to Power
STEP 2:
Connect to Devices
STEP 3:
Enjoy
Router
Computer
Access Point
Internet

Durable, Silent, and Flexible

  • Durable & Silent

    MS108GS-M2’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated.

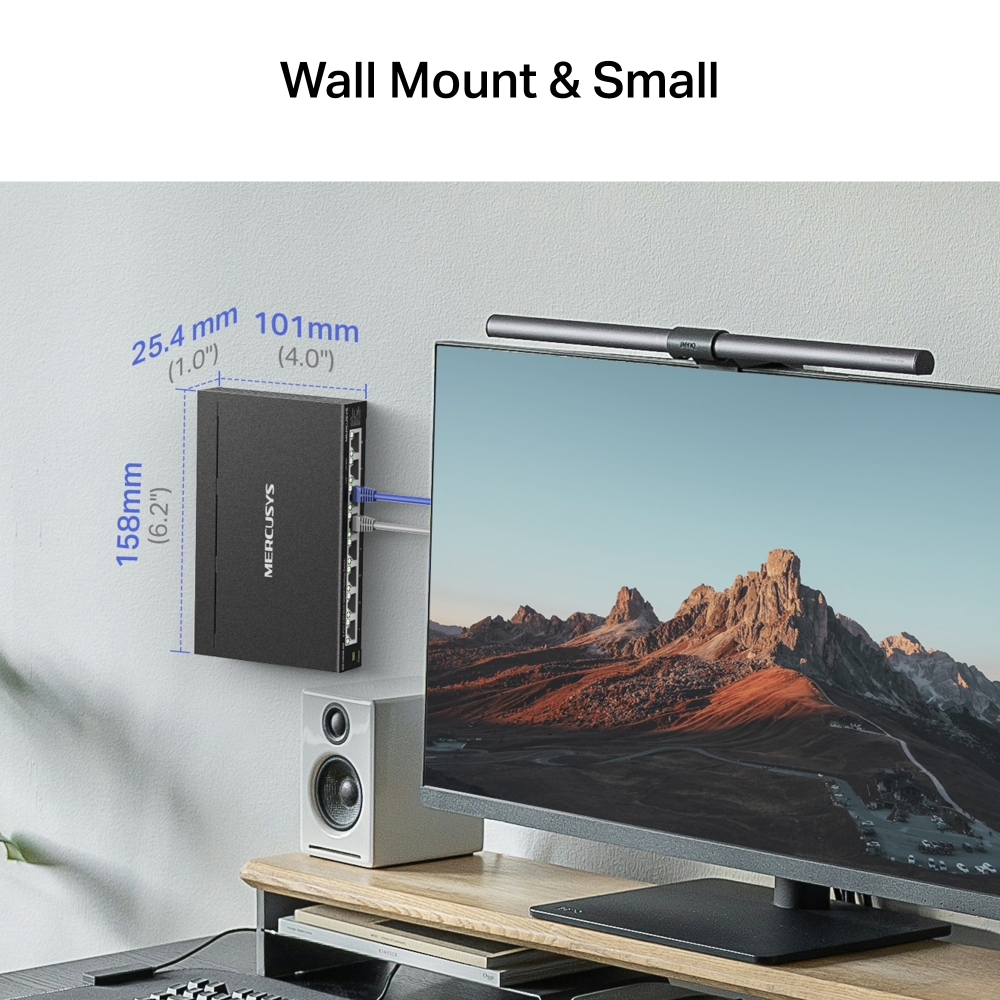

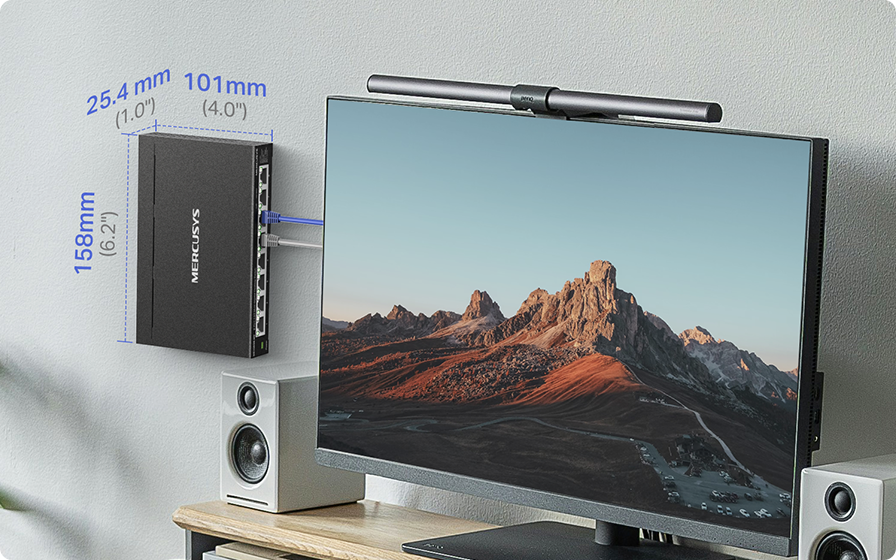

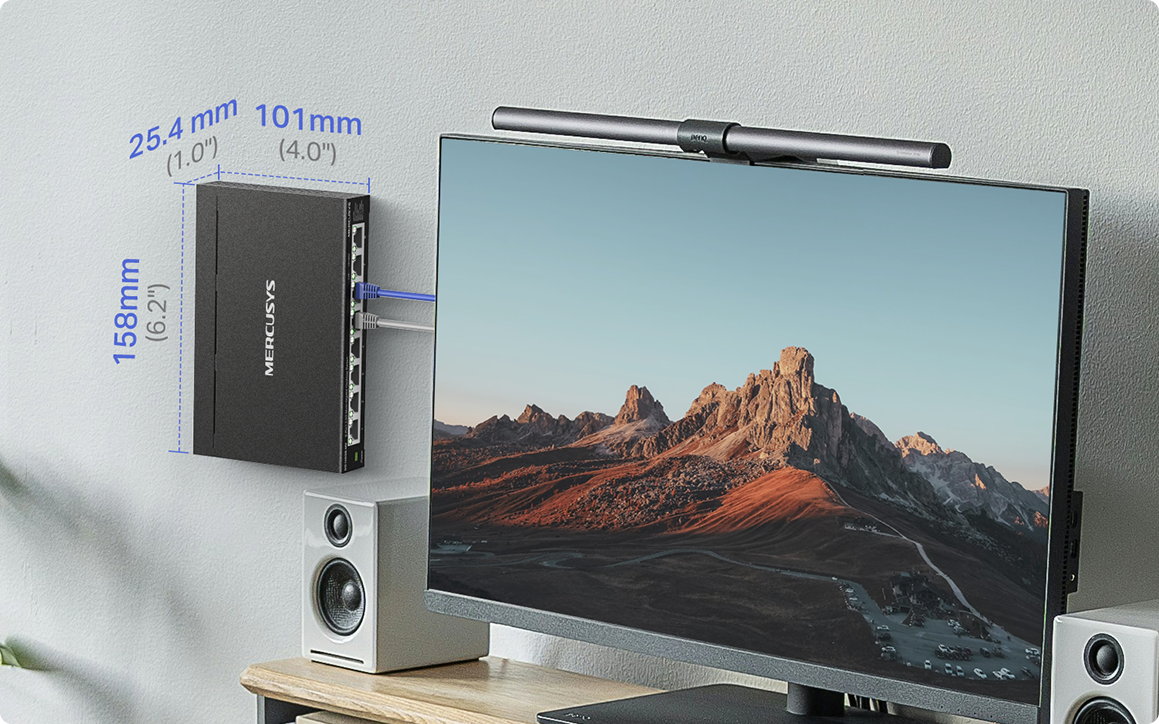

  • Wall Mount & Small

    MS108GS-M2 is flexible and small, you can put it on desk or wall mount to meet your demand.

Multiple Application Scenarios

  • Small Office

    For computers and printers

  • Wi-Fi Coverage

    For APs in café, store and restaurant

  • Workstation

    For professional needs

  • LAN Parties

    For entertainment with friends

*Only Cat5e or better cables do not need to be replaced

ErP information:
（1） Power consumption in networked standby: 2.7 W.
（2） Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 8.2 W.
（3） The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: 20 minutes.

Specifications

Hardware
Standards and Protocols

IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Dimensions

6.2 × 4.0 × 1 in (158 × 100.7 × 25.4 mm)
Interfaces

8× 100 Mbps/1 Gbps/2.5 Gbps Auto-Negotiation RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Button

1× Loop Prevention Button
External Power Supply

External Power Adapter (Output: 12 VDC / 1.0 A)
Installation

Desktop
Wall-mount
Fan Quantity

Fanless
Jumbo Frame

12 KB
Switching Capacity

40 Gbps
LED

• Power
• Link/Act Indicators
Retail Package Dimension

7.40 × 5.31 × 3.68 in (188 × 135 × 93.5mm)
Units per Carton

16
Carton Dimension

15.55 × 7.48 × 15.75 in (395 × 190 × 400mm)
MAC Address Table

4K
Max Power Consumption

9.11 W
Max Heat Dissipation

30.974 BTU/h
Software
Transfer Method

Store-and-Forward
Advanced Features

• Loop Prevention
• 802.3X Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Performance
Packet Forwarding Rate

29.76 Mpps
Others
Certifications

CE, RoHS
Package Contents

• 8-Port 2.5G Multi-Gigabit Desktop Switch MS108GS-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment

• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
